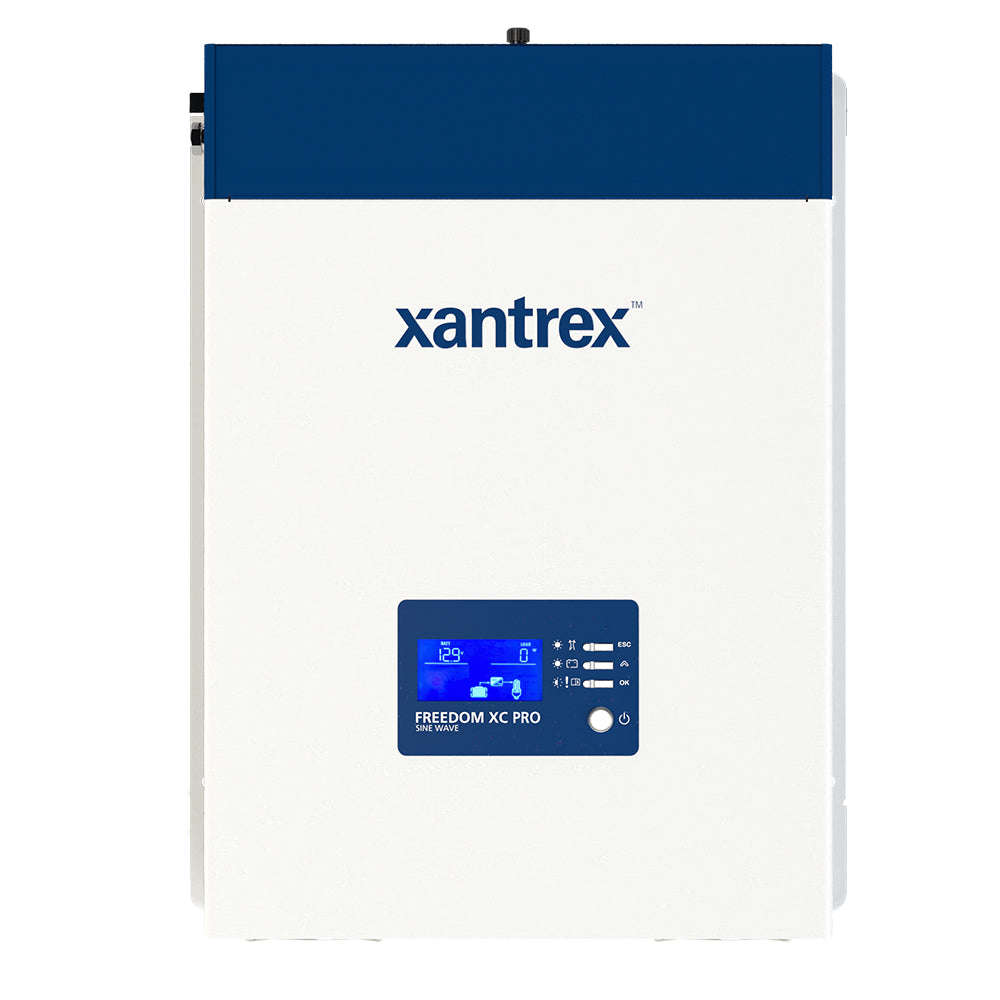

Xantrex Freedom XC Pro 2000W Marine Inverter Charger - 12VDC 818-2015

The Xantrex Freedom XC Pro Marine 2000 is a versatile and flexible AC power solution for marine environments. This true sine wave inverter comes with a built-in lithium-ion battery charger and transfer switch, making it a compact and lightweight option for boaters. It supports seamless integration with third-party monitoring and control systems, and its extended surge rating enables compressor loads such as air conditioners or fridges to start reliably.

Product Features:

• Extended Surge Rating: Surges to 2X continuous power for 5 seconds for motor loads
• True Sine Wave AC Power: For operation of sensitive and motor loads
• Ignition Control: Feature to turn inverter on/off via a 12 VDC signal and to minimize battery drain by switching the inverter off when the ignition key is turned off
• Wide 10-18 VDC Input Range: Ensures inverter operation on high voltage alternators found on many new vehicle chassis
• Programmable AC Under-Voltage (85-110VAC) Shutdown: Feature ideal to operate under weak shore power or generator input
• Easily configurable settings to charge any lithium-ion battery
• Power Factor Corrected Multi-Stage Charging: Utilizes less shorepower when charging batteries. This frees up more usable AC power for running electrical devices and appliances and reduces the likelihood of tripping shorepower breakers
• Programmable: Configurable 3 stage temperature compensated battery charge algorithm for optimal charging of almost any battery type up to 18V
• Battery Equalization: Maximizes flooded battery life
• Dead Battery Charging Down to 0 Vdc
• Power Share: Prioritizes AC loads by reducing the charge current and maintaining the total input current to less than the breaker setting

Specifications:

• ELECTRICAL SPECS - INVERTER
• AC Output Operating Voltage Options: 120, 110, 108 Vac
• Continuous Output Power: 2000 W at 40 C True sine wave (TSW)
• Continuous AC Output Current: 16.7 A
• Surge Power: 4000 W (? 5 sec)
• Frequency (Configurable): 60 (or 50) Hz
• Peak Efficiency: 91%
• Full Load Efficiency: greater than or equal to 86%
• DC Input Operating voltage range: 10.1 - 18.0 VDC
• DC Input Max Non-Operating Voltage: 25.2 Vdc
• DC Nominal Current at Full Load: 192 Adc
• ELECTRICAL SPECS - BATTERY CHARGER
• Min Battery Voltage for Charging: 0.0 Vdc
• Max DC Output Voltage: 18.0 Vdc (custom battery type)
• Selectable DC Output Current: User Selectable: 5 - 100 A
• Full Load Max AC Input Current: 24 Arms
• Max DC Charge Current (selectable down to 5A): 100A
• Operating Input AC Pass-Through Voltage Range: 85-140 Vac
• Safe Non-Operating Input AC Voltage Range: Up to 240 Vac RMS
• Power Factor at Full Charge Rate: > 98%
• GENERAL SPECS
• Operating Temperature Range: 4 to 140 F (-20 to 40 C)

Learn More:

For more information about inverter chargers, check out the Wikipedia page on inverters.

To learn more about marine electrical systems, visit the Wikipedia page on marine electrical systems.

Product: Xantrex Freedom XC Pro 2000W Marine Inverter Charger - 12VDC 818-2015

Brand: Xantrex

Model: 818-2015

Shipping Weight: 20.53 lb

Shipping Height: 5.00 in

Shipping Width: 15.00 in

Shipping Length: 15.00 in
