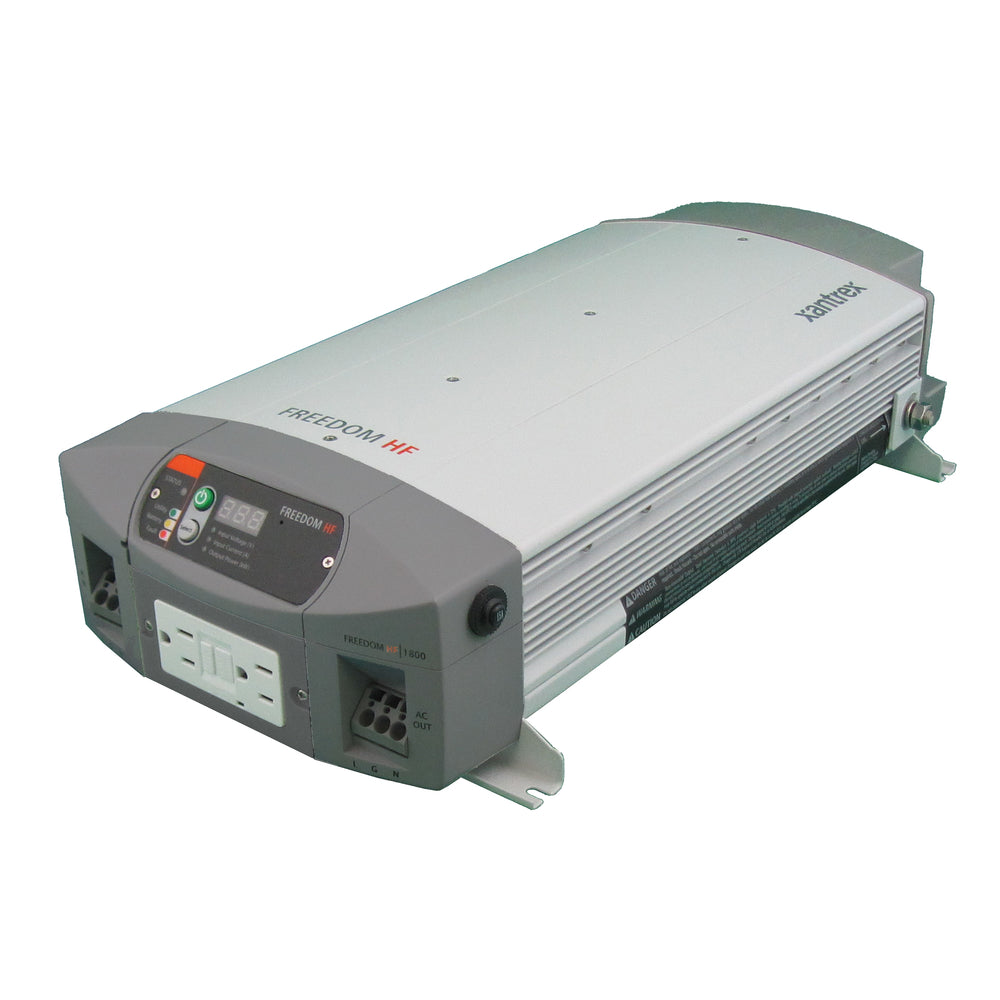

FREEDOM HF INVERTER/CHARGER (XANTREX)

The FREEDOM HF INVERTER/CHARGER (XANTREX) is a versatile and reliable power solution for boats, RVs, and trucks. This compact and lightweight inverter/charger is designed to power demanding loads such as microwave ovens, TVs, DVD players, small appliances, and other electronic equipment. With its quick installation and minimal battery drain, it offers convenience and efficiency for your power needs.

Product Features:

• Designed to power demanding loads such as microwave ovens, TVs, DVD players, small appliances, and other electronic equipment
• Removable digital display pre-attached with 25" extension cable for remote system monitoring
• Ignition lockout feature helps to minimize battery drain
• Automatic three-stage battery charger
• Designed to be hardwired using quick-connect AC terminal blocks or by connecting AC through GFCI receptacles (included)
• Built-in 30-amp relay to automatically transfer between inverter power and incoming AC utility power

Protection Features:

• Battery over-voltage and under-voltage protection
• Over-temperature shutdown
• Automatic overload protection
• Short-circuit protection
• Ground-fault protection
• ETL certified to UL458 for use in mobile RV and commercial applications

Specifications:

• Output Power:
  • HF 1000: 1000W
  • HF 1055: 1000W
  • HF 1800: 1800W
• Surge Power:
  • HF 1000: 2000W
  • HF 1055: 2000W
  • HF 1800: 3600W
• Output Frequency regulation:
  • HF 1000: 60 Hz
  • HF 1055: 60 Hz
  • HF 1800: 60 Hz
• Inverter Voltage Regulation:
  • HF 1000: 115 +/- 10 Vrms
  • HF 1055: 115 +/- 10 Vrms
  • HF 1800: 115 +/- 10 Vrms
• Output Wave Form: Modified Sine Wave
• Efficiency (Full Load): > 80%
• Peak Efficiency: > 87%
• No-load input power (producing output voltage): < 10 W
• Off mode current draw (Display Off): < 1 mA
• Charge Rate:
  • HF 1000: 20A
  • HF 1055: 55A
  • HF 1800: 40A
• AC Input Voltage Range: 90-130Vac
• AC Transfer Relay: 30A
• Battery Voltage (Nominal): 12vdc
• Operating Voltage Range: 10.5-15.5Vdc
• Low battery Cut-out (Low Limit / High Limit): 10.5Vdc/11.8Vdc
• AC Input (Max Charge):
  • HF 1000: 5Aac
  • HF 1055: 10Aac
  • HF 1800: 7.5Aac
• Default Bulk Charge Voltage Setting: 14.2Vdc
• Default Float Charge Voltage Setting: 13.5Vdc
• Battery Charge Outputs: One
• Charge Control: Three-stage
• Battery Type Settings: Flooded/Gel/AGM/Fixed 13.5Vdc
• Equalization: No
• Internal Temperature-sensitive Charging: Yes

Learn More:

• Inverter on Wikipedia
• Charger on Wikipedia

Product: Xantrex Freedom HF 1800 Inverter with 40A Charger - 1800W

Brand: Xantrex

Model: 806-1840

Shipping Weight: 15.40 lb

Shipping Height: 6.00 in

Shipping Width: 11.00 in

Shipping Length: 20.00 in
