Wichard 09204 Eye Strap 8mm - 5/16" Diameter, 60mm Spacing - Marine

Product Summary:

The Wichard 09204 Eye Strap is a high-quality marine accessory designed for fastening applications and attachment of straps and cordage. Made from 316L stainless steel grade, this drop-forged saddle offers outstanding strength and durability. Its round shape reduces wear on connected components such as straps and ropes. With a breaking load of 7710 lb (3500 kg), this eye strap ensures reliable performance in nautical applications.

Product Features:

• Complete range of drop-forged saddles with high-quality stainless steel (316L)
• Outstanding strength
• The round shape reduces the wear of the components connected to them (straps, ropes...)

Product Specifications:

• Materials: 316L stainless steel grade
• Breaking load: (lb) 7710 / (kg) 3500
• Weight: (lb) 0.084 / (g) 38

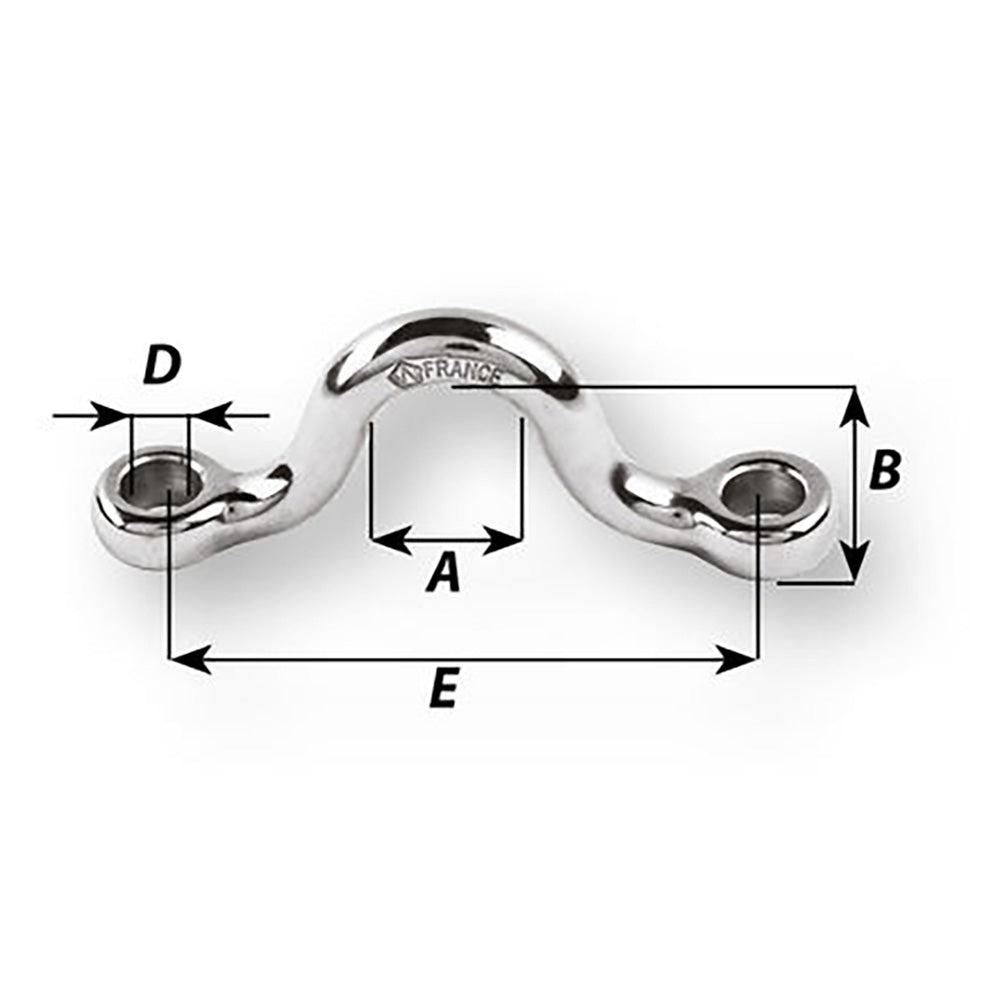

Product Dimensions:

• A: (inch) 5/8" / (mm) 16
• B: (inch) 53/64" / (mm) 21
• D diameter: (inch) 5/16" / (mm) 8
• E: (inch) 2 23/64" / (mm) 60

Caption:

• Working Load (WL): For nautical applications
• Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5

Sold as an Individual

Learn More:

• Stainless Steel on Wikipedia
• Nautical on Wikipedia

Product: Wichard Marine 09204 Eye Strap 8Mm Diameter 5/16" 60Mm Spacing 2-23/64""

Brand: Wichard Marine

Model: 09204

Shipping Weight: 0.10 lb

Shipping Height: 1.00 in

Shipping Width: 1.00 in

Shipping Length: 3.00 in
