Wichard Marine 09203 Eye Strap 6mm Stainless Steel 316L - 15/64"- 45mm Spacing

Eye Strap - 6mm Diameter - 15/64"- 45mm Spacing - 1-49/64"

Features:

• Complete range of drop-forged saddles with high-quality stainless steel (316L)
• Outstanding strength
• The round shape reduces the wear of the components connected to them (straps, ropes...)

Applications:

• Fastening applications
• Attachment of straps & cordage

Specifications:

• Materials: 316L stainless steel grade
• Breaking load: (lb) 5290 / (kg) 2400
• Weight: (lb) 0.035 / (g) 16

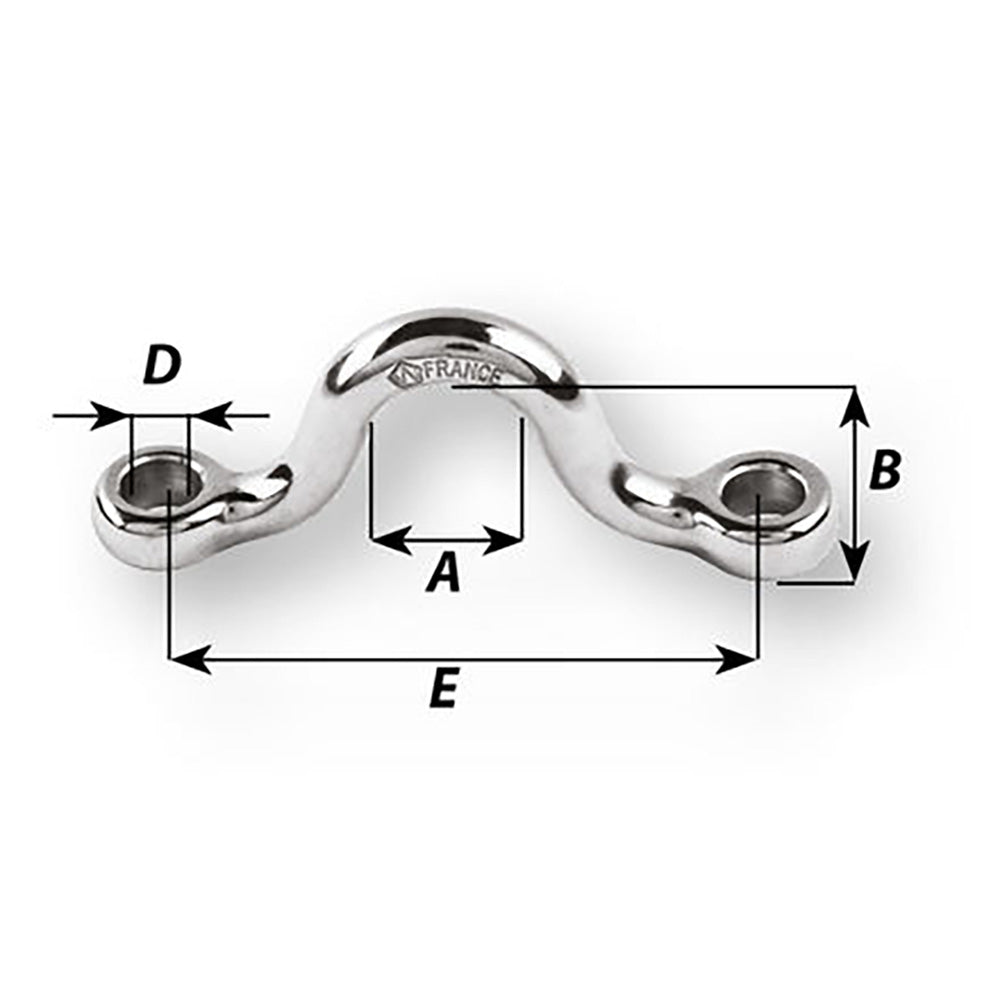

Dimensions:

• A: (inch) 15/32" / (mm) 12
• B: (inch) 5/8" / (mm) 16
• D diameter: (inch) 15/64" / (mm) 6
• E: (inch) 1 49/64" / (mm) 45

Caption:

• Working Load (WL): For nautical applications
• Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5

Sold as an Individual

Learn More

• Learn more about Stainless Steel 316L on Wikipedia

Product: Wichard Marine 09203 Eye Strap 6mm Stainless Steel 316L - 15/64"- 45mm Spacing

Brand: Wichard Marine

Model: 09203

Shipping Weight: 0.50 lb

Shipping Height: 2.00 in

Shipping Width: 3.00 in

Shipping Length: 6.00 in
