Wichard Marine 8mm Self-Locking D Shackle - 5/16" Diameter 01204

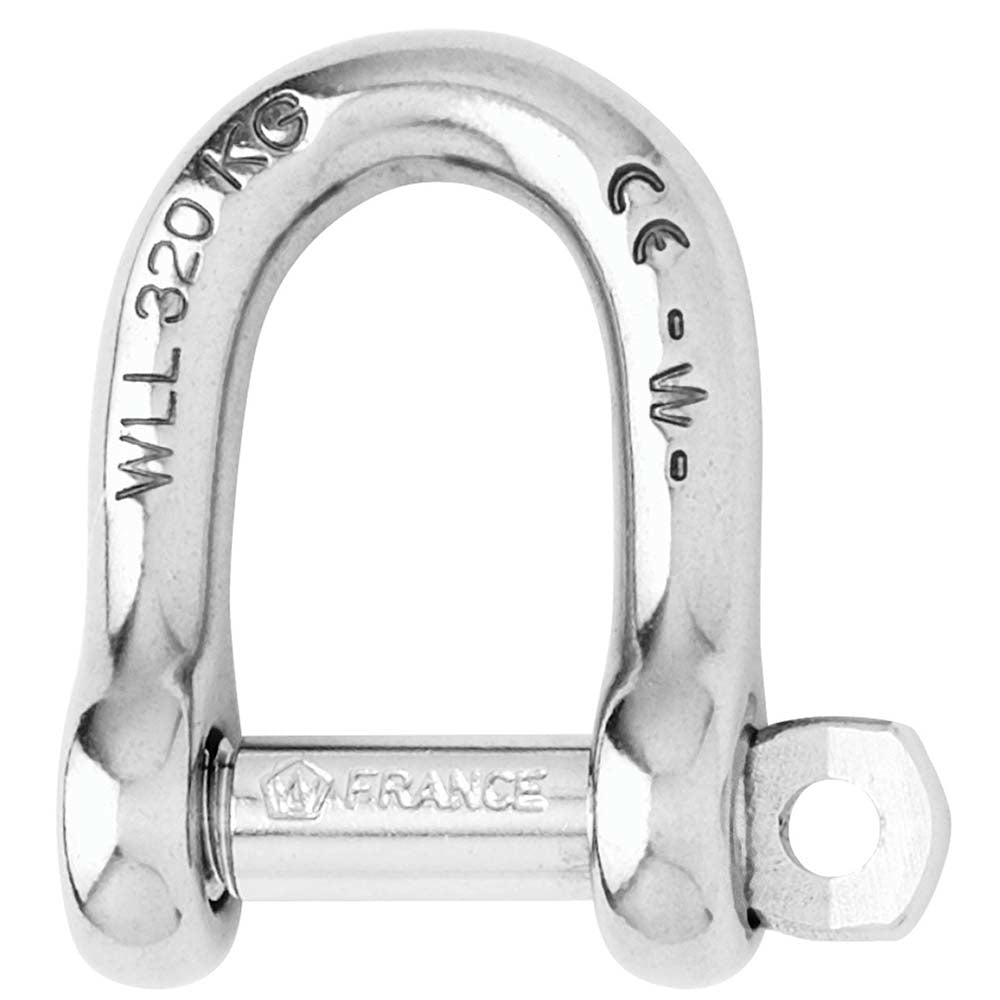

The Wichard Marine 8mm Self-Locking D Shackle is a high-quality and reliable shackle designed for various applications. With a diameter of 8mm (5/16"), this self-locking D shackle is forged in grade 316L stainless steel, ensuring exceptional durability and corrosion resistance.

Features:

• Self-locking D shackle forged in grade 316L stainless steel
• The pin is locked into one of the indentations
• No risks of loosening due to vibrations
• Outstanding working and breaking loads
• WLL: only for industrial applications (lifting i.e.)
• CE marking and batch number

Applications:

• Standard applications of the shackle
• Attachment applications: blocks, head.

Specifications:

• Materials: 316 stainless steel grade
• Working load (lb): 2200
• WLL (lb): 1190
• Breaking load (lb): 5950
• Weight (lb): 0.121

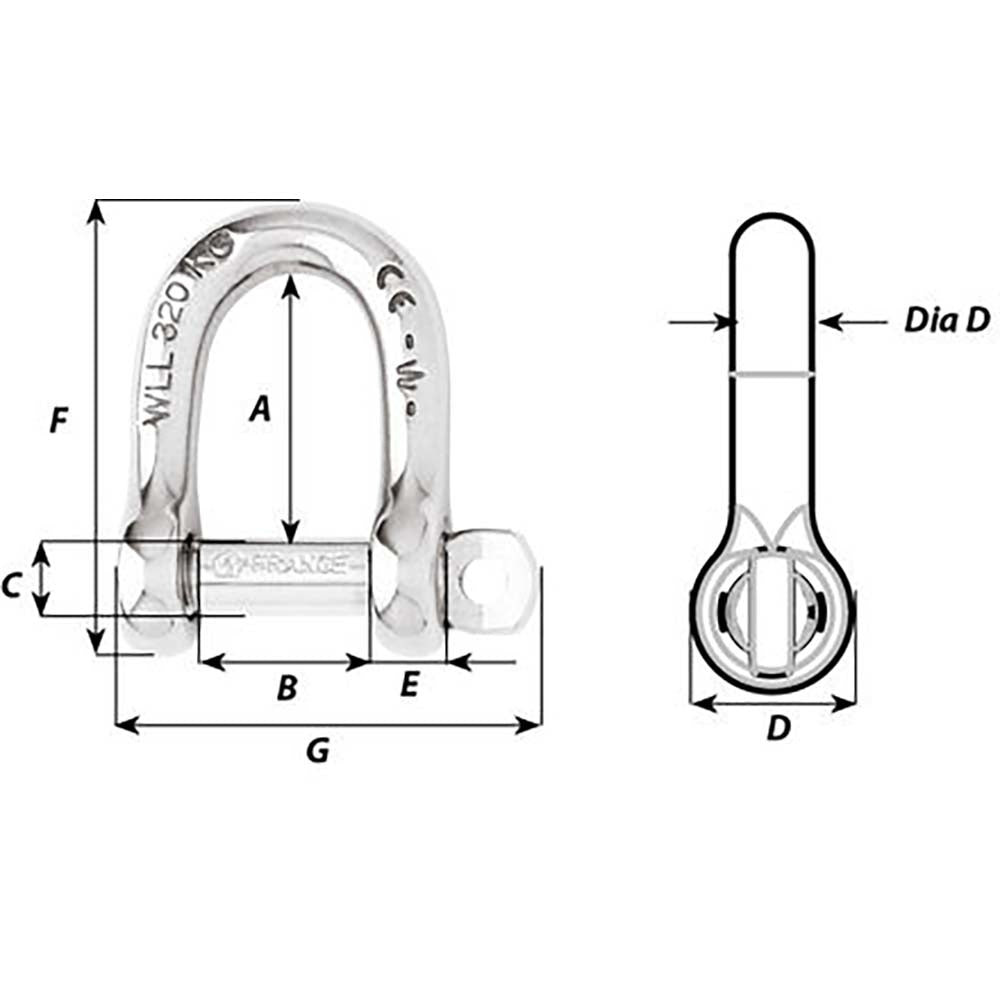

Dimensions (see 2nd image):

• A (inch): 1-1/32"
• B (inch): 5/8"
• C (inch): 5/16"
• D (inch): 5/8"
• D diameter (inch): 5/16"
• E (inch): 9/32"
• F (inch): 1-49/64"
• G (inch): 1-39/64"

Learn More

• Shackle on Wikipedia

Product: Wichard Marine 01204 Self-Locking D Shackle Diameter 8Mm 5/16""

Brand: Wichard Marine

Model: 01204

Shipping Weight: 0.15 lb

Shipping Height: 2.00 in

Shipping Width: 2.00 in

Shipping Length: 6.00 in
