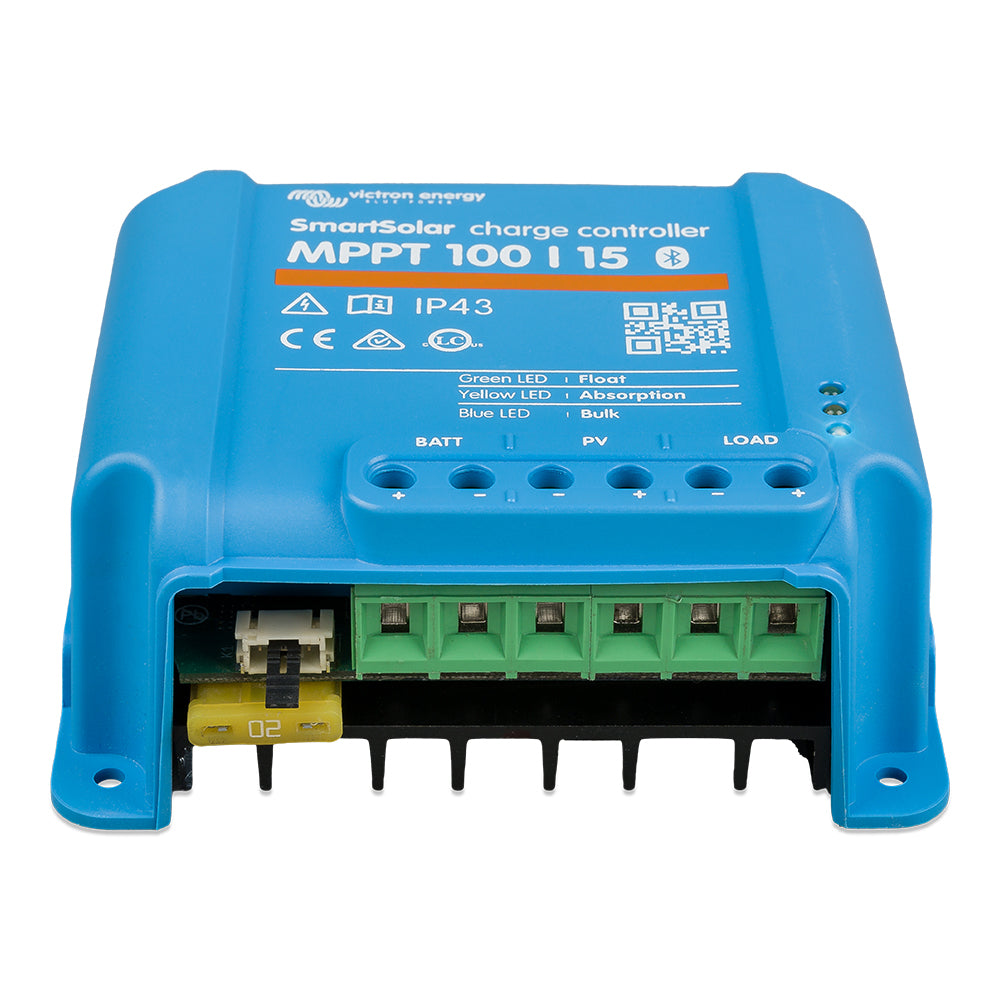

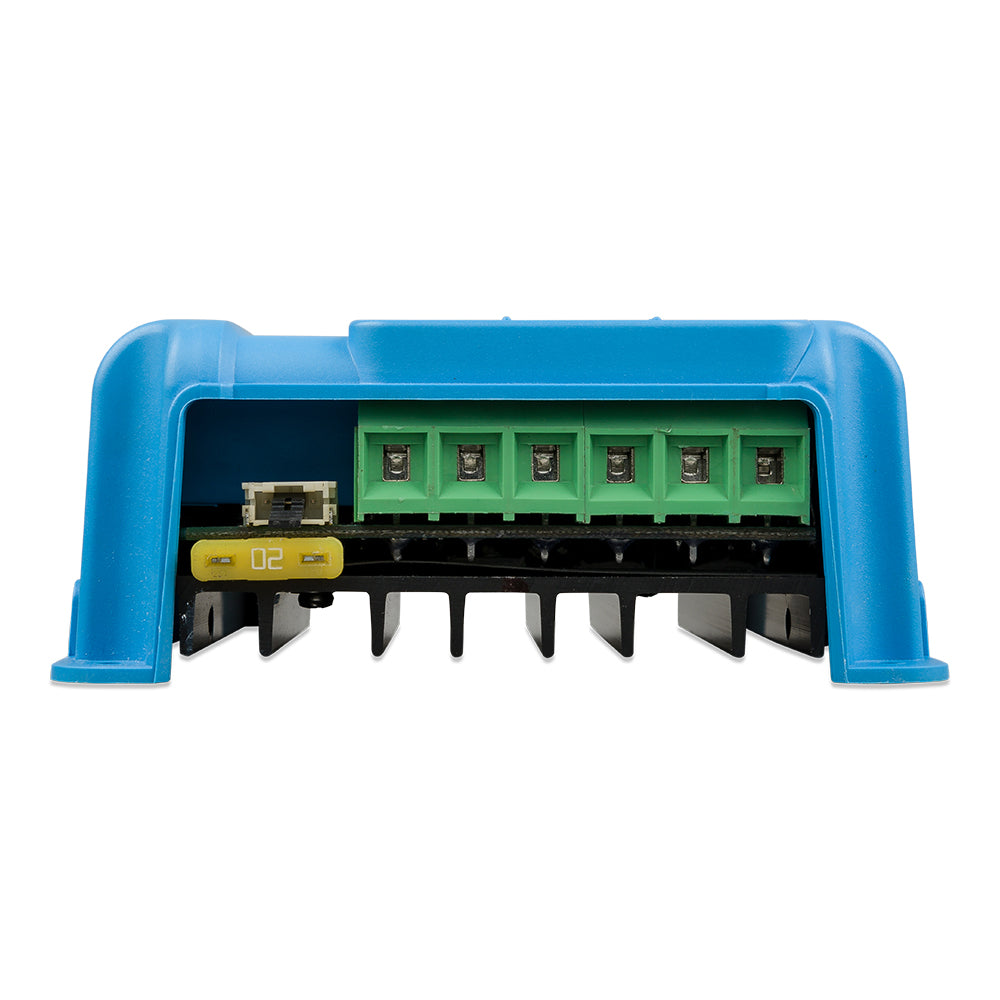

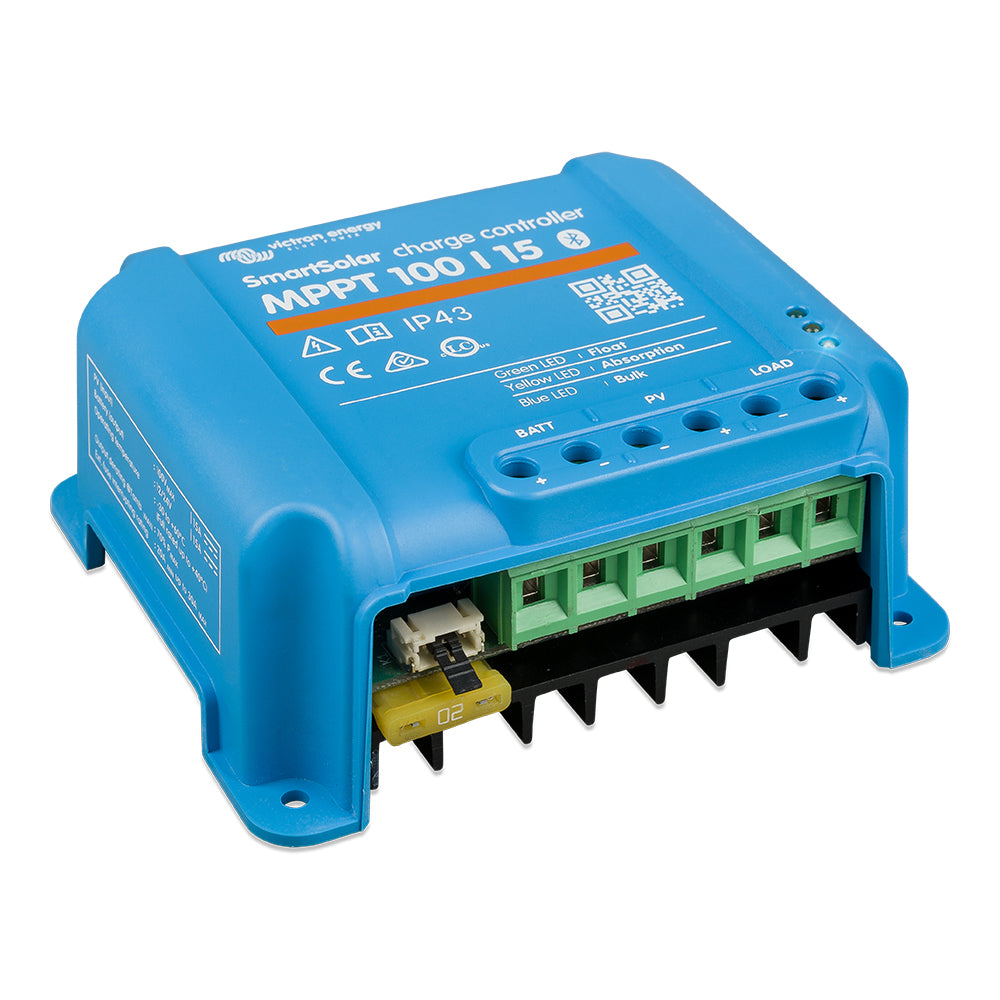

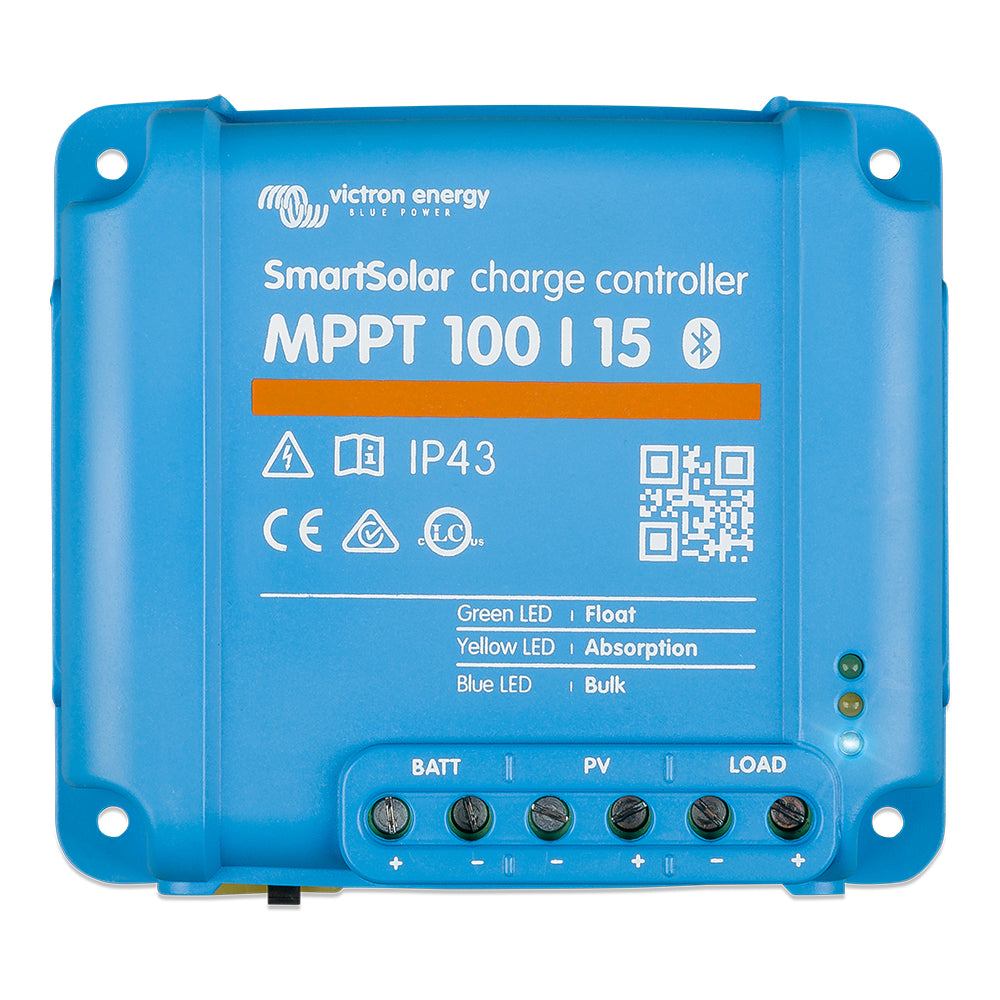

SmartSolar MPPT Charge Controller - 100V - 15AMP

The Victron Energy Scc110015060R Smartsolar Mppt Charge Controller is a high-performance charge controller designed to optimize the charging process of solar panels. With its advanced features and intelligent battery management algorithm, this charge controller ensures efficient energy harvest and prolongs the lifespan of your battery.

Features:

• Bluetooth Smart built-in: The wireless solution to set-up, monitor, update, and synchronize SmartSolar Charge Controllers.
• VE.Direct: For a wired data connection to a Color Control GX, other GX products, PC, or other devices.
• Ultra-fast Maximum Power Point Tracking (MPPT): Improves energy harvest by up to 30% compared to PWM charge controllers and up to 10% compared to slower MPPT controllers, especially in changing light intensity conditions.
• Load output: Prevents over-discharge of the battery by disconnecting the load when the battery reaches a pre-set voltage. The load output is short circuit proof.
• Battery Life: Features an intelligent battery management algorithm that monitors the state of charge of the battery and adjusts the load disconnect level to ensure regular full recharges, extending the battery's lifespan.
• Programmable battery charge algorithm: Allows customization of the charging process to suit specific battery types and requirements.
• Day/night timing and light dimming option: Provides control over lighting systems by adjusting the timing and dimming levels based on day/night cycles.
• Internal temperature sensor: Compensates absorption and float charge voltage based on temperature variations.
• Optional external battery voltage and temperature sensing via Bluetooth: Enables communication of battery voltage and temperature to the charge controller using a Smart Battery Sense or a BMV-712 Smart Battery Monitor.

Specifications:

• Maximum Voltage: 100V
• Maximum Current: 15A

Learn More:

For more information about MPPT Charge Controllers, please visit the Wikipedia page.

Product: Victron Smartsolar MPPT 100V 15A Charge Controller - Energy-efficient Solar Charger SCC110015060R

Brand: Victron Energy

Model: SCC110015060R

Shipping Weight: 1.20 lb

Shipping Height: 3.00 in

Shipping Width: 6.00 in

Shipping Length: 6.00 in
