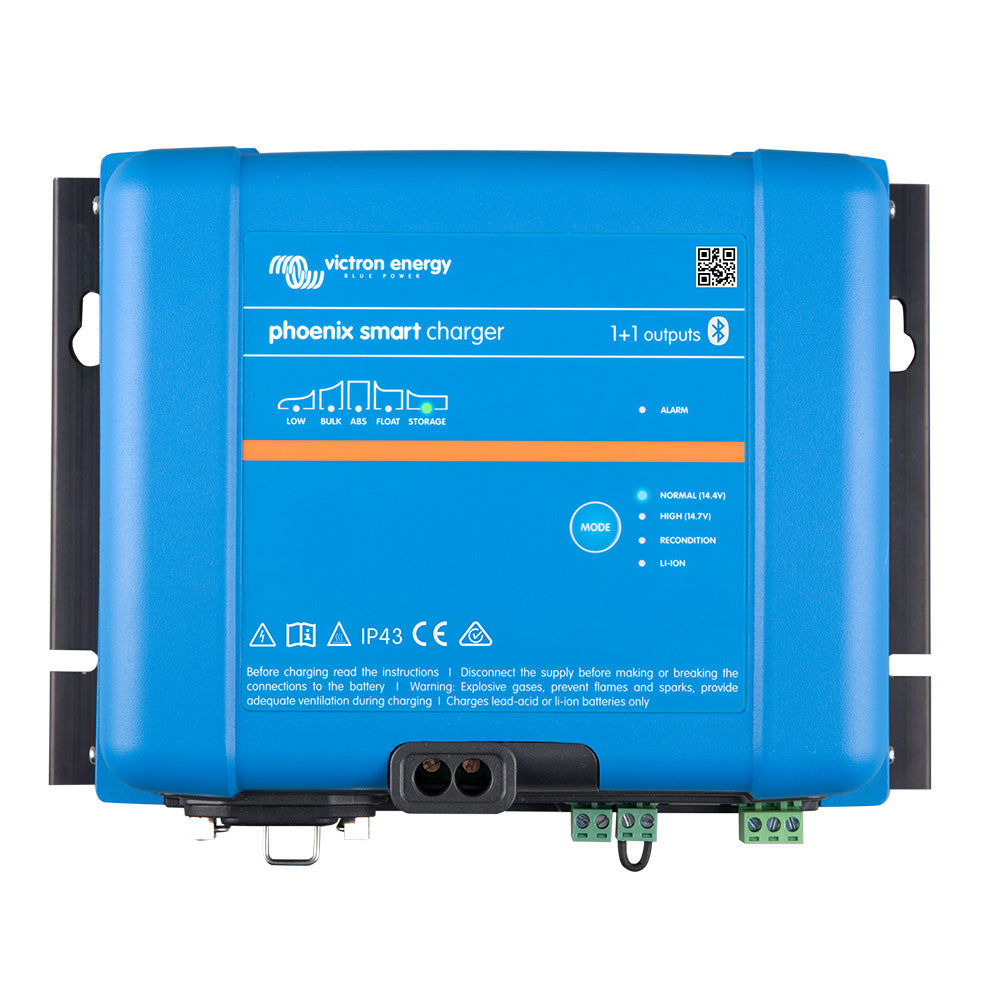

Victron Phoenix Smart IP43 Charger 24V 16A - 1+1 120-240VAC PSC241651095

The Victron Phoenix Smart IP43 Charger is a versatile and adaptive charger designed with boat owners in mind. It features a 5-step charging process and can provide either 30A or 50A of charge to each of the three battery banks. The Phoenix 1+1 model offers 3A to the starter battery and the remaining charge to the 'house' bank. With a 24V model, you can enjoy a charge of either 16A or 25A.

This charger is Bluetooth enabled, allowing you to monitor the charger and set alarms directly from your phone. It offers a range of features to optimize battery charging and ensure the longevity of your batteries. The adaptive 6-stage charge algorithm includes bulk, absorption, recondition, float, storage, and refresh modes, which can be preset to suit different types of batteries.

Key Features:

• Bluetooth Smart built-in: The wireless solution to set up, monitor, update, and synchronize Phoenix Smart IP43 Chargers.
• Phoenix Smart (1+1): Two outputs to charge 2 battery banks. The second output, limited to approximately 4A and with a slightly lower output voltage, is intended to top up a starter battery.
• Phoenix Smart (3): Three full current outputs to charge 3 battery banks. Each output can supply the full rated output current, but the total of the 3 outputs combined can never exceed the current rating of the charger.
• Automatic voltage compensation: The charger compensates for voltage drop over the DC cabling by slightly increasing output voltage when the DC current increases.
• Adaptive 6-stage charge algorithm: Bulk, absorption, recondition, float, storage, and refresh modes. The charger optimizes the charging process relative to the battery usage.
• Variable absorption time: The charger adjusts the absorption time based on the depth of discharge to prevent overcharging of the battery.
• BatterySafe mode: Prevents damage due to excessive gassing by automatically limiting the rate of voltage increase once the gassing voltage has been reached.
• Storage Mode: Reduces float voltage to minimize gassing and corrosion when the battery is not in use. Prevents stratification of the electrolyte and sulphation.
• Charges Li-ion (LiFePO4) batteries: Charger on-off control can be implemented by connecting a relay or open collector optocoupler output from a Li-ion BMS to the remote on-off port. Full control of voltage and current is achievable with Bluetooth.
• Fully programmable charge algorithm: The charge algorithm can be programmed using Bluetooth or the VE.Direct interface. Three preprogrammed algorithms can be selected with the mode button.
• Optional external battery voltage and temperature sensing via Bluetooth: Communicate battery voltage and temperature to one or more Phoenix Smart IP43 Chargers using Smart Battery Sense or BMV-712 Smart Battery Monitor.
• Remote on-off: Provides terminals for remote on/off switch or relay contact. Can be pulled high or low for remote control.
• VE.Direct interface: Allows wired data connection to a Color Control panel, PC, or other devices.

Specifications:

• Input Voltage: 120-240VAC
• Charge Current: 24V 16A
• Charging Stages: 5
• Output Voltage Range: 20-32V
• Weight: 2.3 kg
• Dimensions: 130 x 186 x 70 mm

Learn More:

• Battery Charger on Wikipedia
• Boat on Wikipedia
• Bluetooth on Wikipedia
• Lithium Iron Phosphate Battery on Wikipedia

Product: Victron Phoenix Smart IP43 Charger 24V 16A - 1+1 120-240VAC PSC241651095

Brand: Victron Energy

Model: PSC241651095

Shipping Weight: 7.00 lb

Shipping Height: 6.00 in

Shipping Width: 10.00 in

Shipping Length: 11.00 in
