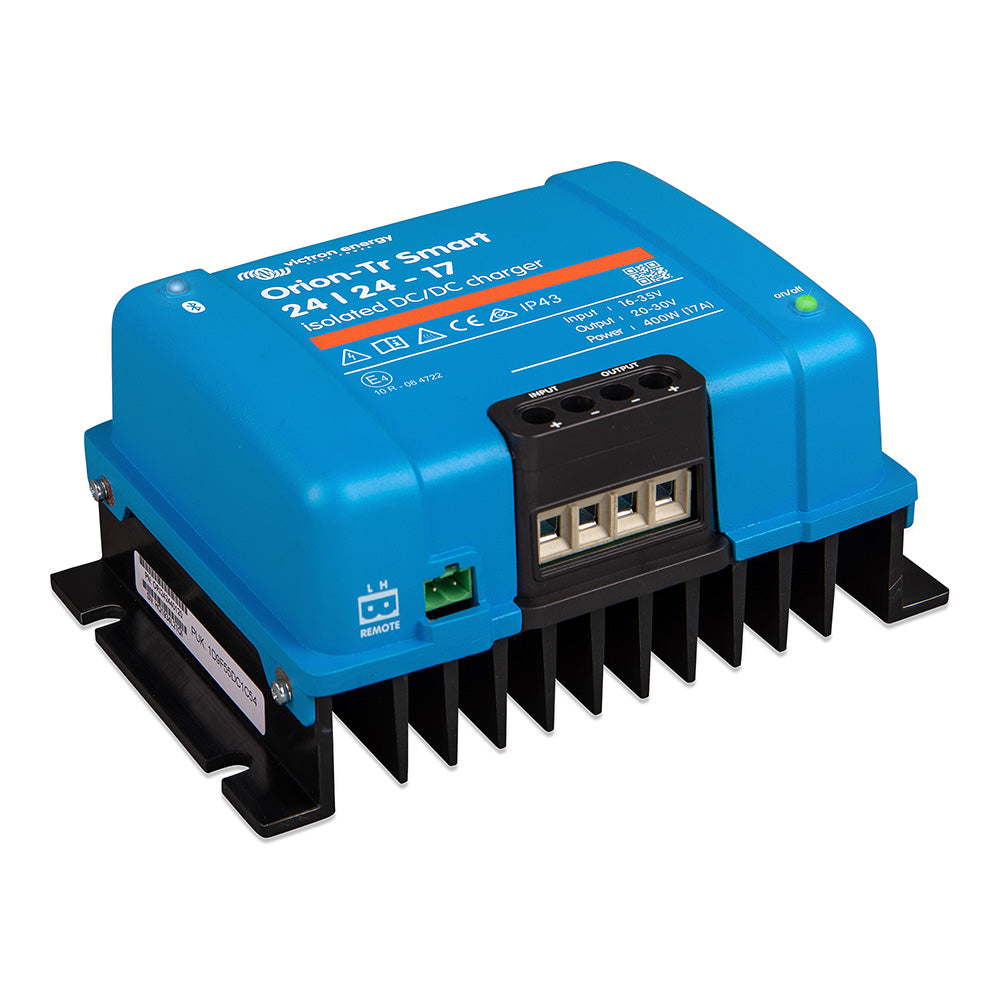

Victron Ori242440120 DC-DC Converter 24V to 24V 400W - Bluetooth Smart

The Victron Ori242440120 DC-DC Converter is a professional DC-to-DC adaptive charger with built-in Bluetooth connectivity. This isolated converter is designed to efficiently convert 24VDC to 24VDC with a power output of 400W and a continuous output current of 17A.

Features:

• Bluetooth Smart Enabled for easy monitoring and control
• Adaptive 3-Stage Charge Algorithm for optimal battery charging
• Smart alternator compatibility for use in vehicles with Euro 5 and Euro 6 engines
• Remote On/Off functionality for convenient operation
• Short circuit proof and can be paralleled to increase output current
• High temperature protection and IP43 protection

Specifications:

• Input Voltage Range: 20-35 V
• Under Voltage Shut Down: 14 V
• Under Voltage Restart: 15 V
• Nominal Output Voltage: 24.2 V
• Output Voltage Adjust Range: 20-30 V
• Output Voltage Tolerance: +/- 0.2 V
• Output Noise: 2 mV rms
• Cont. Output Current at Nominal Output Voltage and 40 Degrees C: 17 A
• Maximum Output Current (10 S) at Nominal Output Voltage: 25 A
• Short Circuit Output Current: 40A
• Cont. Output Power at 25 Degrees C: 480 W
• Cont. Output Power at 40 Degrees C: 400 W
• Efficiency: 89%
• No Load Input Current: < 80 mA
• Standby Current: Less than 1 mA
• Galvanic Isolation: 200 VDC between input, output, and case
• Operating Temperature Range: -20 to +55 Degrees C
• Humidity: Max. 95% non-condensing
• DC Connection: Screw terminals
• Maximum Cable Cross-Section: 16 mm² AWG6
• Weight: 1.6 kg (3.5 lb)
• Dimensions: 130 x 186 x 70 mm (5.1 x 7.3 x 2.8 inch)
• Protection Category: IP43 (electronic components), IP22 (connection area)
• Safety Standards: EN 60950
• Immunity Standards: EN 61000-6-2, EN 61000-6-1, EN 55014-2
• Automotive Directive Standards: ECE R10-5
