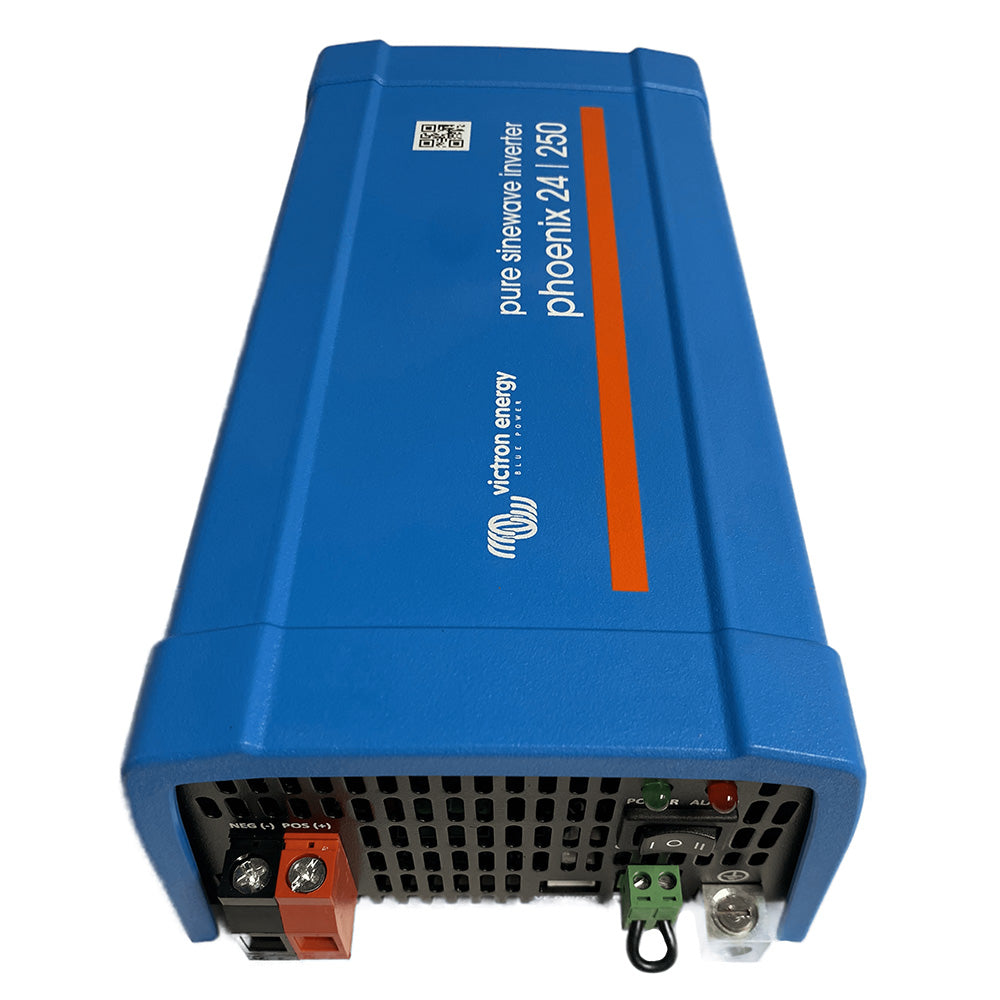

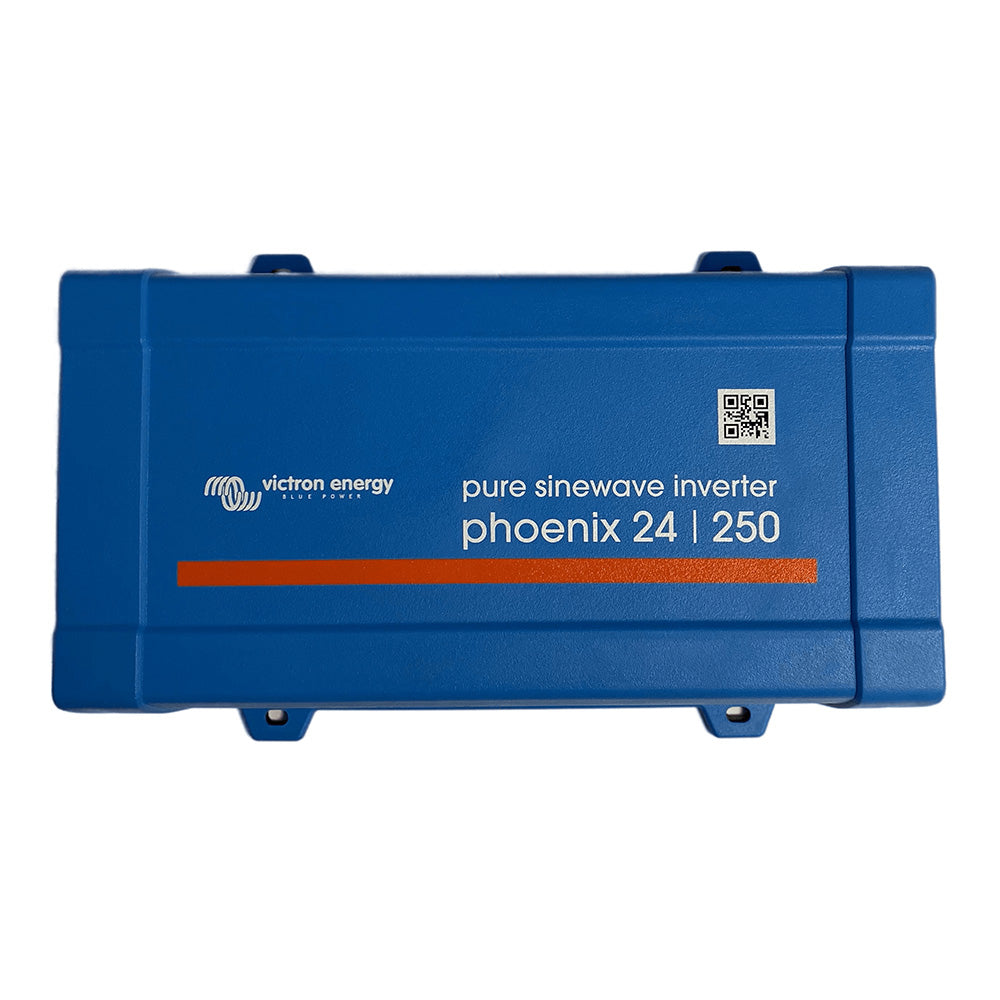

Victron Energy Phoenix Inverter 24Vdc 250VA 120Vac with Ve.Direct Nema

The Victron Energy Phoenix Inverter 24Vdc 250VA 120Vac with Ve.Direct Nema is an inverter that allows you to power domestic equipment requiring 230V/120V AC using leisure or automotive batteries rated at 12V, 24V, or 48VDC. With the VE.Direct port, this inverter can be connected to a computer or Apple and Android smartphones, tablets, MacBook, and other devices using a VE.Direct to USB interface cable or a VE.Direct Bluetooth Smart dongle.

Features:

• Low battery voltage alarm trip and reset levels
• Low battery voltage cut-off and restart levels
• Dynamic cut-off: load-dependent cut-off level
• Output voltage 210 - 245V
• Frequency 50 Hz or 60 Hz
• ECO mode on/off and ECO mode sense level
• In- and output voltage, % load, and alarms monitoring

Specifications:

• Continuous Power at 25°C: 250VA
• Continuous Power at 25°C / 40°C: 200 / 175W
• Peak Power: 400W
• Output AC Voltage / Frequency (adjustable): 120VAC +/- 3%
• Input Voltage Range: 9,2 - 17 / 18,4 - 34,0 / 36,8 - 62,0V
• DC Low Shut Down (adjustable): 9,3 / 18,6 / 37,2V
• Dynamic (Load Dependent) DC low shut down (fully configurable): Dynamic cut-off
• DC Low Restart and Alarm (adjustable): 10,9 / 21,8 / 43,6V
• Battery Charged Detect (adjustable): 14,0 / 28,0 / 56,0V
• Maximum Efficiency: 87 / 88 / 88%
• Zero-Load Power: 4,2 / 5,2 / 7,9W
• Default Zero-Load Power in ECO Mode (default retry interval: 2,5 s, adjustable): 0,8 / 1,3 / 2,5W
• ECO Mode Stop and Start Power Setting: Adjustable
• Protection: a - f
• Operating temperature Range: -40 to +65°C (fan-assisted cooling) / Derate 1,25% per °C above 40°C
• Humidity (non-condensing): Max 95%

Enclosure:

• Material & Color: Steel chassis and plastic cover (blue Ral 5012)
• Battery-Connection: Screw terminals
• Maximum Cable cross-Section 10mm-2 / AWG8
• Standard AC outlets 230V: Schuko (CEE 7/4), IEC-320 (male plug included), UK (BS 1363), AU/NZ (AS/NZS 3112), 120V: Nema 5-15R, GFCI
• Protection Category: IP 21
• Weight: 2,4kg / 5,3lbs
• Dimensions (h x w x d, mm) / (h x w x d, inch): 86 x 165 x 260 mm / 3.4 x 6.5 x 10.2 in.

Accessories:

• Remote On-Off: Yes
• Automatic Transfer Switch: Filax

Learn More

• Inverter (electrical) on Wikipedia
• Battery Charger on Wikipedia

Product: Victron Energy Phoenix Inverter 24Vdc 250VA 120Vac with Ve.Direct Nema

Brand: Victron Energy

Model: PIN242510500

Shipping Weight: 6.75 lb

Shipping Height: 6.00 in

Shipping Width: 9.00 in

Shipping Length: 12.00 in
