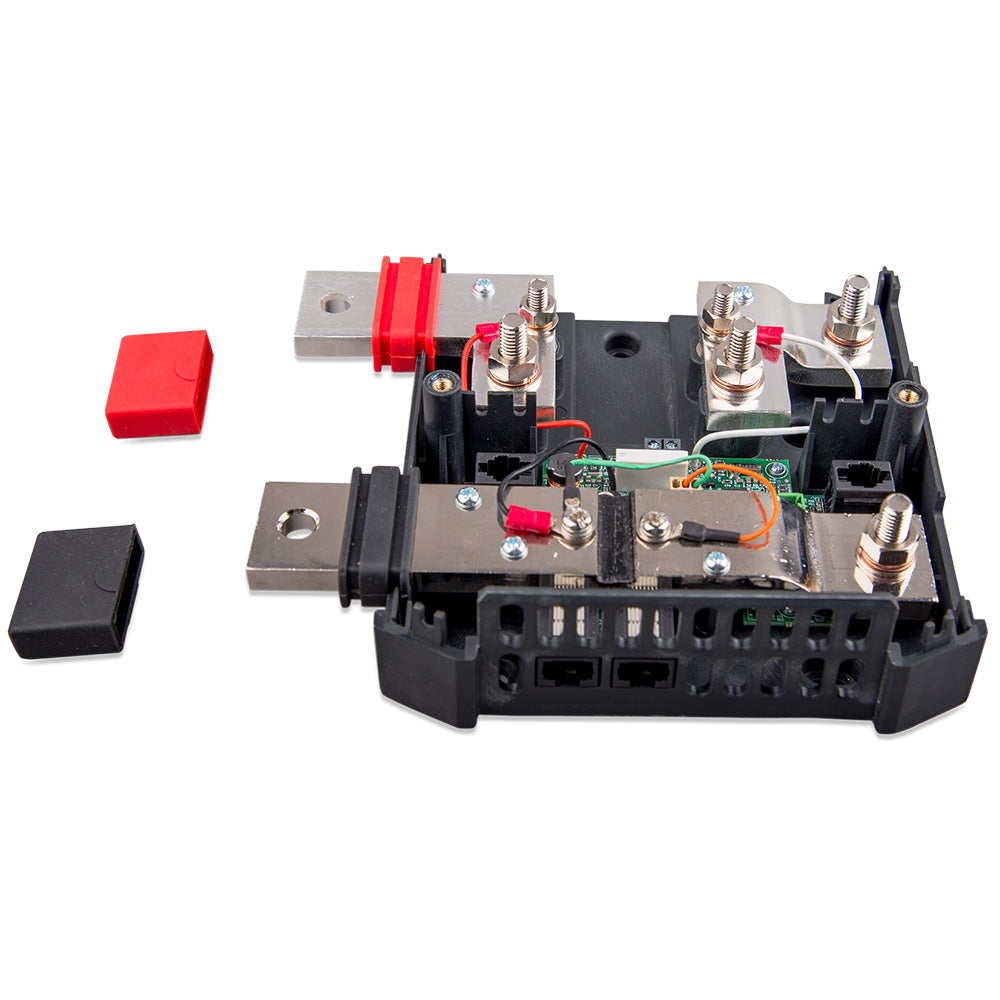

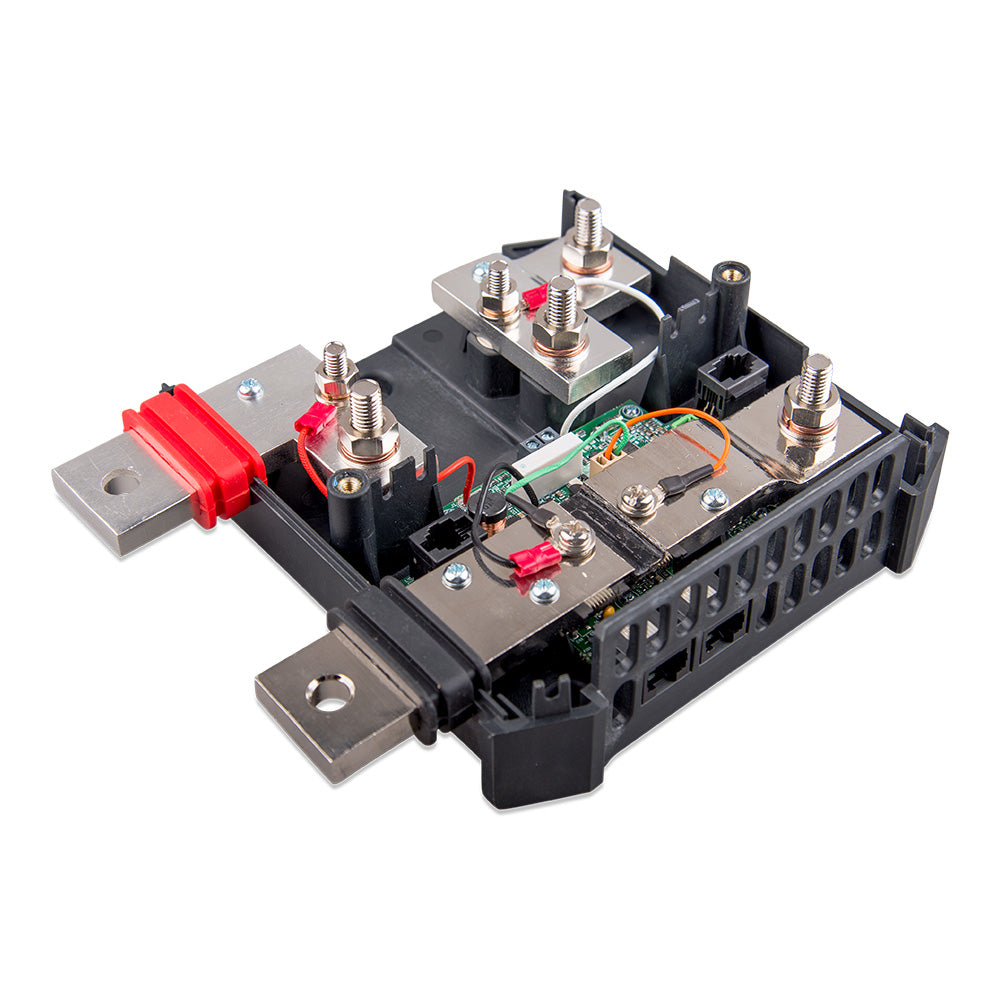

Victron Energy Lynx Shunt VE.Can M10 Battery Monitoring Integration

The Victron Energy Lynx Shunt VE.Can M10 is a busbar integrated battery monitoring system that includes a positive and negative busbar, a battery monitor, and a fuse holder for the main system fuse. It is designed to be part of the Lynx Distribution system, offering power LED indicators and communication via VE.Can with a GX device. The Lynx Shunt VE.Can comes with two RJ45 VE.Can terminators for easy connectivity.

The Lynx Distribution System is a modular busbar system that incorporates DC connections, distribution, fusing, battery monitoring, and Lithium battery management. It consists of various components including Lynx Power In, Lynx Distributor, Lynx Shunt VE.Can, and Lynx Smart BMS for comprehensive energy management.

Specifications:

• Supply Voltage Range: 9 - 70 Vdc
• Supported System Voltages: 12, 24 or 48V
• Reverse Polarity Protection: No
• Current Rating: 1000Adc continuous
• Power Consumption: 60mA at 12V, 33mA at 24V, 20mA at 48V
• Potential Free Alarm Contact: 3A, 30Vdc, 250Vac

Connections:

• Busbar: M8
• Fuse: M8
• VE.Can: RJ45 and RJ45 terminator
• Power Supply Connection to Lynx Distributor: RJ10
• Temperature Sensor: Screw terminal
• Relay: Screw terminal

Physical:

• Enclosure Material: ABS
• Enclosure Dimensions (H x W x D): 190 x 180 x 80 mm
• Unit Weight: 1.4 kg
• Busbar Material: Tinned copper
• Busbar Dimensions (H x W): 8 x 30 mm

Environmental:

• Operating Temperature Range: -40&degC to +60&degC
• Storage Temperature Range: -40&degC to +60&degC
• Humidity: Max. 95% (non-condensing)
• Protection Class: IP22

Learn More:

Learn more about Victron Energy on Wikipedia

Product: Victron Energy Lynx Shunt VE.Can M10 Battery Monitoring Integration

Brand: Victron Energy

Model: LYN040102110

Shipping Weight: 4.20 lb

Shipping Height: 4.00 in

Shipping Width: 8.00 in

Shipping Length: 12.00 in
