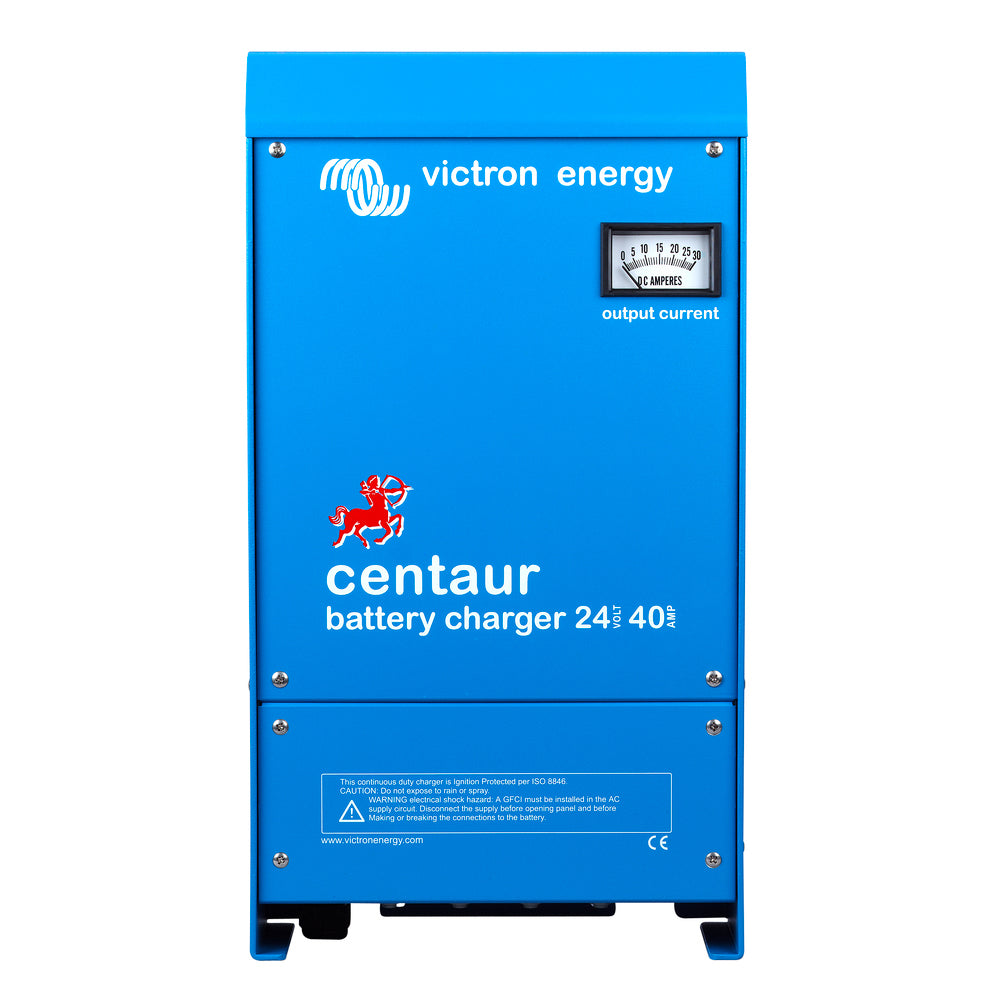

Victron Centaur Charger 24V 40A 3-Bank 120-240V - CCH024040000

The Victron Centaur Charger 24V 40A 3-Bank 120-240V - CCH024040000 is a high-quality charger designed to provide reliable and efficient charging for your batteries. With its advanced features and durable construction, this charger is suitable for use in various environments, including those with heat, humidity, and salt air. Its circuit boards are protected with an acrylic coating for maximum corrosion resistance, ensuring long-lasting performance.

Features:

• Quality without compromise - Aluminium epoxy powder coated cases with drip shield and stainless steel fixings withstand the rigors of an adverse environment: heat, humidity, and salt air. Circuit boards are protected with an acrylic coating for maximum corrosion resistance. Temperature sensors ensure that power components will always operate within specified limits, if needed by automatic reduction of output current under extreme environmental conditions.
• Universal 90-265V AC input voltage range and also suitable for DC supply (AC-DC and DC-DC operation) All models will operate without any adjustment needed over a 90 to 265 Volt input voltage range, whether 50 Hz or 60 Hz.
• The chargers also accept a 90-400 V DC supply.
• Three outputs that each can supply the full output current Three isolated outputs to simultaneously charge 3 battery banks Each output is capable of supplying the full rated current.
• Three-stage charging, with temperature compensation The Centaur charges at bulk rate until the output has reduced to 70% of the rated Amps, at which a 4-hour timer begins. After the timed period, the charger switches to float rate. An internal temperature sensor is used to compensate the charge voltage with - 2 mV/&degC (- 1 mV/&degF) per cell. A DIP switch is available to select the optimum charge/float voltages for Flooded Lead-acid, Gel, or AGM batteries.

Specifications:

• Input Voltage Range: 90-265V AC, 90-400V DC
• Output Voltage: 24V DC
• Output Current: 40A
• Number of Banks: 3
• Charge Control: Three-stage charging with temperature compensation

Learn More:

For more information about the Victron Centaur Charger, you can visit the Battery Charger article on Wikipedia.

Product: Victron Energy Cch024040000 Centaur Charger 24 Vdc 40Amp 3-Bank 120-240 Vac

Brand: Victron Energy

Model: CCH024040000

Shipping Weight: 22.45 lb

Shipping Height: 9.00 in

Shipping Width: 14.00 in

Shipping Length: 25.00 in
