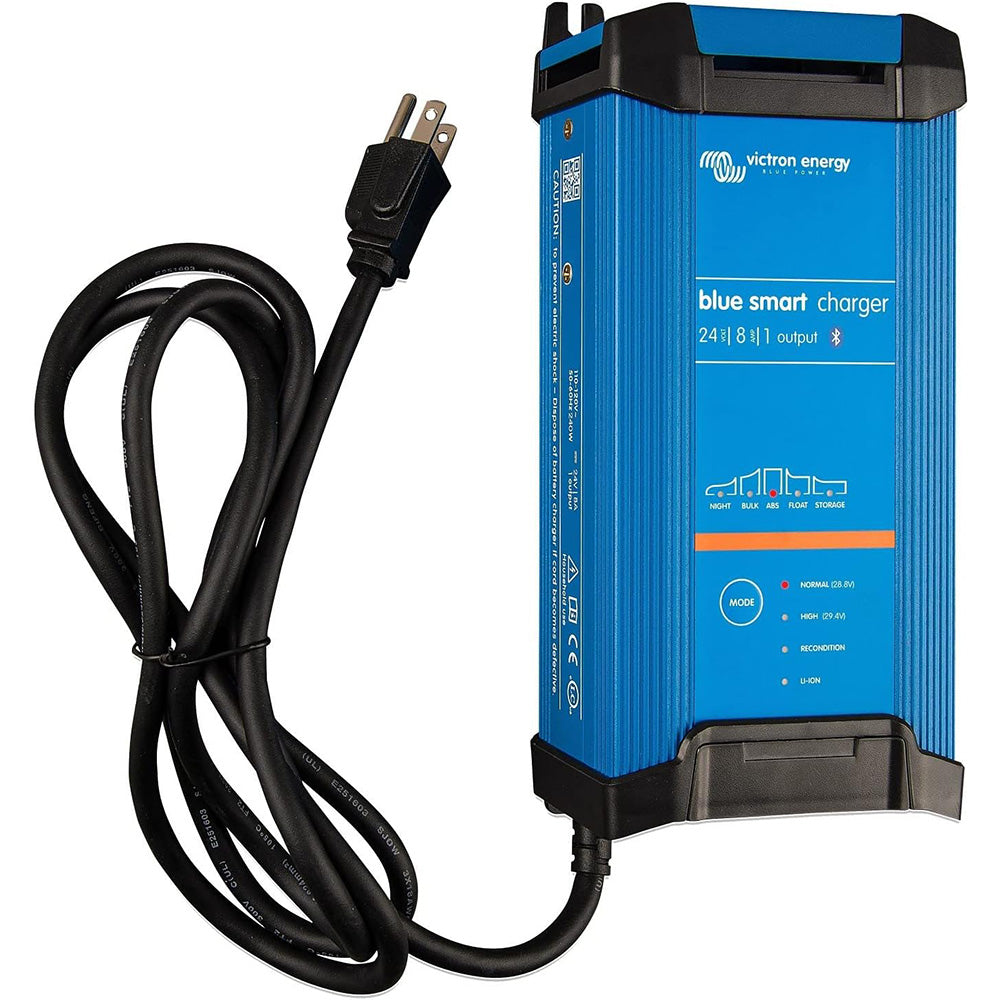

Victron Energy BPC240845102 Blue Smart IP22 24VDC 8A 1 Bank 120V Charger - Dry Mount

The Victron Energy BPC240845102 Blue Smart IP22 Charger is a professional battery charger with built-in Bluetooth. It is designed for use on devices in your workshop and on motor vehicles, such as classic cars, motorbikes, boats, and camper-vans.

Bluetooth Smart: The Blue Smart IP22 Charger features built-in Bluetooth technology, allowing you to wirelessly monitor voltage and current, change settings, and update the charger when new features become available.

High Efficiency: This charger is highly efficient, generating up to four times less heat compared to the industry standard. When the battery is fully charged, power consumption reduces to only 0.5 watts, which is five to ten times better than the industry standard.

Adaptive 6-Stage Charge Algorithm: The Blue Smart Charger utilizes a microprocessor-controlled adaptive battery management system. It automatically optimizes the charging process based on how the battery is being used.

Storage Mode: The charger has a storage mode that activates when the battery has not been discharged for 24 hours. In storage mode, the float voltage is reduced to minimize gassing and corrosion. The voltage is raised back to the absorption level once a week to prevent stratification of the electrolyte and sulfation, which can lead to early battery failure.

Li-ion Battery Charging: The charger is capable of charging Li-ion batteries using a simple bulk-absorption-float algorithm.

Fully Discharged Battery Recovery: The charger can initiate charging even if the battery has been discharged to zero volts. It can also reconnect to a fully discharged Li-ion battery with an internal disconnect function.

NIGHT and LOW Setting: The charger offers NIGHT and LOW modes, where the output current is reduced to a maximum of 50% of the nominal output. In these modes, the charger operates silently. The NIGHT mode automatically ends after 8 hours, while the LOW mode can be manually ended.

Overheating Protection: The charger is protected against overheating. The output current will reduce as the temperature increases, ensuring safe operation even at high temperatures.

Status Indication: The charger features eleven LEDs that indicate the charge algorithm and mode settings.

Specifications:

• Input Voltage Range: 100 - 130 VAC
• Charge Current, Normal Mode: 8/12/16 A
• Charge Current, NIGHT or LOW: 4/6/8 A
• Efficiency: 94%
• No Load Power Consumption: 0.5 W
• Frequency: 45 - 65 Hz
• Number of Outputs: 1
• Charge Voltage 'Absorption': Normal: 28.8V, High: 29.4V, Li-ion: 28.4V
• Charge Voltage 'Float': Normal: 27.6V, High: 27.6V, Li-ion: 27.0V
• Charge Voltage 'Storage': Normal: 26.4V, High: 26.4V, Li-ion: 27.0V
• Charge Algorithm: 6-stage adaptive
• Can Be Used as Power Supply: Yes
• Protection: Battery reverse polarity (fuse), output short circuit, over temperature
• Operating Temp. Range: -20 to +50&degC
• Humidity (non-condensing): Max 98%
• Bluetooth: Frequency: 2402-2480MHz, Power: -4dBm

Enclosure Specifications:

• Material & Color: Aluminium (blue RAL 5012)
• Battery Connection: Screw terminals 13 mm-2 / AWG6
• 230 V AC Connection: Cable of 1.5 meter with CEE 7/7 plug, BS 1363 plug (UK) or AS/NZS 3112 plug (AU/NZ)
• Protection Class: IP22

Learn More:

• Bluetooth on Wikipedia
• Battery Charger on Wikipedia

Product: Victron Energy BPC240845102 Blue Smart IP22 24VDC 8A 1 Bank 120V Charger Dry

Brand: Victron Energy

Model: BPC240845102

Shipping Weight: 3.25 lb

Shipping Height: 3.00 in

Shipping Width: 7.00 in

Shipping Length: 11.00 in
