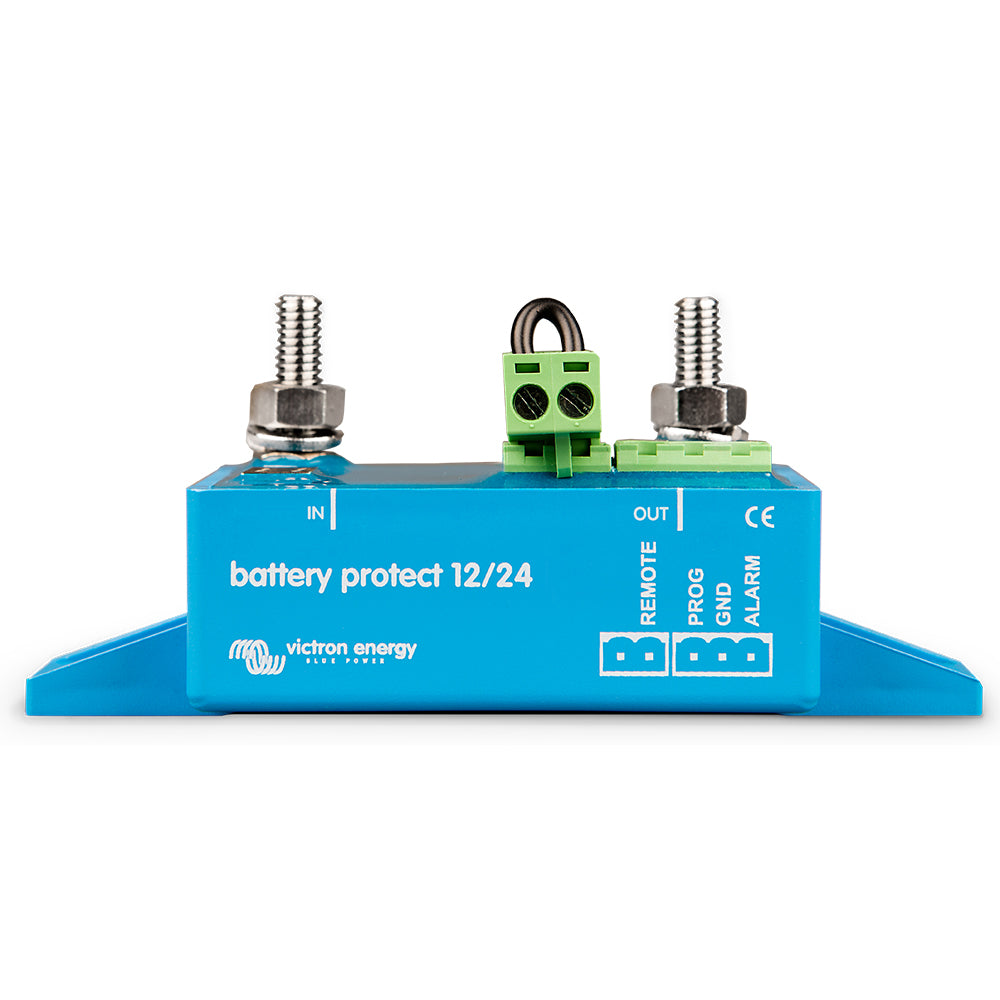

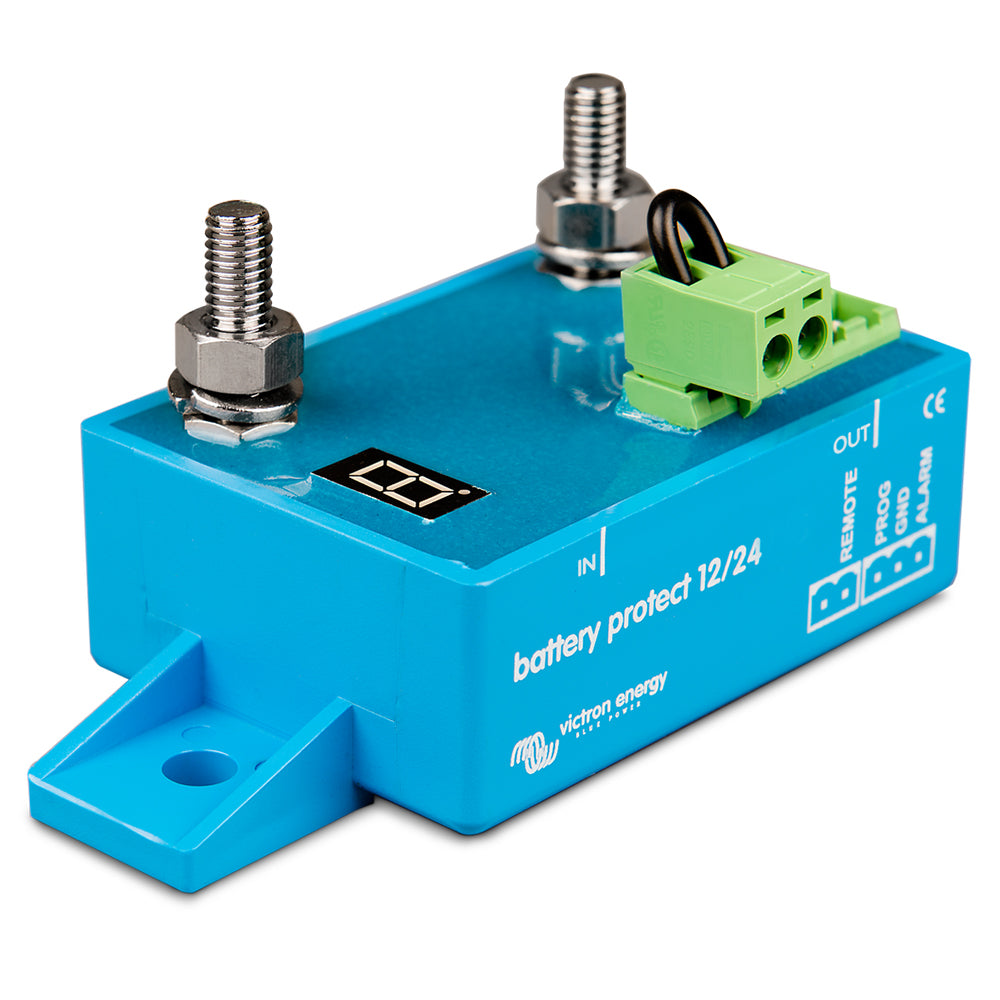

Victron Energy BP-220 BatteryProtect - 220Amp 6-35VDC BPR000220400

The Victron Energy BP-220 BatteryProtect is a high-quality battery protection device designed to safeguard your battery from damage caused by complete discharge or insufficient power to crank the engine. With a voltage range of 6-35VDC and a maximum current capacity of 220A, this BatteryProtect ensures optimal battery performance and longevity.

Features:

• The BatteryProtect disconnects non-essential loads from the battery to prevent complete discharge or insufficient power for engine cranking.
• 12/24V auto ranging: The BatteryProtect automatically detects the system voltage.
• Programming made easy: The BatteryProtect offers multiple voltage settings, which can be easily adjusted and monitored through the seven-segment display.
• Special setting for Li-ion batteries: Compatible with VE.Bus BMS, the BatteryProtect can be controlled by it. It can also be used as a charge interrupter between a battery charger and a Li-ion battery.
• Ultra-low current consumption: Designed to be efficient, the BatteryProtect minimizes power consumption, making it ideal for Li-ion batteries, especially after low voltage shutdown.
• Over-voltage protection: To safeguard sensitive loads, the BatteryProtect disconnects the load when the DC voltage exceeds 16V (for 12V systems) or 32V (for 24V systems).
• Ignition proof: Equipped with MOSFET switches instead of relays, the BatteryProtect eliminates sparks and ensures safety.
• Delayed alarm output: The alarm output is activated if the battery voltage drops below the preset disconnect level for more than 12 seconds. It is short-circuit proof and can be used to activate a buzzer, LED, or relay.
• Delayed load disconnect and reconnect: The load is disconnected 90 seconds after the alarm is activated. If the battery voltage increases to the connect threshold within this time period, the load will not be disconnected. The load will be reconnected 30 seconds after the battery voltage surpasses the preset reconnect voltage.

Specifications:

• Voltage Range: 6-35VDC
• Maximum Current: 220A

Learn More:

• Lithium-ion Battery
• MOSFET
• Voltage

Product: Victron Energy BP-220 BatteryProtect - 220Amp 6-35VDC BPR000220400

Brand: Victron Energy

Model: BPR000220400

Shipping Weight: 2.50 lb

Shipping Height: 3.00 in

Shipping Width: 6.00 in

Shipping Length: 6.00 in
