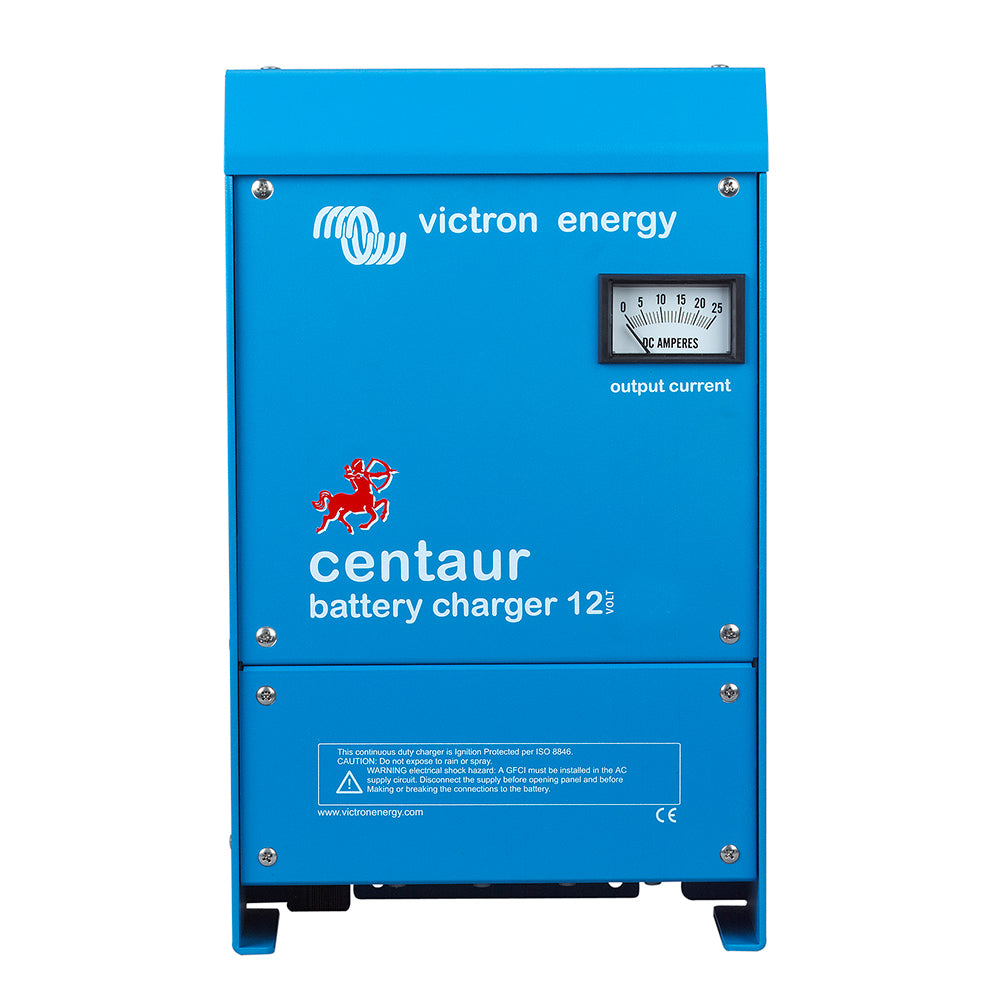

Victron Centaur Charger 12V 40A 3-Bank 120-240V - CCH012040000

The Victron Centaur Charger 12V 40A 3-Bank 120-240V is a high-quality charger designed to provide reliable and efficient charging for your batteries. With its durable construction and advanced features, this charger is built to withstand the toughest environments and ensure optimal performance.

Features:

• Quality without compromise - Aluminium epoxy powder coated cases with drip shield and stainless steel fixings for maximum durability and resistance to heat, humidity, and salt air.
• Circuit boards protected with an acrylic coating for enhanced corrosion resistance.
• Temperature sensors ensure safe operation of power components under extreme environmental conditions by automatically reducing output current if necessary.
• Universal 90-265V AC input voltage range, suitable for AC-DC and DC-DC operation.
• Accepts 90-400V DC supply.
• Three isolated outputs that can simultaneously charge 3 battery banks.
• Each output is capable of supplying the full rated current.
• Three-stage charging with temperature compensation.
• Charges at bulk rate until output reduces to 70% of rated Amps, then switches to float rate.
• Internal temperature sensor compensates charge voltage based on battery temperature.
• DIP switch available to select charge/float voltages for Flooded Lead-acid, Gel, or AGM batteries.

Specifications:

• Input Voltage Range: 90-265V AC / 90-400V DC
• Output Voltage: 12V DC
• Output Current: 40A
• Number of Banks: 3

Learn More:

• Lead-acid Battery
• Gel Battery
• AGM Battery

Product: Victron Centaur Charger 12V 40A 3-Bank 120-240V - CCH012040000

Brand: Victron Energy

Model: CCH012040000

Shipping Weight: 15.95 lb

Shipping Height: 8.00 in

Shipping Width: 13.00 in

Shipping Length: 22.00 in
