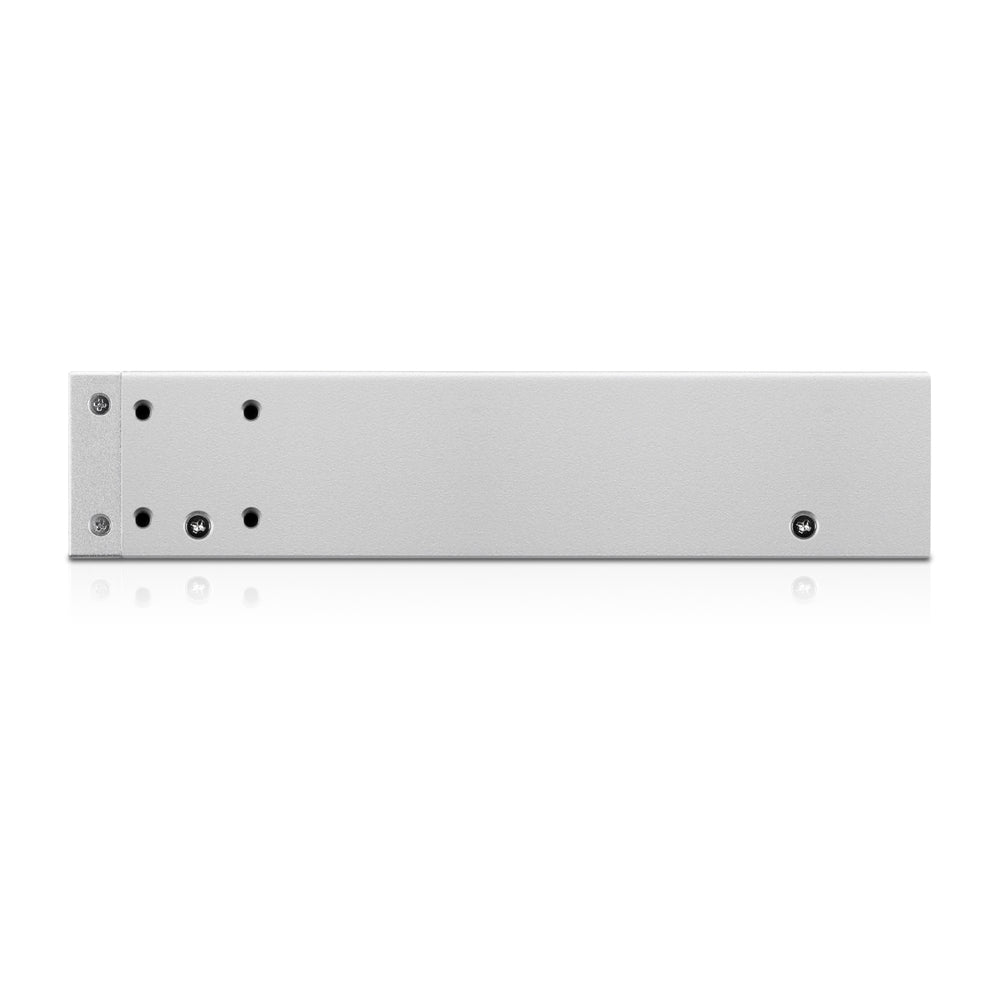

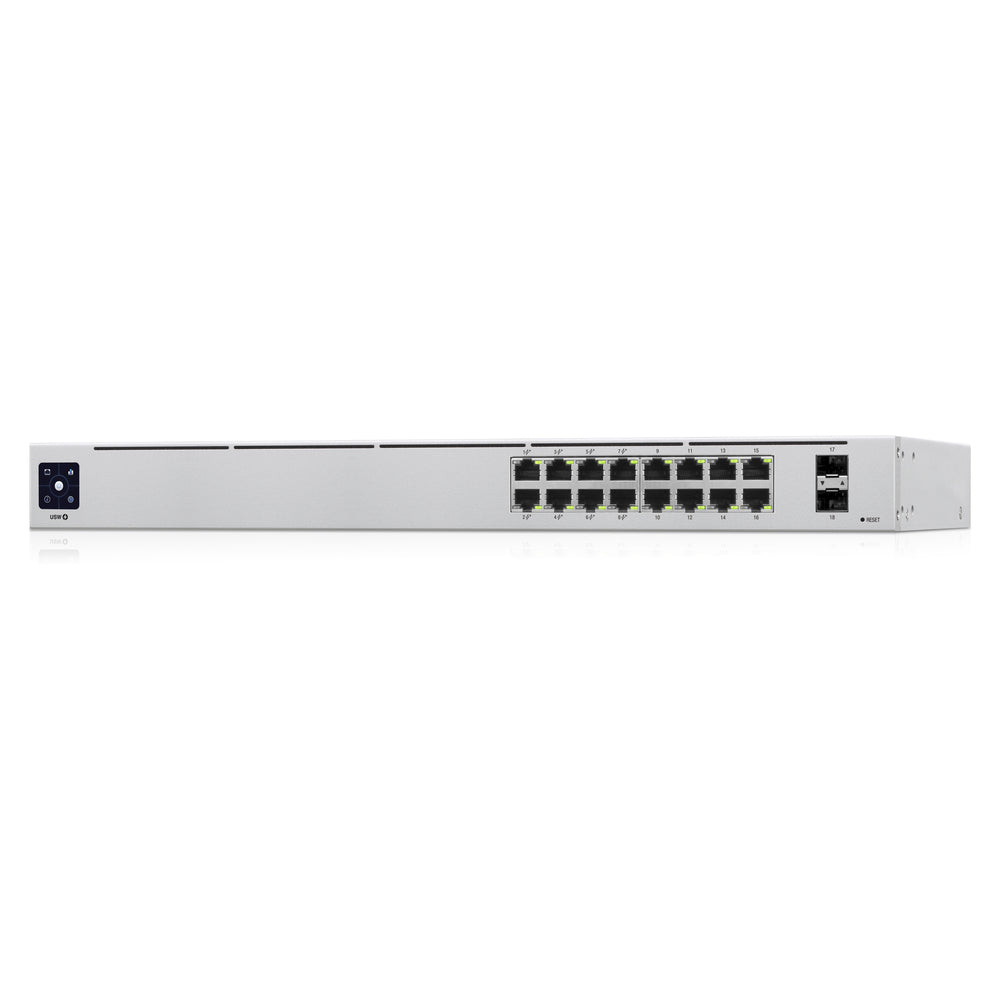

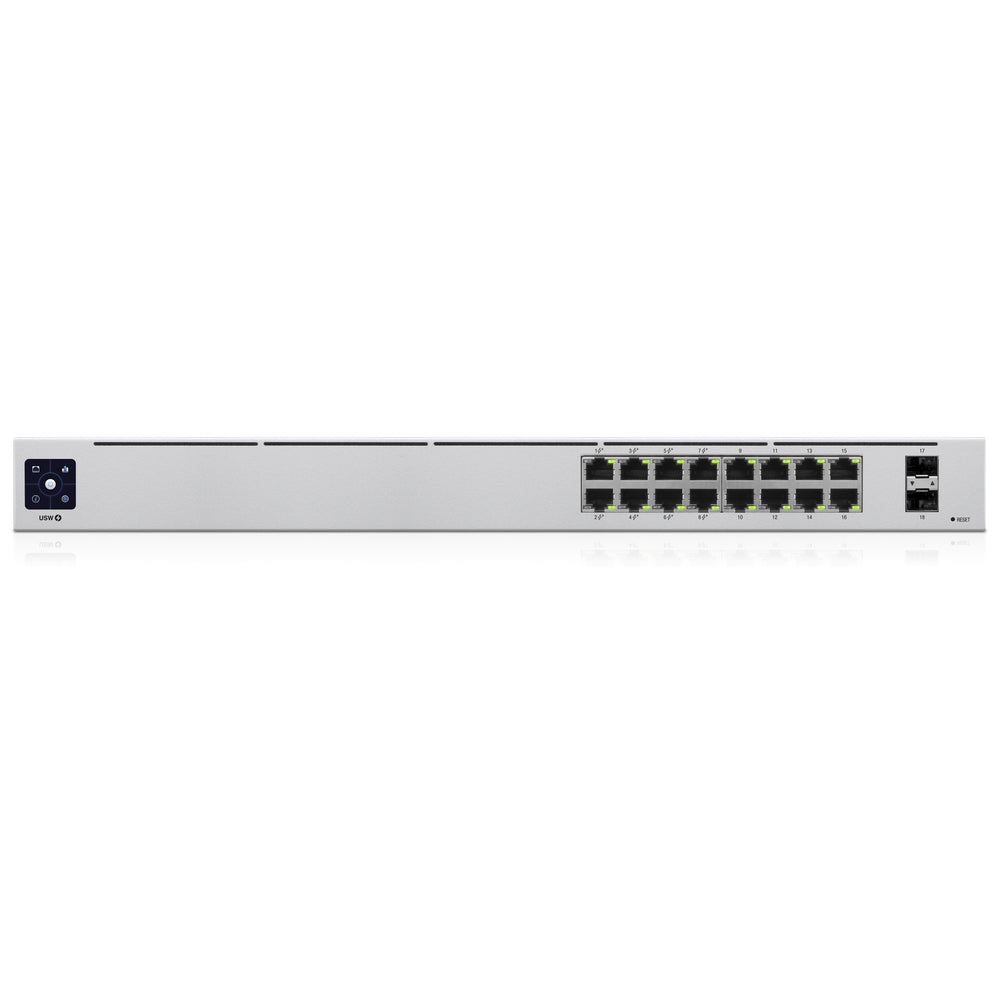

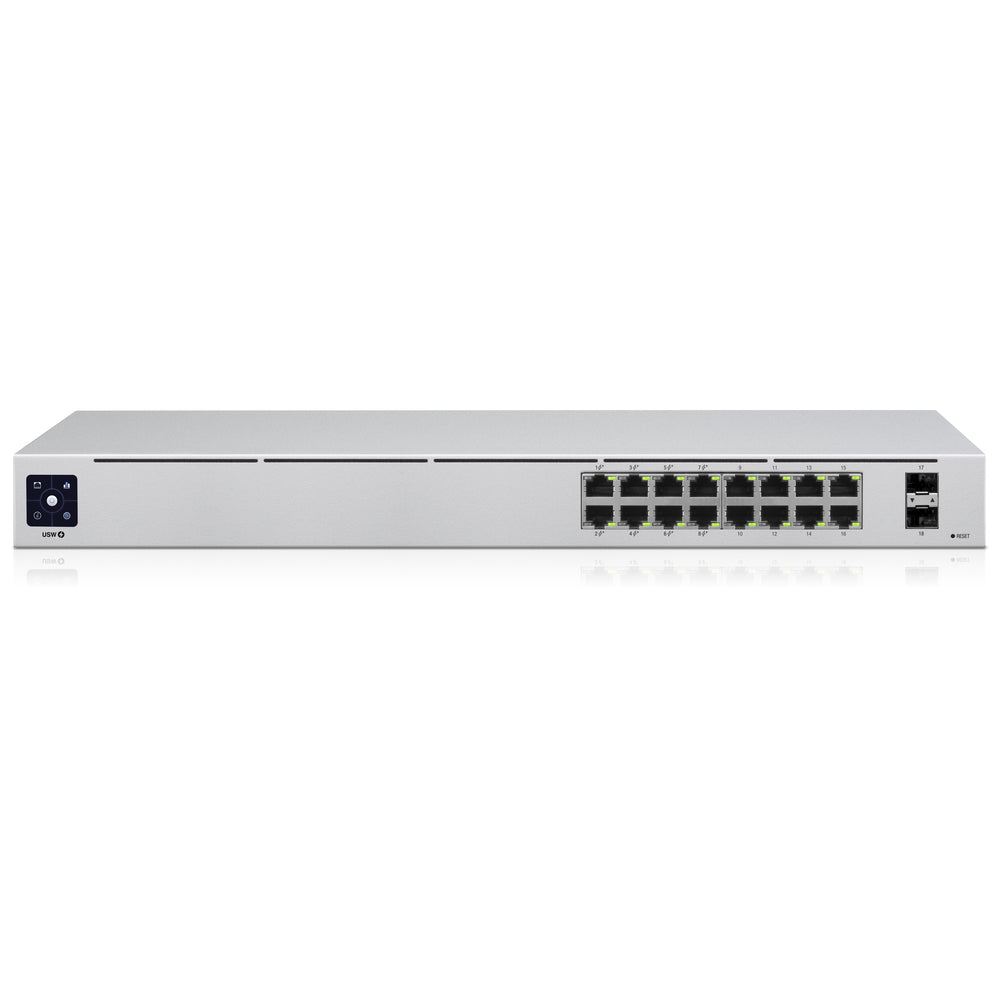

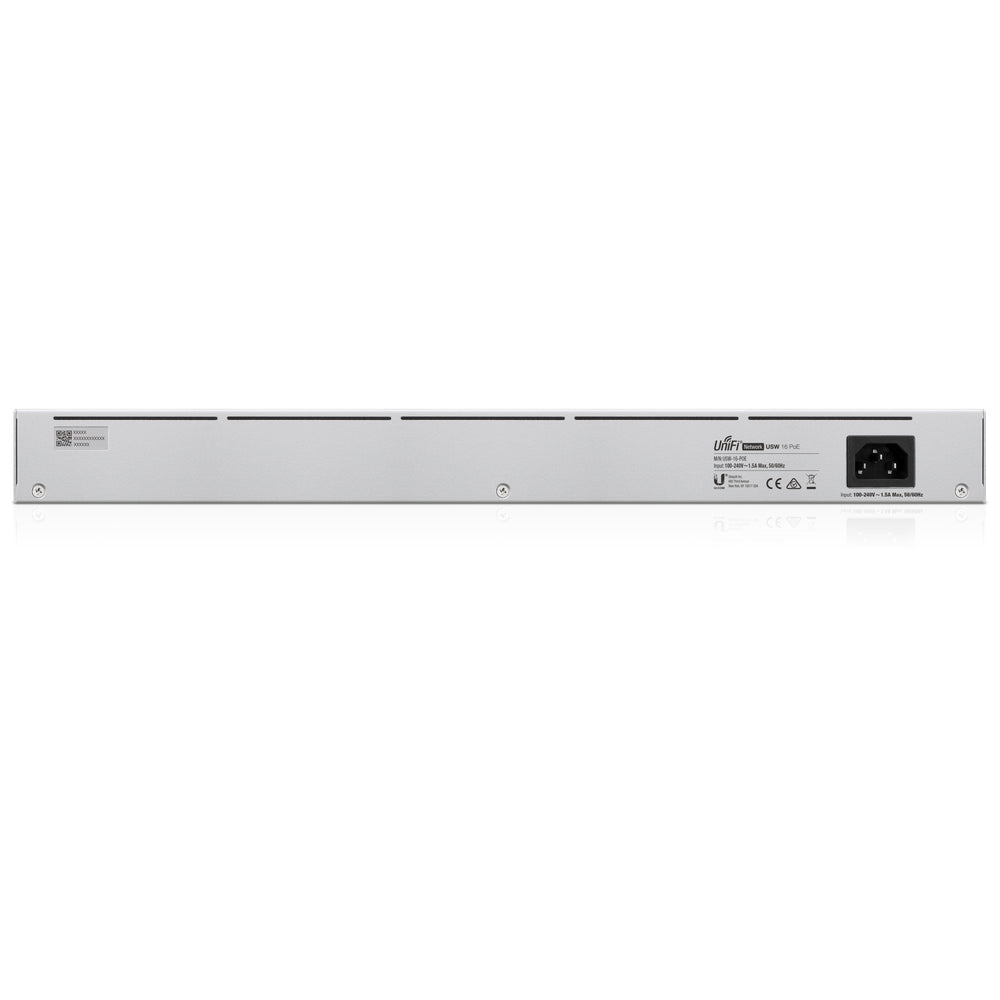

Ubiquiti USW-16-PoE Unifi 16-Port Gigabit Switch with PoE and SFP

Second-Generation UniFi Switching
We’ve redesigned our UniFi Switches from the ground up.

Near Silent Cooling
Ourairflow design reduces the need for fan usage.

Powerful Hardware and Software
UniFi Switches offer a variety of features, including 10G SFP+ ports, PoE+ or PoE++ support, and Layer 3 switching capabilities.

Redundant Power System
UniFi SmartPower RPS, USP-RPS, is our PSU failover system.

Power Supply Failure
In the event of a UniFi switch power supply failure, the USP-RPS automatically supplies redundant power to the failed device.

UniFi SmartPower
One UniFi SmartPower device can support up to 6 devices until the failed device is replaced.

Touchscreen Display
The 1.3" touchscreen display allows easy monitoring and quick troubleshooting.

Features:

• LED indicators: Activity,Link,PoE,Speed,System
• Certification: CE, FCC, IC
• Power supply included: Y
• AC input voltage: 100 - 240
• DC input voltage: 44 - 57
• AC input frequency: 50/60
• Power over Ethernet (PoE): Y
• Total Power over Ethernet (PoE) budget: 48
• Power over Ethernet (PoE) power per port: 32
• Operating temperature (T-T): -5 - 40
• Width: 442.4
• Depth: 200
• Height: 43.7
• Weight: 2800
• Operating relative humidity (H-H): 10 - 90
• Power over Ethernet plus (PoE+) ports quantity: 8
• Switch type: Managed
• Switch layer: L2/L3
• Basic switching RJ-45 Ethernet ports quantity: 16
• Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
• Installed SFP modules quantity: 2
• Networking standards: IEEE 802.3af,IEEE 802.3at
• Port mirroring: Y
• Full duplex: Y
• Flow control support: Y
• Auto MDI/MDI-X: Y
• Spanning tree protocol: Y
• Auto-sensing: Y
• VLAN support: Y
• Switching capacity: 36
• Throughput: 18000
• Forwarding rate: 26.78
• Static route: Y
• Jumbo frames support: Y
• Authentication type: IEEE 802.1x,RADIUS
• Rack mounting: Y
• Form factor: 1U
• Product color: Silver

Learn More

Ubiquiti Networks on Wikipedia

Power over Ethernet on Wikipedia

Product: Ubiquiti USW-16-PoE Unifi 16-Port Gigabit Switch with PoE and SFP

Brand: Ubiquiti

Model: USW-16-POE

Shipping Weight: 8.20 lb

Shipping Height: 4.80 in

Shipping Width: 12.20 in

Shipping Length: 20.70 in
