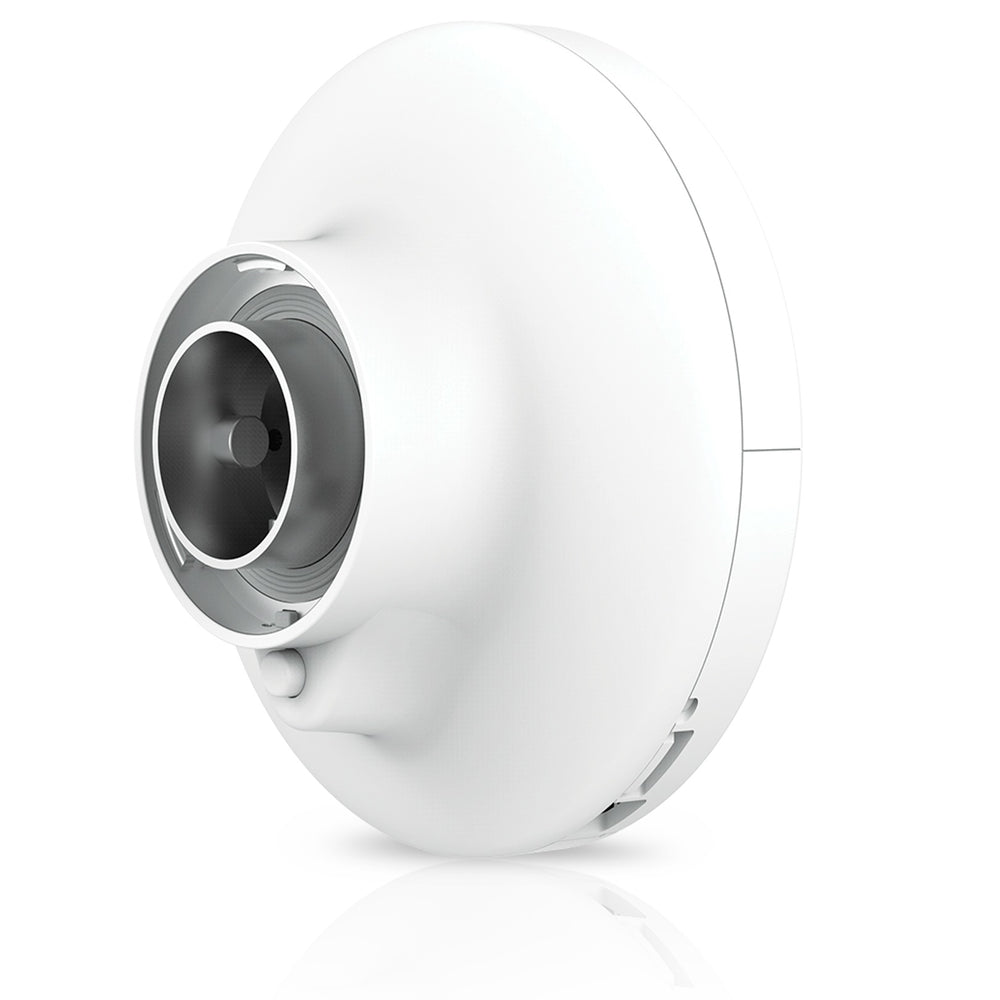

Ubiquiti PS-5AC-US 5GHz PrismStation - High-Performance Wireless Access Point

The Ubiquiti PS-5AC-US 5GHz PrismStation is a high-performance wireless access point designed to bring increased performance and reliability to your network. With its advanced airMAX ac processor and airPrism technology, this access point delivers throughput speeds of up to 500+ Mbps and signal ranges of up to 5+ km (3+ miles).

The PrismStation features a shielded airMAX ac BaseStation with a die-cast aluminum base and interchangeable antenna. This allows for easy customization and beam-shaping to meet specific deployment and environment needs. The antenna horn is modular and helps optimize gain while maintaining a small footprint.

One of the key features of the PrismStation is its built-in Prism Active RF Filter, which helps fight noise and interference from other radios. This enables greater system capacity and overall throughput, making it ideal for tower co-location installations.

The PrismStation AC supports GPS synchronization, allowing for faster and more scalable carrier-class networks. With 90% higher throughput than competing solutions, this access point ensures reliable and efficient performance.

Enhanced co-location is achieved through the PrismStation's asymmetrical and symmetrical horn antenna options. These antennas have naturally attenuated side lobes, low back radiation, and industry-leading front-to-back ratios, making them perfect for cluster sector installations.

With improved noise immunity, the PrismStation AC blocks or spatially filters out noise, ensuring a clean and reliable signal. This is especially important in areas crowded with other RF signals of the same or similar frequency.

The PrismStation AC comes with a separate Wi-Fi radio for easy setup using your mobile device. Additionally, it features advanced software, airOS 8, for improved usability and management of your network.

Product Features:

• Maximum data transfer rate: 500 Mbps
• Placement: Pole
• 2.4 GHz: No
• 5 GHz: Yes
• Frequency band: 5.150 - 5.250, 5.250 - 5.350, 5.470 - 5.725, 5.725 - 5.850 GHz
• Ethernet LAN (RJ-45) ports: 1
• Power over Ethernet (PoE): Yes
• Internal: No
• Product color: White
• Ethernet LAN data rates: 10/100/1000
• Width: 155 mm
• Depth: 104 mm
• Height: 155 mm
• Weight: 770 g
• Power consumption (max): 10 W
• Output voltage: 24 V
• Output current: 1 A
• Internal memory: 128 MB
• Flash memory: 16 MB
• Operating temperature (T-T): -40 - 70&degC
• Operating relative humidity (H-H): 5 - 95%
• Mounting kit: Yes
• PoE adapter included: Yes
• Certification: FCC, IC, CE
• Transmitting power: 28 dBm
• Operating system installed: AirOS
• Built-in processor: Yes

Learn More

For more information about the Ubiquiti PS-5AC-US 5GHz PrismStation, you can visit the Ubiquiti Networks Wikipedia page.

Product: Ubiquiti PS-5AC-US 5GHz PrismStation - High-Performance Wireless Access Point

Brand: Ubiquiti

Model: PS-5AC-US

Shipping Weight: lb

Shipping Height: in

Shipping Width: in

Shipping Length: in
