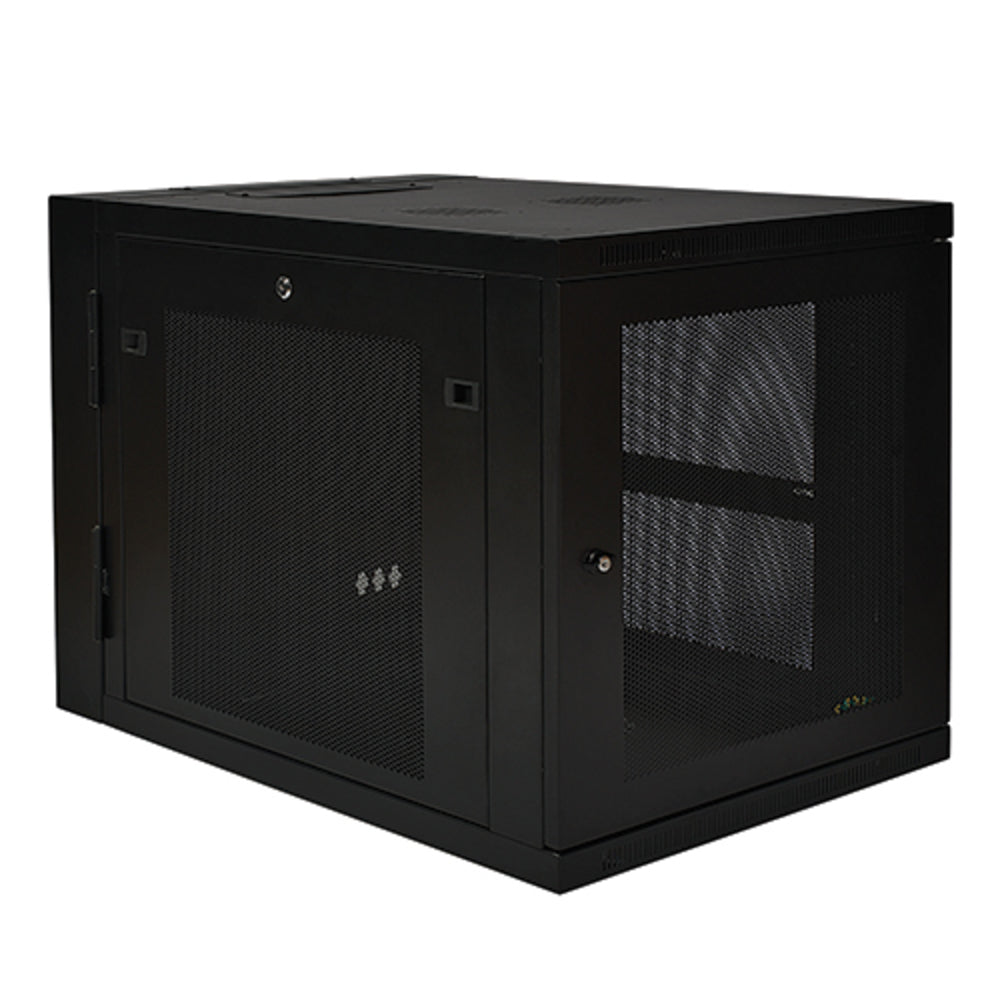

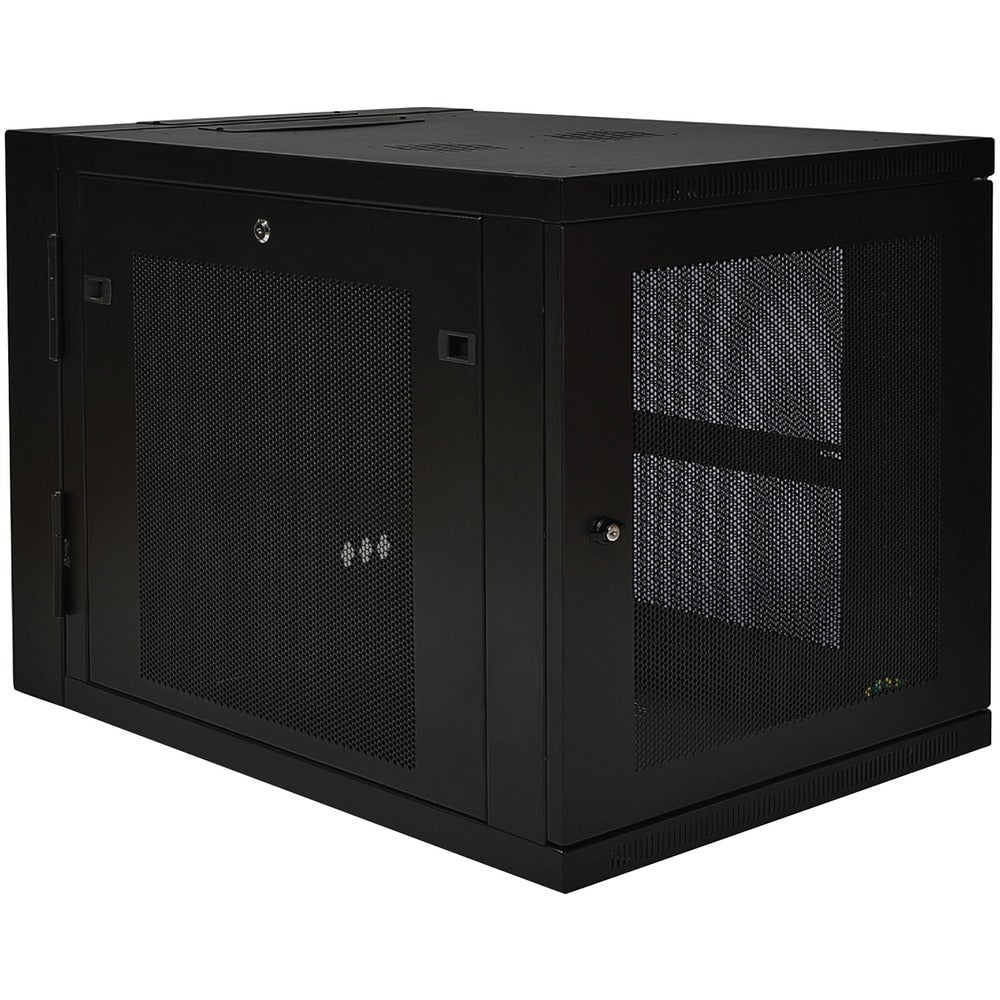

Tripp-Lite SRW12US33 Tripp Lite Accessory 12U Wall Mount Rack Enclosure Cabinet

The Tripp-Lite SRW12US33 is a SmartRack 12U Server-Depth Wall-Mount Rack Enclosure Cabinet designed to securely house EIA-standard 19-inch rack equipment in areas with limited floor space. It is perfect for network wiring closets, retail locations, classrooms, back offices, and other environments where you need to keep your equipment secure, organized, and out of the way.

Constructed from heavy-duty steel with a durable black powder-coated finish, this rack cabinet has a maximum load capacity of 113 kgs (250 lbs), providing a reliable solution for your equipment storage needs. The cabinet features a hinged design that swings away from the wall, allowing easy back-door access to equipment and cabling during installation and maintenance.

With locking steel doors and side panels, the cabinet ensures the security of your valuable equipment, preventing damage, tampering, and theft. The vented design of the front, top, bottom, and removable side panels allows for efficient airflow, keeping your equipment cool and functioning optimally.

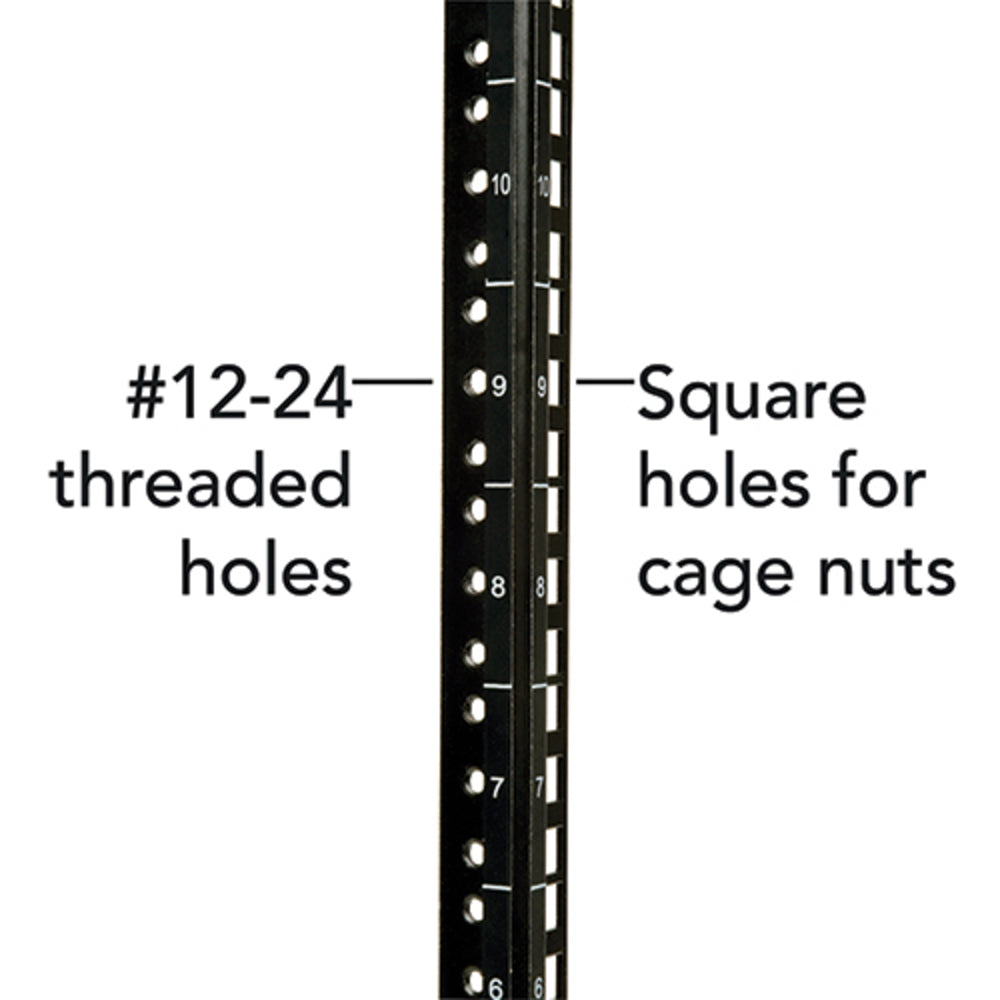

The Tripp-Lite SRW12US33 comes fully assembled and ready to mount on the wall. Alternatively, you can use Tripp Lite's optional SRCASTER rolling caster kit to make it a mobile rack. The wall-mounting holes are spaced 16 inches apart for standard wall stud placement, and the vertical mounting rails adjust in 7/8-inch increments to accommodate equipment up to 32.5 inches deep.

Key Features:

• Maximum load capacity of 113 kgs (250 lbs)

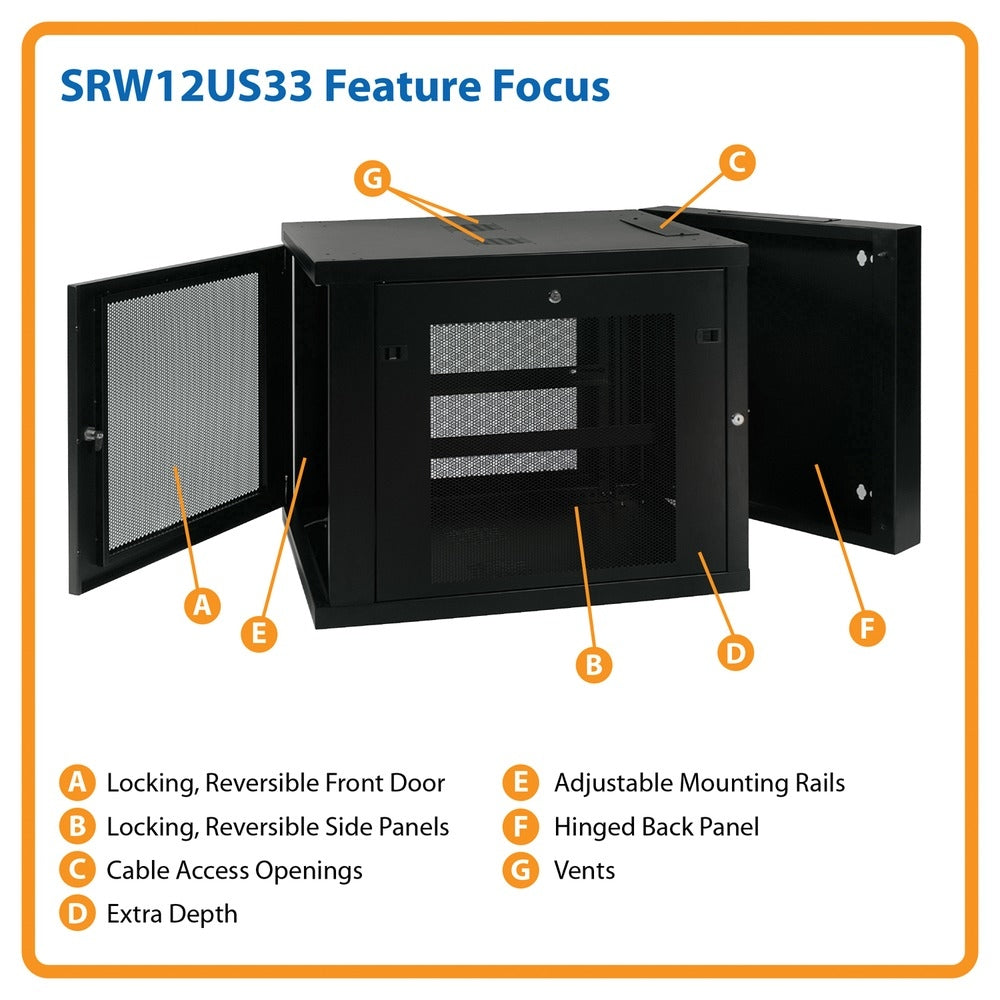

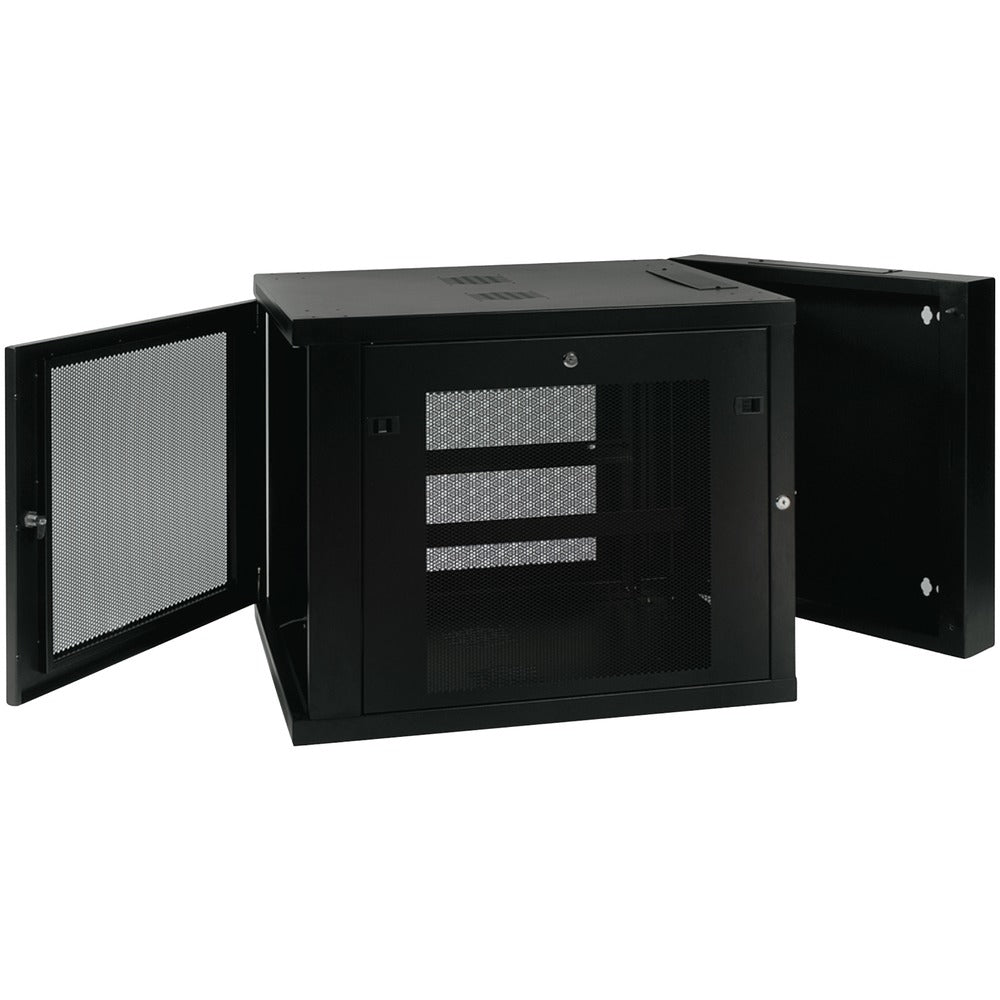

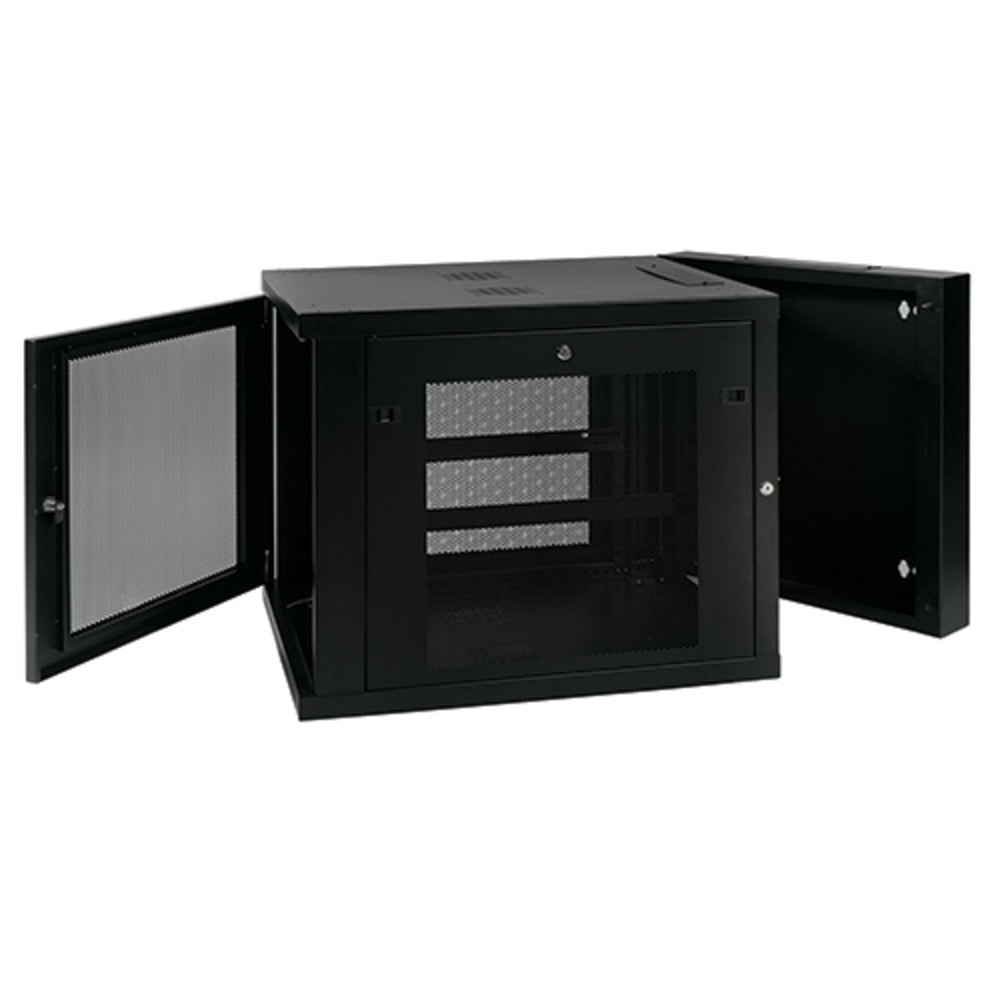

• Hinged design swings away from the wall for easy back-door access
• Locking steel cabinet with vented sides, front, top, and bottom
• Flow-through ventilation keeps equipment cool
• Secures 12U of 19 in. rack equipment up to 32.5 in. deep

Package Includes:

• SRW12US33 SmartRack 12U Server-Depth Wall-Mount Rack Enclosure Cabinet
• (36) M6 screws
• (36) M6 cage nuts
• (36) M6 washers
• (36) 12-24 screws
• (2) Keys
• Owner’s manual

Specifications:

• Width: 600
• Depth: 850.9
• Weight: 45360
• Height: 635
• Type: Wall mounted rack
• Product color: Black
• Certification: EIA-310-D, IEC 60297-3-100, DIN 41494, IP250, RoHS, UL 60950
• Rack capacity: 12U
• Maximum weight capacity: 90.7
• Manual: Y
• Wall mounting kit: Y
• Package width: 662.9
• Package depth: 915.9
• Package height: 767.1
• Package weight: 50170

Learn More

For more information about rack enclosures, please visit the Rack Enclosure Wikipedia page.
