Tripp Lite SRW10USG Wall Mount Rack Enclosure Cabinet

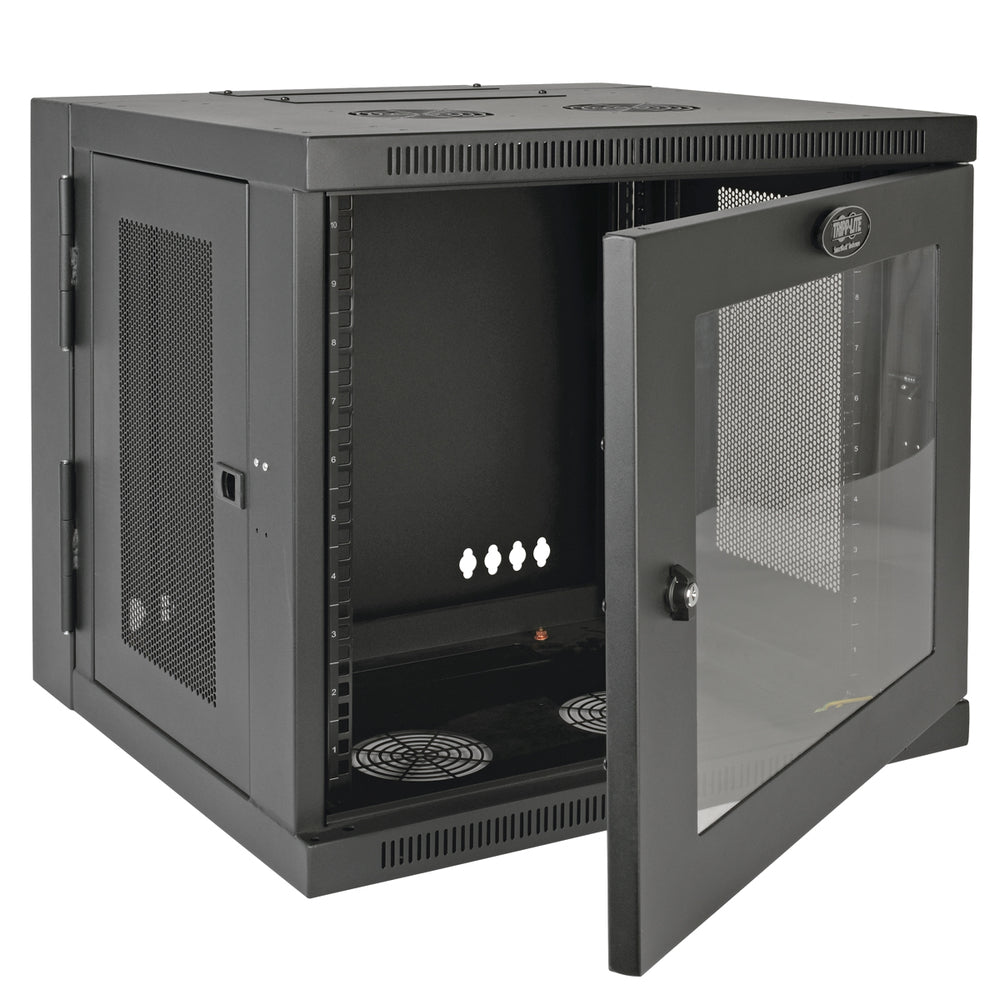

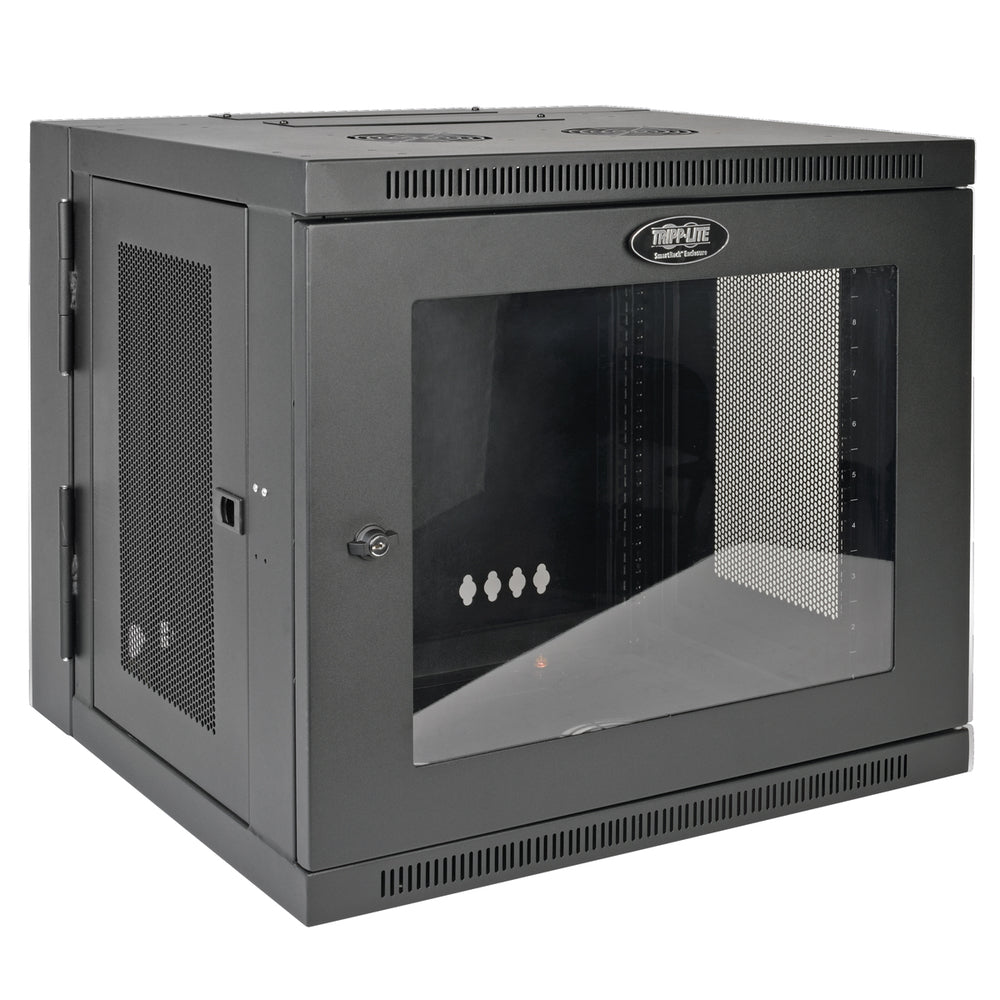

The Tripp Lite SRW10USG SmartRack 10U Low-Profile Switch-Depth Wall-Mount Rack Enclosure Cabinet is the perfect solution for housing EIA-standard 19-inch rack equipment in network wiring closets, retail locations, classrooms, back offices, and other areas with limited floor space. This black wall-mounted rack cabinet is constructed from heavy-duty steel with a durable powder-coated finish, providing a maximum load capacity of 90 kgs. The shatter-resistant clear acrylic front window allows you to monitor equipment readouts without unlocking the enclosure, while the hinged design provides convenient back-door access for installation and maintenance. The cabinet is designed to keep important equipment secure, with locking doors and side panels, as well as vented panels for airflow to keep equipment cool. The SRW10USG comes fully assembled and ready to mount, with adjustable vertical mounting rails and convenient cable routing ports.

Features:

• Type: Wall mounted rack
• Product color: Black
• Maximum weight capacity: 90.7 kgs
• Frame type: Closed
• Rack capacity: 10U
• Mounting depth (max): 548 mm
• Weight: 24030 g
• Package height: 616 mm
• Package depth: 612.9 mm
• Package width: 670.1 mm
• Package weight: 26760 g
• Width: 600.2 mm
• Depth: 599.4 mm
• Height: 547.7 mm
• Wall mounting kit: Yes
• Certification: UL/CSA 60950-1, EIA-310-D, IEC 60297-3-100, IP20 Protection, RoHS

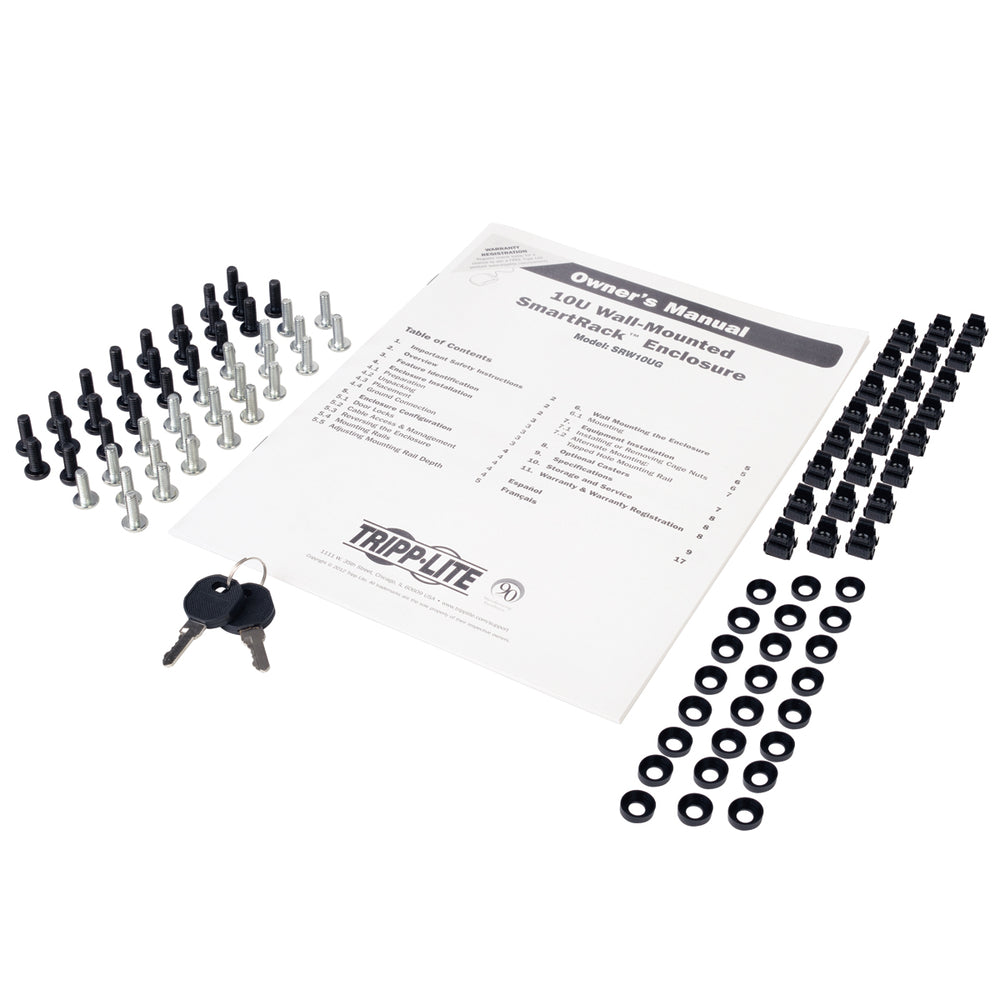

Package Includes:

• SRW10USG SmartRack 10U Low-Profile Switch-Depth Wall-Mount Rack Enclosure Cabinet
• (24) M6 screws
• (24) M6 cage nuts
• (24) M6 washers
• (24) 12-24 screws
• (2) Keys
• Owner’s manual

Learn More

For more information, please visit the Rack Unit Wikipedia page.

For more information, please visit the Rack Unit Wikipedia page.

Product: Tripp Lite SRW10USG Wall Mount Rack Enclosure Cabinet

Brand: Tripp Lite

Model: SRW10USG

Shipping Weight: 95.31 lb

Shipping Height: 24.50 in

Shipping Width: 24.60 in

Shipping Length: 26.25 in
