Tripp Lite Smart5000Xfmrxl UPS Smart 5000VA 3750WAVR 3URM 208

The Tripp Lite Smart5000Xfmrxl UPS is a high-performance uninterruptible power supply (UPS) designed for server, network, and telecommunications equipment. With a maximum output power capacity of 5000VA/3750 watts, this UPS is compatible with North American 208V/60Hz input voltage.

Featuring a line-interactive topology, the UPS protects sensitive networking equipment from blackouts, voltage fluctuations, and transient surges. It provides automatic voltage regulation (AVR) to correct the 208V nominal input voltage from 167 to 260VAC back to usable 208/120V levels without consuming battery power. AVR circuits boost undervoltages by 12% and reduce overvoltages by 12%.

The UPS requires 3 rack spaces for installation and is suitable for standard 19-inch rack enclosures with an installed depth of only 25 inches (63.5cm). It supports both rack and tower placement, offering flexibility in deployment.

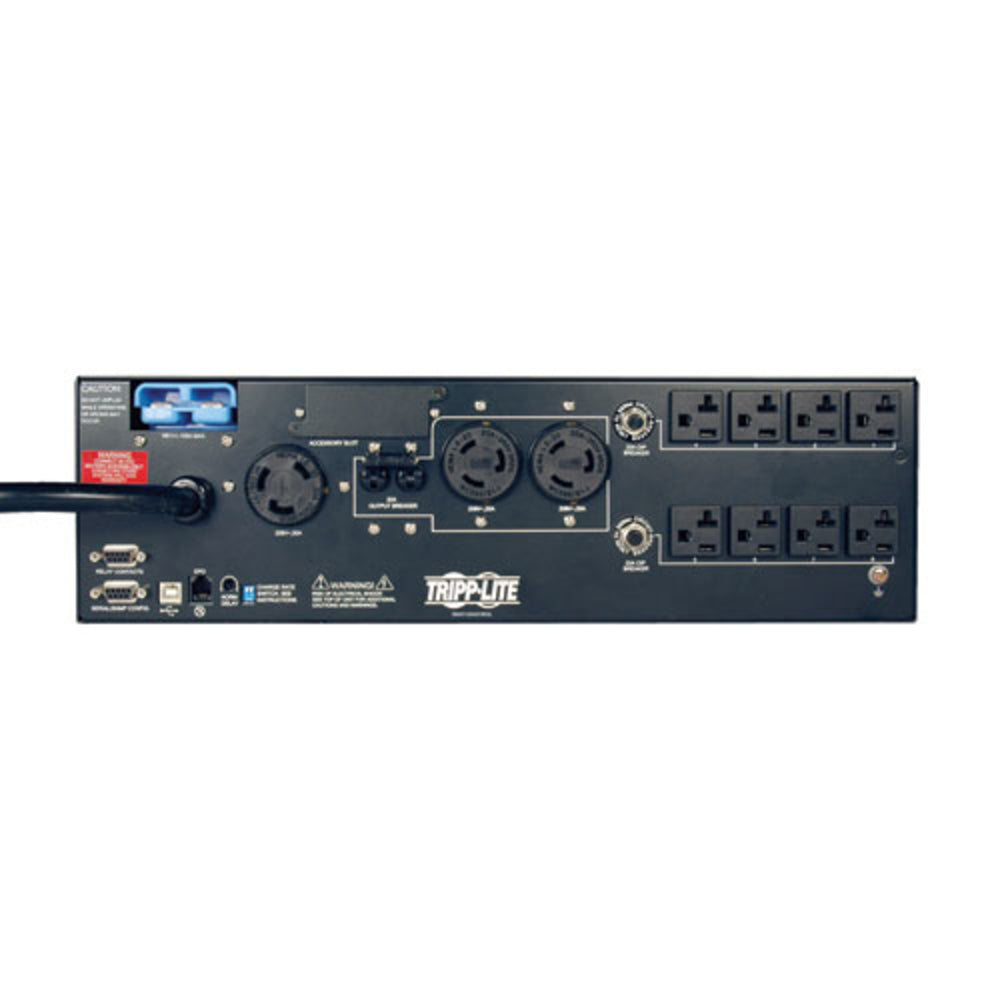

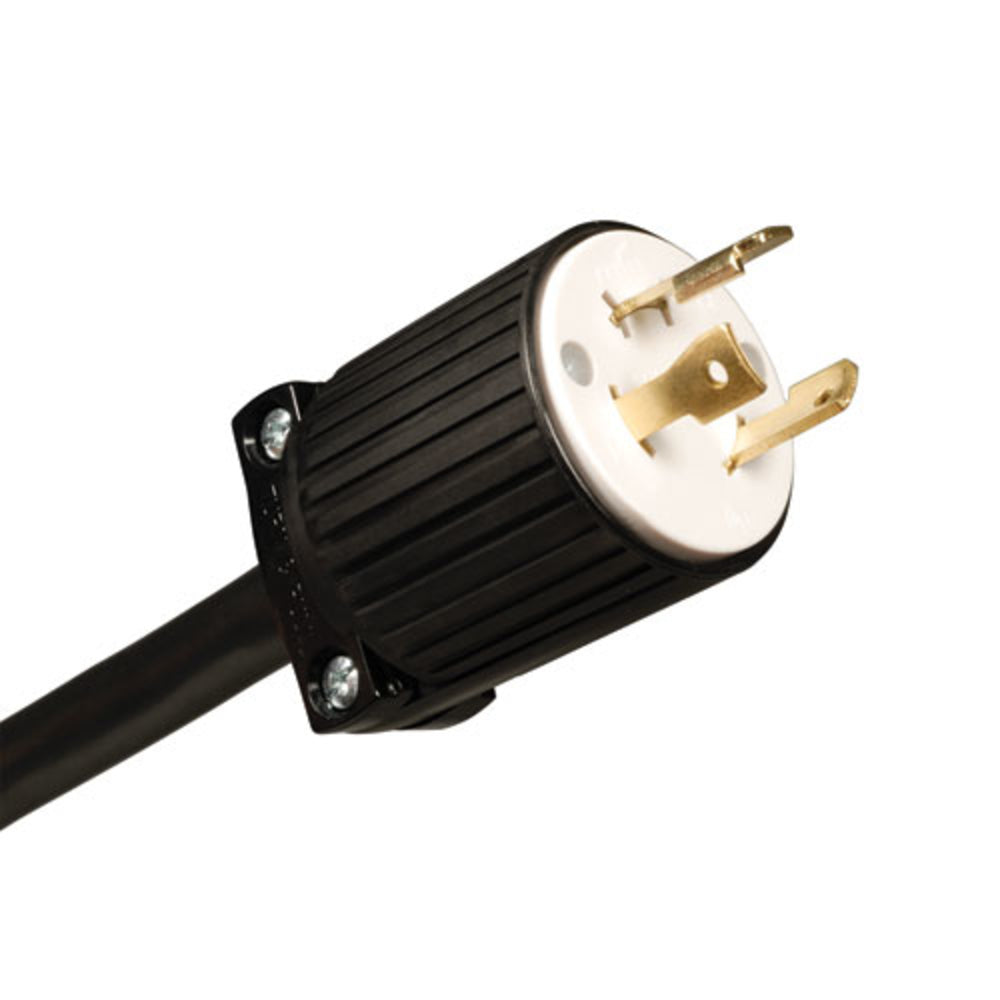

With its 11 output receptacles, including 2 L6-20, 1 L6-30, and 8 NEMA 5-15/20R outlets, the UPS provides ample connectivity options for your equipment. It ships with an installed NEMA L6-30P input plug and supports user-supplied 50A replacement plug or hardwire input.

The UPS offers network management interfaces, including USB, DB9 serial, and SNMPWEBCARD slot, enabling simultaneous communications via all network interfaces. It supports detailed monitoring of equipment load levels, self-test data, and utility power conditions.

Key Features:

• Input operation voltage (min): 167
• Input operation voltage (max): 260
• Output operation voltage (min): 120
• Output operation voltage (max): 208
• Input frequency: 60
• Maximum current: 30
• Efficiency: 97
• Power factor: 0.75
• Output voltage regulation: +/- 5
• AC outlets quantity: 11
• AC outlet types: NEMA 5-20R, NEMA L6-20R, NEMA L6-30R
• Power plug: NEMA L6-30P
• Cold start: Yes
• Rack capacity: 3U
• Housing material: Steel
• UPS topology: Line-Interactive
• Number of input phases: 1
• EMI/RFI noise filtering: Yes
• Power protection features: Over voltage, Under voltage
• Waveform: Sine
• Automatic Voltage Regulation (AVR): Yes
• Cooling type: Active
• RoHS compliance: Yes
• Width: 444mm
• Depth: 635mm
• Height: 133mm
• Package width: 584mm
• Package depth: 800mm
• Package height: 286mm
• Output power capacity: 5000VA
• Output power: 3750W
• Emergency Power Off (EPO): Yes
• Output connections: 8 x 5-15/20R, 2 x L6-20R, 1 x L6-30R
• Surge energy rating: 1020
• Hot-swap battery: Yes
• Typical backup time at half load: 20 minutes
• Typical backup time at full load: 8.5 minutes
• Cable length: 3 meters
• Form factor: Rackmount/Tower
• Response time: 4ms
• Serial ports quantity: 2
• USB 2.0 ports quantity: 1
• Product color: Black
• Weight: 65100g
• Audible alarm(s): Yes
• Battery recharge time: 4 hours
• Package weight: 82600g
• Operating temperature (T-T): 0&degC - 40&degC
• Operating relative humidity (H-H): 0% - 95%

Learn More

For more information about uninterruptible power supplies, please visit the Wikipedia page.

Product: Tripp Lite Smart5000Xfmrxl UPS Smart 5000VA 3750WAVR 3URM 208 and

Brand: Tripp Lite

Model: SMART5000XFMRXL
