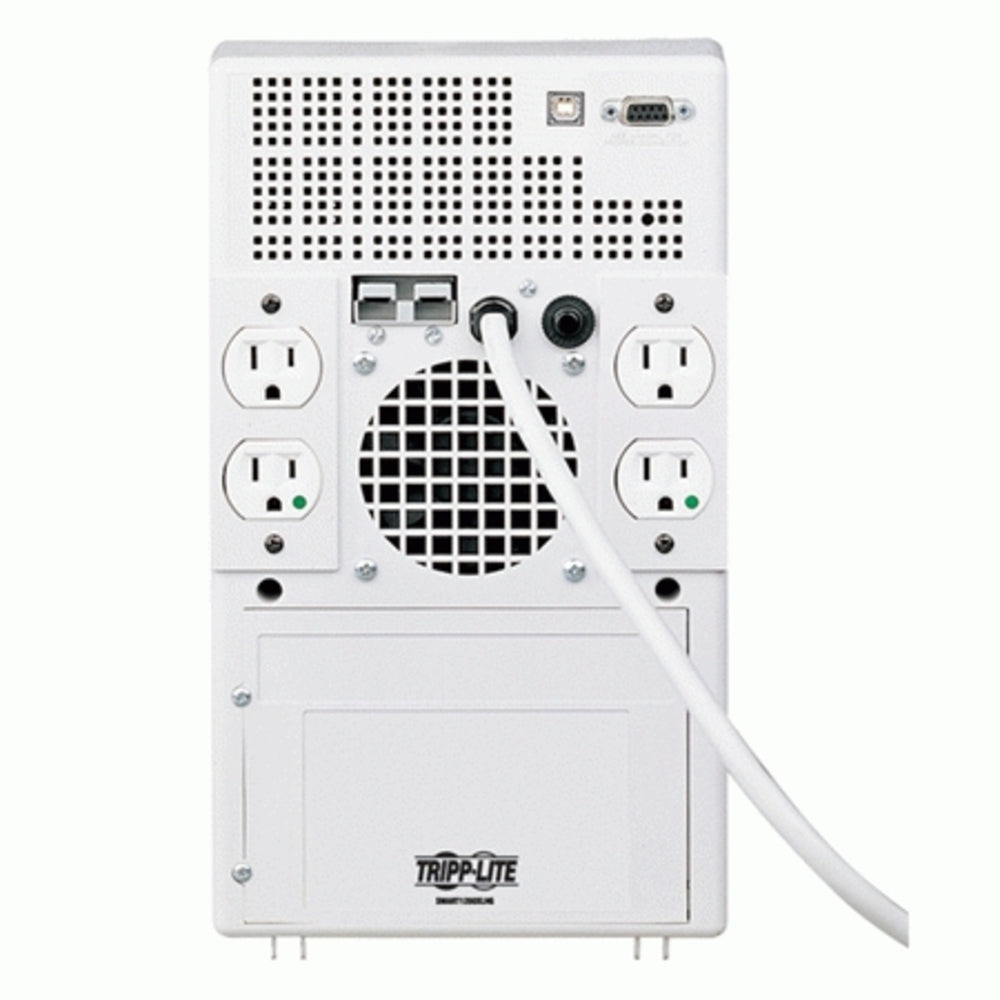

Tripp Lite SMART1200XLHG UPS Tower 1kVA - Medical Grade, USB/DB9 Serial

Tripp Lite's SMART1200XLHG uninterruptible power supply (UPS) offers medical-grade protection with built-in line-interactive voltage regulation, expandable battery runtime, and intelligent monitoring with unattended shutdown capability. This UPS is UL 60601-1 listed as medical electrical equipment and includes a built-in isolation transformer with Faraday shield for full line isolation and removal of common mode noise while maintaining full AC surge suppression in all modes. It features high-quality hospital-grade plug and outlets and is resistant to electrostatic discharge. With a power handling capacity of 1000VA, it supports computers, inter-networking equipment, and other critical loads during commercial power failures. The external battery connector allows configuration for up to several hours of runtime during power failures by adding one or more external battery packs (BP36V15-2U limit 1 or BP36V42-3U multi-pack compatible). The line interactive voltage regulation corrects brownouts as low as 81V and overvoltages as high as 143V back to normal 120V levels, saving battery reserves for use only during complete power failures. It also includes diagnostic LEDs and 2 built-in communications ports (1 USB, 1 DB9) that work with included PowerAlert Software and cabling to provide automatic unattended shutdown of connected network and PC applications.

It is an intelligent, line-interactive power management system with an output power capacity of 1000 and 750W output power. The nominal input and output voltage is 120V, and it includes 4 NEMA 5-15R-HG output connections and a NEMA 5-15P-HG input connection type. The surge energy rating is 480 and the input frequency is 60. The typical backup time at half load is 28 minutes, and at full load is 10 minutes. The cable length is 1.83 and the dimensions are 191 x 242 x 317.5. It weighs 20500 and has a battery recharge time of 2 hours. The operating temperature range is 32 - 104 and it is certified with UL1778 (USA, AGSM1200PSR3HG), UL 60601-1, cUL (Canada), Class A.

Features:

• Output power capacity: 1000
• Output power: 750
• Nominal input voltage: 120
• Nominal output voltage: 120
• Output connections: 4 NEMA 5-15R-HG
• Input connection type: NEMA 5-15P-HG
• Surge energy rating: 480
• Input frequency: 60
• Typical backup time at half load: 28
• Typical backup time at full load: 10
• Cable length: 1.83
• Dimensions (WxDxH): 191 x 242 x 317.5
• Weight: 20500
• Battery recharge time: 2
• Operating temperature (T-T): 32 - 104
• Certification: UL1778 (USA, AGSM1200PSR3HG), UL 60601-1, cUL (Canada), Class A

Learn More

For more information, visit Tripp Lite Wikipedia.

Product: Tripp Lite SMART1200XLHG UPS Tower 1kVA - Medical Grade, USB/DB9 Serial

Brand: Tripp Lite

Model: SMART1200XLHG
