Tripp Lite PDUMV15NETLX PDU 1.4kW 16 Outlet Switched Power Distribution Unit

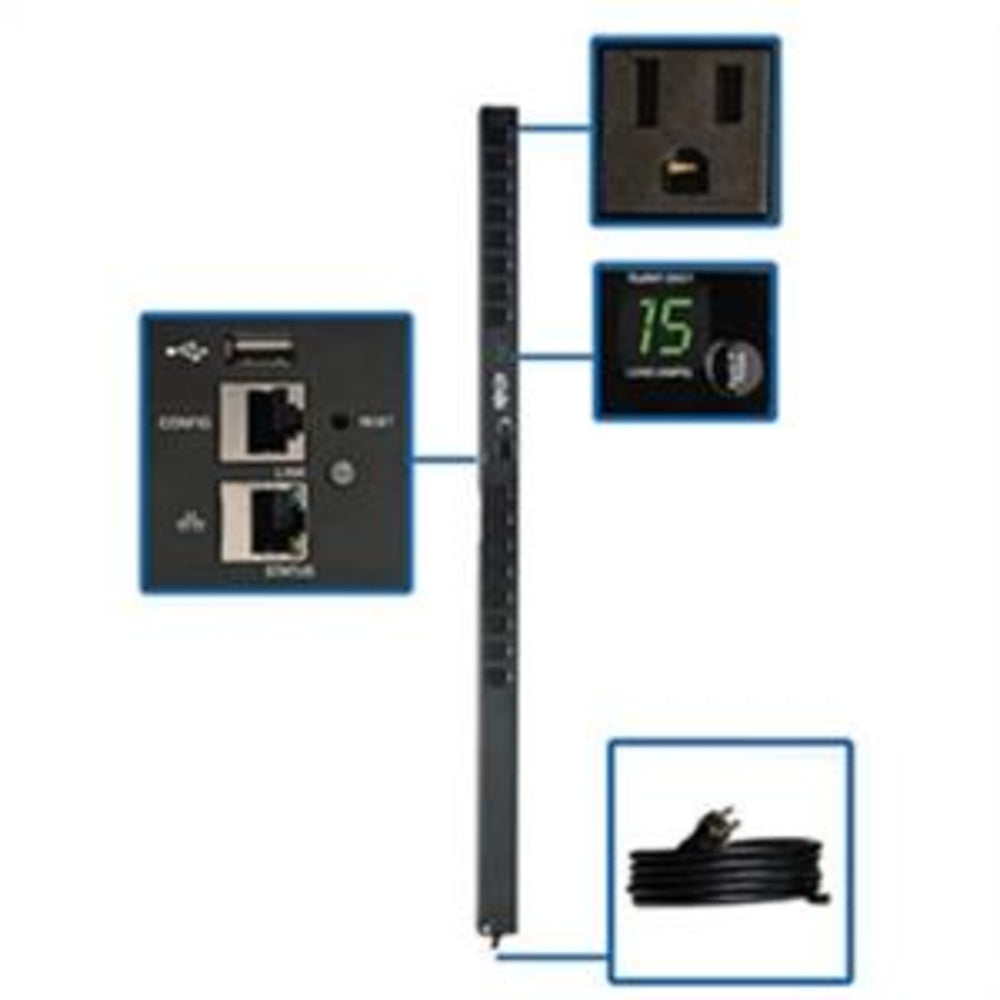

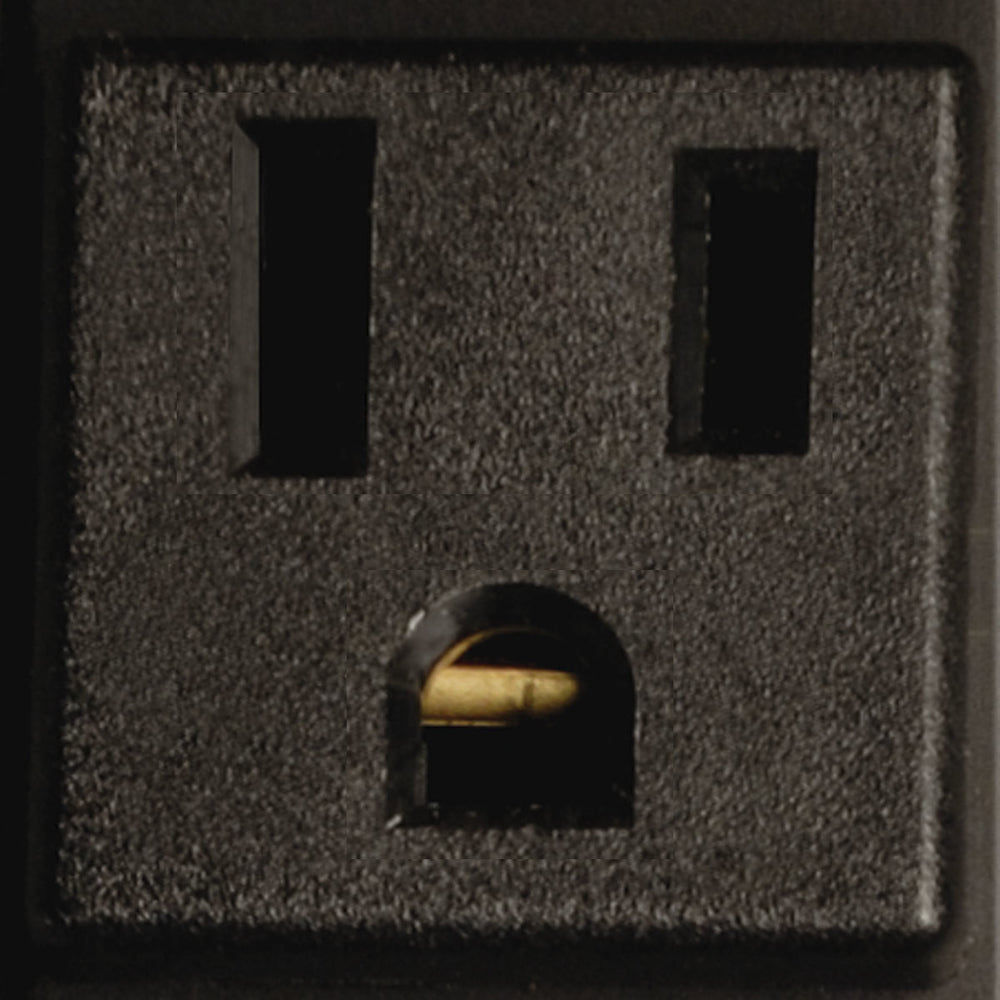

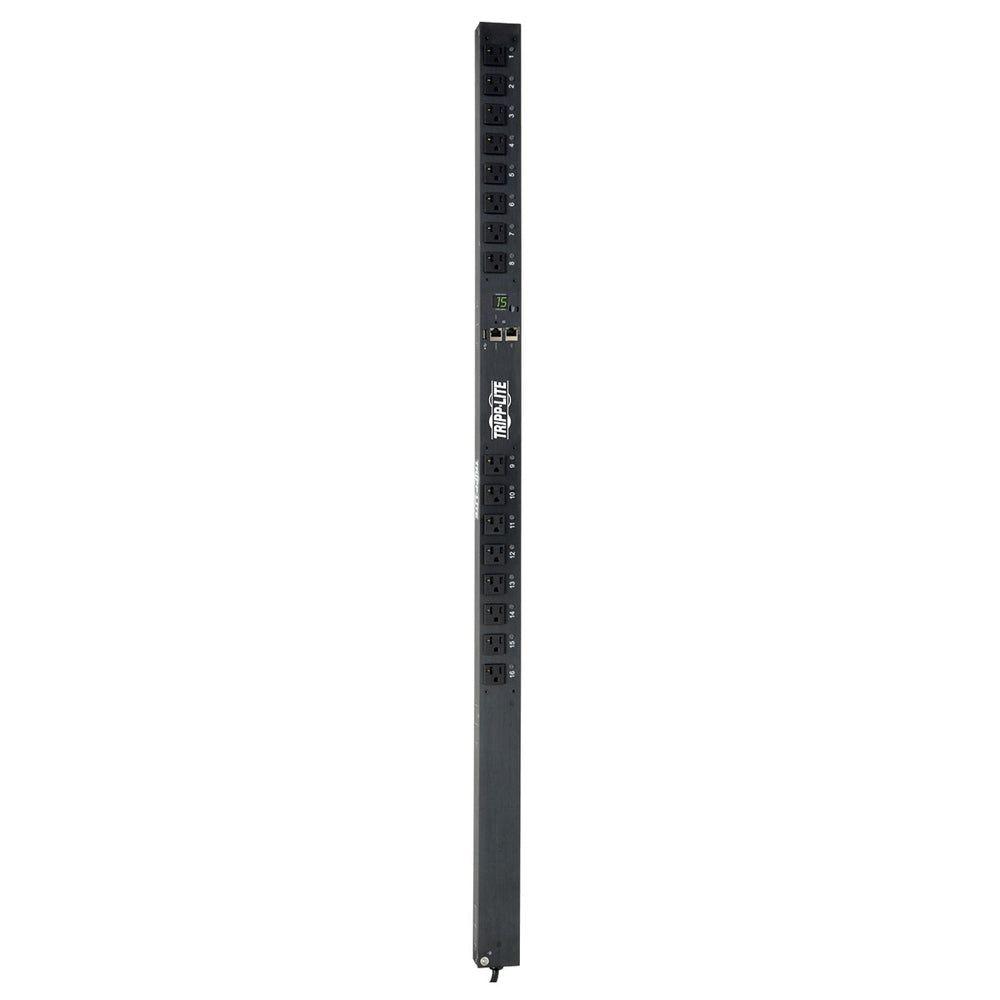

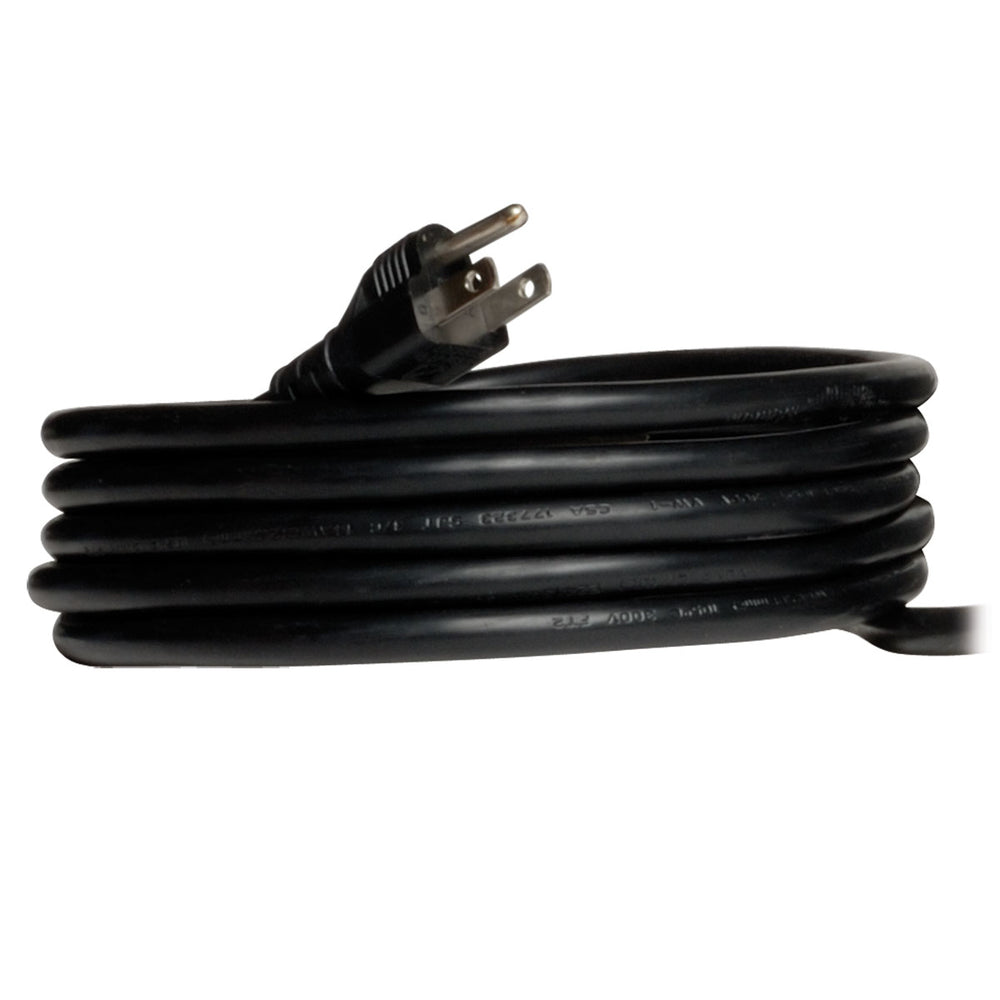

The Tripp Lite PDUMV15NETLX 1.4kW Single-Phase Switched PDU provides advanced network control and remote power monitoring with the ability to turn on, turn off, reboot or lock out power to each outlet. Recommended for IT and industrial applications, the vertical PDU features 16 switched NEMA 5-15R outlets with included cord retention brackets to prevent cables from becoming accidentally disconnected. A 10-foot cord with NEMA 5-15P plug connects the PDU to a compatible AC power source, generator or protected UPS.

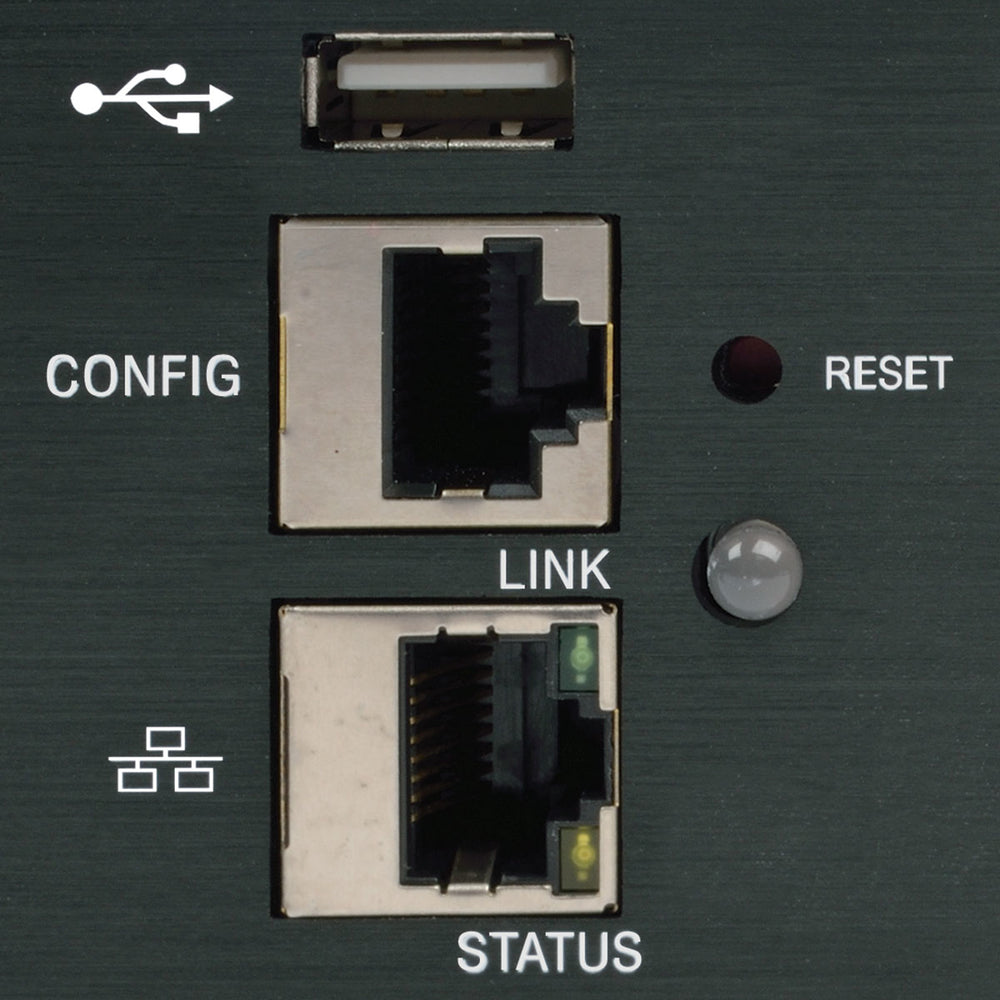

The built-in Java-free HTML5-based LX Platform network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include IPv4, IPv6, HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP.

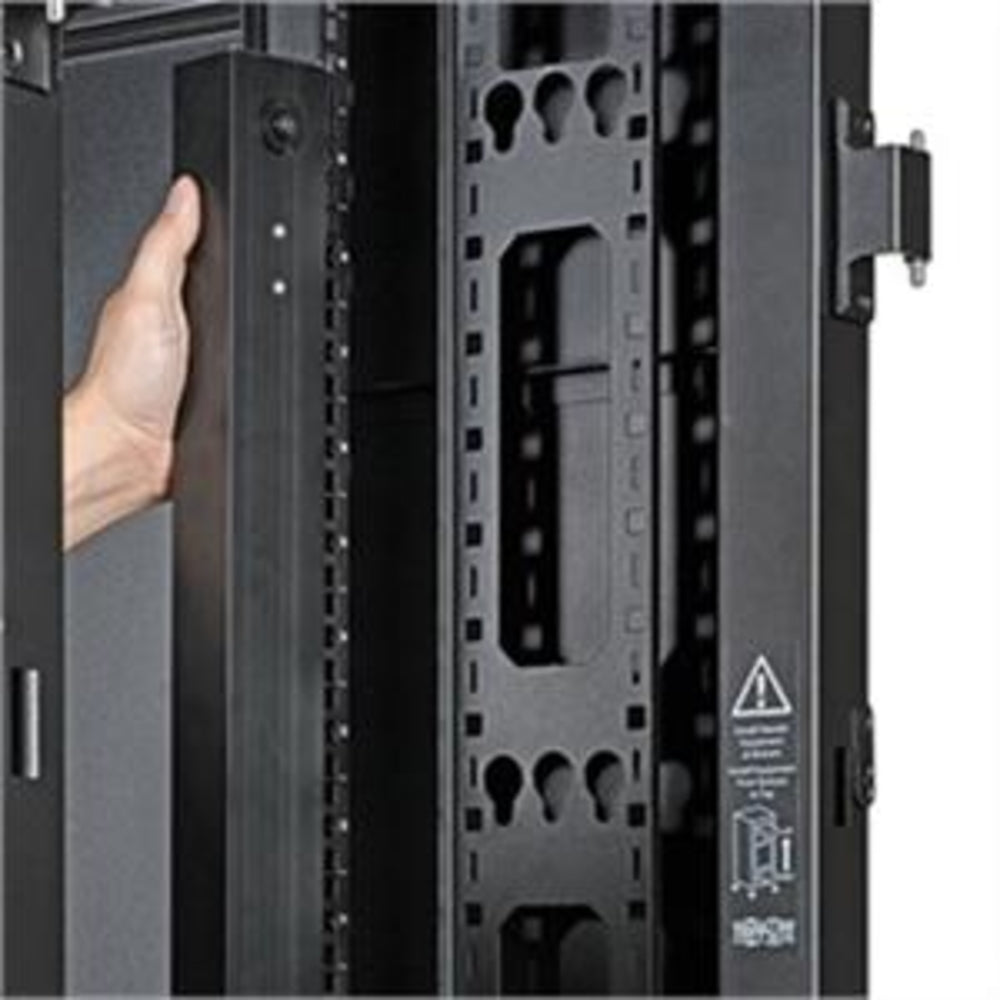

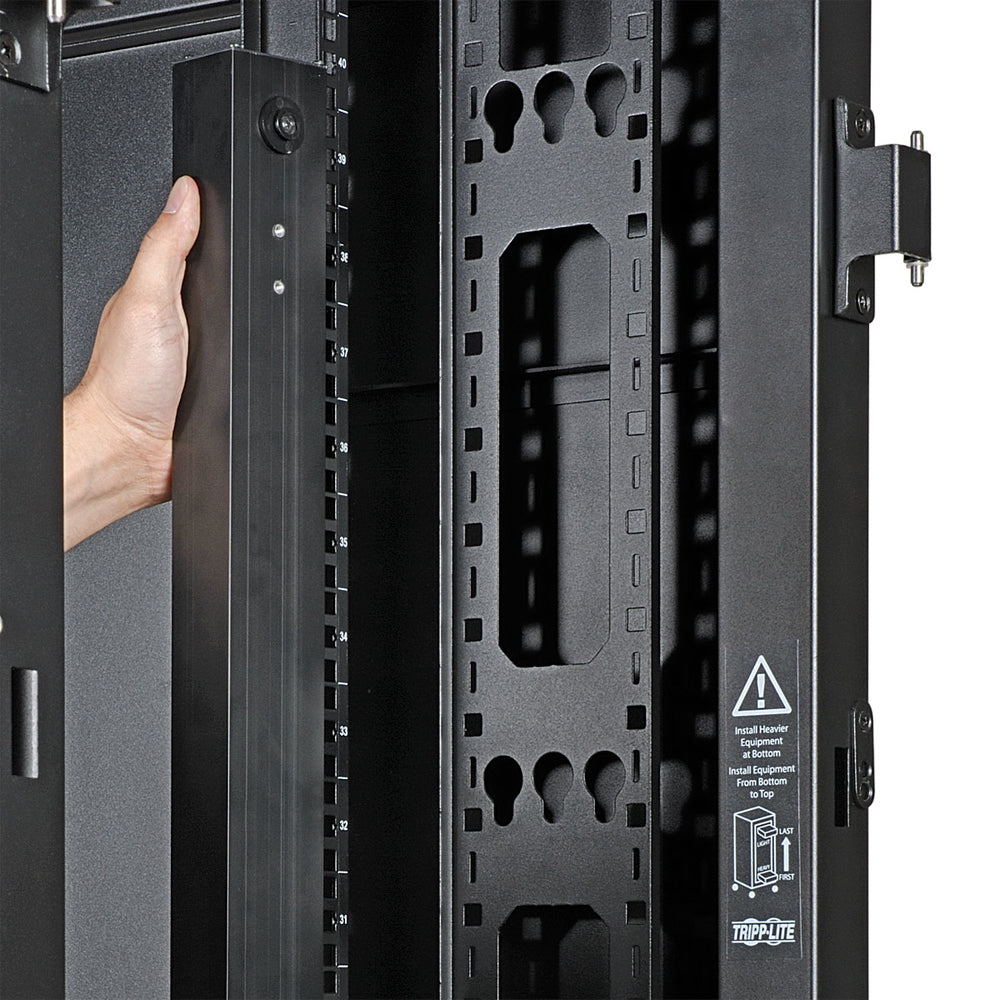

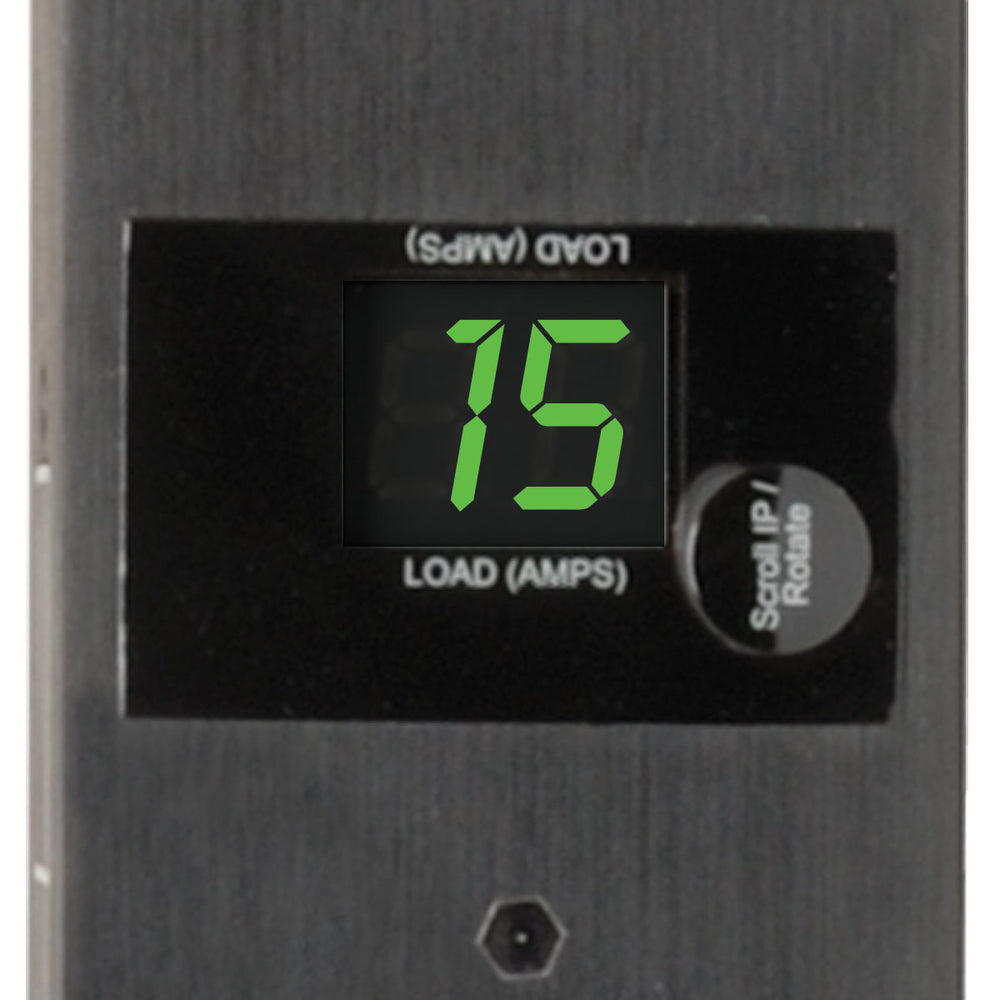

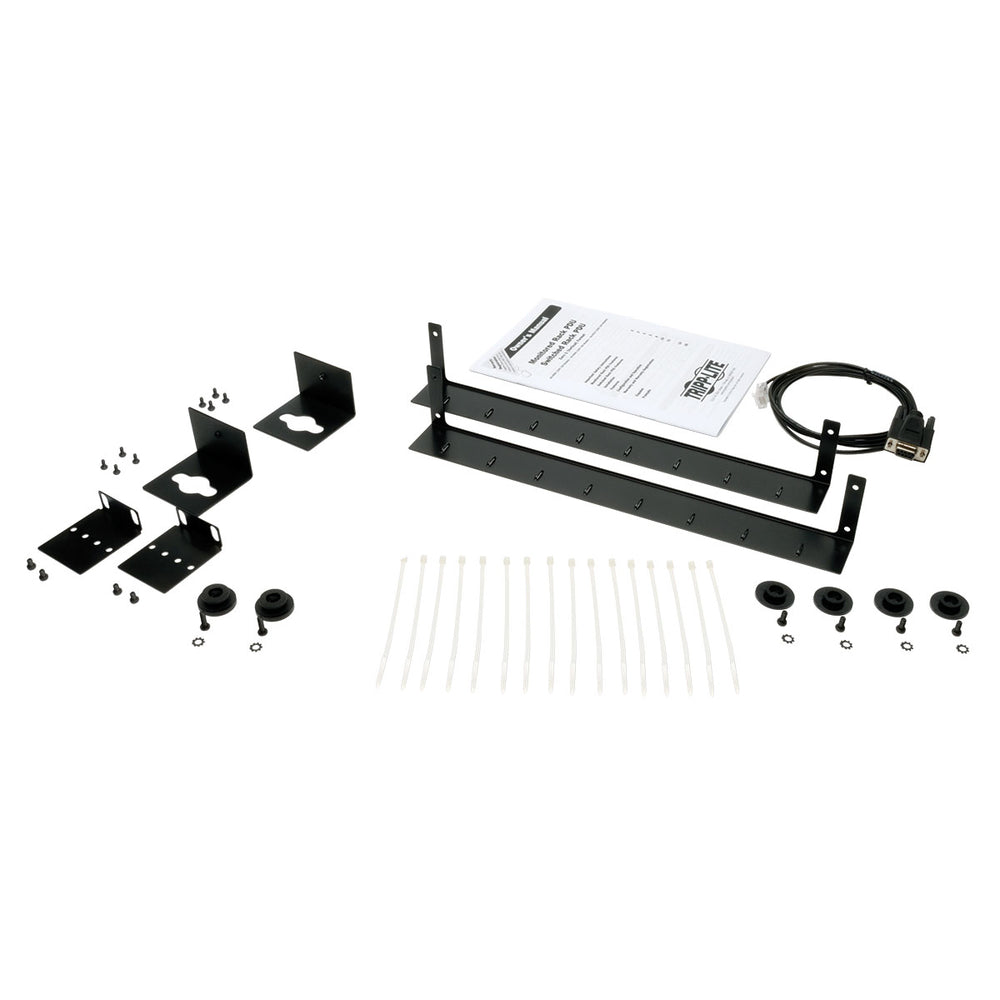

A digital ammeter allows you to monitor the total load in real time to ensure it remains well below maximum capacity with no danger of overload. The vertical PDU mounts in 0U of space in EIA-standard 19-inch racks using the included toolless mounting buttons or the included rack-mounting brackets. Use the included PDUMVROTATEBRKT kit to install the unit with outlets facing the rear for better airflow or equipment access.

1.4kW Single-Phase Switched PDU with LX Platform Interface, 120V Outlets (16 5-15R), 10 ft. Cord w/5-15P, 0U, TAA

Features:

• PDU types: Switched
• Maximum power: 1520
• Nominal input voltage: 100-127
• Nominal output voltage: 100-127
• AC input frequency: 50 - 60
• AC outlet types: NEMA 5–15R
• AC outlets quantity: 16
• Maximum current: 15
• Cable length: 3.048
• Type: Single-phase
• Display: LCD
• LED indicators: Power,Status
• Package width: 152
• Package depth: 1314
• Package height: 101
• Package weight: 4989
• Dimensions (WxDxH): 55 x 67 x 1244
• Weight: 3175
• Rack capacity: 0U
• Mounting: Vertical
• Product color: Black
• RoHS compliance: Y
• Storage temperature (T-T): -15 - 60
• Operating relative humidity (H-H): 5 - 95
• Supported network protocols: IPv4, IPv6, HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP, NTP
