Tripp Lite PDUMNV30LX PDU Monitored 2.9KW 120V 24 5-15/20R 30A LX Platform 0URM

The Tripp Lite PDUMNV30LX PDU Monitored 2.9KW is a single-phase power distribution unit that provides real-time remote monitoring of voltage, frequency, and load levels. It is designed for IT and industrial applications, offering reliable power distribution and monitoring capabilities.

Product Features:

• PDU Type: Monitored
• Maximum Power: 3050
• Nominal Output Voltage: 100-127
• AC Input Frequency: 50 - 60
• AC Outlet Types: NEMA 5–15R, NEMA 5–20R
• AC Outlets Quantity: 24
• Nominal Input Voltage: 100-127
• Maximum Current: 30
• Power Plug: NEMA L5-30P
• Cable Length: 3.05
• Display: LCD
• LED Indicators: Yes
• Package Height: 1856
• Package Width: 160
• Package Depth: 127
• Package Weight: 6168
• Dimensions (WxDxH): 55 x 44 x 1778
• Weight: 5216
• Type: Single-phase
• Rack Capacity: 0U
• Mounting: Vertical
• Operating Temperature (T-T): -15 - 60
• Operating Relative Humidity (H-H): 5 - 95
• RoHS Compliance: Yes
• Product Color: Black
• Power Protection Features: Overload

The Tripp Lite PDUMNV30LX PDU Monitored 2.9KW is equipped with a built-in Java-free HTML5-based LX Platform network interface, allowing full remote access for PDU status monitoring and email notifications. It supports various protocols, including IPv4, IPv6, HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP, and NTP.

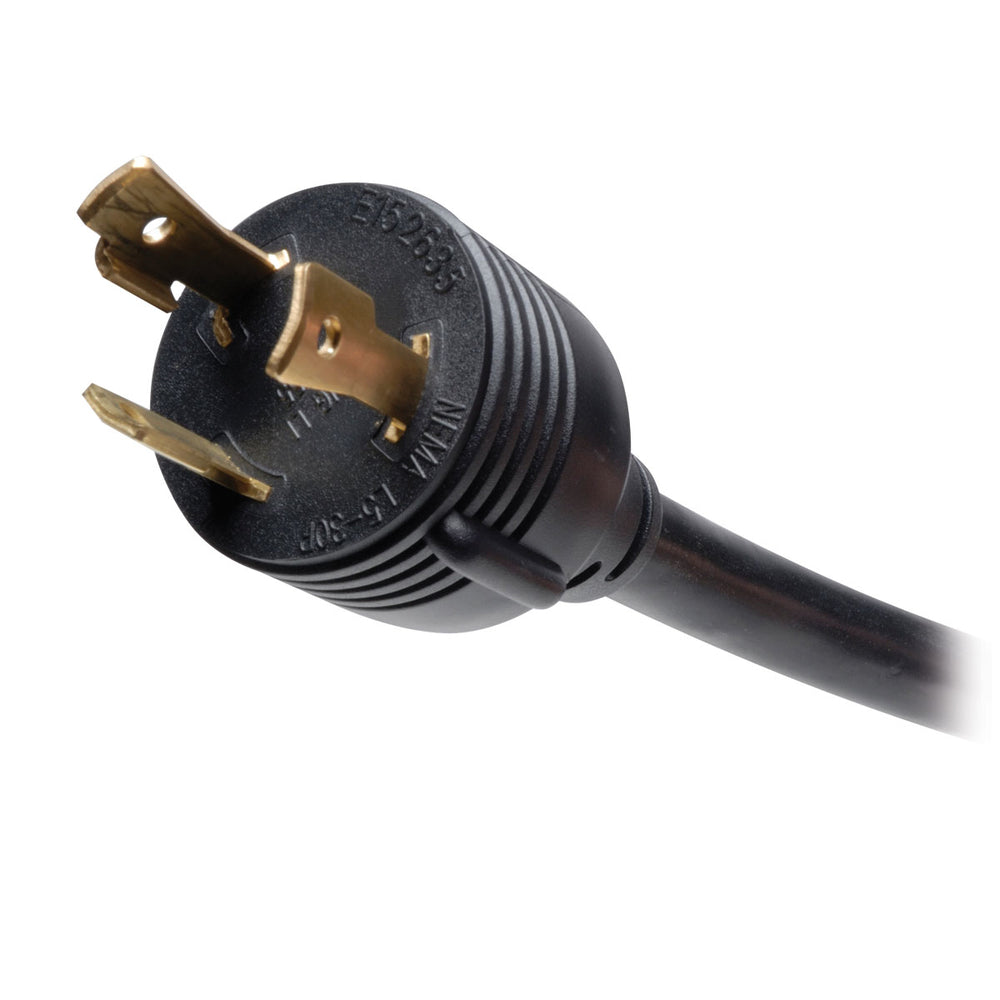

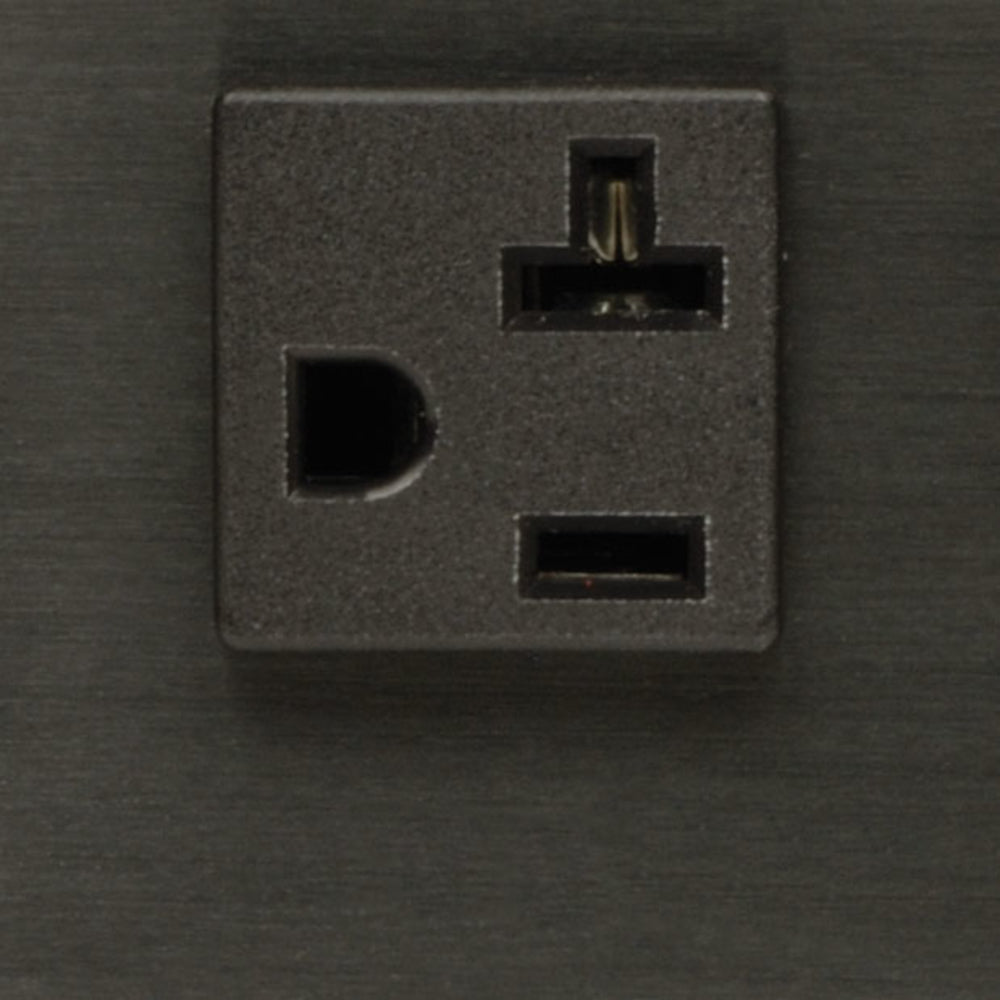

This power distribution unit includes 24 NEMA 5-15/20R outlets with cord retention brackets to prevent accidental disconnections. It comes with a 10-foot cord and NEMA L5-30P plug for easy connection to a compatible AC power source, generator, or protected UPS.

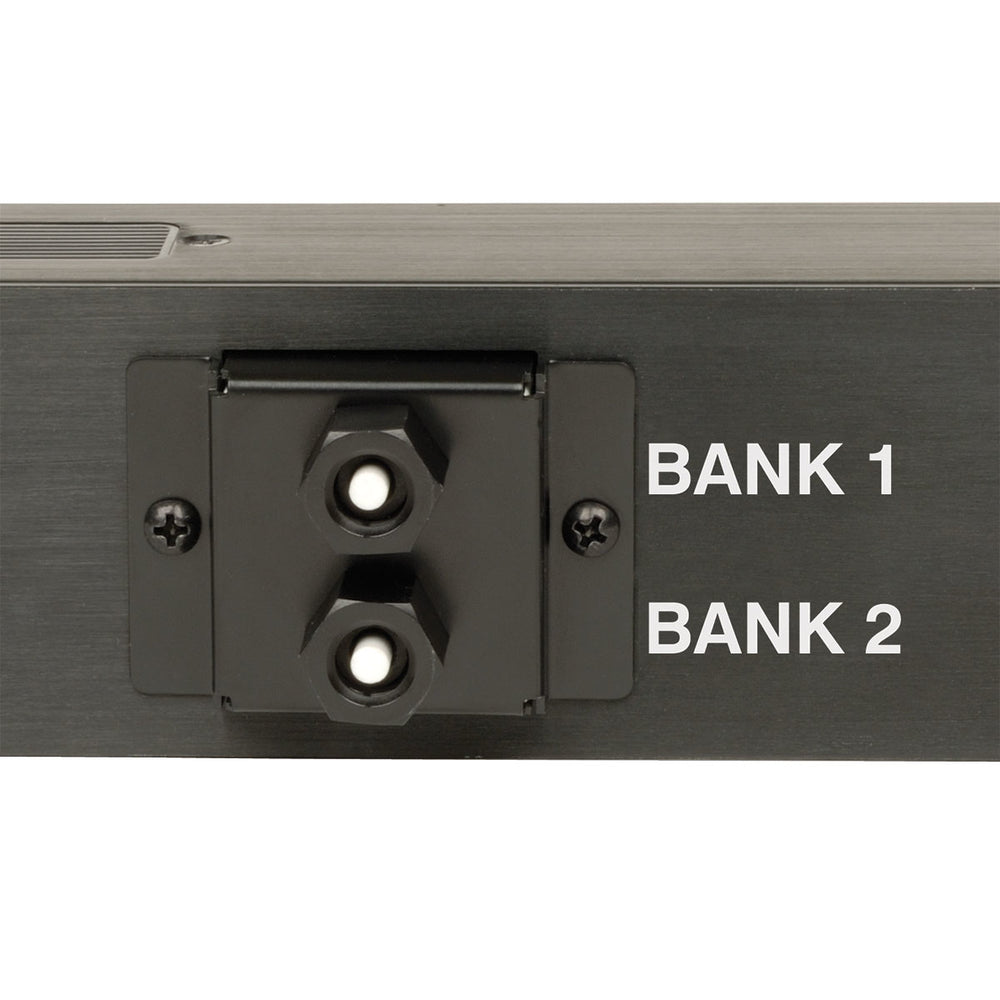

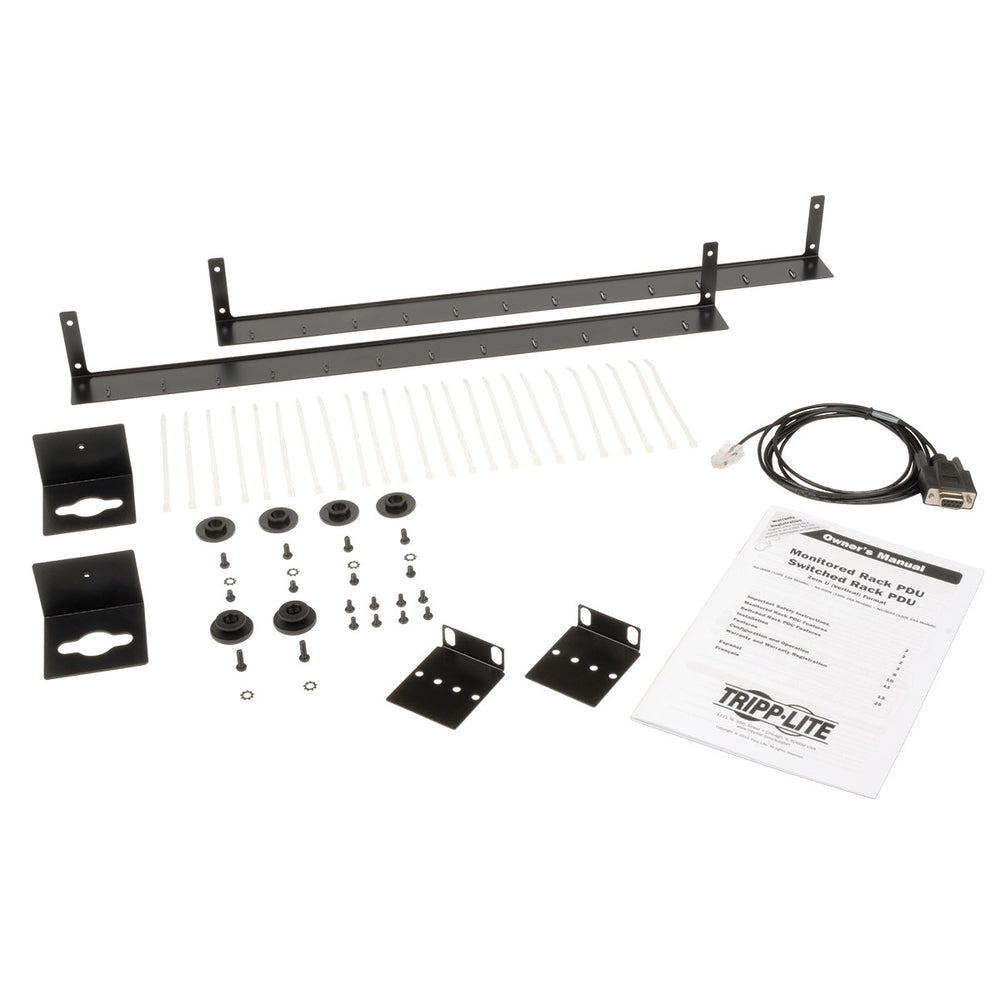

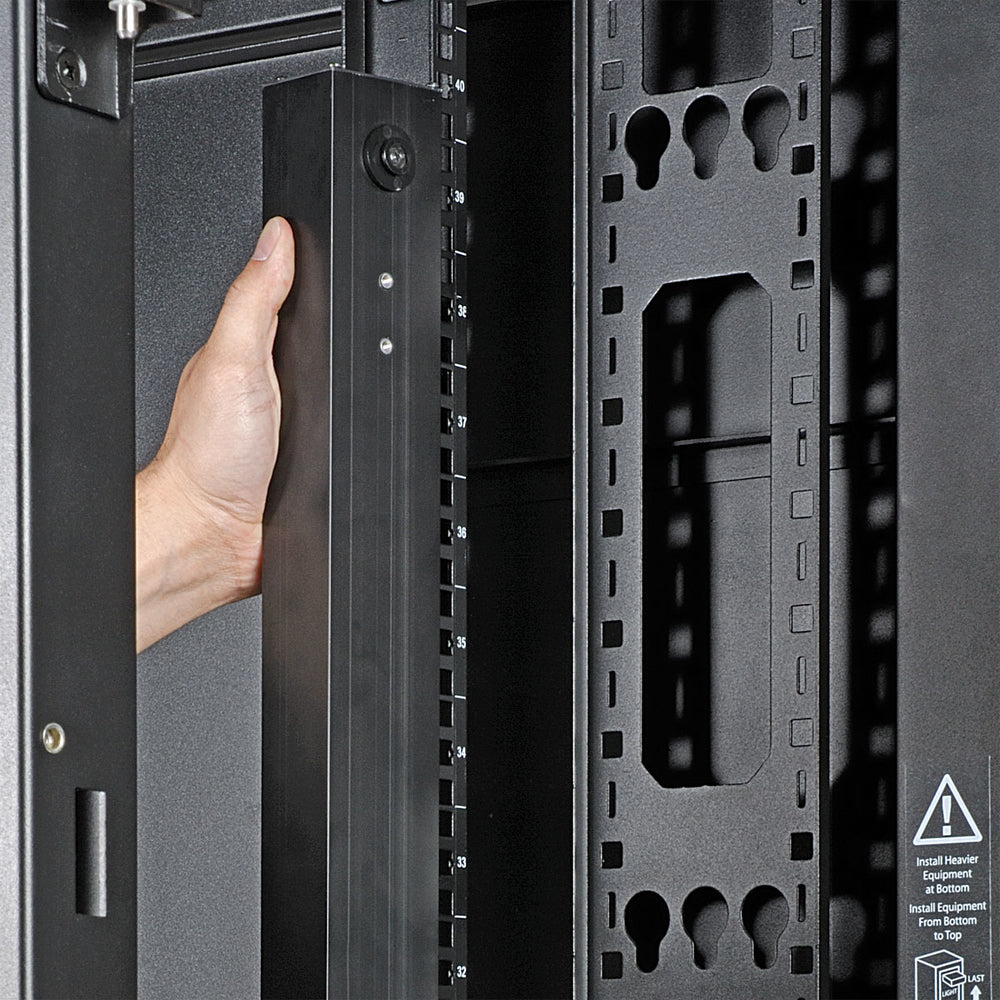

The digital ammeter enables power consumption monitoring for both breakered load banks and the total load, ensuring they remain well below maximum capacity and avoiding overload risks. The PDU can be mounted in 0U of space in EIA-standard 19-inch racks using the included toolless mounting buttons or rack-mounting brackets. Additionally, the included PDUMVROTATEBRKT kit allows for rear-facing outlets installation, improving airflow and equipment access.

Specifications:

• Product Type: Power Distribution Unit (PDU)
• Maximum Power Capacity: 2.9KW
• Input Voltage: 120V
• Output Voltage: 100-127V
• Number of Outlets: 24
• Outlet Types: NEMA 5-15/20R
• Input Plug Type: NEMA L5-30P
• Form Factor: 0U Vertical
• Interface: LX Platform
• Remote Monitoring: Yes

Learn More:

• Power Distribution Unit (PDU) on Wikipedia
• Voltage on Wikipedia
• Frequency on Wikipedia
• Load Levels on Wikipedia
• Remote Monitoring on Wikipedia

Product: TRIPP LITE PDUMNV30LX PDU MONITORED 2.9KW 120V 24 5-15/20R 30A LX PLATFORM 0URM

Brand: Tripp Lite

Model: PDUMNV30LX

Shipping Weight:

Shipping Height:

Shipping Width:

Shipping Length:
