Tripp Lite PDUMH15 1.4kW Single-Phase Metered PDU 120V Outlets 13 5-15R 5-15P

The Tripp Lite PDUMH15 is a power distribution unit (PDU) that offers reliable rackmount multi-outlet power distribution from any protected UPS, generator, or mains input power source. It is designed with a high-quality, rugged all-metal housing and includes secure rackmount installation with included mounting accessories. This PDU features a 1U horizontal rackmount format, making it easy to install in one rack space.

The PDUMH15 is a single-phase metered PDU with a maximum current of 15A and a nominal output voltage of 120V. It comes with a built-in 2-digit visual meter that continuously reports the PDU load level in amps, allowing for real-time local reporting. This feature helps prevent circuit overloads as additional equipment is added.

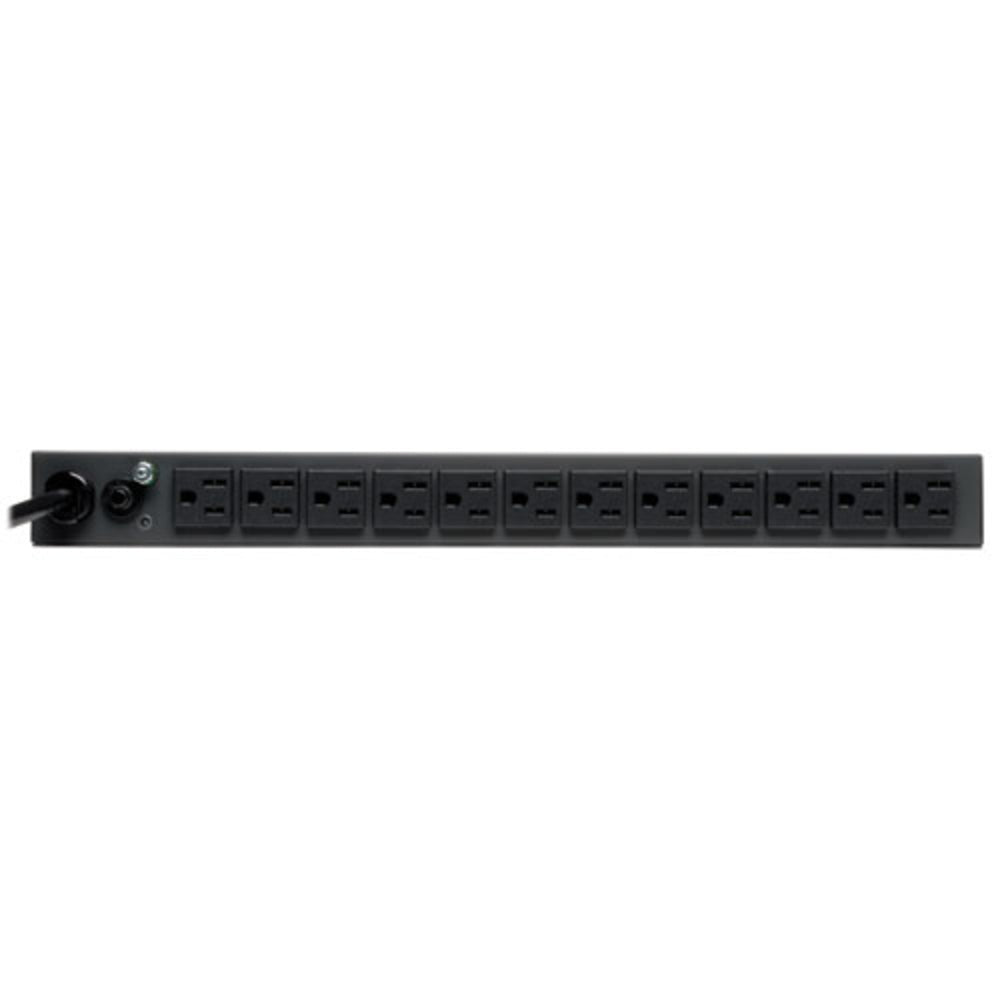

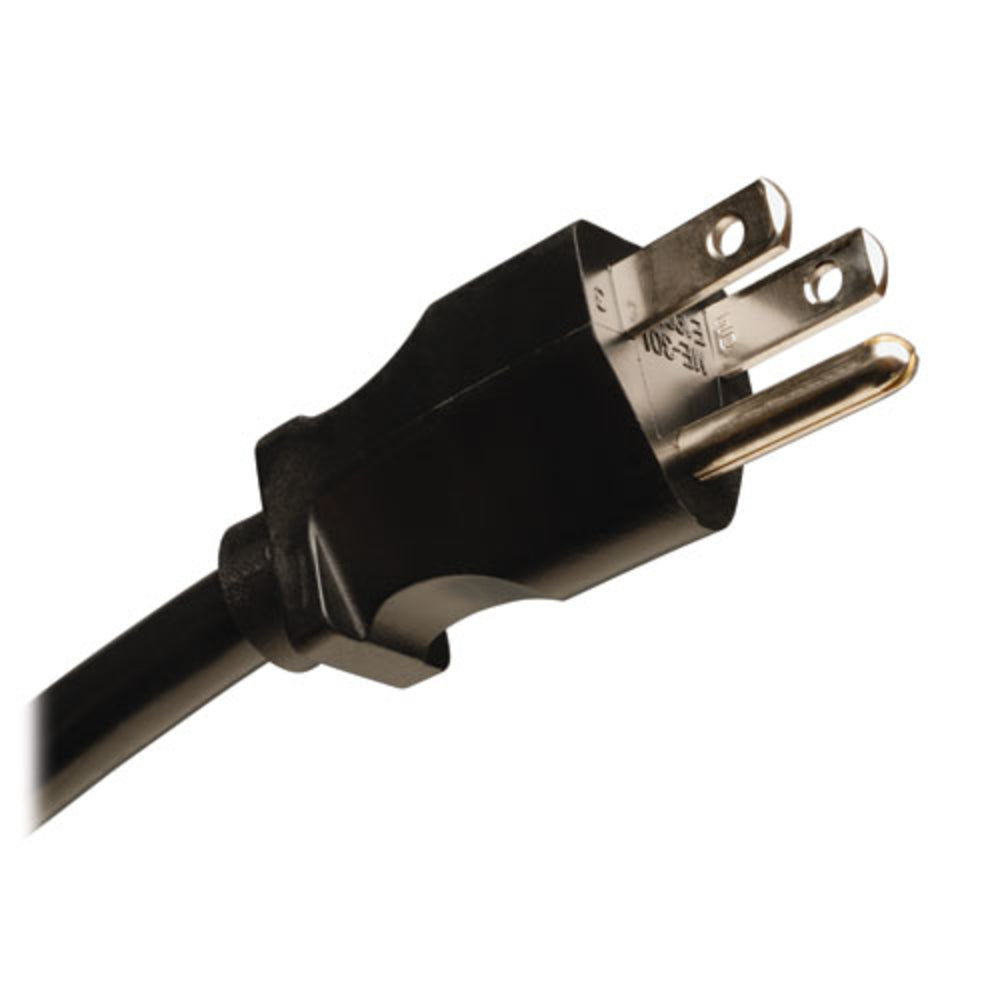

The PDU is equipped with an attached NEMA 5-15P 15A 120V input plug and a 15 ft. / 4.5m line cord for convenient power connection. It offers a total of 13 NEMA 5-15R outlets, with 1 front-facing outlet and 12 rear outlets. The mounting flanges support installation in 2 and 4 post racks, as well as wall-mount and under-counter installation formats. Additionally, the optional PDUSIDEBRKT enables 0U vertical rackmount in compatible racks. The back panel grounding lug ensures proper grounding of the PDU.

Features:

• PDU types: Metered
• Mounting: Horizontal
• Housing material: Metal
• Maximum current: 15
• Power plug: NEMA 5–15P
• AC outlets quantity: 13
• AC outlet types: NEMA 5–15R
• Storage temperature (T-T): -15 - 50
• Operating altitude: 0 - 3000
• RoHS compliance: Y
• Nominal output voltage: 100-127
• AC input frequency: 50 - 60
• Nominal input voltage: 100-127
• Cable length: 4.57
• Product color: Black
• Rack capacity: 1U
• Dimensions (WxDxH): 444.5 x 114.3 x 44.5
• Weight: 2040
• Certification: UL60950-1/CAN/CSA C22.2 No. 60950-1-03
• Weight (imperial): 4.5
