Tripp Lite PDUH20DV Basic Dual Volt PDU with 20A and 14 Outlets - 1U Rack Mount

Product Description:

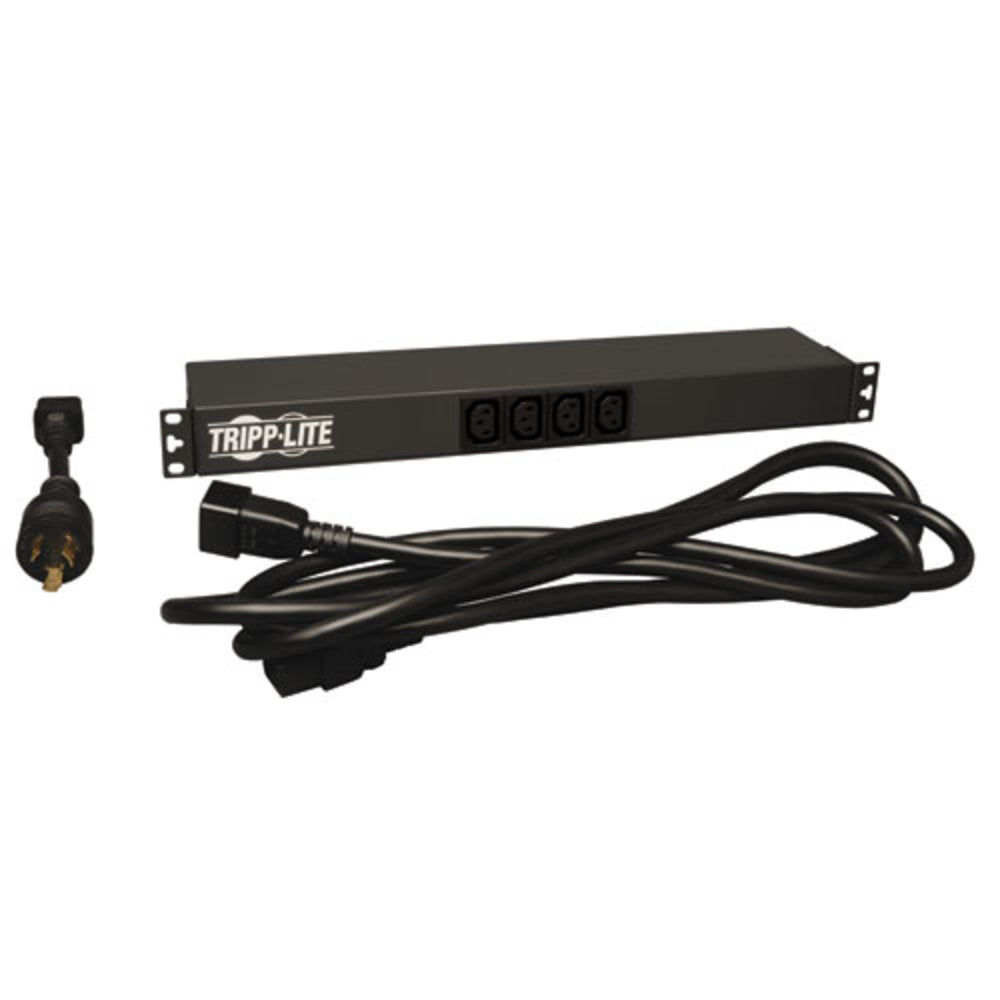

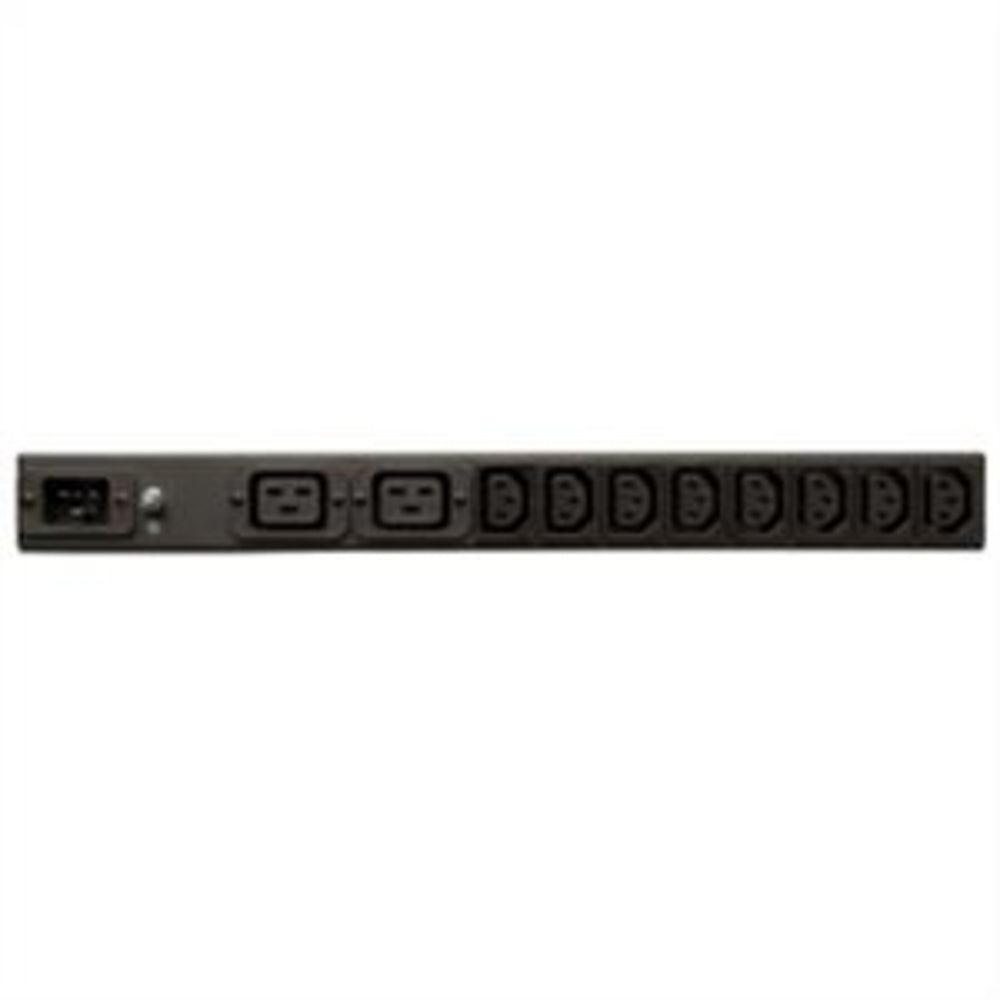

The Tripp Lite PDUH20DV Basic Dual Volt PDU is a versatile and reliable power distribution unit designed for data centers, server rooms, and network wiring closets. With its no-frills design, this PDU is perfectly suited for high-density IT environments. It features a total of 14 outlets, with four C13 outlets in the front and eight C13 and two C19 outlets in the rear.

The PDUH20DV is equipped with a C20 input plug and a detachable 3.7m cord, allowing it to connect to a compatible AC power source, generator, or protected UPS. It also includes a NEMA L6-20P adapter for 208/240V power environments. The C20 inlet accepts any country-specific power cord with a C19 connector. Additionally, the PDUH20DV has a rear-panel grounding lug for added convenience.

This PDU features a switchless design, preventing accidental shutdowns and costly downtime. Its reversible all-metal housing supports versatile installation options, including 1U horizontal or 0U vertical mounting in EIA-standard 19-inch racks, as well as mounting on a wall, workbench, or under a counter.

Product Features:

• Nominal input voltage: 100-240
• AC input frequency: 50 - 60
• Maximum current: 20
• AC outlets quantity: 14
• Nominal output voltage: 100-240
• Product color: Black
• PDU types: Basic
• Rack capacity: 1U
• Cable length: 3.7
• Mounting: Horizontal
• Dimensions (WxDxH): 438 x 95 x 44.5
• Weight: 1700
• Certification: UL 60950 (USA), CSA (Canada), CE (EU)
• LED indicators: Y
• Housing material: Metal
• AC outlet types: C13 coupler, C19 coupler
• Input connection type: NEMA L6-20P, IEC-320 C20
• Storage temperature (T-T): -15 - 50
• Operating altitude: 0 - 3000
• RoHS compliance: Y
• Package weight: 2490
• Package depth: 510.5
• Package height: 57.2
• Package width: 276.9
• Master (outer) case height: 304.8
• Master (outer) case width: 365.8
• Master (outer) case weight: 14880
• Master (outer) case length: 528.3
• Quantity per master (outer) case: 6

Learn More:

• Data Center
• Server Room
• Network Wiring Closet
• AC Power Plugs and Sockets
• Uninterruptible Power Supply

Product: Tripp Lite PDUH20DV Pdu Basic Dual Volt 100V-240V 20A 2 C19;12C13Horizontal1Urm

Brand: Tripp Lite

Model: PDUH20DV

Shipping Weight: 5.45 lb

Shipping Height: 2.00 in

Shipping Width: 9.25 in

Shipping Length: 20.45 in
