Tripp Lite PDU PDUMH20HVNET Single Phase Switched 3.2-3.8Kw 16/20A 200-240V 1U

Description:

The Tripp Lite PDUMH20HVNET power distribution unit (PDU) is a single-phase switched PDU that offers advanced network control and monitoring capabilities. It allows you to turn on, turn off, recycle, or lock-out power to each individual receptacle, monitor site electrical conditions, and remotely monitor output power consumption. With its PowerAlert interface, you can remotely control and receive custom notifications of user-specified conditions via email, secure web, SNMP, Telnet, or SSH interface.

This PDU features individually switched outlets that can be controlled in real-time to remotely reboot unresponsive network hardware. It can also be custom programmed for user-defined power-up and power-down sequences to ensure proper startup of interdependent IT systems and prevent inrush-related overloads as network equipment is first energized. Additionally, unused PDU outlets can be electronically locked off to prevent the connection of unauthorized hardware.

The PDU provides continuous display of PDU output current consumption in amps locally via visual meter and remotely via web/network interface to warn of potential overloads before critical IT mains or branch breakers trip.

Features:

• PDU types: Switched
• Housing material: Metal
• Nominal input voltage: 200-240
• AC input frequency: 50 - 60
• Maximum current: 20
• Nominal output voltage: 200-240
• AC outlets quantity: 8
• AC outlet types: C13 coupler
• Input connection type: NEMA L6-20P, IEC-320 C20
• Storage temperature (T-T): -15 - 50
• Operating altitude: 0 - 3000
• RoHS compliance: Y
• Package weight: 6530
• Package depth: 569
• Package height: 137.2
• Package width: 525.8
• Cable length: 2.6
• Product color: Black
• Rack capacity: 1U
• Mounting: Horizontal
• Dimensions (WxDxH): 439 x 376 x 28.7
• Weight: 4100

Specifications:

• Switched 16/20A 200-240V PDU, 1U Horizontal Rackmount format
• Reports voltage, frequency & loading information via ethernet interface
• Visual current meter, reversible housing

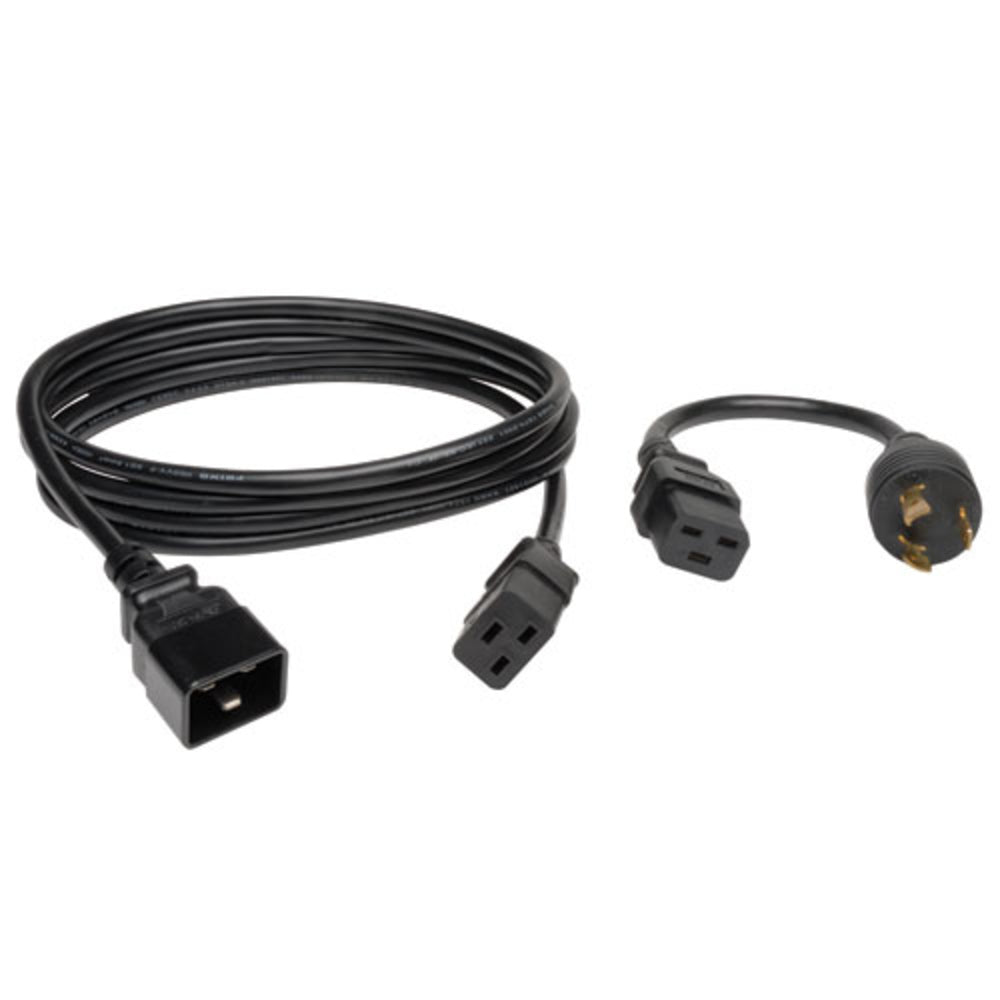

• C20 inlet; 2.6m C20 input cable with L6-20P adapter
• 8 C13 switched outlets with cord retention brackets
• Temperature, humidity, and contact-closure monitoring options

Package Includes:

• Rackmount PDU
• Rack mounting brackets

Learn More:

• Power Distribution Unit (PDU) - Wikipedia
• Network Control - Wikipedia
• Simple Network Management Protocol (SNMP) - Wikipedia

Product: Tripp Lite PDU PDUMH20HVNET Single Phase Switched 3.2-3.8Kw 16/20A 200-240V 1U

Brand: Tripp Lite

Model: PDUMH20HVNET
