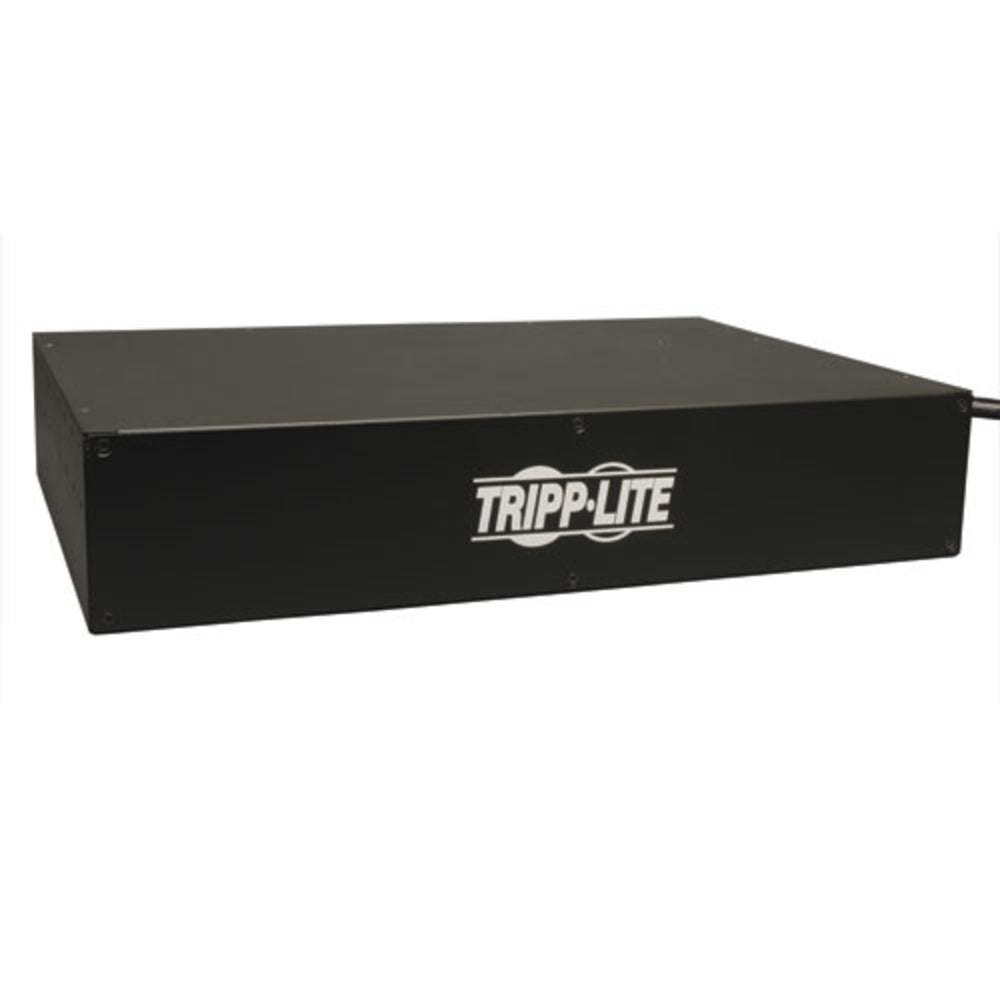

Tripp Lite Master-Power PDU Switched 5.8Kw 208-240V 30A 8 C13 6

Tripp Lite Master-Power PDU Switched is a single-phase power distribution unit that offers advanced network control and monitoring capabilities. With its built-in web/network interface, you can remotely control and monitor each individual receptacle, allowing you to turn on, turn off, recycle, or lock-out power as needed. This PDU also provides the ability to monitor site electrical conditions and remotely monitor output power consumption.

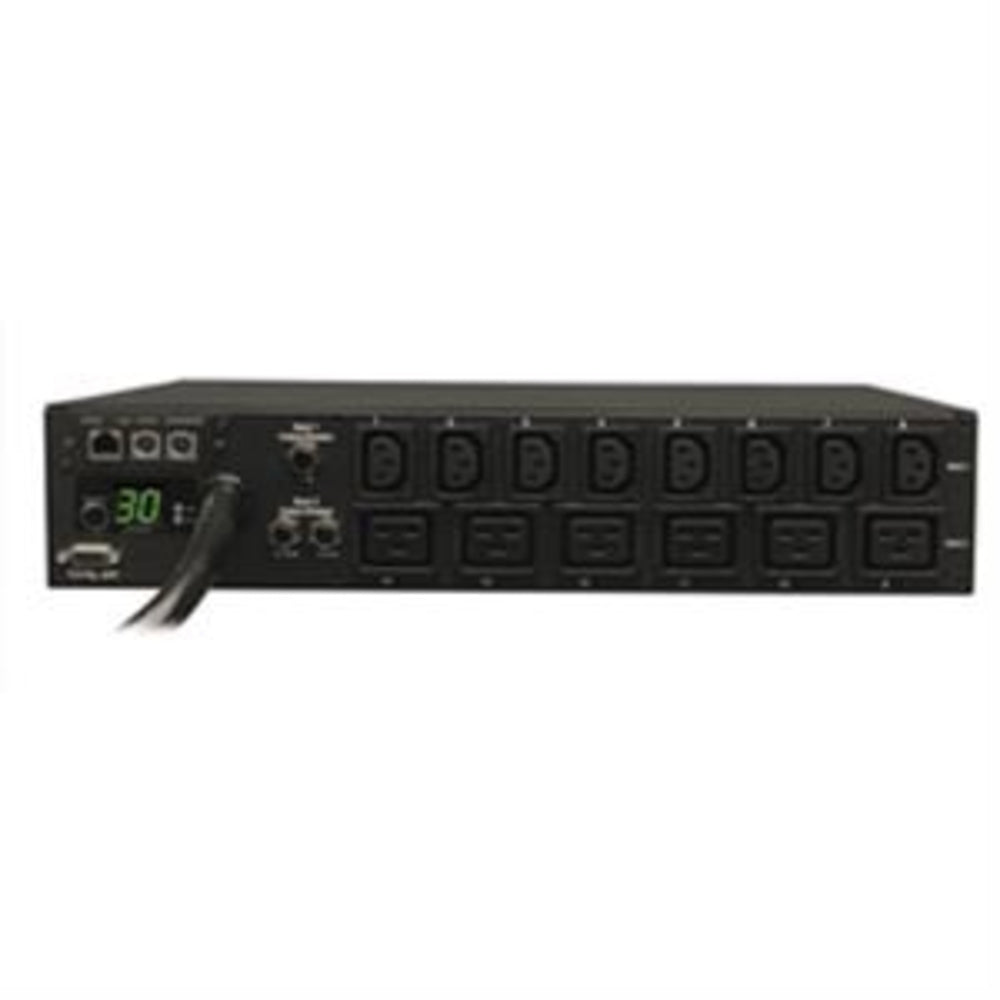

The power distribution unit features 14 AC outlets, including 8 C13 and 6 C19 outlets. These outlets can be controlled in real-time or programmed for user-defined power-up and power-down sequences. This ensures the proper startup of interdependent IT systems and prevents inrush-related overloads when network equipment is first energized. Unused outlets can be electronically locked off to prevent the connection of unauthorized hardware.

The PDU's network interface provides control and data regarding input voltage and total output load level in amps. The digital display on the unit continuously reports the output load in amps in three segments, allowing you to monitor the load banks and prevent potential overloads. The PDU also supports user-specified alarm notification thresholds.

In addition to power distribution, the PDU offers in-rack environmental reporting with the optional ENVIROSENSE temperature/humidity sensor and rack access notification with up to four optional SRSWITCH door sensors. The PDU supports DHCP/Manual configuration and has a 10/100 Mbps auto-sensing network interface.

The Tripp Lite Master-Power PDU Switched supports various protocols including HTTP, HTTPS, PowerAlert Network Management System, SMTP, SNMPv1, SNMPv2, SNMPv3, Telnet, SSH, FTP, DHCP, BOOTP, and NTP. It is fully compatible with the FREE PowerAlert Network Management System (NMS) Software.

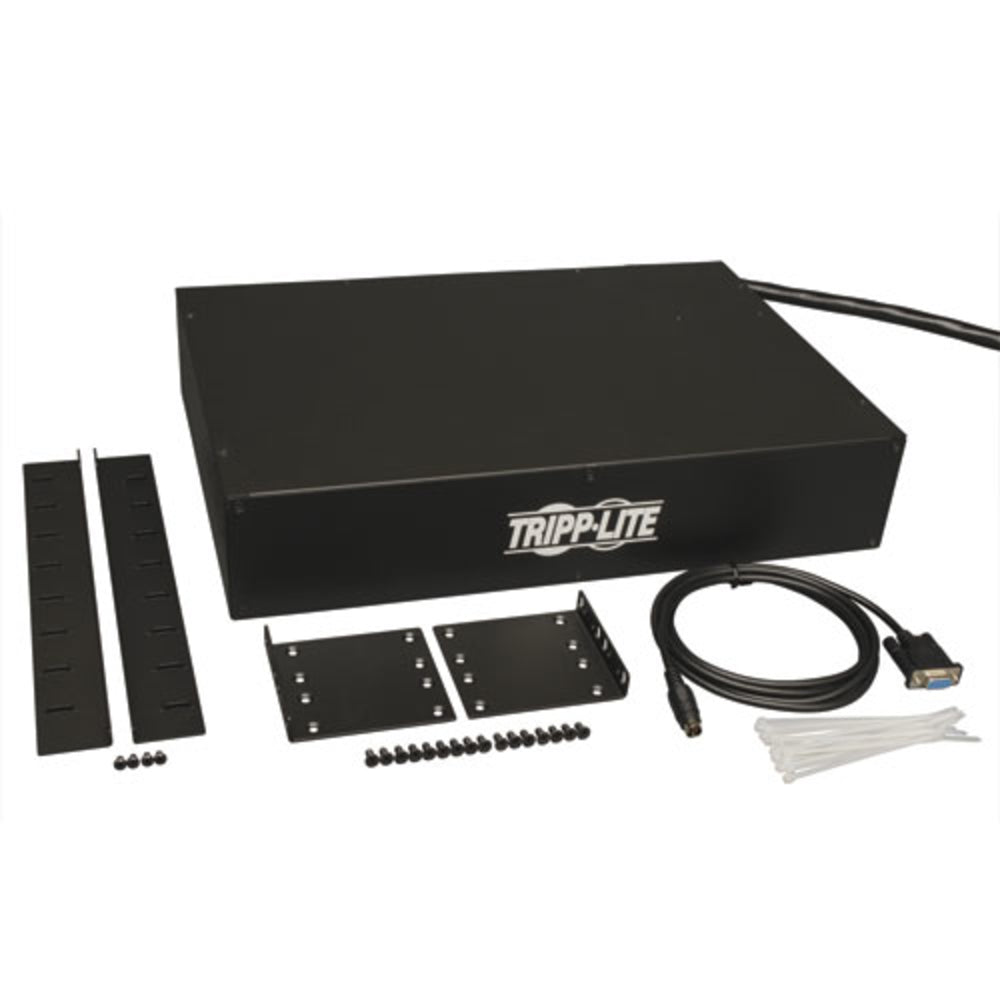

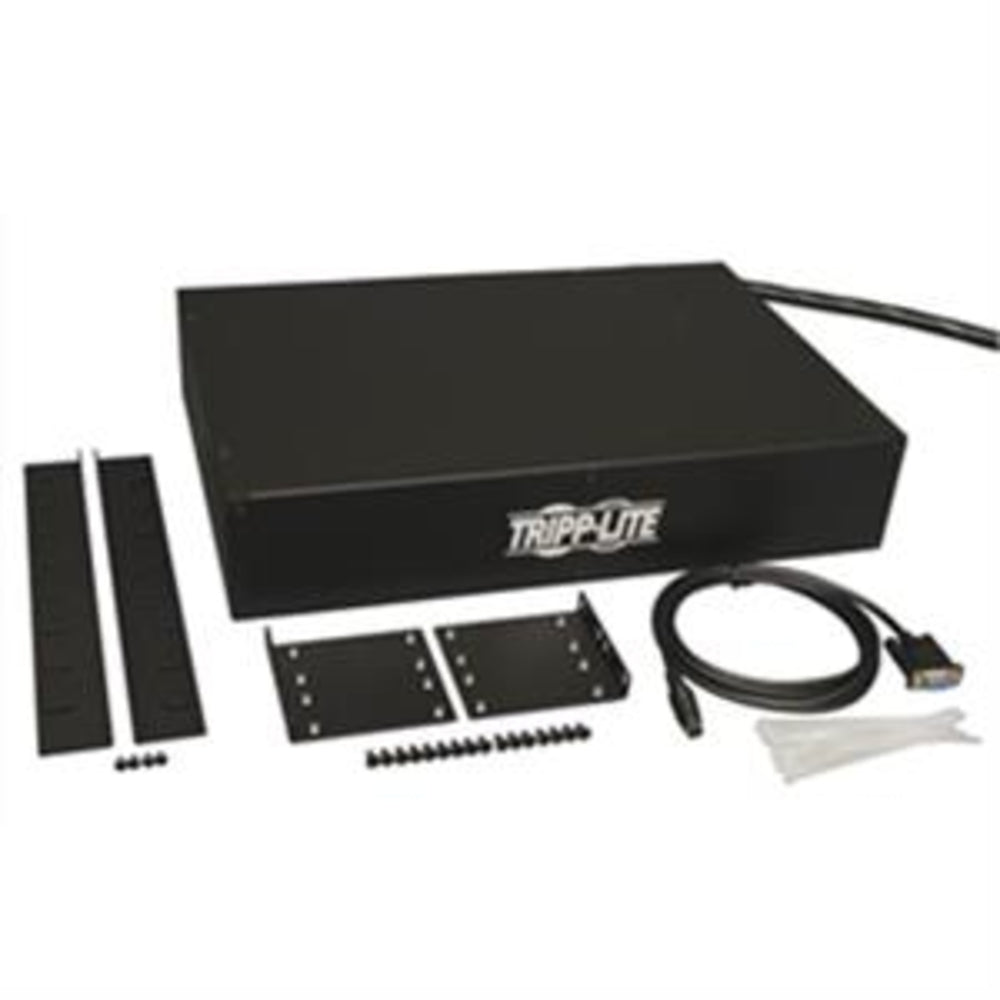

Designed for easy installation, the PDU can be mounted in 2 and 4 post racks, as well as wall-mount and under-counter installation formats. The included cord retention brackets ensure a secure power connection.

Specifications:

• Nominal input voltage: 200-240V
• Power plug: NEMA L6-30P
• AC input frequency: 50 - 60Hz
• Maximum current: 30A
• AC outlets quantity: 14
• Nominal output voltage: 200-240V
• Product color: Black
• PDU types: Switched
• Rack capacity: 2U
• Mounting: Horizontal
• Dimensions (WxDxH): 445 x 317.5 x 89mm
• Weight: 6300g
• RoHS compliance: Yes
• Certification: UL 60950-1 (USA), CSA (Canada), Class A (Emissions), NOM (Mexico)
• LED indicators: Yes
• Housing material: Metal
• AC outlet types: C13 coupler, C19 coupler
• Cable length: 4.57m
• Storage temperature (T-T): -15&degC - 50&degC
• Operating altitude: 0m - 3000m

Learn More:

For more information about power distribution units, please visit the Power Distribution Unit Wikipedia page.

To learn about Tripp Lite, the manufacturer of this product, please visit the Tripp Lite Wikipedia page.

Product: Tripp Lite Master-Power Pdumh30Hv19Net Pdu Switched 5.8Kw 208-240V 30A 8 C13 6

Brand: Tripp Lite

Model: PDUMH30HV19NET
