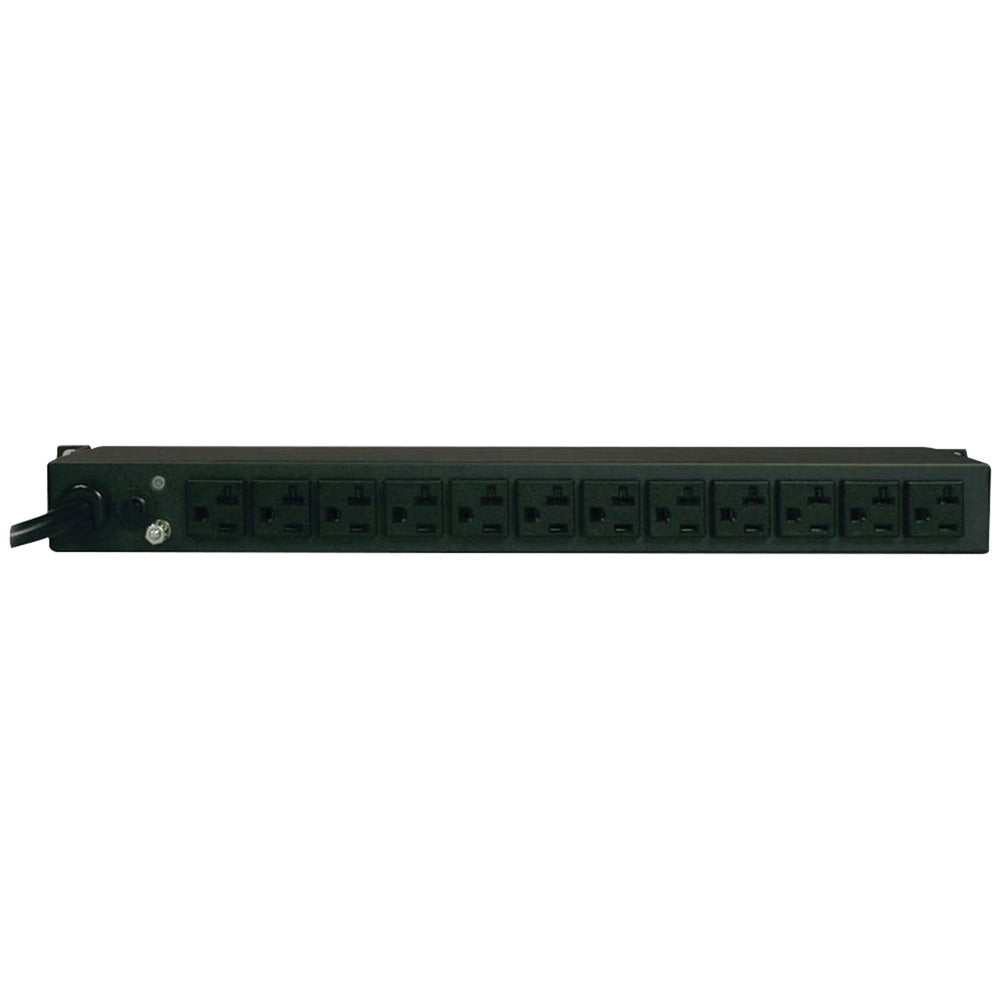

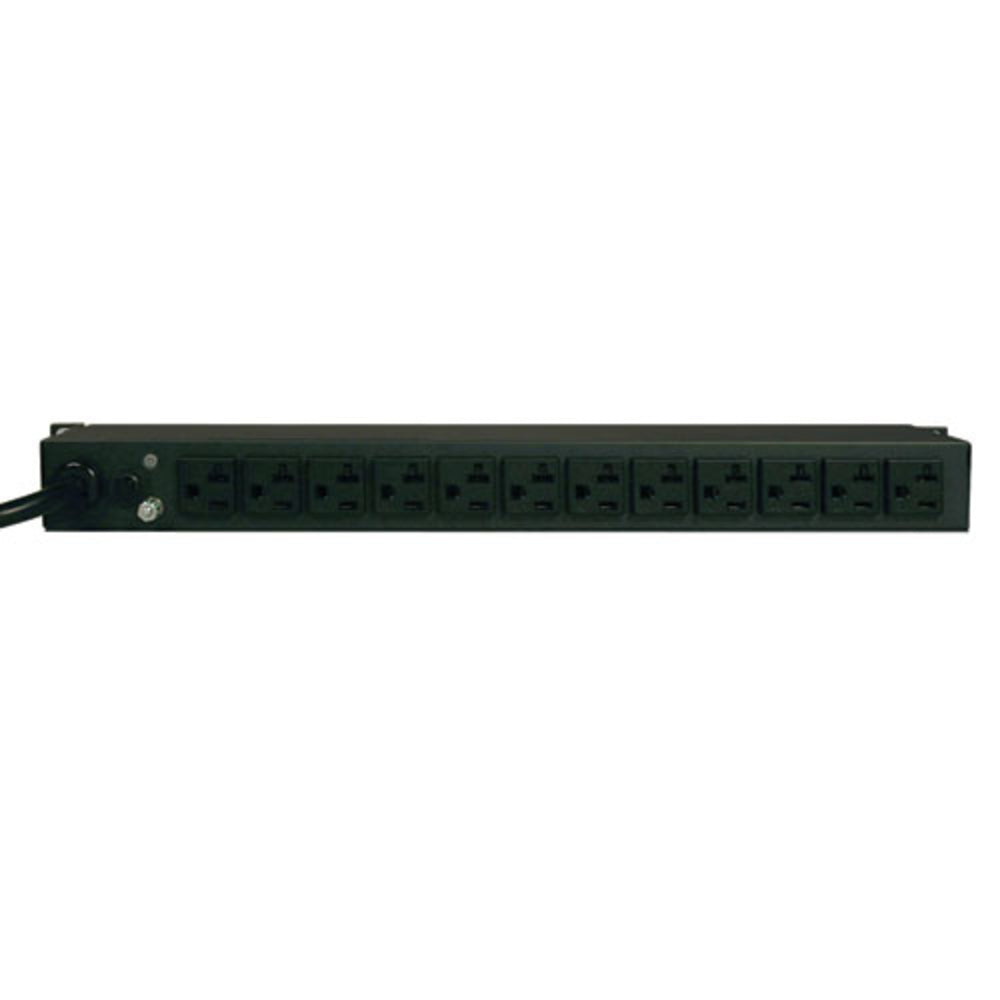

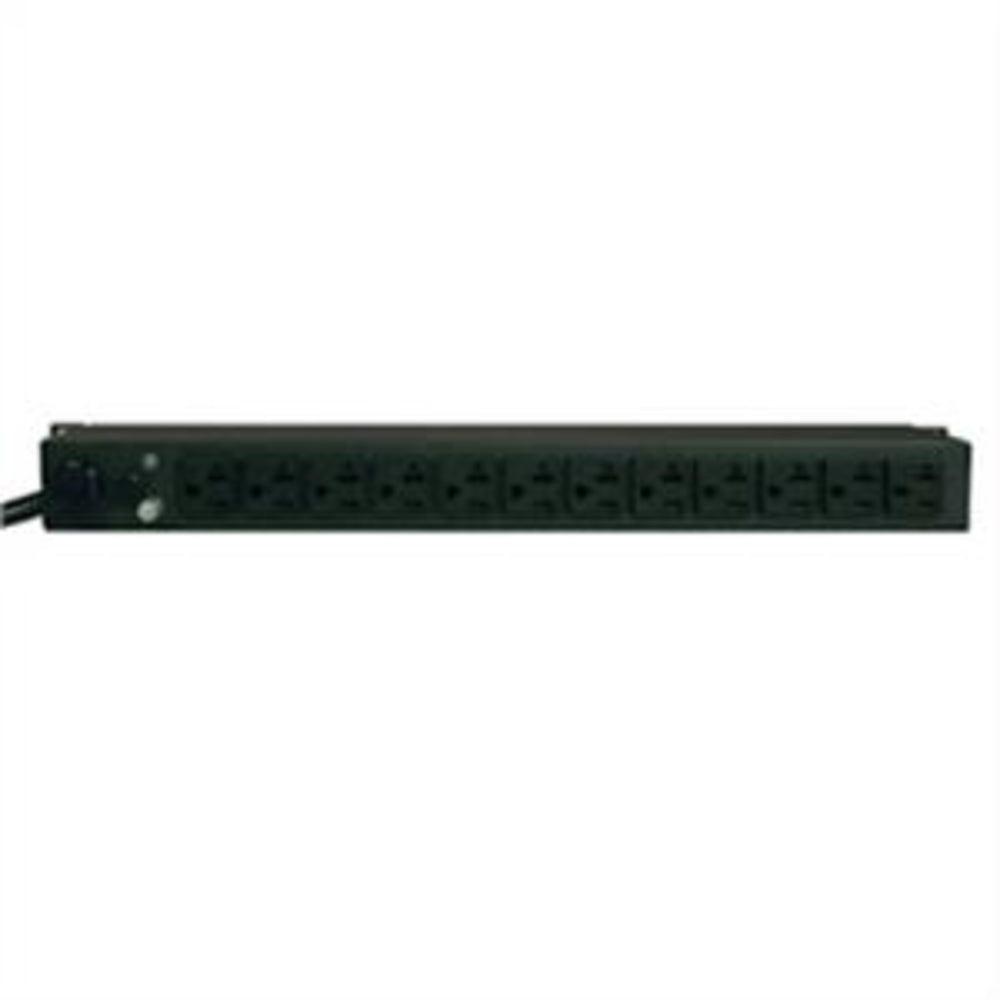

Tripp Lite PDU PDUMH20 Metered 1.92kW 120V 20A 12 Outlets 5-15/20R L5-20P

Product Description:

The Tripp Lite PDUMH20 power distribution unit (PDU) is a reliable rackmount multi-outlet power distribution solution designed to offer real-time local reporting of load level in amps. It features a built-in digital meter that provides visual current monitoring of the PDU output current, helping to prevent circuit overloads as additional equipment is added. This PDU is ideal for use with any protected UPS, generator, or mains input power source. Its high-quality design includes a rugged all-metal housing and secure rackmount installation with included mounting accessories.

The PDUMH20 is a 20A single-phase 120V metered power distribution unit that is agency de-rated to 16A continuous. It comes with an attached NEMA L5-20P 20A 120V input plug and a 15 ft. / 4.5m line cord. Additionally, it includes a 5-20P 20A 120V plug adapter for added convenience. With its 1U horizontal rackmount format, it can be easily installed in one rack space. The PDU features 12 NEMA 5-15/20R outlets for connecting multiple devices.

Mounting flanges are provided to support installation in 2 and 4 post racks, and the mounting ears are reversible for front or rear facing rackmount installation. For compatible racks, the optional PDUSIDEBRKT enables 0U vertical rackmount installation. The PDU also features a back panel grounding lug for added safety.

Product Features:

• PDU types: Metered
• Rack capacity: 1U
• Housing material: Metal
• Nominal input voltage: 100-127
• Maximum current: 20
• AC outlets quantity: 12
• AC outlet types: NEMA 5-15R, NEMA 5-20R
• Input connection type: NEMA 5-20P, NEMA L5-20P
• Storage temperature (T-T): -15 - 50
• Operating altitude: 0 - 3000
• RoHS compliance: Yes
• Certification: UL60950-1, CAN/CSA C22.2 No. 60950-1-03
• Nominal output voltage: 100-127
• AC input frequency: 50 - 60
• Cable length: 4.57
• Product color: Black
• Mounting: Horizontal
• Dimensions (WxDxH): 445 x 114 x 44.5
• Weight: 1400

Learn More:

For more information about power distribution units, you can visit the Power Distribution Unit Wikipedia page.

To learn about Tripp Lite, the manufacturer of this product, please visit the Tripp Lite Wikipedia page.

Product: Tripp Lite Master-Power Pdumh20 Pdu Metered 1.92Kw 120V 20A 12 5-15/20R L5-20P

Brand: Tripp Lite

Model: PDUMH20

Shipping Weight: 6.20 lb

Shipping Height: 2.30 in

Shipping Width: 9.50 in

Shipping Length: 20.30 in
