Tripp Lite PDUMH15NET2LX Switched PDU - 120V, 1.4kW, 15A, 8 Outlets

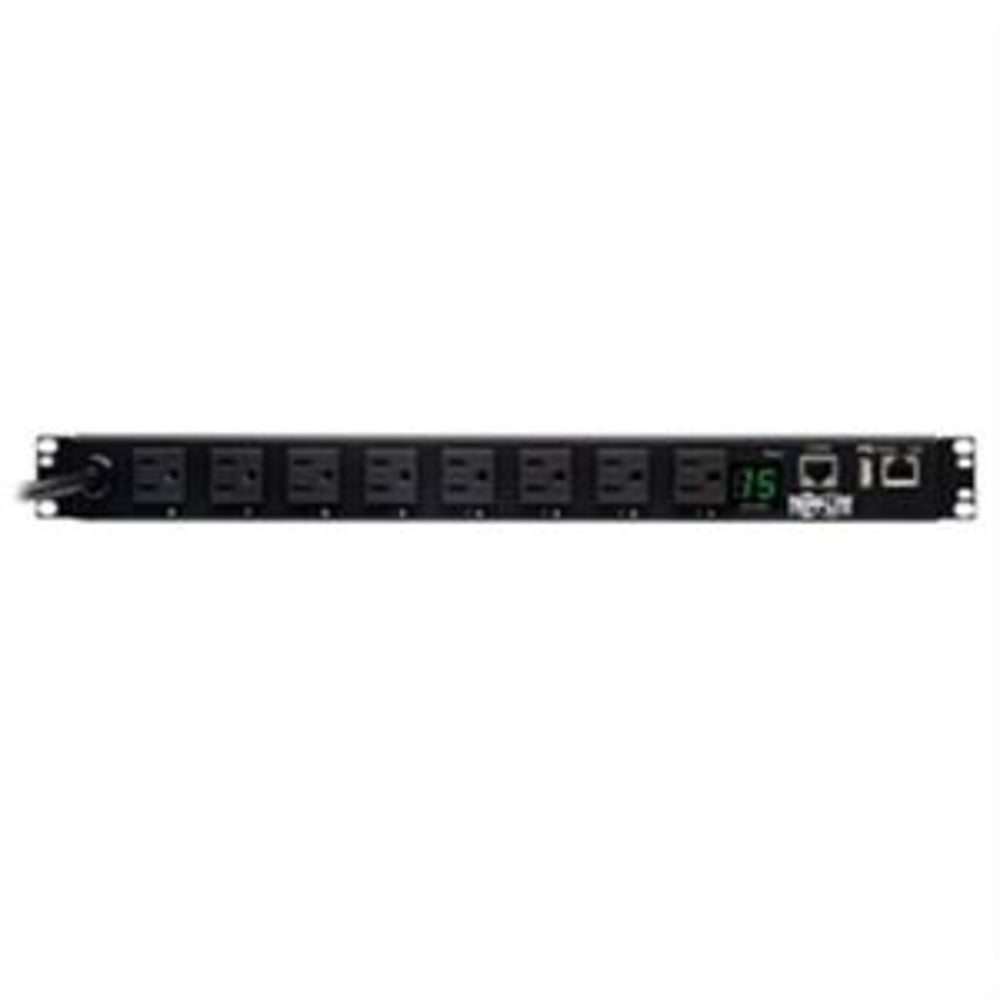

The Tripp Lite PDUMH15NET2LX is a 1.4kW Single-Phase Switched PDU that provides advanced network control and remote power monitoring. It features eight switched NEMA 5-15R outlets with the ability to turn on, turn off, reboot, or lock out power to each outlet. The PDU is recommended for network applications requiring individual outlet control, load shedding, and remote monitoring of critical network components, reducing the frequency of on-site visits and saving you money.

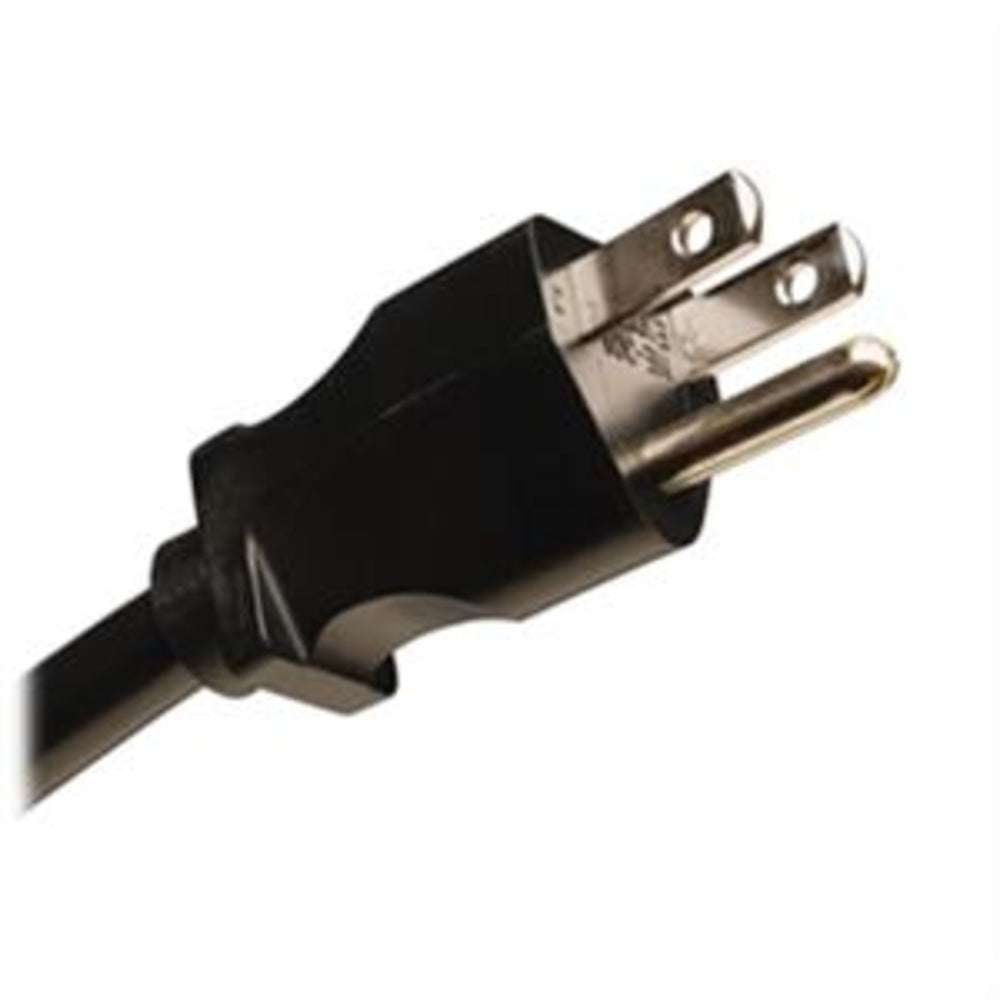

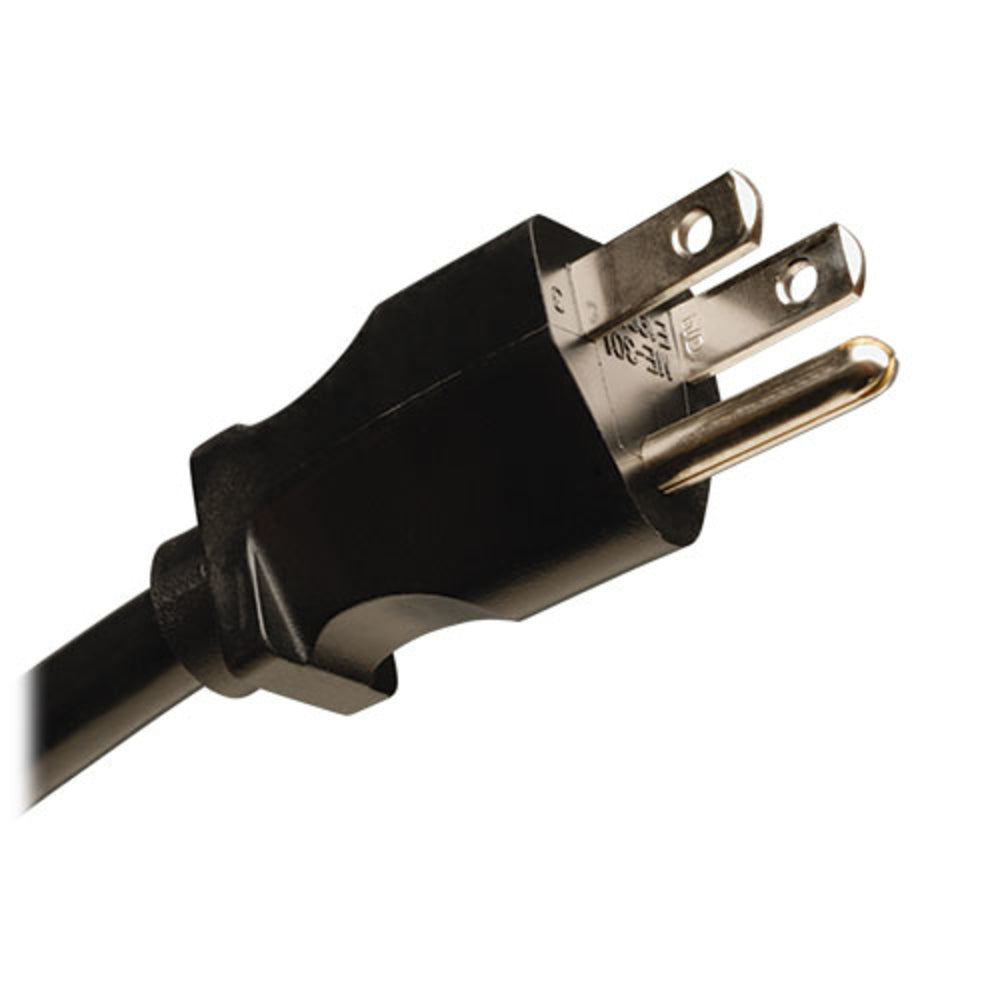

The PDU comes with a 12-foot cord with NEMA 5-15P plug that connects to a compatible AC power source, generator, or protected UPS. It features a built-in Java-free HTML5-based LX Platform network interface that enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet, or SSH. The PDU supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. The PDU supports protocols including IPv4, IPv6, HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP, and NTP.

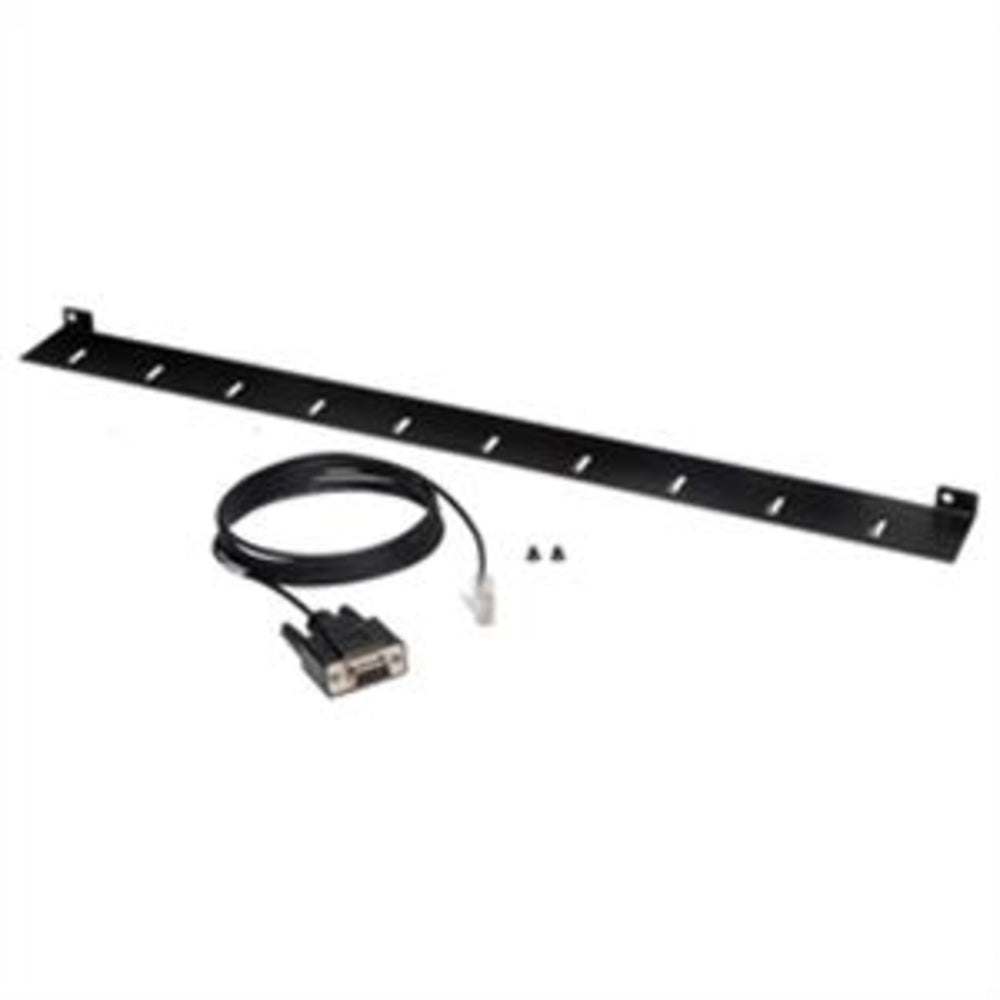

The PDU features a digital ammeter that allows you to monitor the total load in real-time to ensure it remains well below maximum capacity with no danger of overload. The rack-mount PDU installs in 1U of space in EIA-standard 19-inch racks. You can also mount it vertically in 0U of rack space or on a wall or under a counter with the included brackets and user-supplied screws.

Features:

• PDU types: Switched
• Maximum power: 1400
• Type: Single-phase
• Display: LCD
• LED indicators: Y
• Cable length: 3.66
• Rack capacity: 1U
• Mounting: Horizontal
• Housing material: Metal
• Product color: Black
• On/off switch: Y
• RoHS compliance: Y
• Certification: UL 60950-1 (USA). CAN/CSA-C22.2 NO. 60950-1 (Canada), Class A Part 15 (Emissions), NOM (Mexico), TAA Compliant
• Storage temperature (T-T): -15 - 50
• Operating relative humidity (H-H): 5 - 95
• Operating altitude: 0 - 3000
• Operating temperature (T-T): 5 - 122
• Manual: Y
• Nominal input voltage: 100-127
• AC input frequency: 50 - 60
• Maximum current: 15
• Nominal output voltage: 100-127
• AC outlets quantity: 8
• Power plug: NEMA 5-15P
• AC outlet types: NEMA 5-15R
• Dimensions (WxDxH): 444 x 108 x 44.4
• Weight: 2360
• Package dimensions (WxDxH): 300 x 520 x 54
• Package weight: 3100
• Outlet control: Lock-out, Recycle, Turn off, Turn on
• Supported network protocols: IPv4, IPv6, HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP, NTP
