Tripp Lite By Eaton Master-Power PDUMVR30HVNETLX PDU Switched 208V/240V 30A

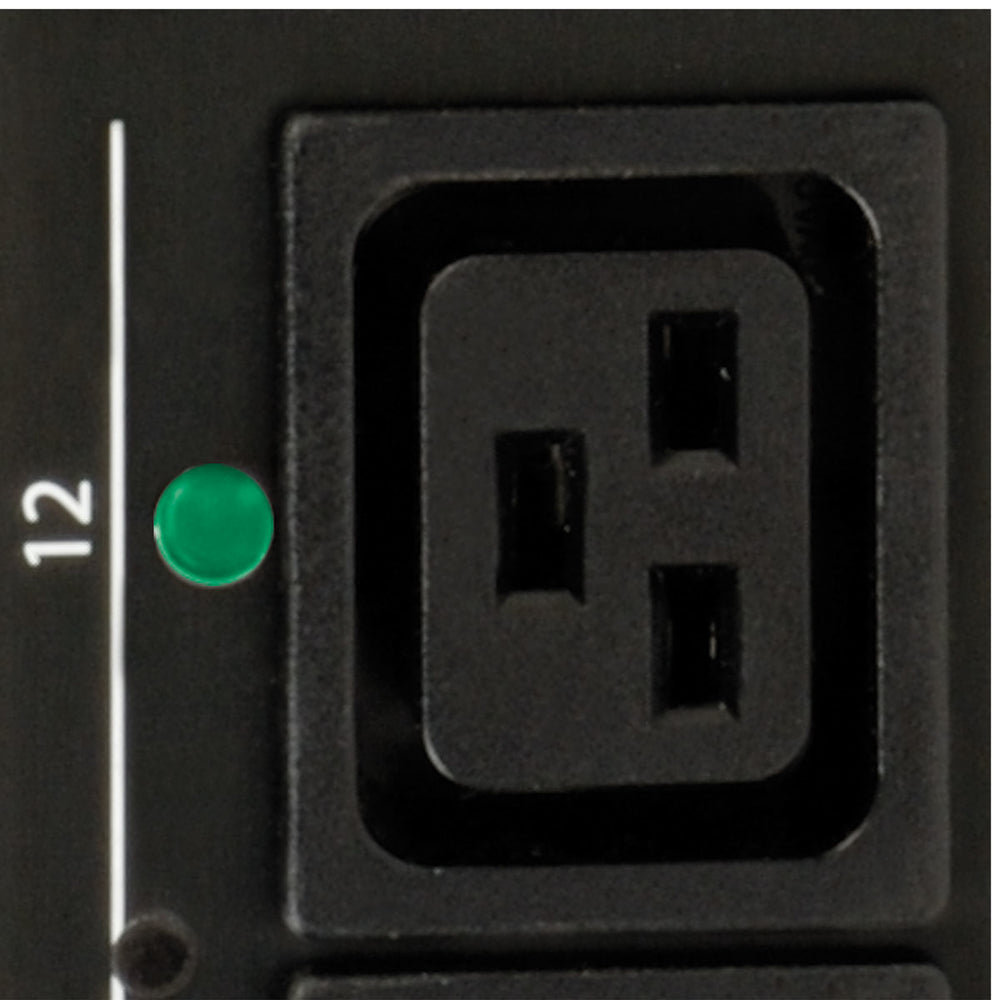

The Tripp Lite By Eaton Master-Power PDUMVR30HVNETLX PDU is a 5/5.8kW Single-Phase Switched power distribution unit that provides advanced network control and remote power monitoring. It is recommended for any IT or industrial application and features 24 switched outlets (20 C13 and 4 C19) to meet various power requirements. The PDU offers the ability to turn on, turn off, reboot, or lock out power to each outlet.

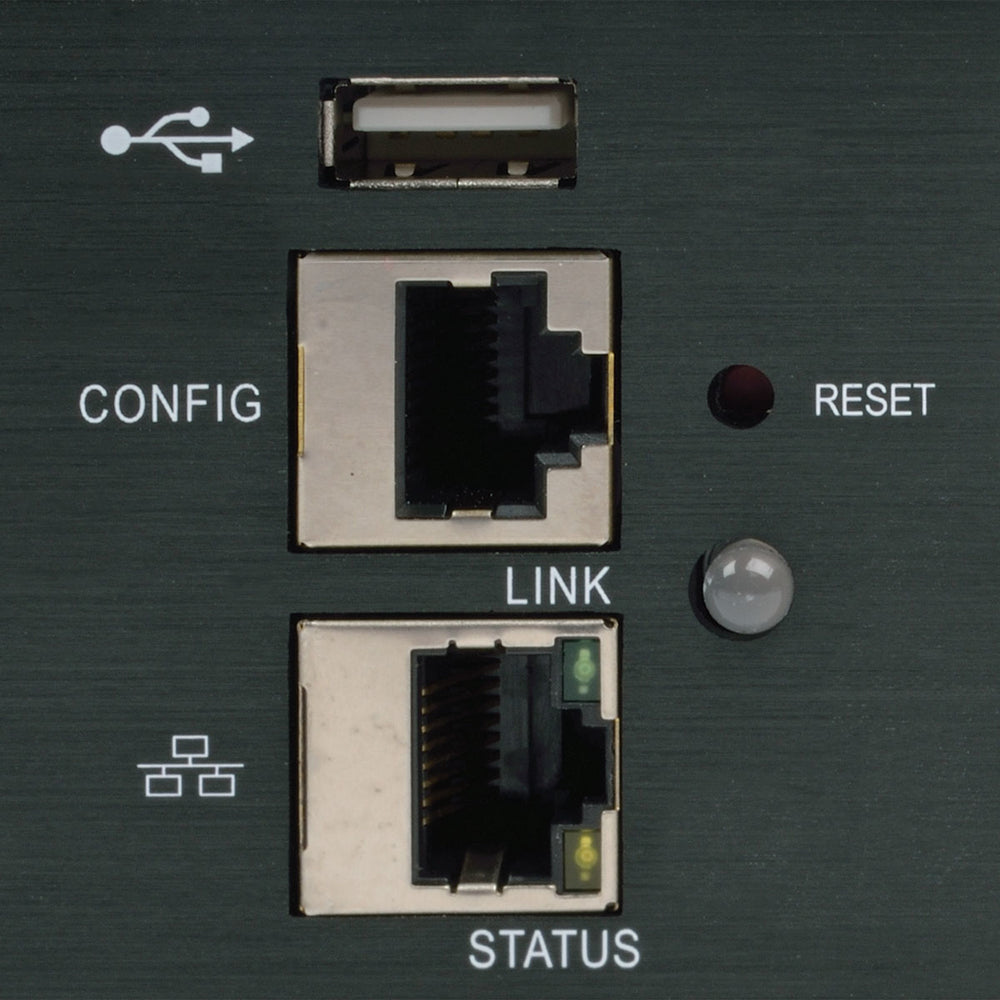

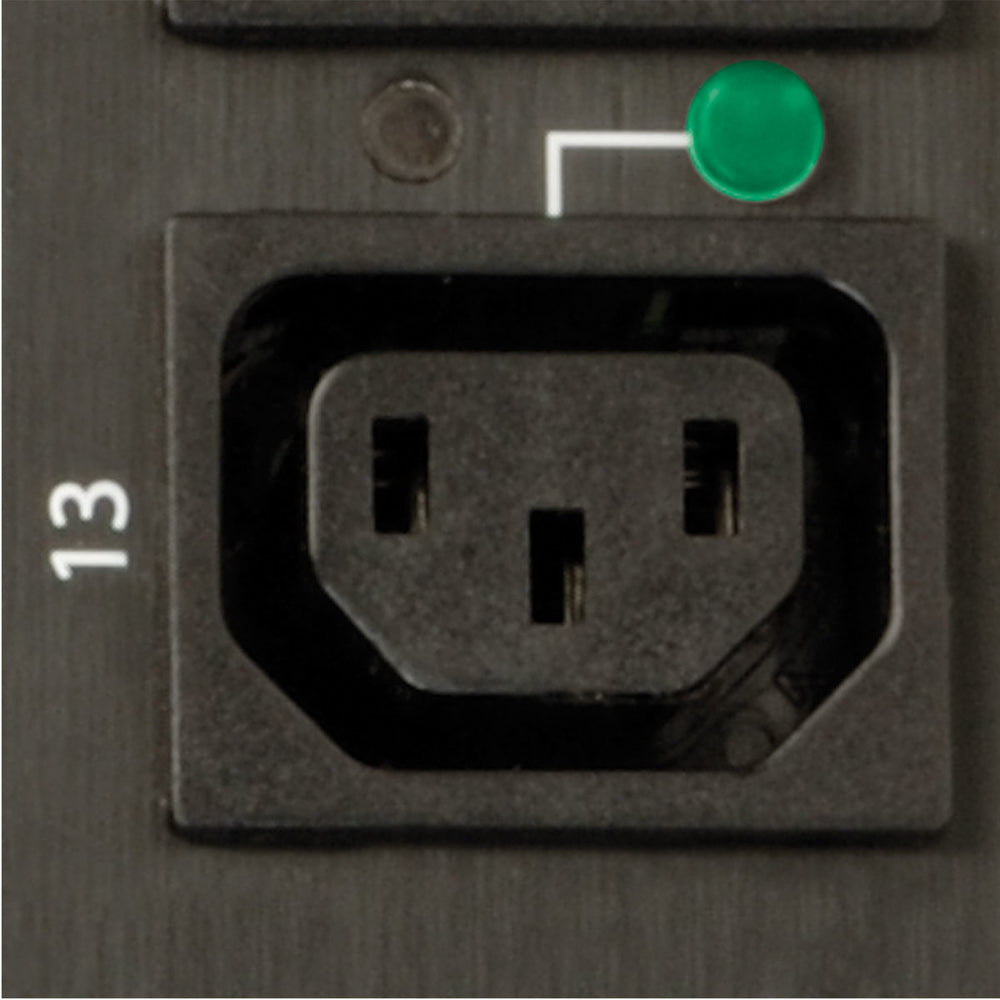

The PDUMVR30HVNETLX PDU is equipped with LEDs that indicate the on/off power status of each outlet, allowing for easy monitoring. Additionally, you can remotely monitor the power consumption of each outlet either through a digital display or via a secure web browser, SNMP, telnet, or SSH. The PDU supports 10/100 Mbps auto-sensing for optimal communication with an Ethernet network.

With its built-in Java-free HTML5-based LX Platform interface, the PDUMVR30HVNETLX provides full remote access for power monitoring, configuration, control, and email notifications. It supports a variety of protocols including HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP, and NTP. Optional EnviroSense2 modules (sold separately) can be added to enable environmental monitoring capabilities.

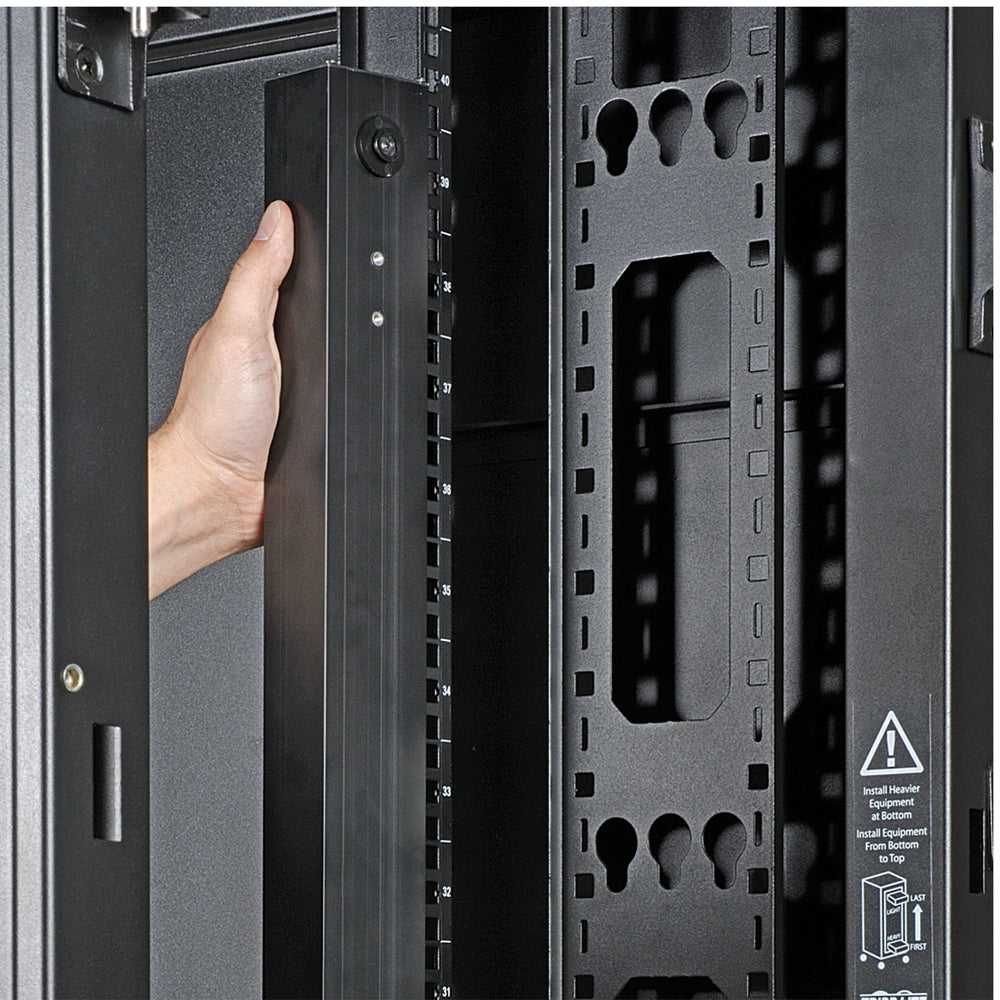

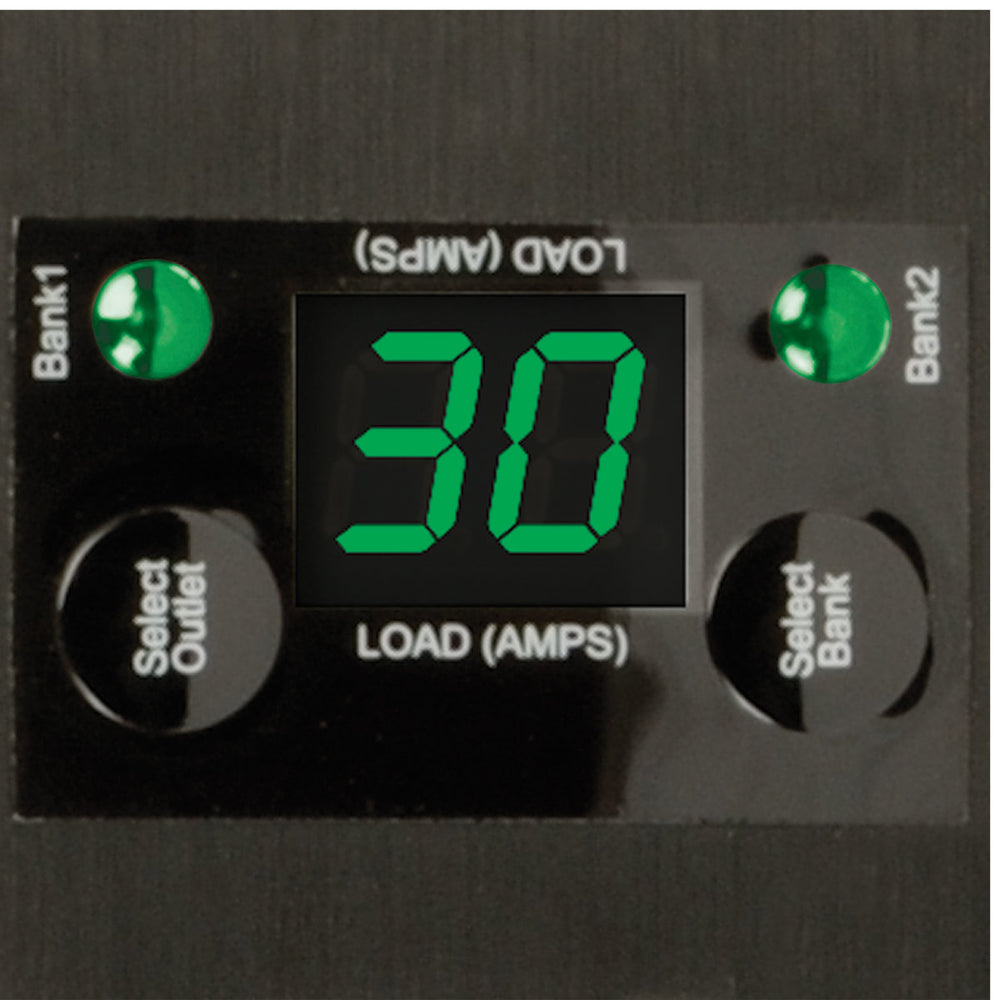

The PDUMVR30HVNETLX PDU features a digital LED meter that allows real-time monitoring of each bank's load to ensure safe and efficient usage. It is designed to mount in 0U of space in EIA-standard 19-inch racks and comes with toolless mounting buttons and rack-mounting brackets for easy installation. The included PDUMVROTATEBRKT kit allows for rear-facing outlets, improving airflow and equipment access.

Features:

• PDU types: Switched
• Maximum power: 5800W
• Maximum current: 30A
• AC input frequency: 50 - 60Hz
• AC outlet types: C13 coupler, C19 coupler
• AC outlets quantity: 24
• Power protection features: Overload
• Nominal input voltage: 200-240V

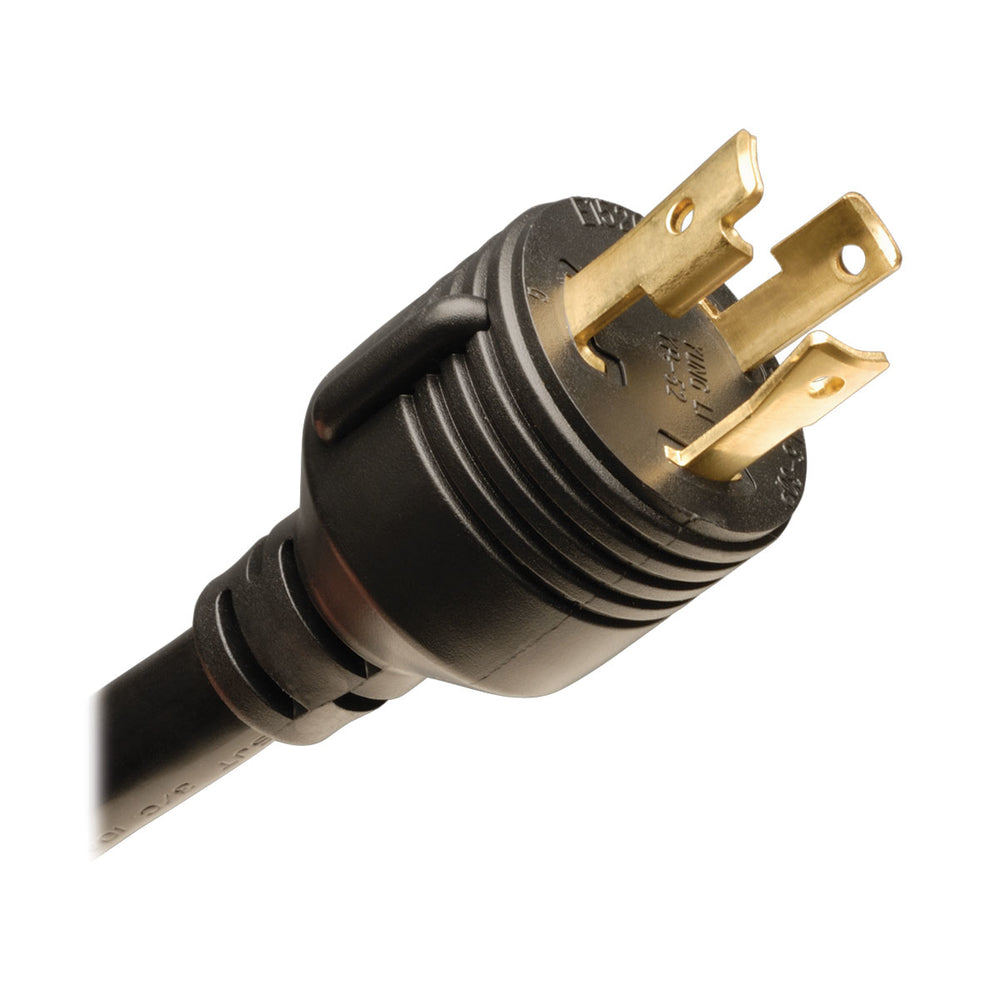

• Power plug: NEMA L6-30P
• Cable length: 3.05m
• Display: LCD
• LED indicators: Yes
• Rack capacity: 0U
• Mounting: Vertical
• Product color: Black
• Storage temperature (T-T): -15&degC to 50&degC
• Storage relative humidity (H-H): 0% to 95%
• RoHS compliance: Yes
• Dimensions (WxDxH): 1780mm x 56mm x 66mm
• Weight: 5440g
• Package dimensions (WxDxH): 155mm x 1925mm x 114mm
• Package weight: 7300g

Learn More

• Power Distribution Unit
• Single-Phase Electric Power
• Switched PDU
• Remote Power Control
• Simple Network Management Protocol

Product: Tripp Lite By Eaton Master-Power Pdumvr30Hvnetlx Pdu Switched 208V / 240V 30A 4

Brand: Tripp Lite

Model: PDUMVR30HVNETLX
