Tripp Lite By Eaton Master-Power Pdumvr20Netlx Pdu Switched 120V 20A 0Urm 24

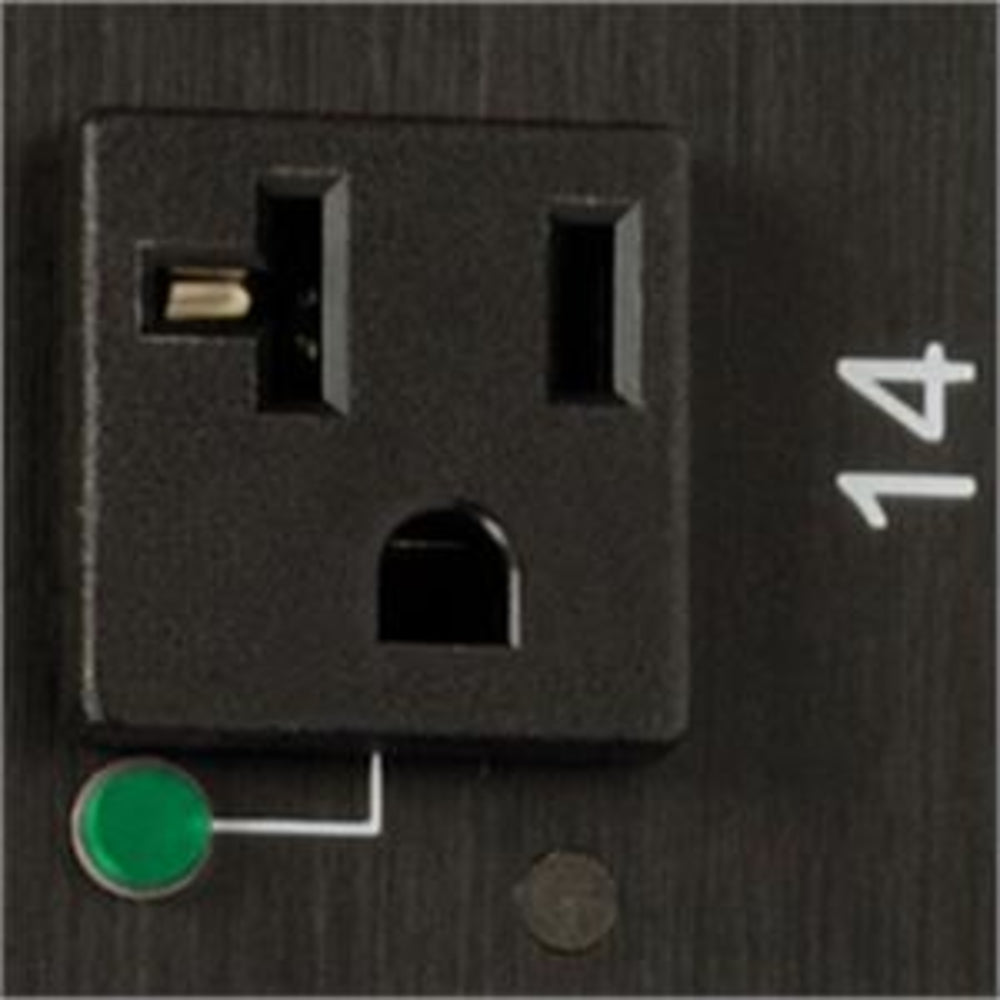

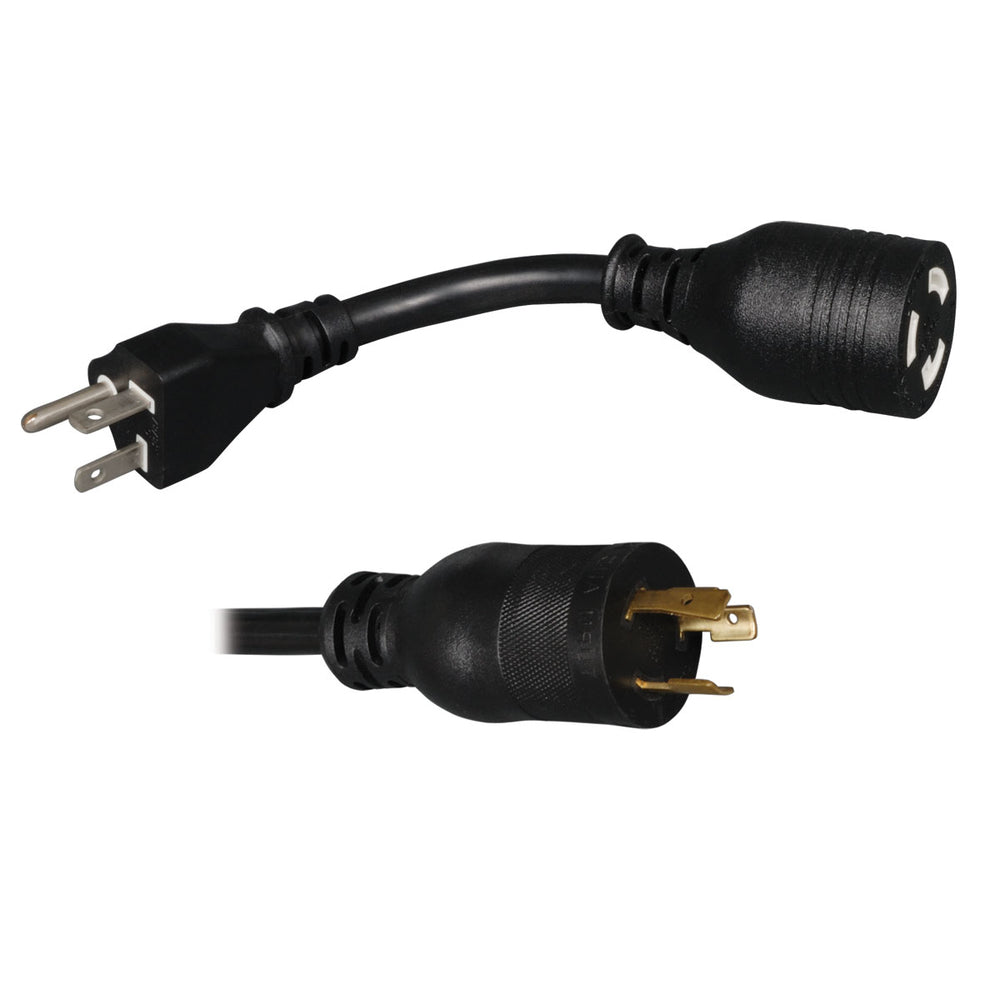

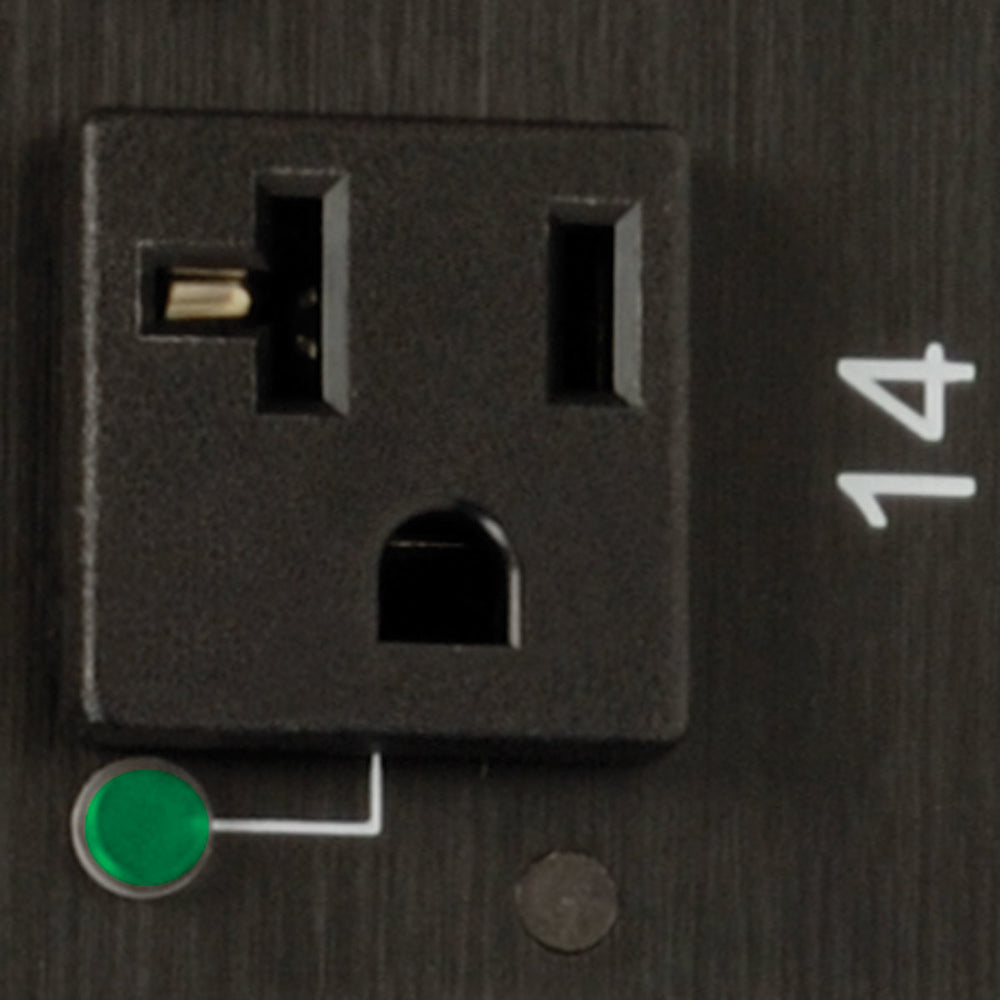

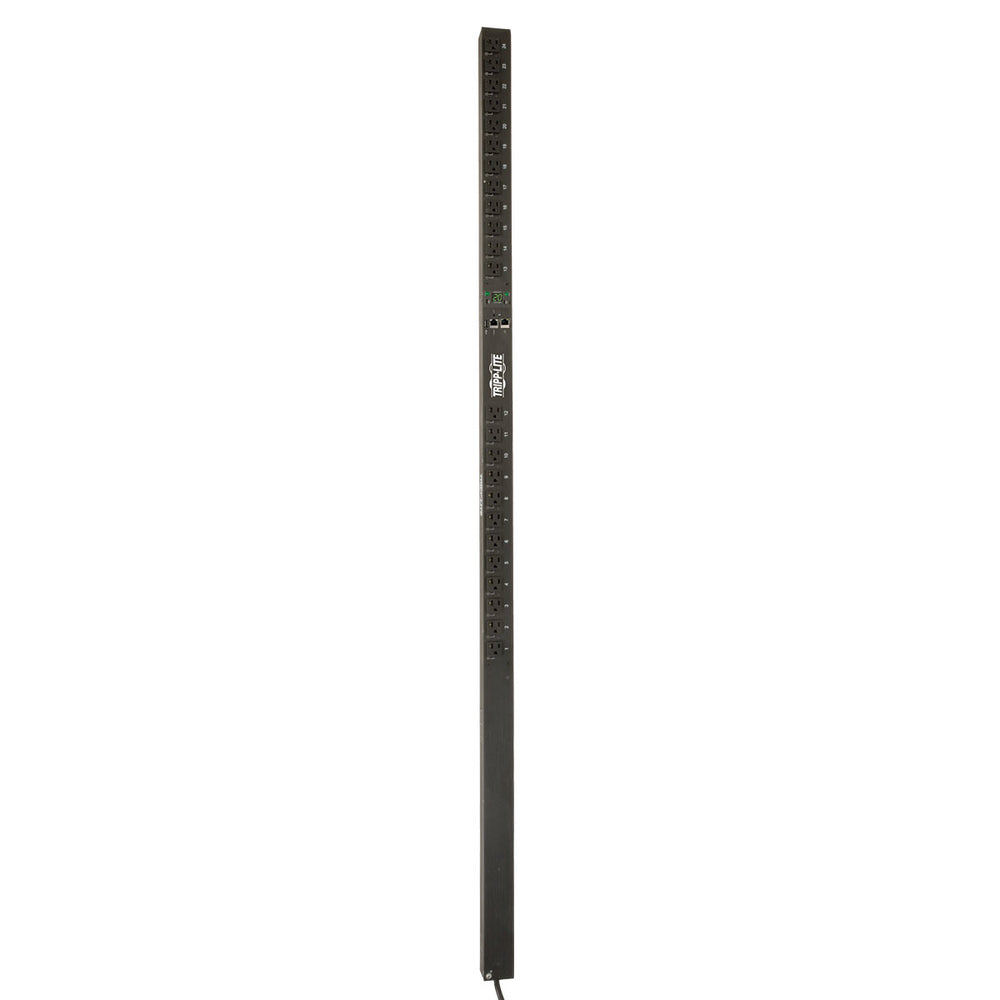

The Tripp Lite PDUMVR20NETLX power distribution unit (PDU) is a 1.9kW vertical PDU that distributes, monitors, and manages single-phase power. This PDU features 24 individually controllable NEMA 5-15/20R outlets with cord retention brackets to prevent accidental disconnections. It comes with a 10-foot power cord with NEMA L5-20P plug and optional 5-20P adapter for easy connection to an AC source, generator, or protected UPS.

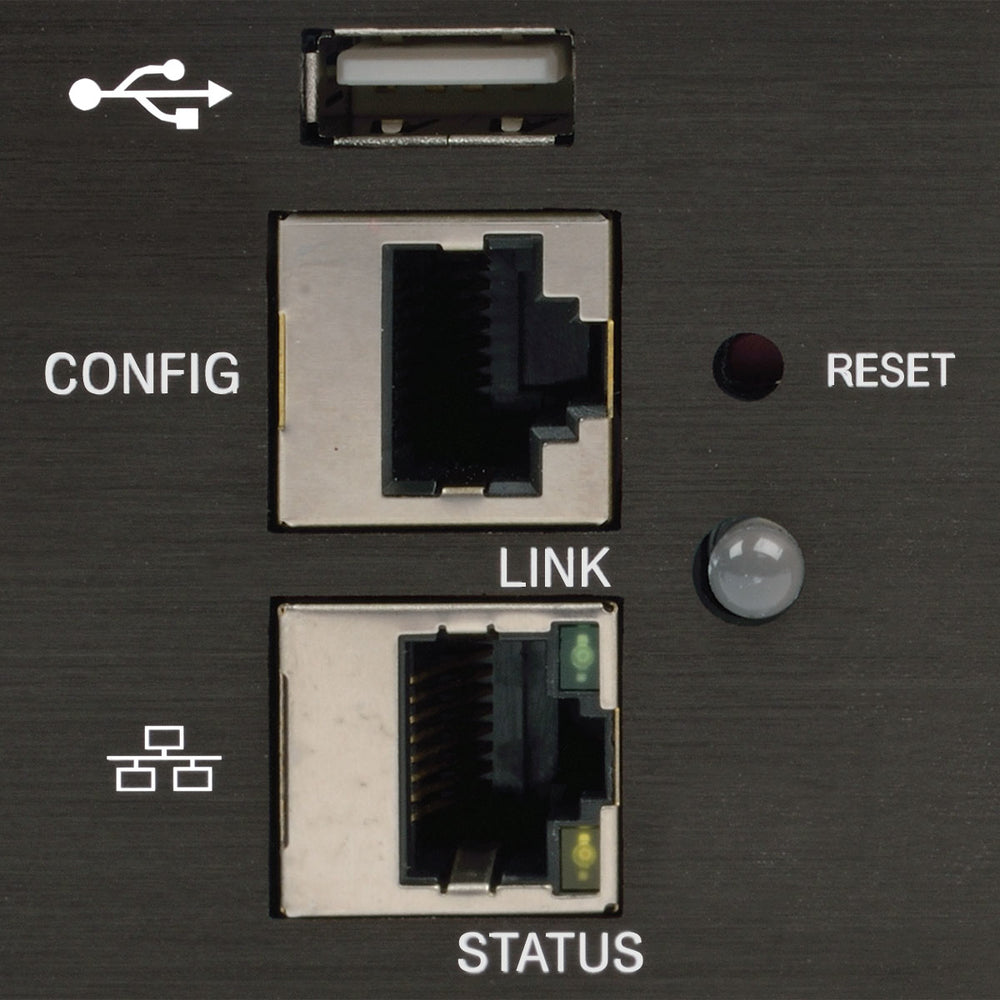

The built-in Java-free HTML5-based LX Platform network interface allows for full remote access and power monitoring of the PDU. It supports various protocols including IPv4, IPv6, HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP, and NTP. The LX Platform interface also supports optional EnviroSense2 modules (sold separately) for environmental monitoring capabilities.

The Tripp Lite PDUMVR20NETLX PDU features a digital ammeter that allows real-time monitoring of each load bank's current, each outlet's current, and the total connected PDU load. This ensures that the PDU remains well below maximum capacity to prevent overload.

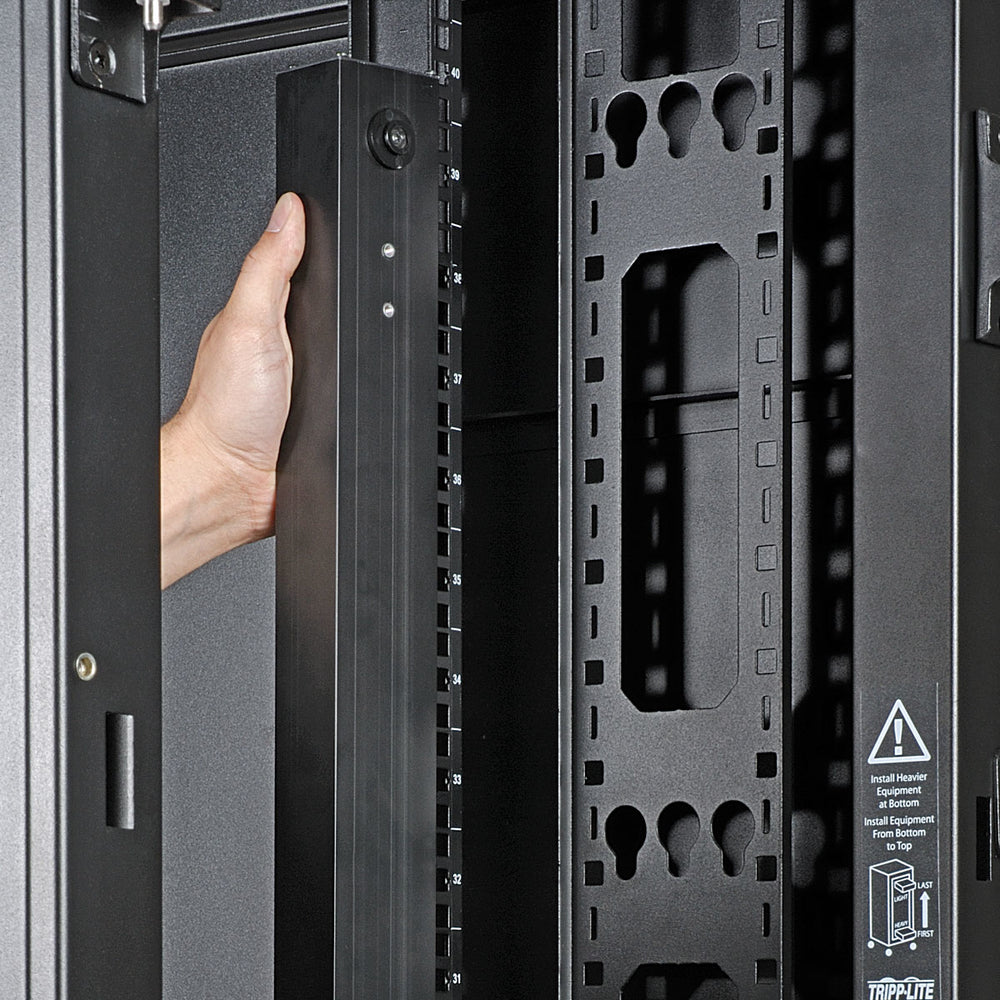

The PDU is designed for easy installation in EIA-standard 19-inch racks and can be mounted vertically using the included toolless mounting buttons or rack-mounting brackets. It is TAA-compliant, making it suitable for GSA Schedule purchases.

Features:

• PDU types: Switched
• Rack capacity: 0U
• Mounting: Vertical
• Product color: Black
• RoHS compliance: Y
• Certification: TAA
• Nominal input voltage: 100-127
• AC input frequency: 50 - 60
• Maximum current: 20
• Nominal output voltage: 100-127
• AC outlets quantity: 24
• AC outlet types: NEMA 5–15, NEMA 5–20R
• Input connection type: NEMA 5-20P, NEMA L5-20P
• Display: LCD
• LED indicators: Y
• Cable length: 3
• Maximum input current per phase: 20
• Storage temperature (T-T): -15 - 60
• Operating altitude: 0 - 3000
• Operating relative humidity (H-H): 5 - 95
• Dimensions (WxDxH): 56 x 52 x 1780
• Weight: 4400

Learn More

• Power Distribution Unit
• Single-Phase Power
• NEMA Connectors
• Remote Monitoring and Control

Product: Tripp Lite By Eaton Master-Power Pdumvr20Netlx Pdu Switched 120V 20A 0Urm 24

Brand: Tripp Lite

Model: PDUMVR20NETLX
