Tripp Lite By Eaton Master-Power PDUMV30HV2 PDU Metered Vertical 5.8kW 208/240V

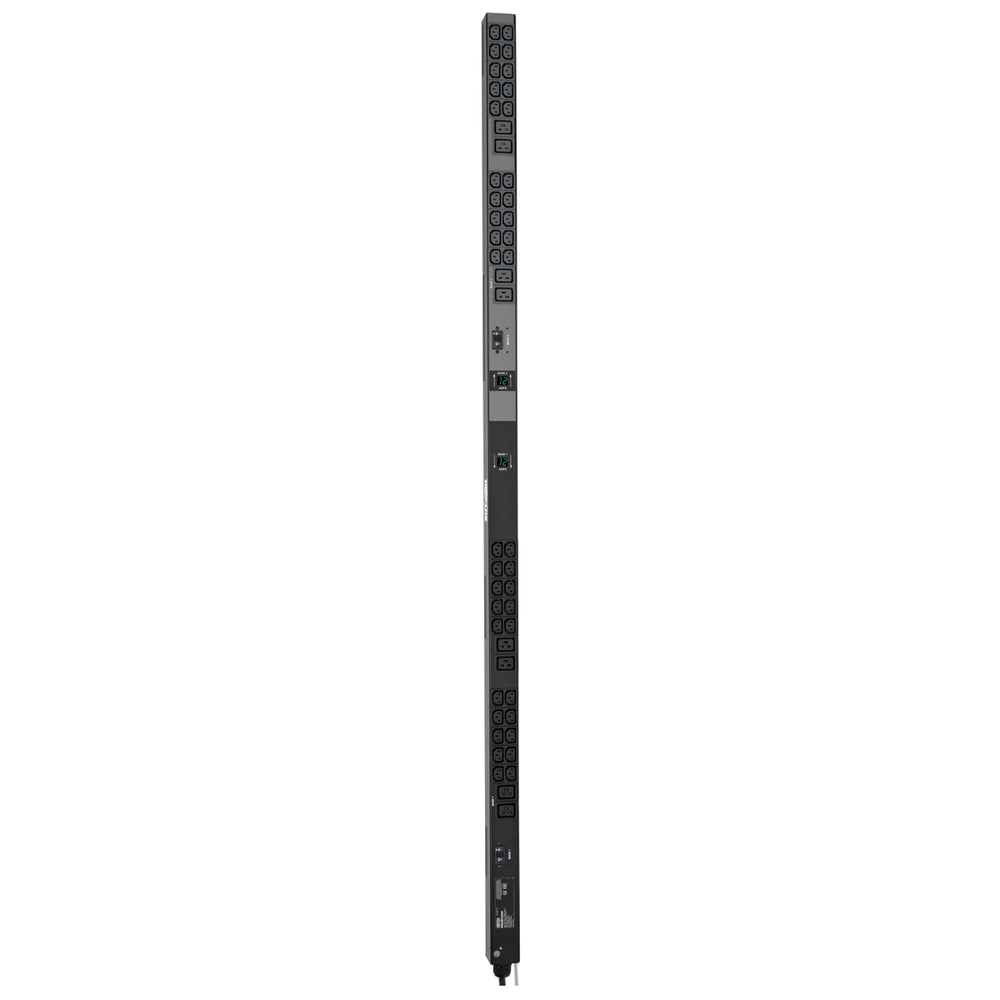

The Tripp Lite By Eaton Master-Power PDUMV30HV2 PDU is a 70-inch (178-centimeter) power distribution unit designed for server rooms, network closets, and data centers. It features 48 outlets that distribute single-phase AC power to rack-mounted equipment such as computers, routers, switches, and servers.

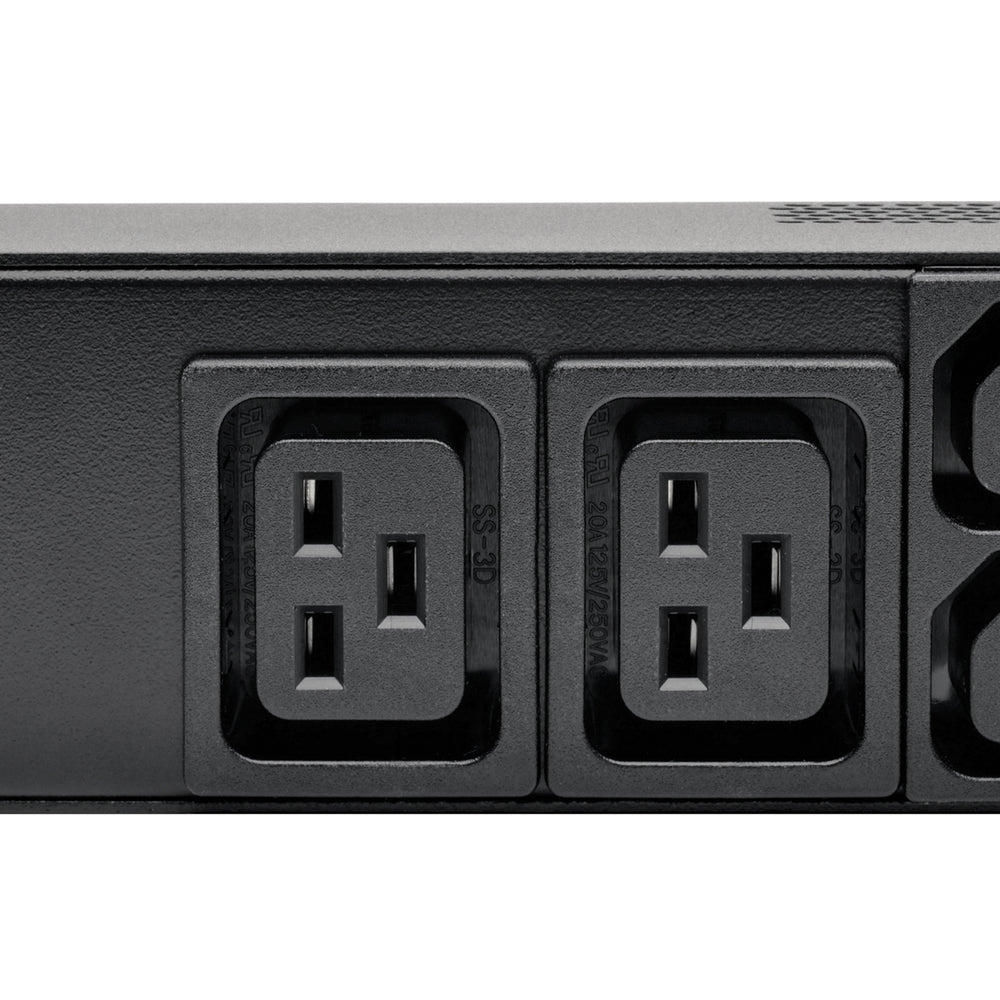

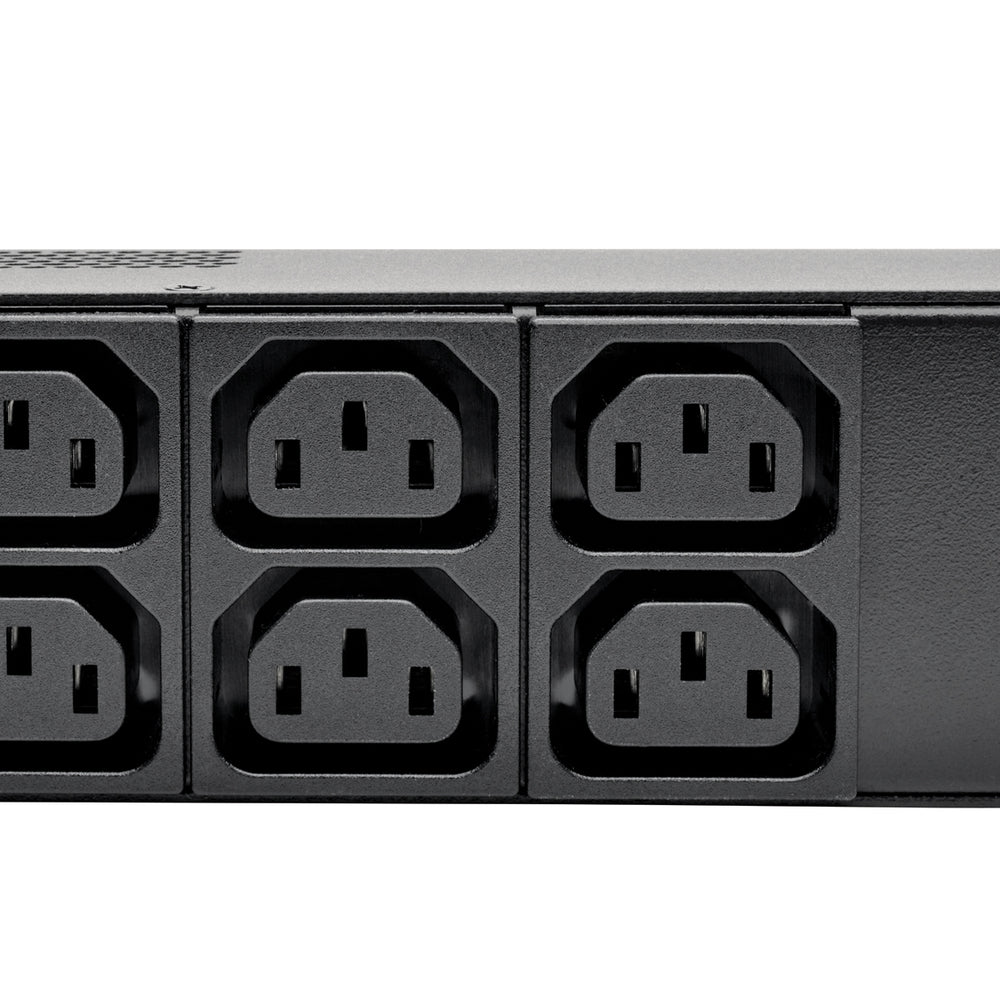

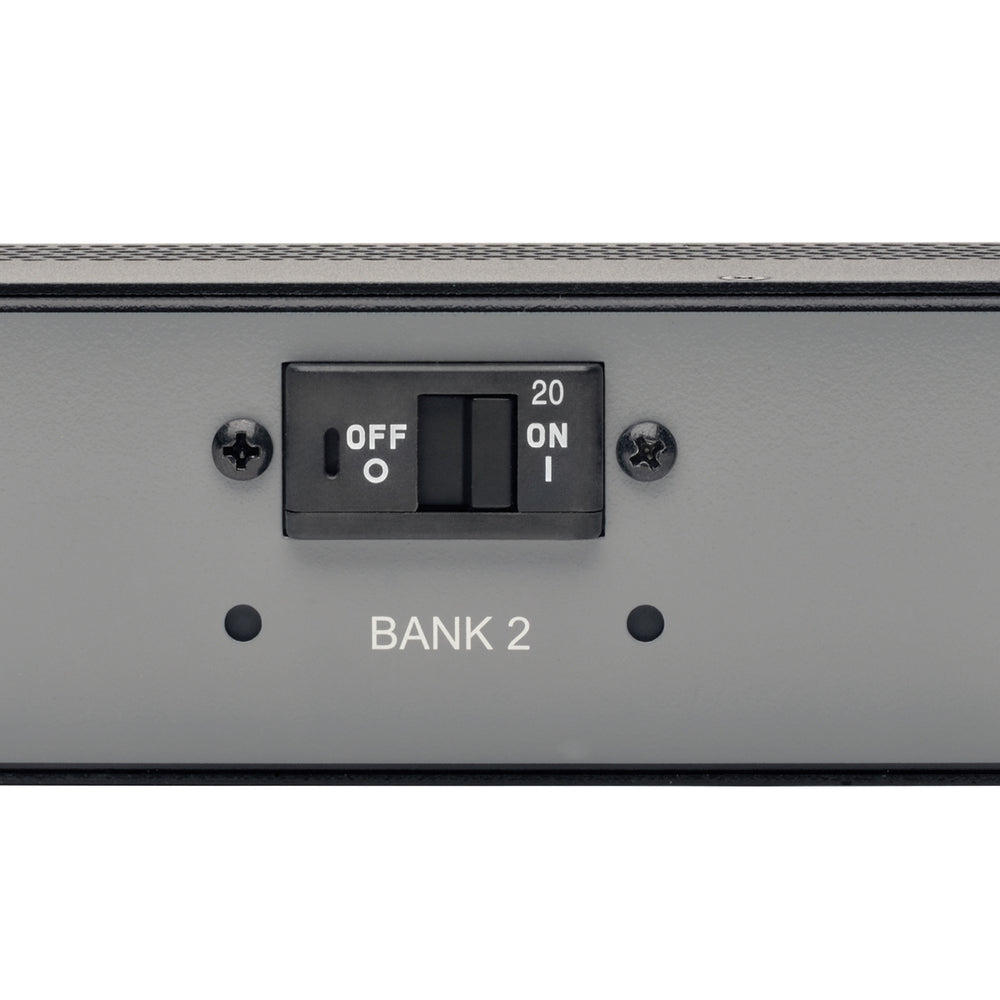

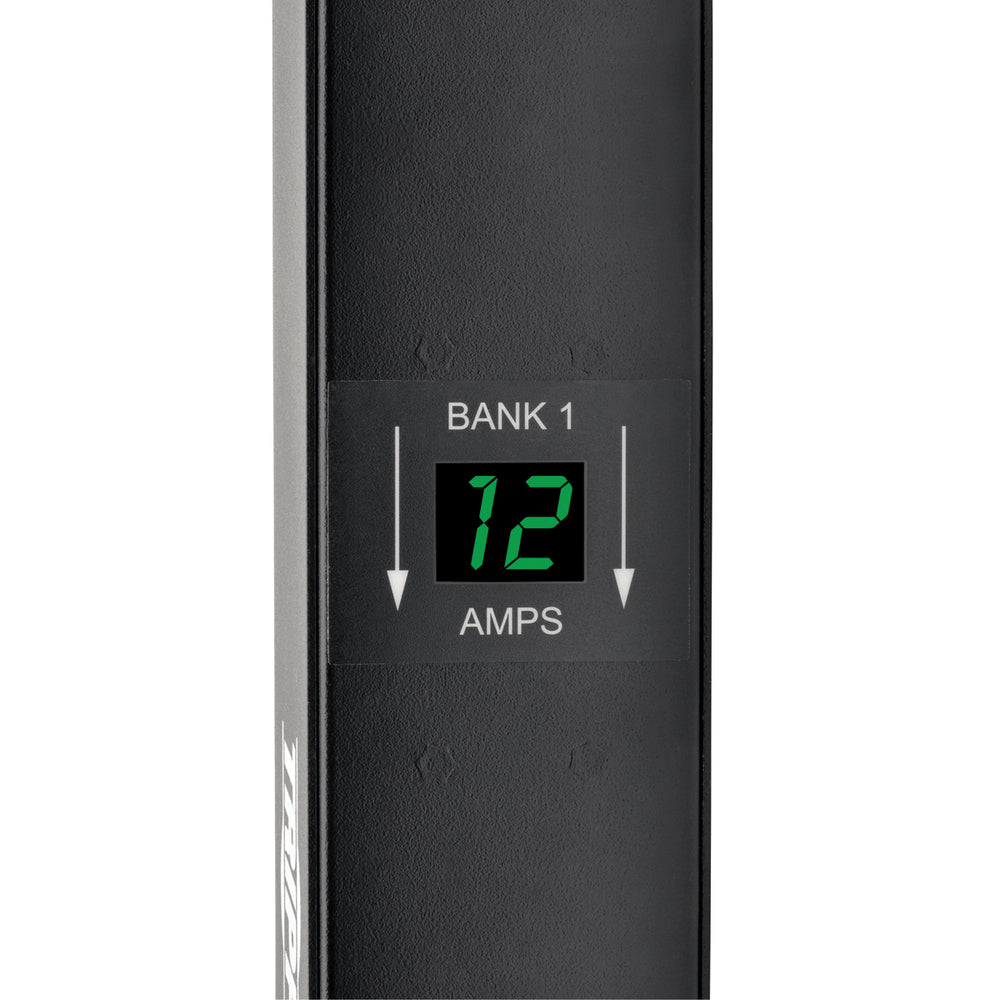

The outlets are arranged in two separate load banks, each with 24 outlets (4 C19 and 20 C13). Each load bank has a dedicated 20A circuit breaker and a digital meter that reports the bank's real-time output current in amps. The color-coded and labeled outlets, breakers, and ammeters make it easy to identify and monitor the power distribution.

The PDUMV30HV2 provides plenty of single-phase power with its 30A 208/240V 5.8kW capacity. The PDU is equipped with special guards to prevent breakers from accidentally tripping, ensuring uninterrupted power supply to connected equipment. The dual load banks help maintain balanced loads and prevent circuit overloads, minimizing downtime due to breaker tripping.

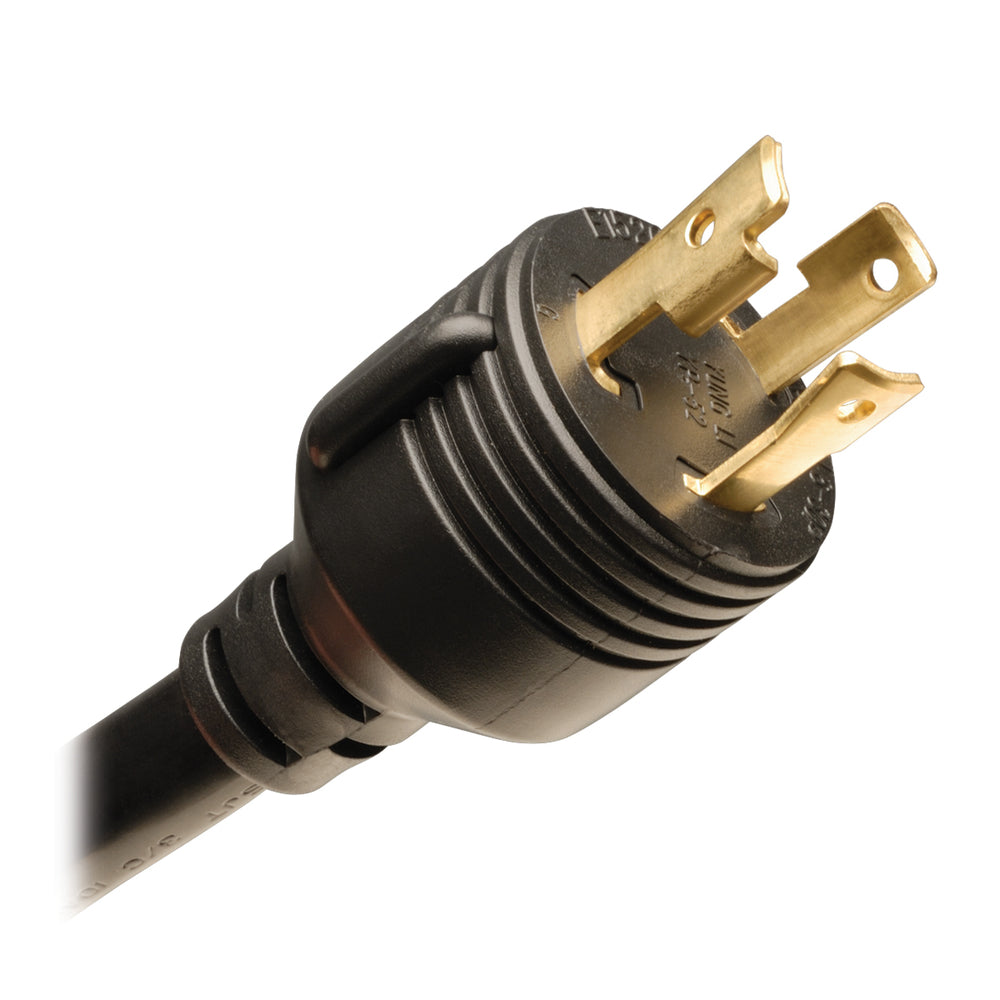

Connecting the PDUMV30HV2 to an AC power source is easy with its NEMA L6-30P input plug and 10-foot (3-meter) cord. The included plug-lock inserts ensure that components remain securely connected and continuously powered. The PDU also includes a ground screw for equipment that requires a chassis ground.

The PDUMV30HV2 can be mounted vertically in your rack using the preinstalled 9 mm buttons or the included mounting hardware. It offers toolless 0U installation, and nut-and-bolt vertical installation is also possible. Additionally, the included PDUMVROTATEBRKT mounting accessory allows for installation with outlets facing the rear.

This TAA-compliant PDU is compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.

Features:

• PDU types: Metered
• AC input frequency: 50 - 60
• AC outlets quantity: 48
• AC outlet types: C13 coupler, C19 coupler
• Nominal input voltage: 200-240
• Power protection features: Overload
• Nominal output voltage: 200-240
• Maximum current: 30
• Power plug: NEMA L6-30P
• Cable length: 3
• Display: LCD
• Dimensions (WxDxH): 50 x 64 x 1778
• Weight: 5443
• Package dimensions (WxDxH): 228 x 152 x 1905
• Package weight: 7257
• Housing material: Metal
• Rack capacity: 0U
• Mounting: Vertical
• Operating temperature (T-T): 0 - 50
• Storage temperature (T-T): -15 - 60
• Operating relative humidity (H-H): 5 - 95
• RoHS compliance: Y
• Product color: Black, Grey

Learn More

• Power Distribution Unit on Wikipedia
• Single-phase Electric Power on Wikipedia
• Alternating Current on Wikipedia

Product: Tripp Lite By Eaton Master-Power Pdumv30Hv2 Pdu Metered Vertical 5.8Kw 208/240V

Brand: Tripp Lite

Model: PDUMV30HV2

Shipping Weight: 20.00 lb

Shipping Height: 6.00 in

Shipping Width: 6.90 in

Shipping Length: 76.50 in
