Tripp Lite By Eaton Master-Power PDUMH20NET2LX PDU Switched 1.9kW 8 5-15/20R

The Tripp Lite By Eaton Master-Power PDUMH20NET2LX PDU Switched 1.9kW 8 5-15/20R is a power distribution unit (PDU) that provides advanced network control and remote power monitoring. With the ability to turn on, turn off, reboot, or lock out power to each outlet, this PDU reduces the frequency of on-site visits, saving you money and reducing downtime.

Features:

• PDU types: Switched
• Type: Single-phase
• LED indicators: Yes
• Display: LCD
• Cable length: 3.66 ft
• Rack capacity: 1U
• Mounting: Horizontal
• Housing material: Metal
• Product color: Black
• On/off switch: Yes
• RoHS compliance: Yes
• Certification: UL 60950-1 (USA), CSA/CSA-C22.2 NO. 60950-1 (Canada), Class A (Emissions), NOM (Mexico), TAA Compliant
• Storage temperature (T-T): -15&degC to 50&degC
• Operating relative humidity (H-H): 5% to 95%
• Operating altitude: 0 to 3000 meters
• Operating temperature (T-T): 5&degC to 122&degC
• Manual: Yes
• Maximum power: 1900 W
• Nominal input voltage: 100-127 V
• AC input frequency: 50 - 60 Hz
• Maximum current: 20 A
• Nominal output voltage: 100-127 V
• Power plug: NEMA L5-20P
• AC outlet types: NEMA 5-15, NEMA 5-20R
• AC outlets quantity: 8
• Outlet control: Lock-out, Recycle, Turn off, Turn on
• Supported network protocols: IPv4, IPv6, HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP, NTP
• Dimensions (WxDxH): 444 x 108 x 44.4 mm
• Weight: 2720 g
• Package dimensions (WxDxH): 44.4 x 108 x 444.5 mm
• Package weight: 2720 g

Product Description:

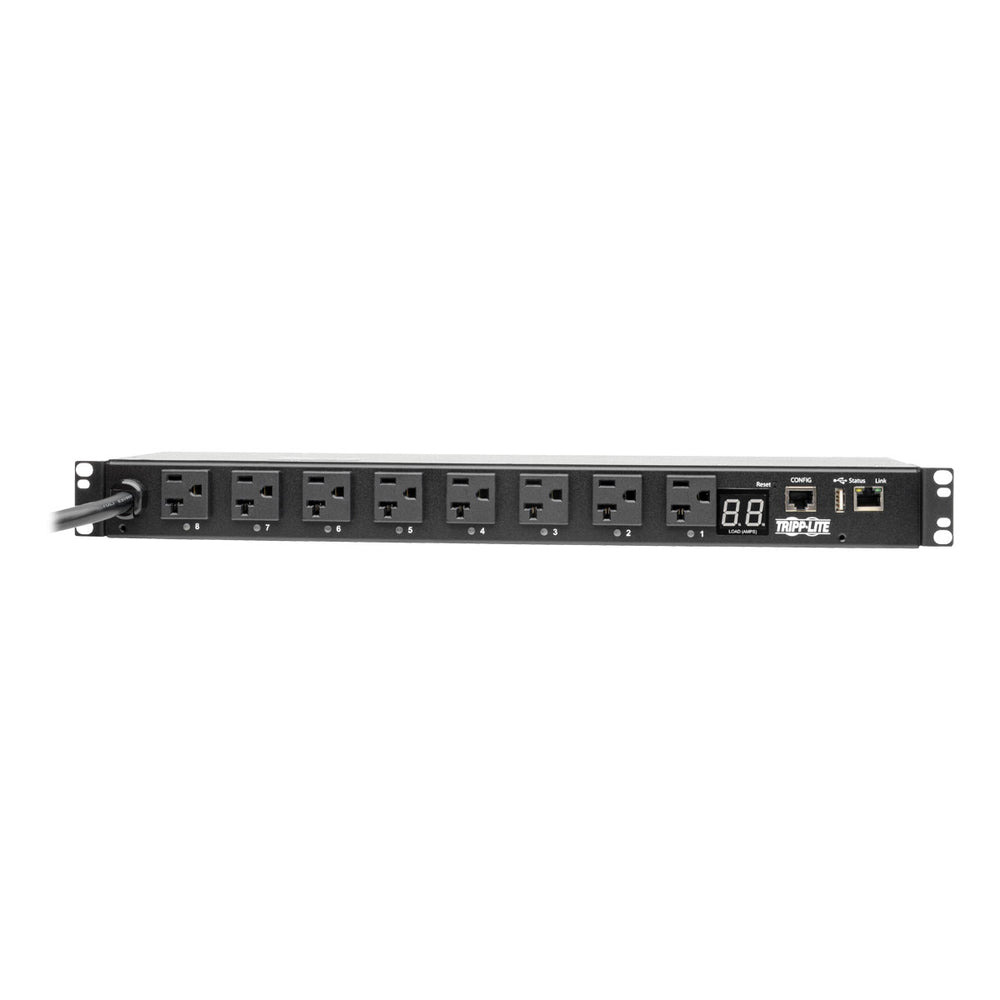

The Tripp Lite By Eaton Master-Power PDUMH20NET2LX PDU Switched 1.9kW 8 5-15/20R is a 1U power distribution unit designed for network applications requiring individual outlet control, load shedding, and remote monitoring of critical network components. It features eight switched NEMA 5-15/20R outlets with a cord retention bracket to prevent accidental disconnection of cables.

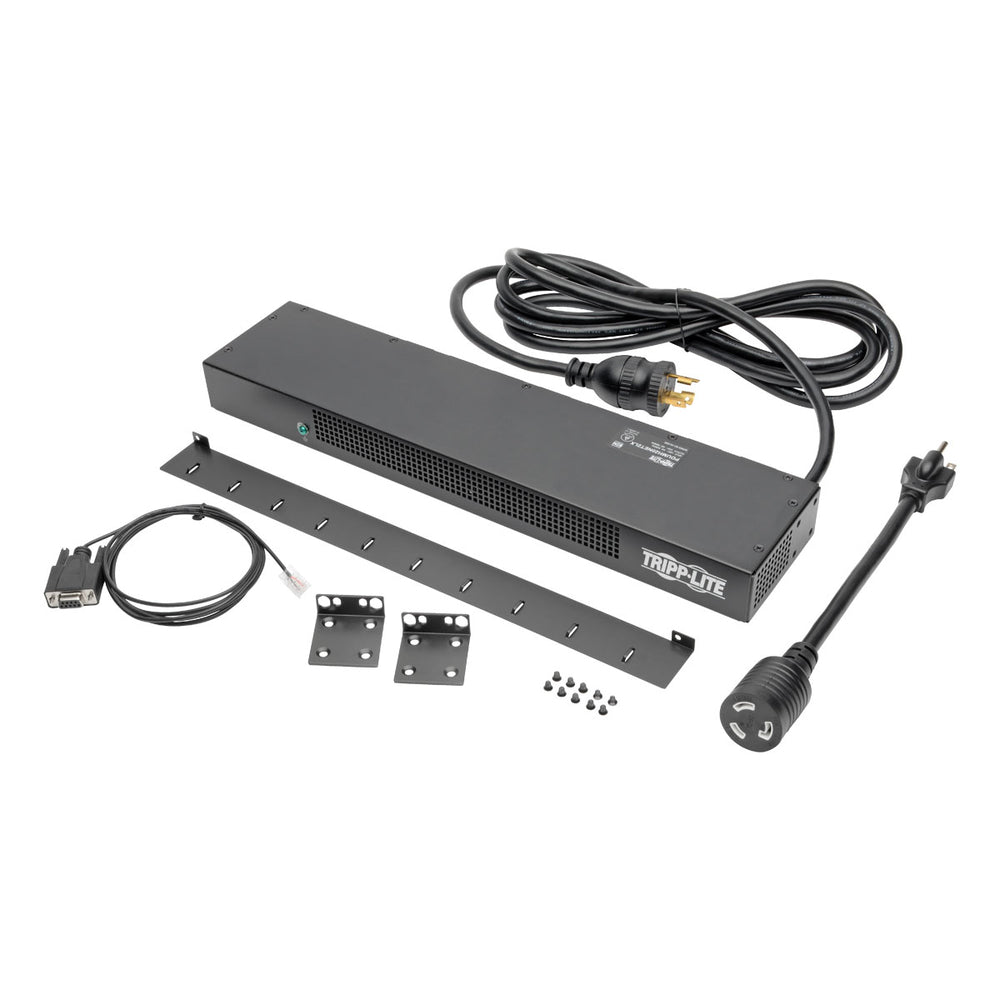

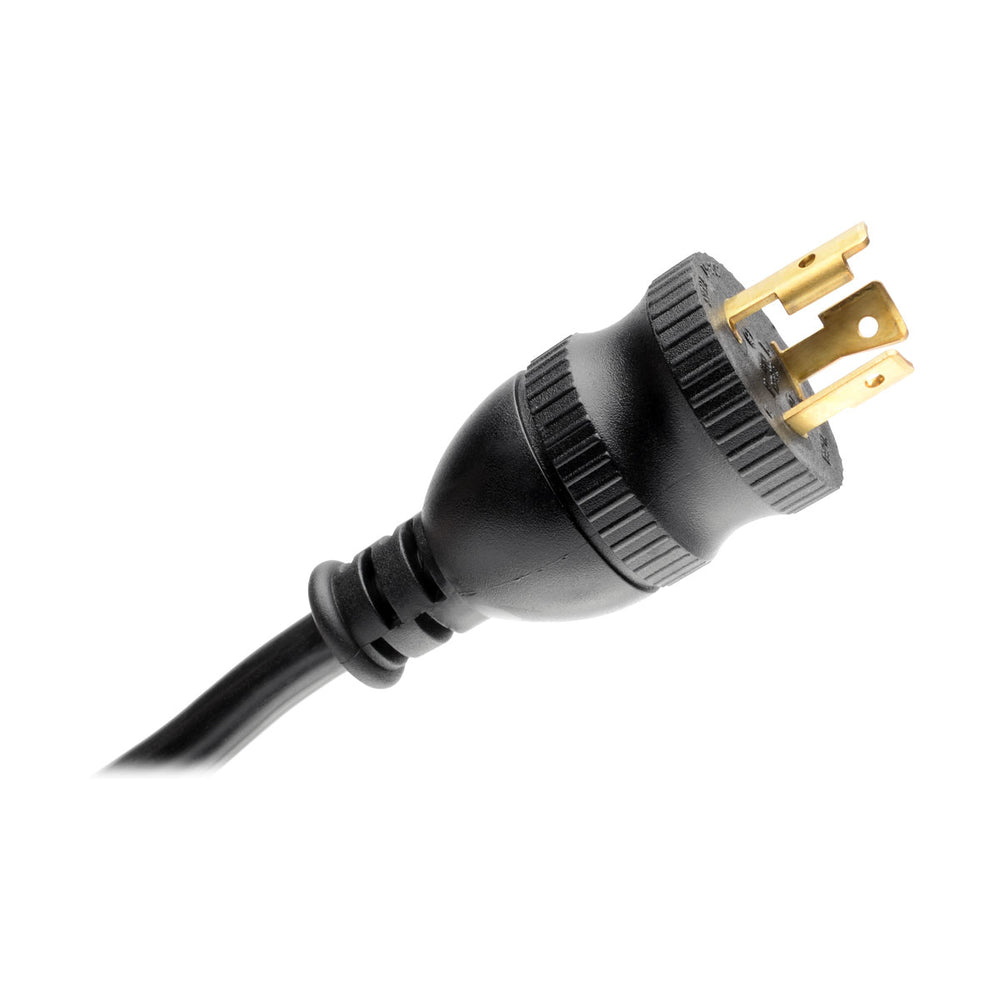

The PDU comes with a 12-foot cord and NEMA L5-20P plug, along with a 5-20P plug adapter for easy connection to a compatible AC power source, generator, or protected UPS. The built-in Java-free HTML5-based LX Platform network interface allows for full remote access, power monitoring, and email notifications via a secure web browser, SNMP, telnet, or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network.

The Tripp Lite By Eaton Master-Power PDUMH20NET2LX PDU Switched 1.9kW 8 5-15/20R also features a digital ammeter for real-time monitoring of the total load to ensure it remains well below maximum capacity without any risk of overload. The PDU can be installed in 1U of space in EIA-standard 19-inch racks, mounted vertically in 0U of rack space, or on a wall or under a counter using the included brackets and user-supplied screws.

Learn More:

• Power Distribution Unit - Wikipedia
• Network Control - Wikipedia
• Remote Power Control - Wikipedia

Product: Tripp Lite By Eaton Master-Power Pdumh20Net2Lx Pdu Switched 1.9Kw 8 5-15/20R

Brand: Tripp Lite

Model: PDUMH20NET2LX

Shipping Weight: 7.95 lb

Shipping Height: 2.25 in

Shipping Width: 11.75 in

Shipping Length: 20.25 in
