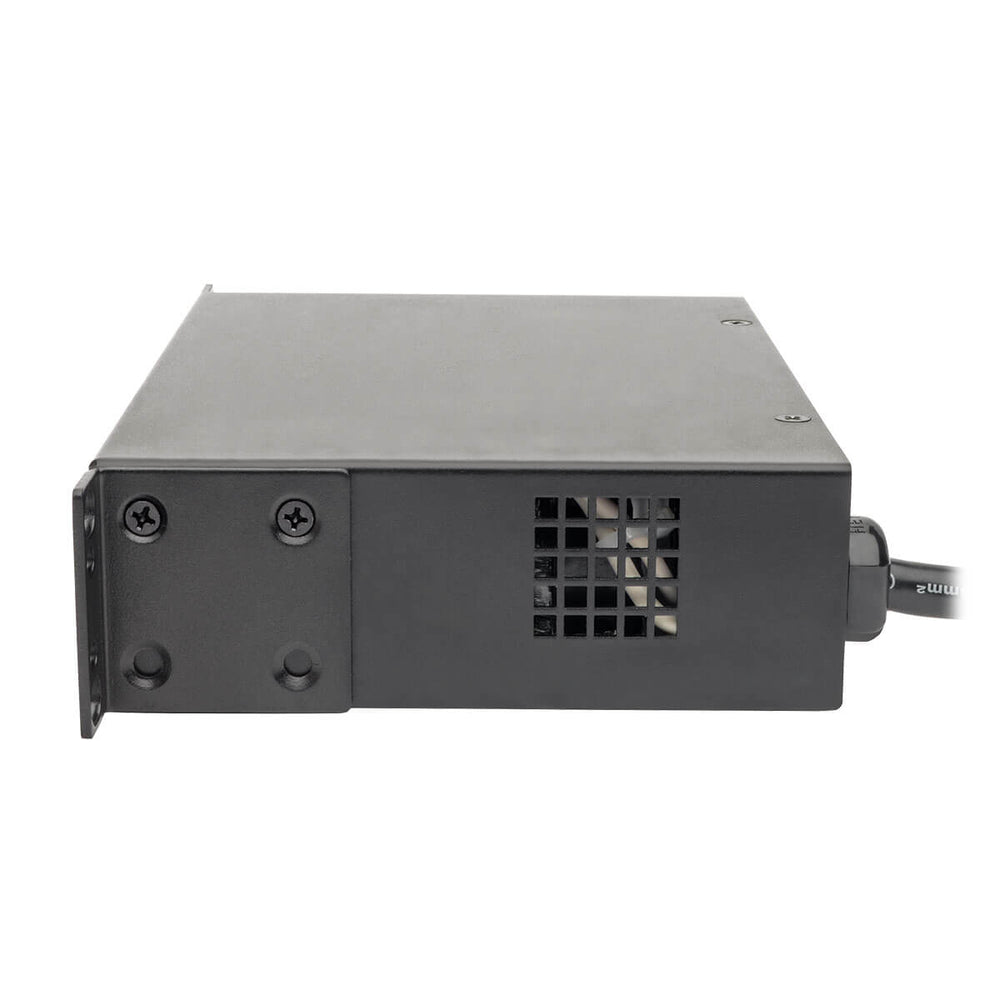

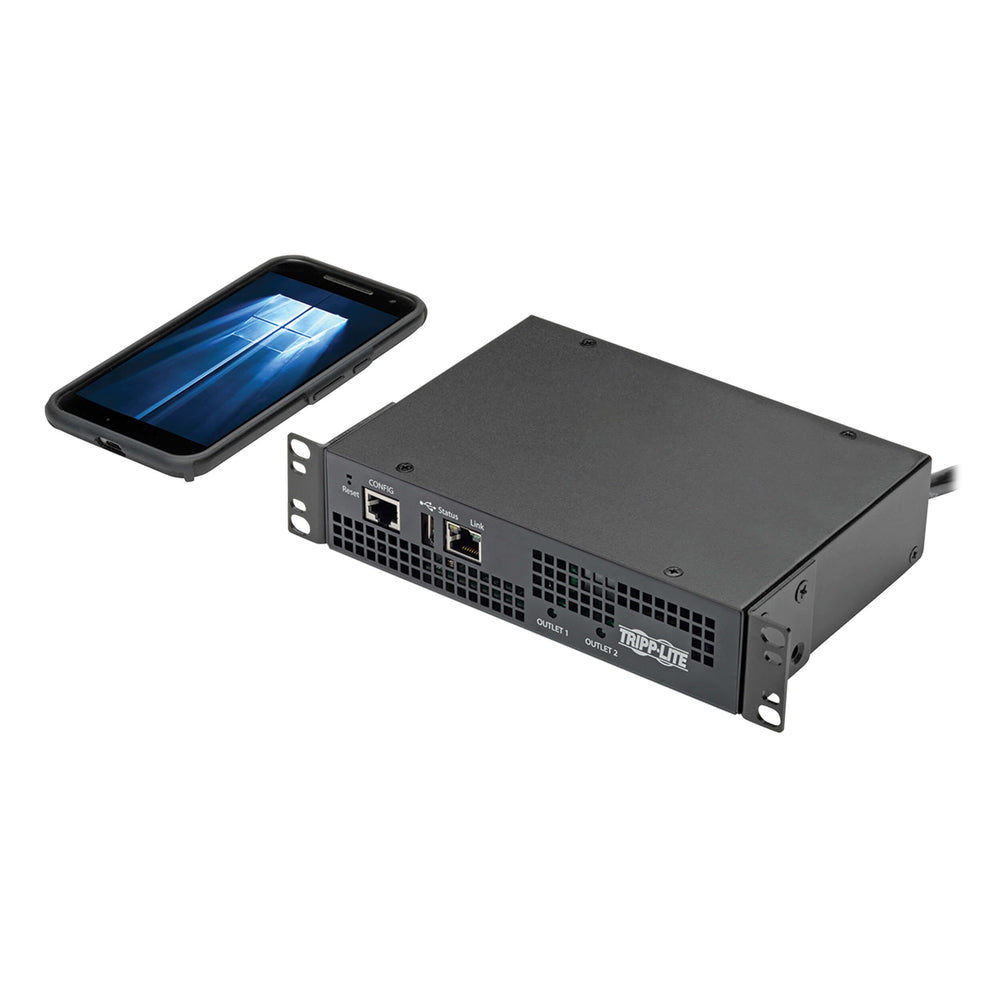

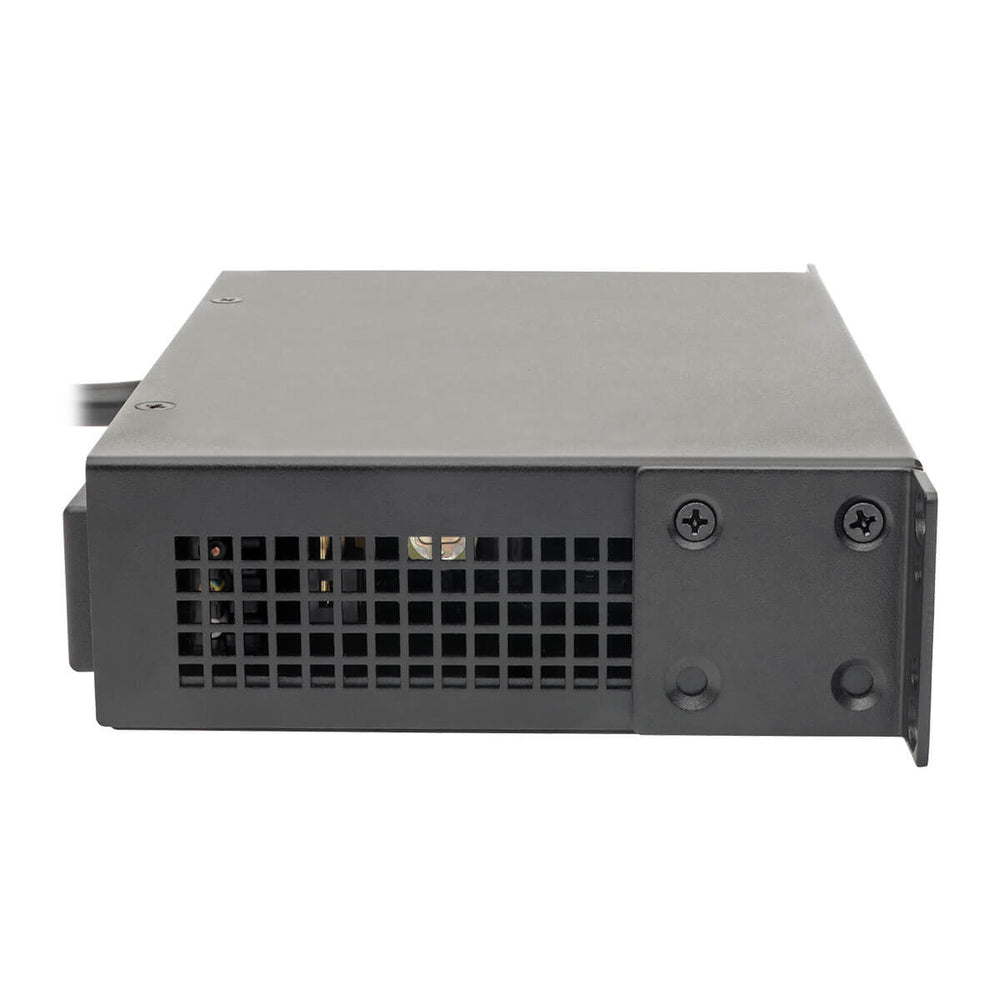

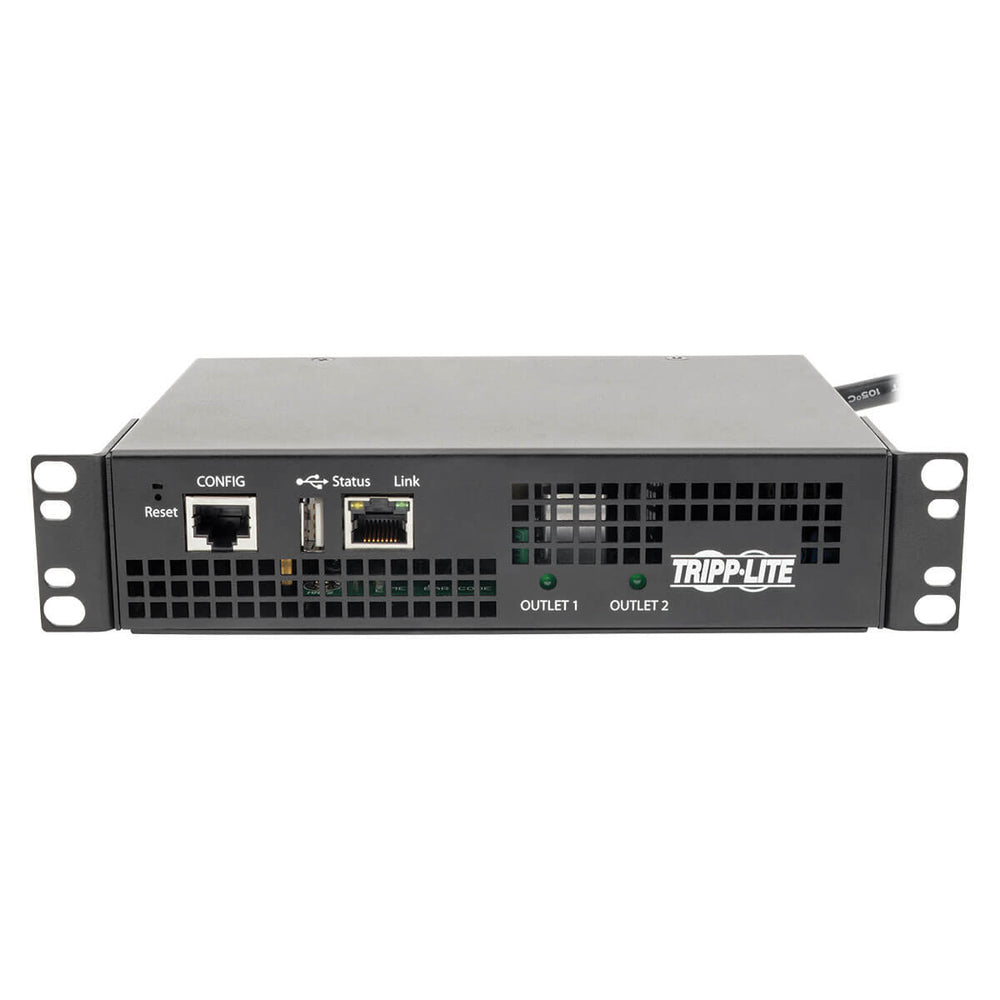

Tripp Lite PDU15Netlx Switched 1.4Kw 120V 15A 0U Mini

The Tripp Lite PDU15Netlx Switched 1.4Kw 120V 15A 0U Mini is a power distribution unit (PDU) designed for small-scale network configurations. With two individually switched outlets, this PDU provides advanced network control and remote power monitoring. Its compact size and low-cost make it an ideal choice for applications where only one or two outlets are needed.

This PDU features a built-in LX Platform network interface, offering 24/7 access for PDU status monitoring and email notifications. The Java-free HTML5-based interface allows for full remote access via secure web browser, SNMP, telnet, or SSH. Additionally, the PDU supports 10/100 Mbps auto-sensing for optimal communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide environmental monitoring capabilities such as temperature and humidity conditions. Automated alerts help prevent accidental overloads, power loss, and downtime.

The Tripp Lite PDU15Netlx Switched PDU also includes the Auto Probe feature, which checks the connectivity status of any networked device and takes user-configured actions if the device fails to respond. These actions can include outlet reboot, SNMP traps, SNMP OID sets, and script execution when used with the Tripp Lite PowerAlert Network Shutdown Agent (PANSA).

For easy installation, this PDU comes with a six-foot power cord and can be connected to a compatible AC power source, generator, or protected UPS. It can be mounted vertically in 0U of rack space, on a wall, or under a counter using the included mounting brackets and user-supplied hardware. The half-width rack-mount form factor also allows for placement on a shelf or desktop.

The Tripp Lite PDU15Netlx Switched 1.4Kw 120V 15A 0U Mini is compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases, making it suitable for government procurement. It comes with a 2-year warranty and is manufactured in compliance with strict RoHS specifications, reflecting Tripp Lite's commitment to environmental responsibility.

Features:

• PDU types: Switched
• AC input frequency: 50/60
• Nominal output voltage: 100; 120; 127

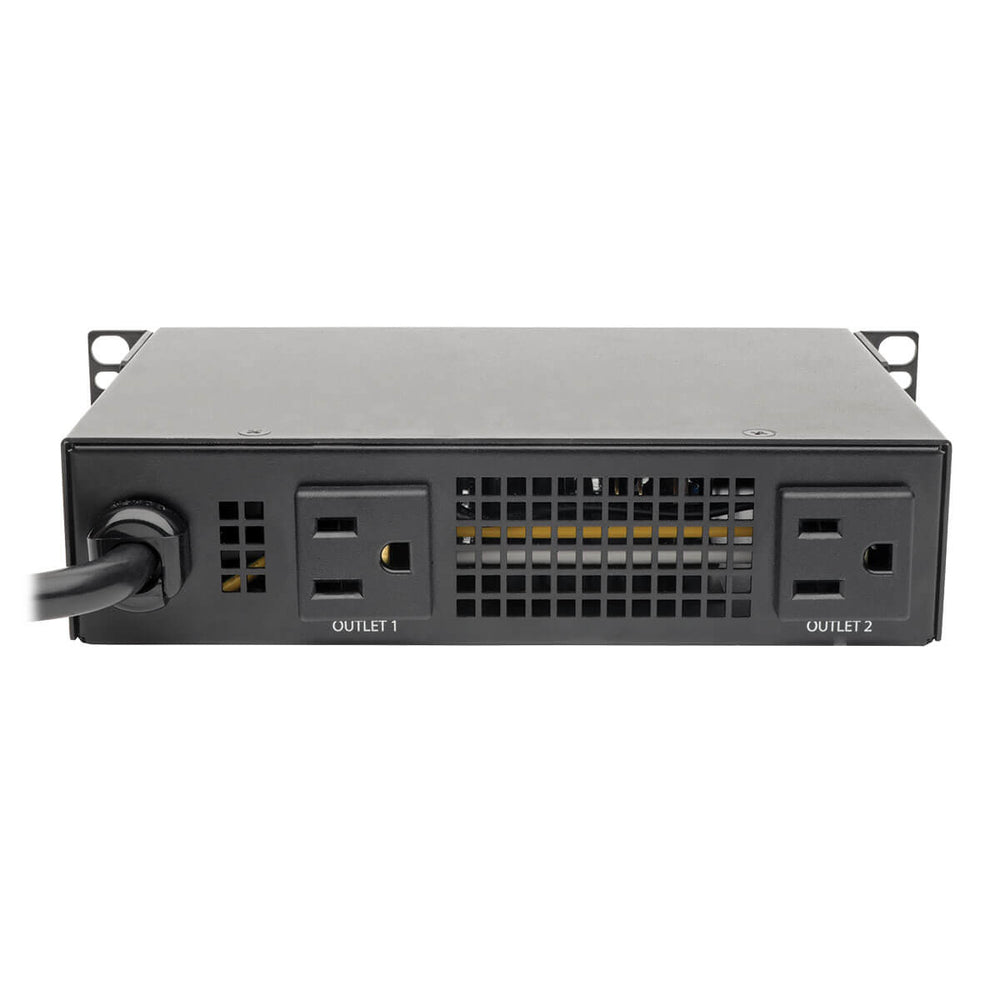

• AC outlets quantity: 2
• AC outlet types: NEMA 5–15R
• Nominal input voltage: 100; 120; 127
• Maximum current: 15
• Power plug: NEMA 5–15P
• Cable length: 1.8

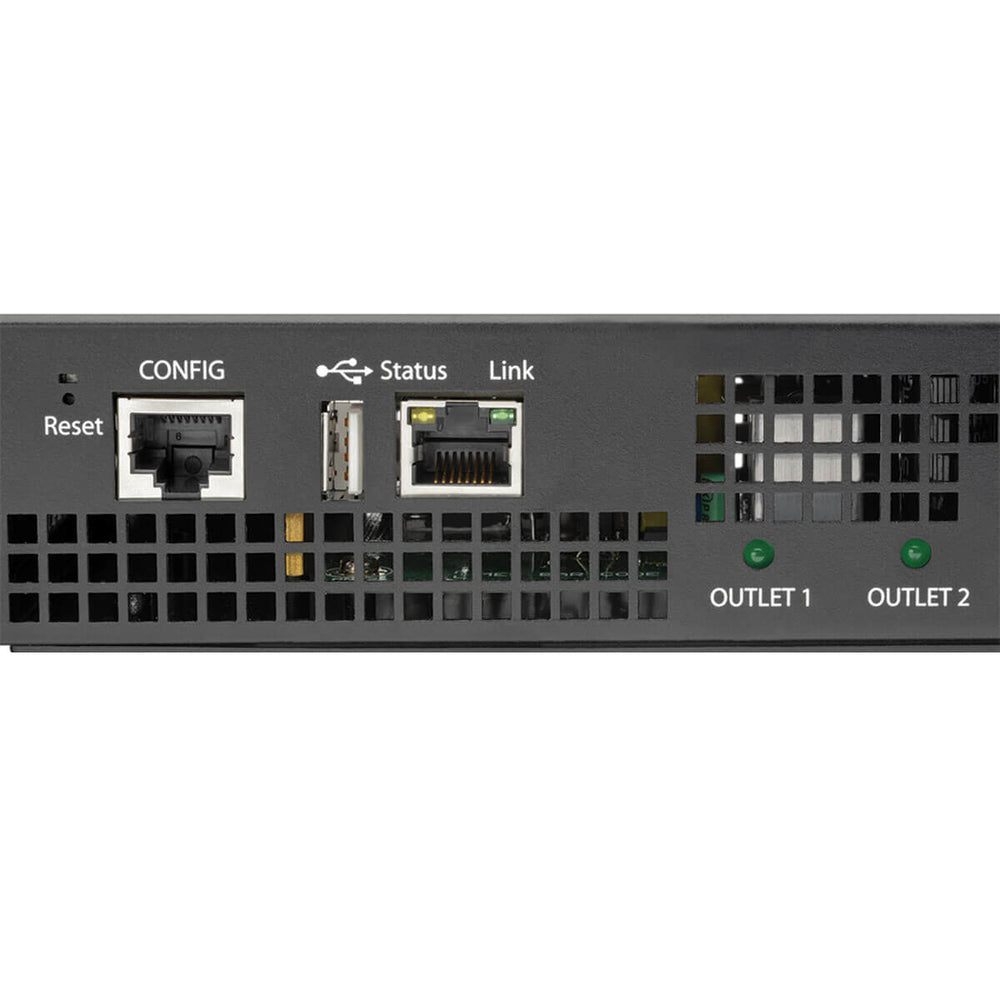

• LED indicators: Activity, Network, Power, Status
• Reset button: Yes
• Type: Single-phase
• Rack capacity: 0U
• Housing material: Metal
• Mounting: Vertical
• Product color: Black
• Package height: 50
• Package width: 212.1
• Package depth: 205
• Package weight: 1350
• Height: 44
• Width: 178
• Depth: 127
• Weight: 1200
• Operating temperature (T-T): 32 - 122
• Storage temperature (T-T): -30 - 60
• Operating relative humidity (H-H): 5 - 95
• Operating altitude: 0 - 3000
• Ethernet LAN (RJ-45) ports: 2
• USB ports quantity: 1
• RoHS compliance: Yes
• Certification: UL 60950-1, CSA, NOM, TAA
• Security algorithms: SNMP, SNMPv3
• Manual: Yes
• Maximum power: 15200

Package Includes:

• PDU15NETLX 1.4kW 100/127V Single-Phase Switched Mini PDU

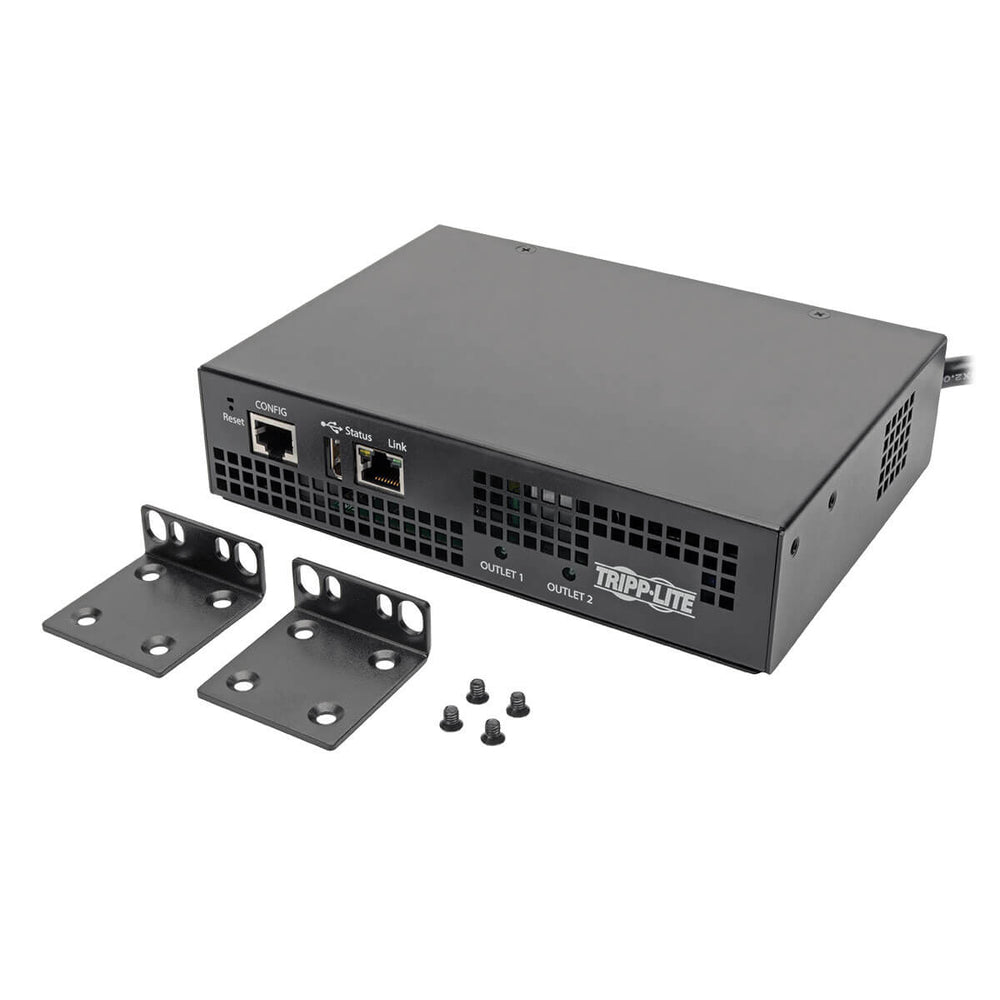

• (2) Mounting brackets w/screws
• Owner’s manual

Typical Applications:

• Provide 100-127V power for up to 2 devices in a small-scale network configuration
• Remotely monitor, control, and reboot power to connected equipment in data centers and computer rooms
• Manage kiosks and other unattended applications

Learn More:

• Ethernet

Product: Tripp Lite By Eaton Master-Power Pdu15Netlx Pdu Switched 1.4Kw 120V 15A 0U Mini

Brand: Tripp Lite

Model: PDU15NETLX

Shipping Weight: 3.15 lb

Shipping Height: 2.30 in

Shipping Width: 8.60 in

Shipping Length: 9.60 in
