Tripp Lite By Eaton B020-U08-19-IP 8-Port IP KVM Rack Console 1URM

Tripp Lite’s B020-U08-19-IP KVM Switch is a versatile solution that combines a rack-mountable keyboard, LCD, and touchpad in a single console. This space-saving device occupies only 1U of rack space and is ideal for controlling up to 8 computers or servers. With remote access capabilities, you can manage your servers from anywhere, eliminating the need to travel to the server room or network closet.

Features:

• 8-port KVM switch with 19" LCD screen
• Supports video resolutions up to 1280 x 1024 @ 75Hz
• Remote monitor resolutions up to 1600 x 1200 @ 60Hz
• Switch between ports using on-console buttons, on-screen display (OSD), or hot keys
• Up to 64 user accounts with multi-level security
• USB port for an external mouse and USB 1.1 port for peripheral sharing
• Compatible with all major operating systems
• Heavy-duty steel housing for durability

Specifications:

• Display: LCD
• Display diagonal: 19"
• Product color: Black
• Interface: PS2
• Height (in Rack Units): 1
• Operating temperature (T-T): 0 - 50&degC
• Storage temperature (T-T): -20 - 60&degC
• Certification: UL 60950-1 (USA), CAN/CSA (Canada), FCC 15 A, CE, IEC 60950-1, UL, cUL, CE, FCC
• Weight: 31 lbs
• On Screen Display (OSD): Yes
• Built-in KVM switch: Yes
• KVM switch ports quantity: 8
• AC adapter frequency: 50 Hz
• AC adapter input voltage: 100 - 250 V
• Operating relative humidity (H-H): 0 - 80%
• Product weight: 14060 g
• Product height: 43.9 mm
• Product width: 480 mm
• Product depth: 685.8 mm
• Package dimensions (WxDxH): 825.5 x 662.94 x 127 mm
• Package weight: 18000 g
• Package depth: 830.1 mm
• Package height: 18000 mm

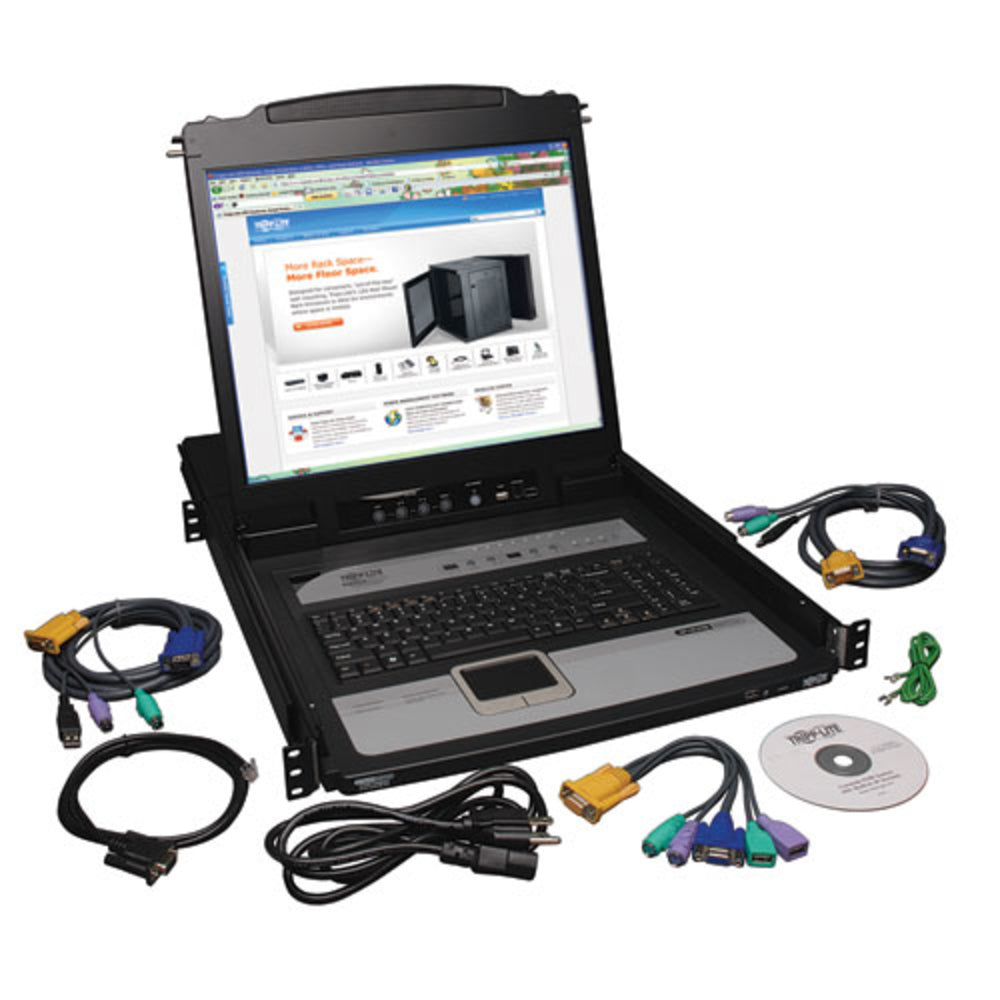

Package Includes:

• B020-U08-19-IP 8-Port console KVM switch with 19” LCD and built-in IP access
• (x2) P778-Series 6 ft. USB/PS2 combo KVM Cable Kits
• USB/PS2 combo external console Cable Kit
• Grounding wire
• RJ11 to DB9 firmware upgrade cable
• Rackmount hardware
• C13 to 5-15P power cord
• CD with owner’s manual, quick start guide, and device files

Learn More:

• KVM Switch
• Video Resolutions
• Operating Systems

Product: Tripp Lite By Eaton Master-Power B020-U08-19-Ip 8Port Ip Kvm Rack Console 1Urm

Brand: Tripp Lite

Model: B020-U08-19-IP

Shipping Weight:

Shipping Height:

Shipping Width:

Shipping Length:
