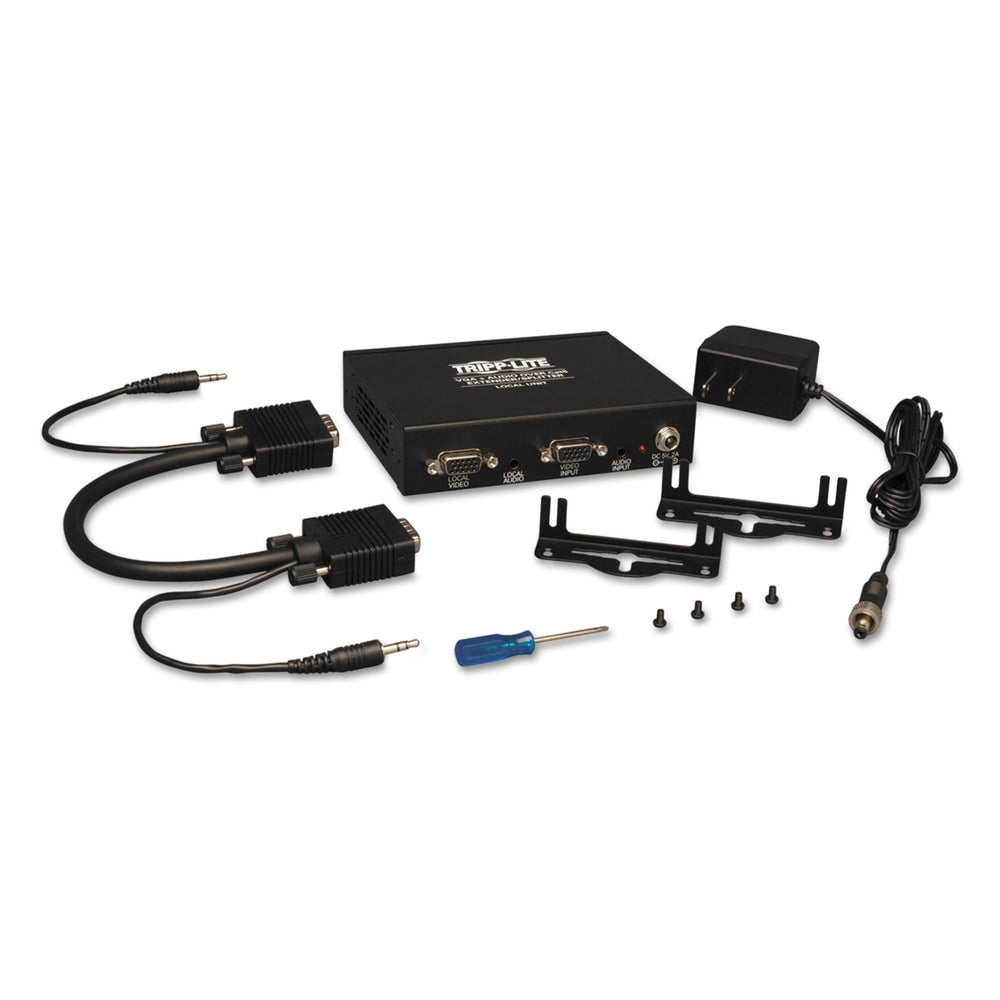

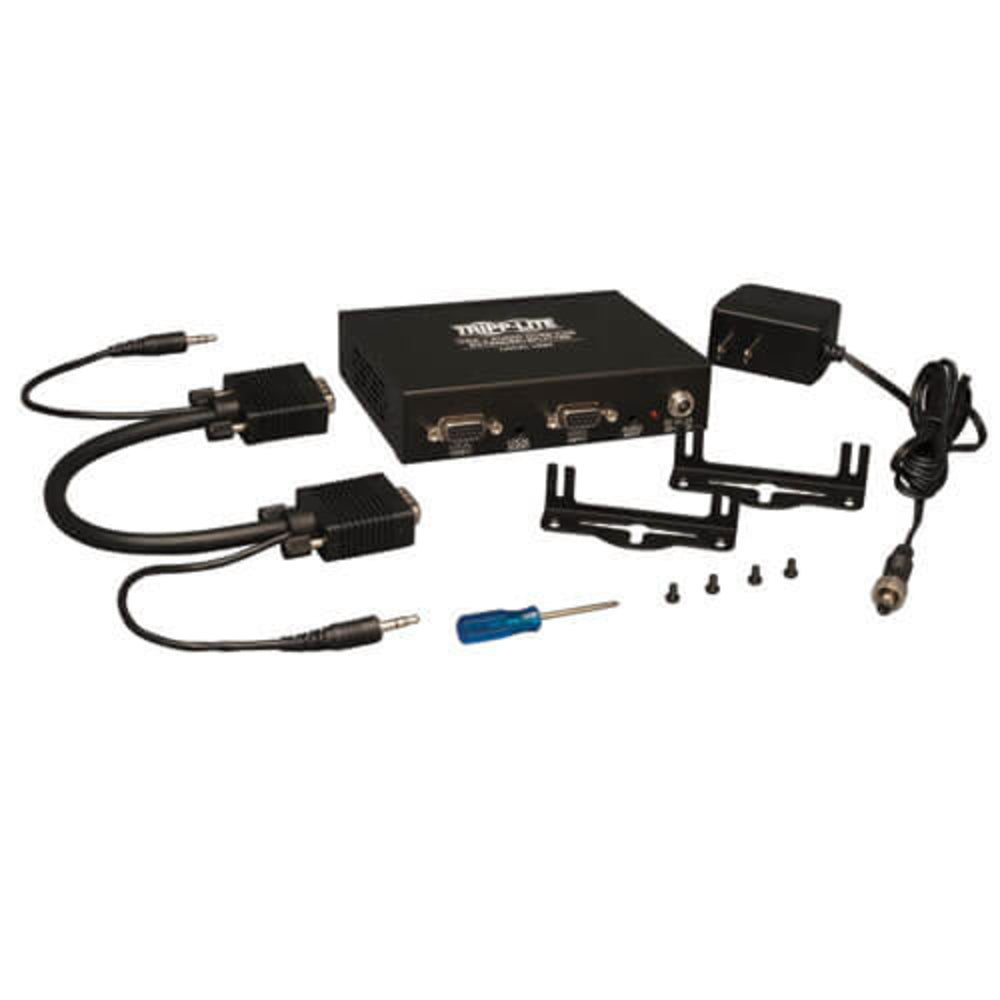

Tripp Lite B132-004A-2 VGA Audio over Cat5 Cat6 Extender - 4-Port

Tripp Lite's B132-004A-2 VGA Audio over Cat5 Cat6 Extender is a versatile solution that allows you to split a single VGA and Audio signal into 5 (1 local, 4 remote) displays. With the ability to daisy-chain up to six B132-004A-2 units together, you can increase the number of displays to up to 25 (1 local, 24 remote). This extender is perfect for digital signage situations, such as retail, schools, churches, and more.

Features:

• Splits a single VGA and Audio signal into 5 (1 local, 4 remote)
• EDID copy feature ensures optimal display compatibility
• Extends a 1920 x 1440 (60Hz) signal up to 152.4 m (500-ft.), or a 1024 x 768 (60Hz) signal up to 304.8 m (1,000-ft.), when using 24Awg, Solid Wire Cat5e/6 cable, such as Tripp Lite's N022-01K-GY (Cat5) and N222-01K-GY (Cat6)
• Can further expand the range and number of monitors by adding B132-110A repeaters
• For optimal image quality between 500 and 304.8 m (1,000-ft.), use Zero-Skew cable, such as Tripp Lite P524-01K

Specifications:

• Type: AV transmitter
• Maximum resolution: 1920 x 1440
• AC input frequency: 50 - 60
• AC input voltage: 100-240
• Input current: 0.5
• Operating voltage: 5
• Output current: 2
• Package weight: 820
• Dimensions (WxDxH): 134.6 x 99.1 x 30.5
• Weight: 390
• Product color: Black
• Supported graphics resolutions: 640 x 480 (VGA),800 x 600 (SVGA),1024 x 768 (XGA),1440 x 900,1600 x 1200 (UXGA),1920 x 1200 (WUXGA),1920 x 1440
• Supported video modes: 480i,480p,720p,1080i,1080p
• Maximum transfer distance: 305

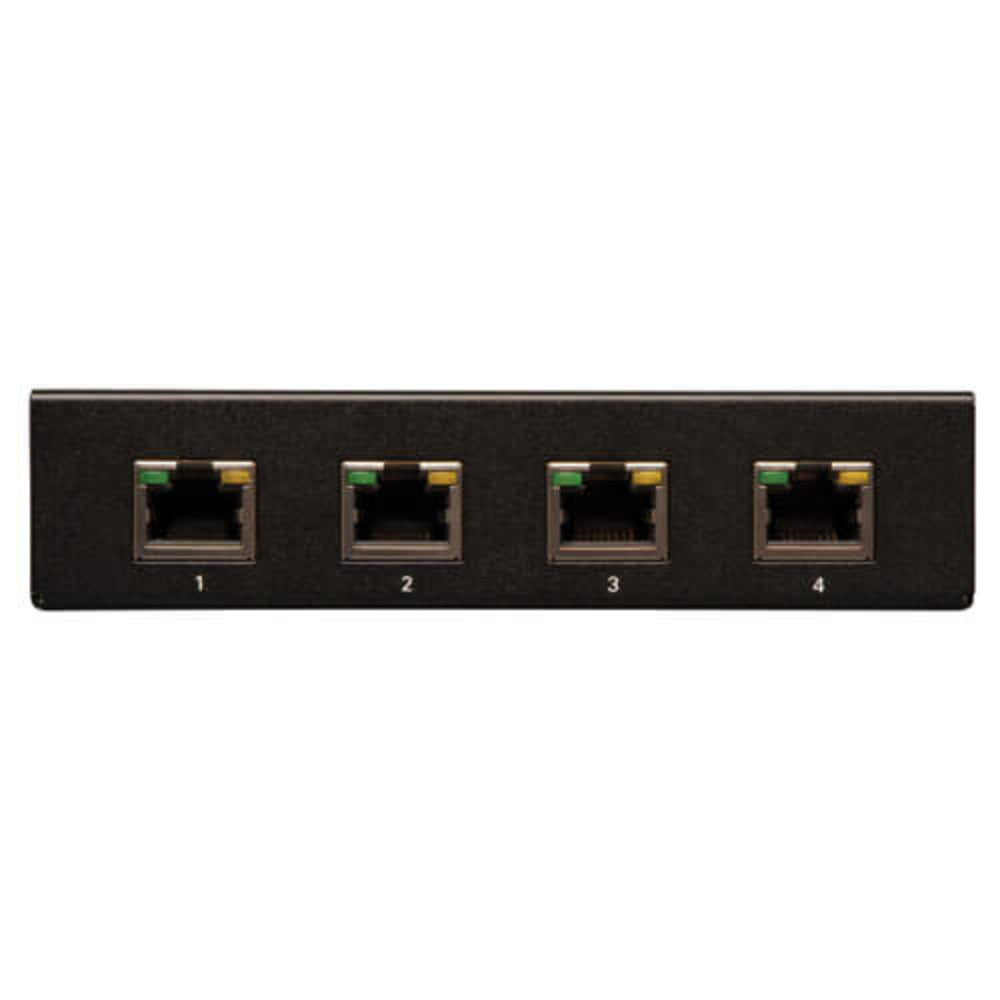

• RJ-45 output ports: 4
• 3.5 mm (1/8-inch) in: Yes
• VGA (D-Sub) ports quantity: 2
• Manual: Yes
• AC adapter included: Yes
• Cables included: VGA
• Mounting kit: Yes
• RoHS compliance: Yes
• Rack mounting: Yes
• Cable types supported: Cat5e,Cat6
• Package depth: 256.5
• Package height: 63.5
• Package width: 160
• Master (outer) case height: 304.8
• Master (outer) case width: 348
• Master (outer) case weight: 16650
• Master (outer) case length: 576.6
• Quantity per master (outer) case: 20

Learn More

• VGA Connector
• Audio Signal
• Cat5 Cable
• Cat6 Cable
• Digital Signage

Product: Tripp Lite B132-004A-2 VGA Audio over Cat5 Cat6 Extender - 4-Port

Brand: Tripp Lite

Model: B132-004A-2

Shipping Weight: 1.75 lb

Shipping Height: 2.20 in

Shipping Width: 6.40 in

Shipping Length: 10.30 in
