Tripp Lite B126-1A1 HDMI over Cat5/6 Active Extender Kit

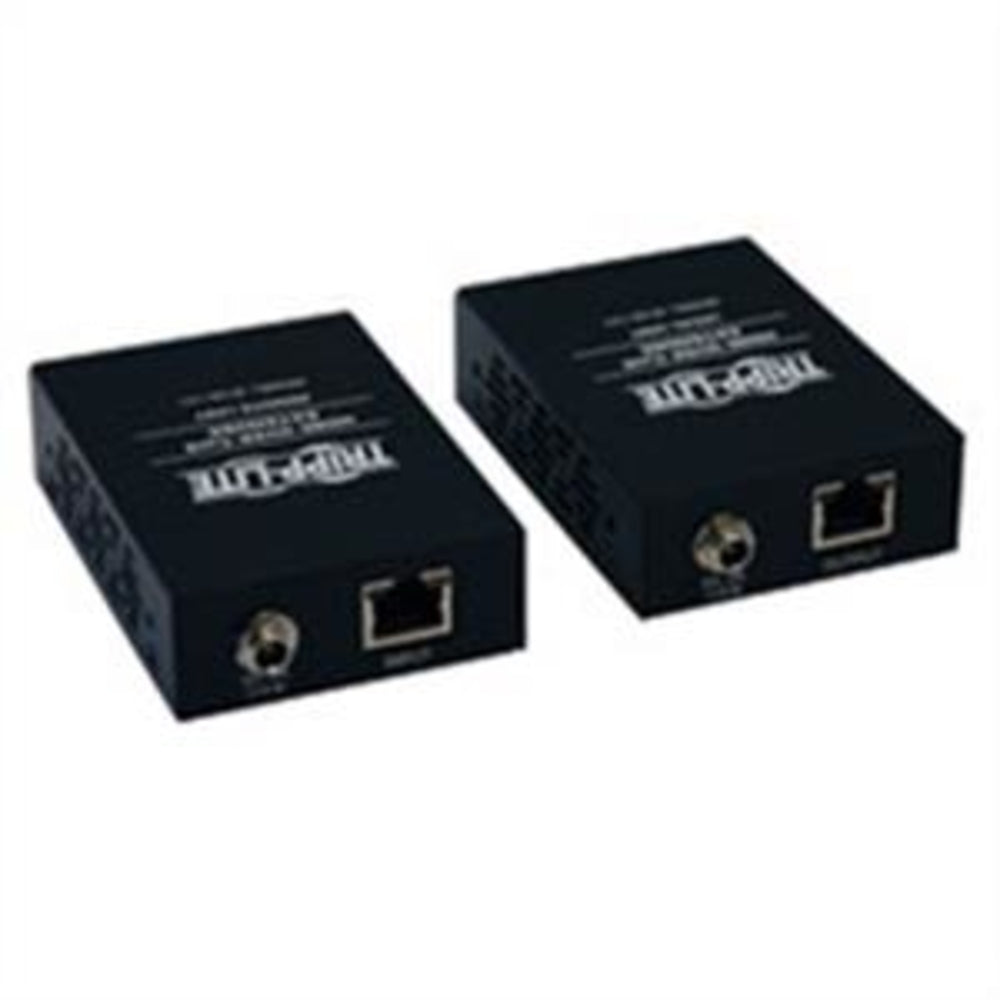

The Tripp Lite B126-1A1 HDMI over Cat5/6 Active Extender Kit is the perfect solution for extending an HDMI signal to a projector, monitor, or television. This kit includes a transmitter unit and a receiver unit that work together to extend the HDMI signal beyond the limitations of conventional cables. Whether you need to set up digital signs, trade show displays, classroom presentations, church services, or retail settings, this extender kit is the ideal choice.

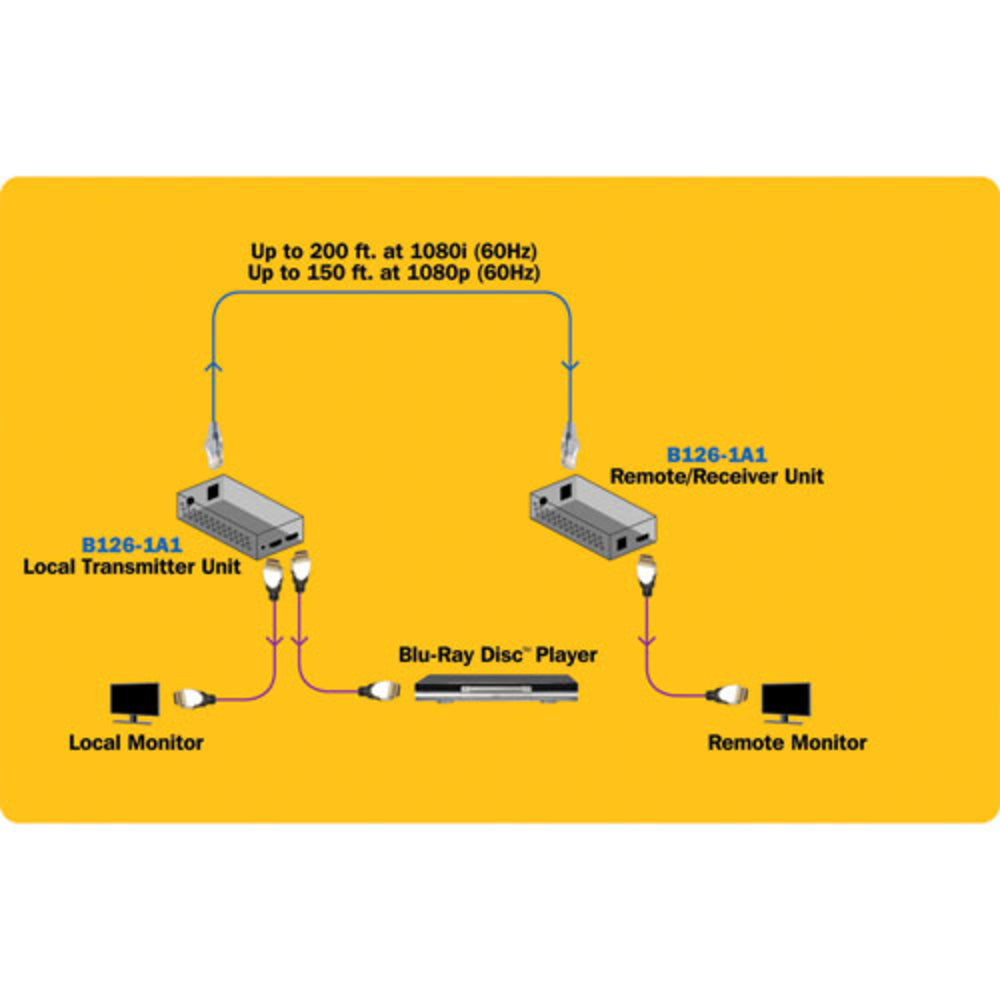

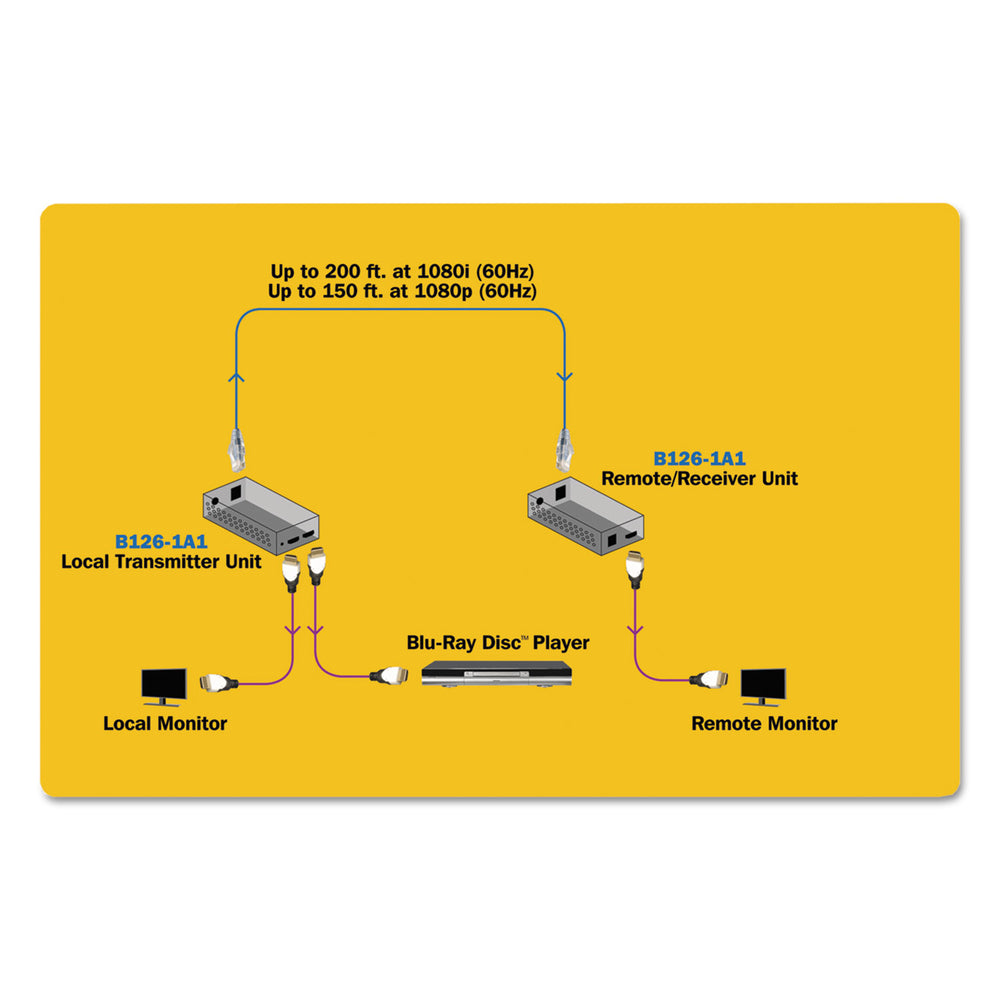

To set up the B126-1A1, simply connect an HDMI cable (such as Tripp Lite's P568-Series) from your audio/video source to the transmitter's HDMI ports. Then, connect another HDMI cable from the transmitter to a monitor. Use Cat5e/6 cable (preferably Tripp Lite's N202-Series) to connect the transmitter and receiver units. For optimal results, use 24 AWG solid-wire Cat5e/6 cable.

The B126-1A1 can extend a 1080i (60 Hz) signal up to 61 meters (200 feet), a 1080p (60 Hz) signal up to 46 meters (150 feet), and a 3D signal up to 38 meters (125 feet). By adding up to three B126-110 remote repeaters in the chain, you can achieve a total signal extension of 213 meters (700 feet) for 1080i, 152 meters (500 feet) for 1080p, or 122 meters (400 feet) for 3D signals.

In addition to delivering crystal-clear video, the B126-1A1 also provides full, rich stereo and 7.1-channel surround sound (multi-channel or PCM) audio. With its built-in equalization control, you can fine-tune the image quality at each remote display. This extender kit supports 24-bit True Color (8 bits per channel) and HDCP, ensuring compatibility with various video sources and operating systems.

Setting up the B126-1A1 is a breeze, as it requires no software or drivers to install. The included hardware allows for easy mounting on a wall, rack, or pole. For international use, you can purchase the B110-INT power supply separately, which features plugs for the UK, Europe, and Australia.

Features:

• Supports high-definition video resolutions up to 1080p (60 Hz)
• Supports stereo and 7.1-channel surround sound audio
• Works with all operating systems and HDMI video sources
• Plug and play—no software or drivers to install
• Built-in equalization control lets you adjust monitor image

System Requirements:

• For international use, the B110-INT power supply can be purchased separately; it features plugs for the UK, Europe, and Australia

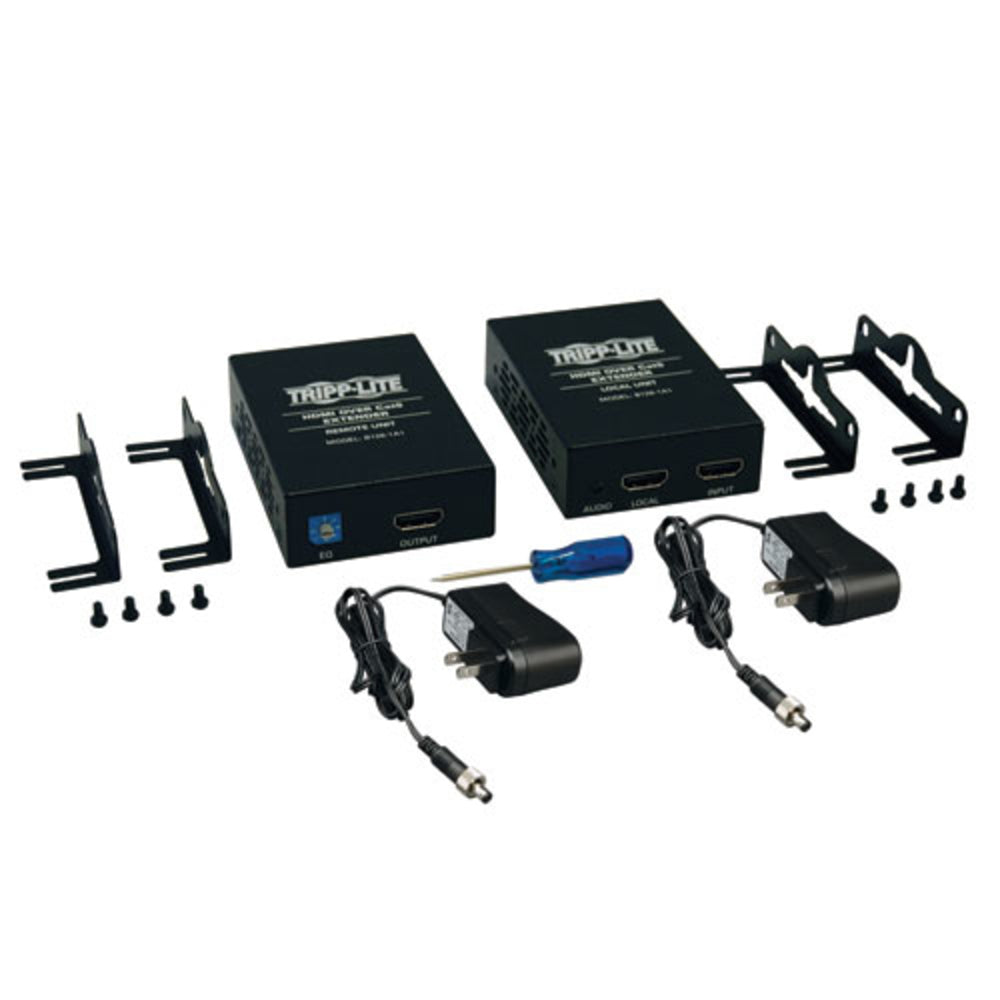

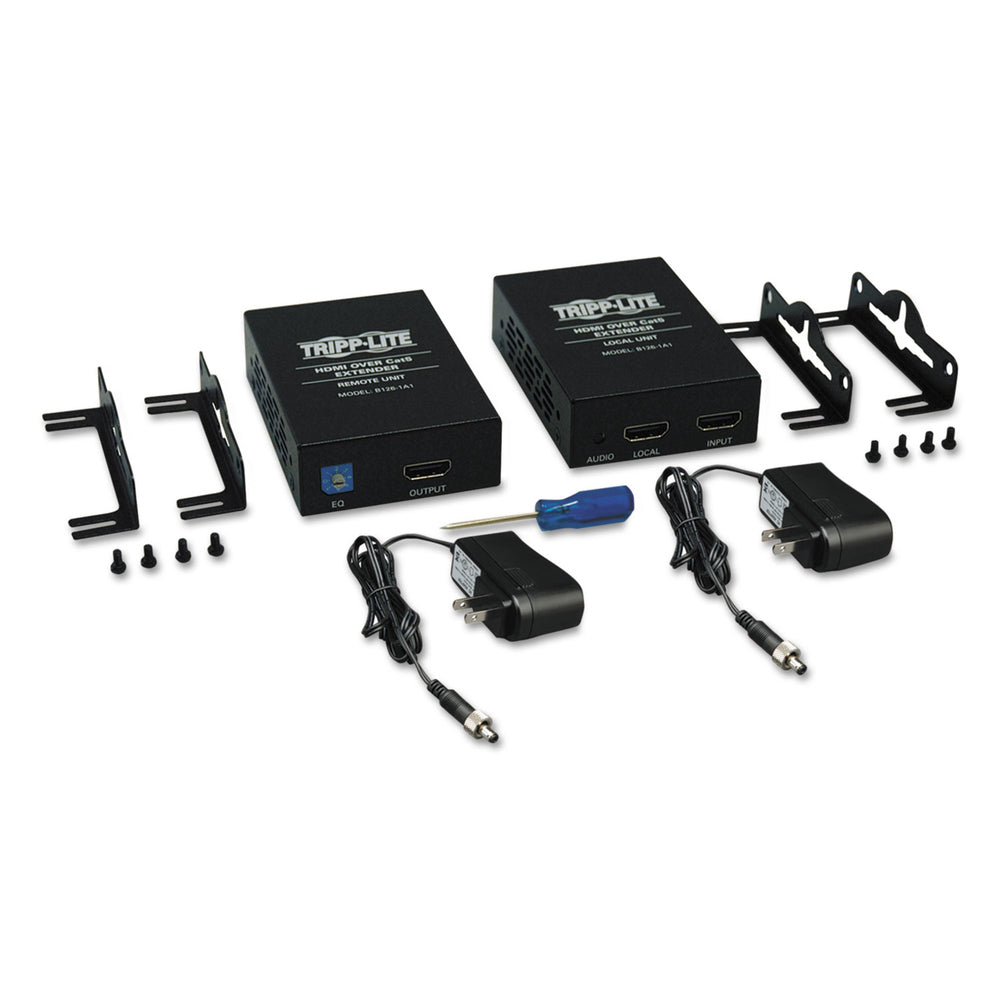

• Transmitter unit
• Receiver unit
• Screwdriver for adjusting equalization
• (2) External Power Supplies with NEMA 1-15P Plug (Input: 100-240V, 50/60Hz, 0.5A; Output: 5V, 2A, 1.52 m (5-ft.)
• Mounting hardware
• Owner's Manual

Specifications:

• Video ports quantity: 3
• Video port type: HDMI
• Product color: Black
• Input voltage: 100-240
• AC input frequency: 50 - 60
• Input current: 0.5
• Output voltage: 5
• Output current: 2
• Operating temperature (T-T): 0 - 40
• Storage temperature (T-T): -20 - 60
• Operating relative humidity (H-H): 20 - 90
• Ethernet LAN (RJ-45) ports: 2
• 3D: Yes
• Full HD: Yes
• Supported video modes: 1080i, 1080p
• Cable types supported: Cat5e, Cat6
• Supported audio channels: 7.1
• HDCP: Yes
• Plug and Play: Yes
• LED indicators: Yes
• Package weight: 770
• Package height: 55.9
• Package length: 210.8
• Package width: 157.5
• Quantity per master (outer) case: 10
• Master (outer) case length: 574
• Master (outer) case width: 231.1
• Master (outer) case height: 175.3

Product: Tripp Lite B126-1A1 HDMI Over Cat5/6 Extender Kit

Brand: Tripp Lite

Model: B126-1A1

Shipping Weight:

Shipping Height:

Shipping Width:

Shipping Length:
