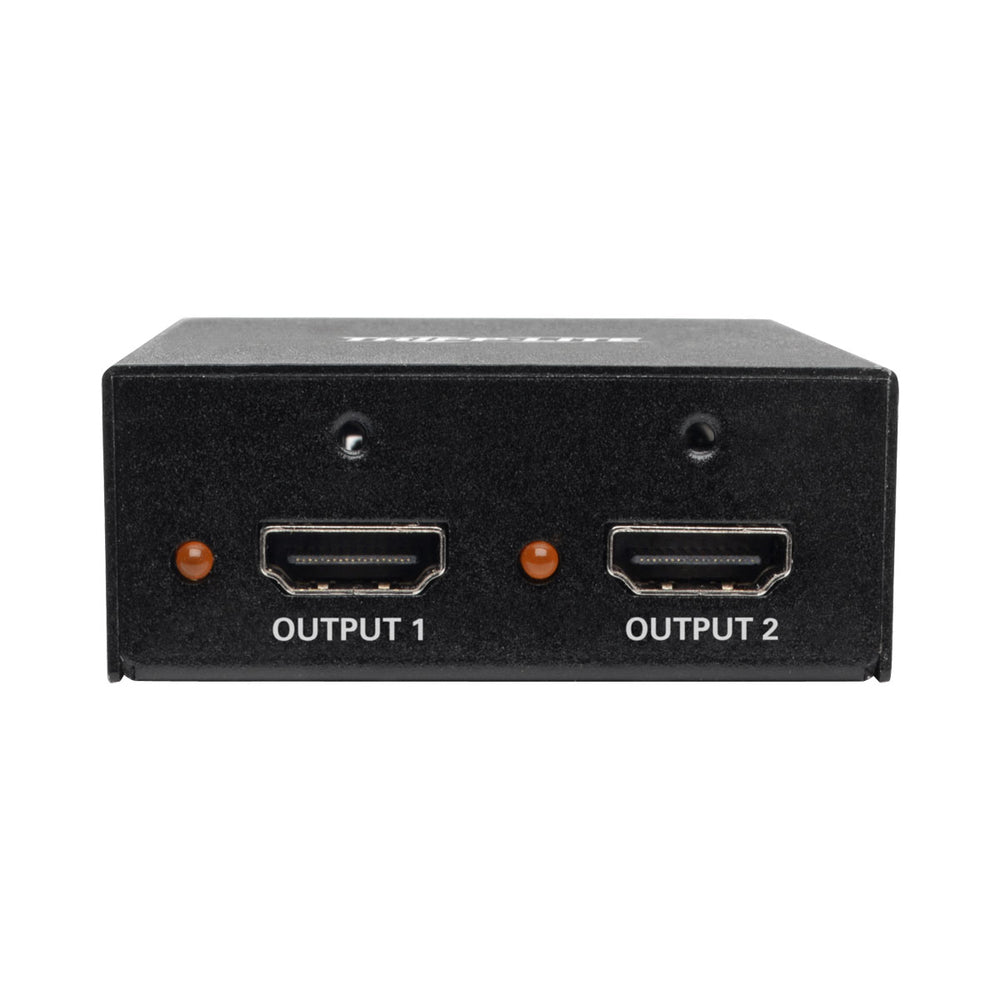

Tripp Lite B118-002-UHD-2 2-Port 4K 3D HDMI Splitter 2.0 HDCP 2.2 Ultra HD x 2K

The Tripp Lite B118-002-UHD-2 2-Port 4K 3D HDMI Splitter allows you to transmit a UHD 4K x 2K (@ 60 Hz) audio/video signal from an HDMI source to two HDMI monitors, projectors, or televisions simultaneously. It is perfect for classrooms, churches, offices, restaurants, bars, trade shows, and anywhere else that requires 4K x 2K digital signage. This splitter is easy to install with no software or drivers required.

Features:

• Transmits a 4K HDMI A/V Signal to 2 HDMI Displays Simultaneously
• Recommended for 4K x 2K digital signage in classrooms, churches, offices, restaurants, bars, trade shows, etc.
• Distributes A/V signals up to 4 m when used with standard 28 AWG HDMI cable
• Maintains UHD video resolutions up to 3840 x 2160 @ 60 Hz
• HDCP 2.2, EDID, and HDMI 2.0 compliant to ensure compatibility with the latest A/V hardware
• Supports Full 3D
• Supports DTS-HD, Dolby TrueHD, Dolby Digital Plus, and LPCM 7.1-channel surround sound audio
• Supports 36-bit Deep Color (12 bits per channel)
• Video amplifier bandwidth of 600 MHz/6 Gbps per channel (18 Gbps total)
• Lip sync pass-through, xvYCC, and x.vColor supported
• Plug and play—no software or drivers required
• Supports desktop use or wall-mounting using included hardware
• Power supply includes international plug adapters (North America, Europe, U.K., and Australia)

Specifications:

• Video ports quantity: 3
• Video port type: HDMI
• Connector(s): HDMI (FEMALE), HDMI (FEMALE) (X2)
• DC-in jack: Yes
• Number of connectors: 3
• Supported graphics resolutions: 3840 x 2160
• Maximum resolution: 3840 x 2160
• HDCP: Yes
• Output voltage: 5
• Output current: 1.2
• Manual: Yes
• Power LED: Yes
• Plug and Play: Yes
• Video out: 2x HDMI
• Package weight: 500
• Package depth: 182.9
• Package height: 53.3
• Package width: 157.5
• Master (outer) case height: 198.1
• Master (outer) case width: 175.3
• Master (outer) case weight: 5220
• Master (outer) case length: 569
• Quantity per master (outer) case: 10

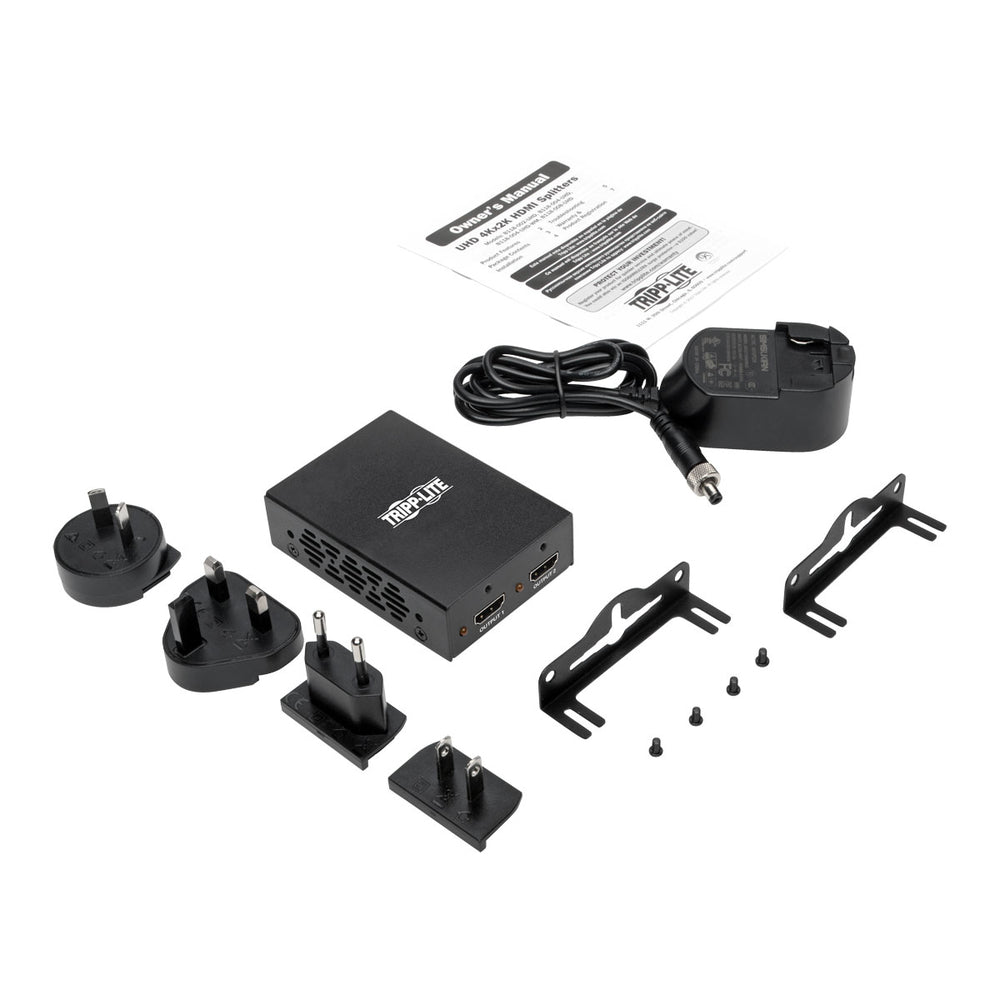

Package Includes:

• B118-002-UHD-2 2-Port 4K 3D HDMI Splitter
• External power supply (Input: 100–240V, 50/60 Hz, 0.35A; Output: 5V 2A)
• International plug adapters (North America, Europe, U.K., and Australia)
• Mounting hardware
• Owner’s manual

Learn More:

• HDMI on Wikipedia
• 4K Resolution on Wikipedia
• HDCP on Wikipedia

Product: TRIPP LITE B118-002-UHD-2 2-PORT 4K 3D HDMI SPLITTER 2.0 HDCP 2.2 ULTRA HD X 2K

Brand: Tripp Lite

Model: B118-002-UHD-2
