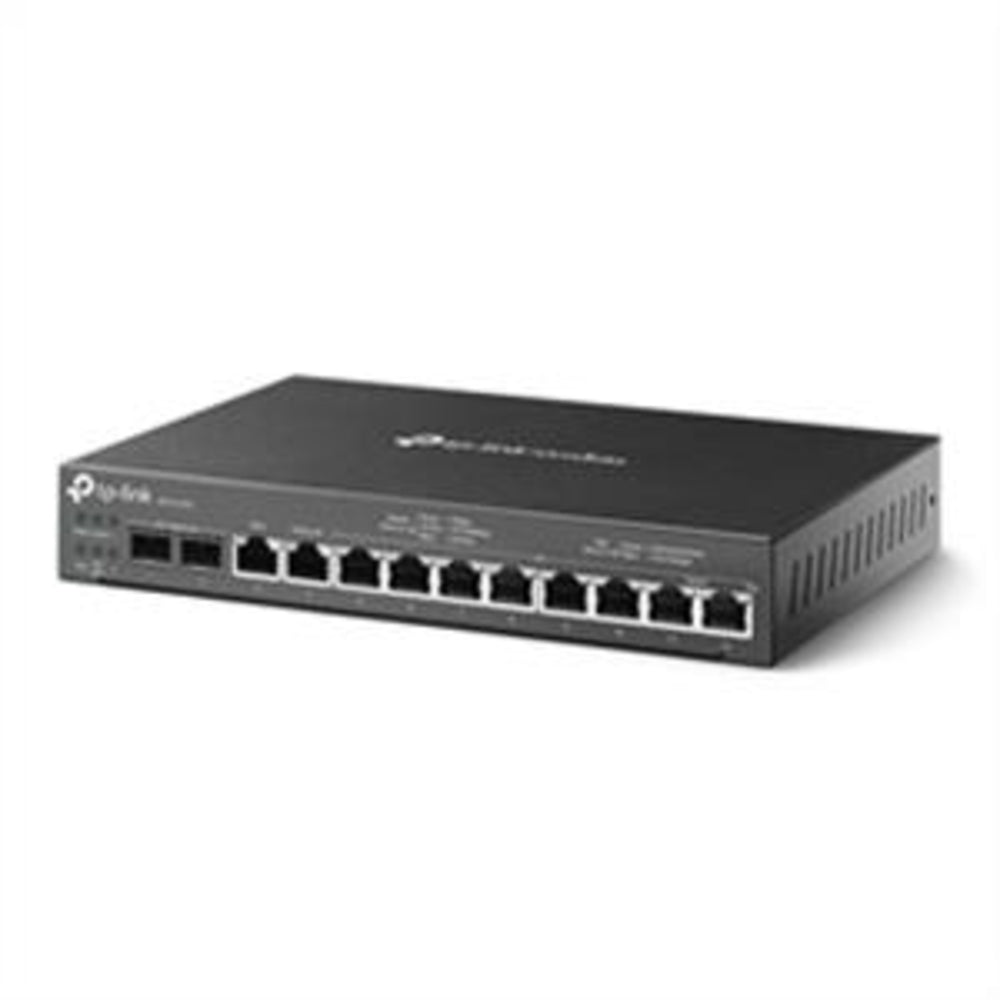

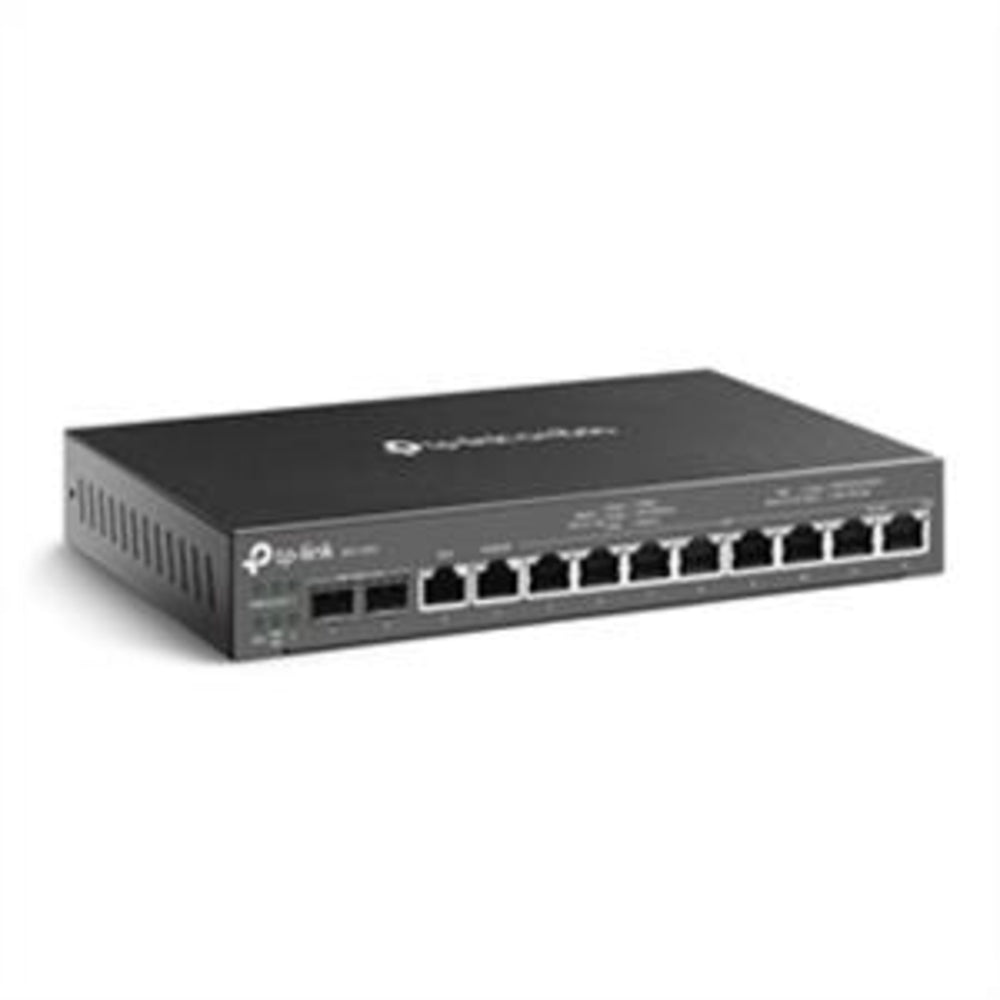

TP-Link Router ER7212PC 3-in-1 Omada Gigabit VPN Router with PoE+ Port Controller Ability Retail

Omada 3-in-1 Gigabit VPN Router

3-in-1 Router: Integrates router, PoE switch, and Omada controller altogether.

Professional Hardware: Dual-Core 1.2 GHz CPU with 1GB DDR3 memory provides stellar performance for up to 12x Gigabit ports.

Up to 4x WAN Ethernet Ports: Equipped with 2x Gigabit SFP WAN/LAN ports, 1x Gigabit RJ45 WAN port, and 1x Gigabit RJ45 WAN/LAN port.

110W PoE Budget: 8x 802.3at/af-compliant PoE+ RJ45 LAN ports yield a total power supply of 110W.

Centralized Management: Cloud access and the Omada app offer convenience and easy management.

Highly Secure VPN: Supports IPsec VPN, OpenVPN, and L2TP/PPTP VPN connections.

Easy Installation: Fanless and compact design for desktop and wall mounting.


Note:

PoE budget calculations are based on laboratory testing. Actual PoE power budget is not guaranteed and will vary as a result of client limitations and environmental factors.

HARDWARE FEATURES
Standards and Protocols
IEEE 802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE 802.3x, IEEE 802.1q
TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, SNMP

Interface
2 Gigabit SFP WAN/LAN ports
1 Gigabit WAN port
1 Gigabit LAN/WAN port
8 Gigabit LAN ports

Network Media
10BASE-T: UTP category 3, 4, 5 cable (Max 100 m)
EIA/TIA-568 100OHM STP (Max 100 m)
100BASE-TX: UTP category 5, 5e cable (Max 100 m)
EIA/TIA-568 100OHM STP (Max 100 m)
1000BASE-T: UTP category 5, 5e, 6 cable (Max 100 m)

Fan Quantity
Fanless

Button
Reset Button

Power Supply
53.5VDC/2.43A Adapter

PoE Budget
8 ports PoE+ output, 110 W PoE Budget

Flash
8Mb Nor + 4 GB EMMC

DRAM
1 GB DDR3

Protection
4 kV surge protection

Enclosure
Steel

Mounting
Desktop/Wall-mount

PERFORMANCE
Concurrent Session
24,980

Sessions /Second
1,900

NAT (Static IP)
935.5 Mbps / 942.1 Mbps

NAT(DHCP)
940.2 Mbps / 941.7 Mbps

NAT(PPPoE)
913.1 Mbps / 935.2 Mbps

NAT (L2TP)
545.0 Mbps / 912.7 Mbps

NAT (PPTP)
523.0 Mbps / 912.8 Mbps

IPsec VPN Throughput (AES256)
168.5 Mbps

Learn More

• TP-Link Wikipedia
• VPN Wikipedia
• Router Wikipedia

Product: TP-LINK USA CORPORATION ER7212PC Omada Gigabit Vpn Router Poe+ Ports And

Brand: TP-Link

Model: ER7212PC

Shipping Weight: 4.15 lb

Shipping Height: 3.00 in

Shipping Width: 9.00 in

Shipping Length: 15.00 in
