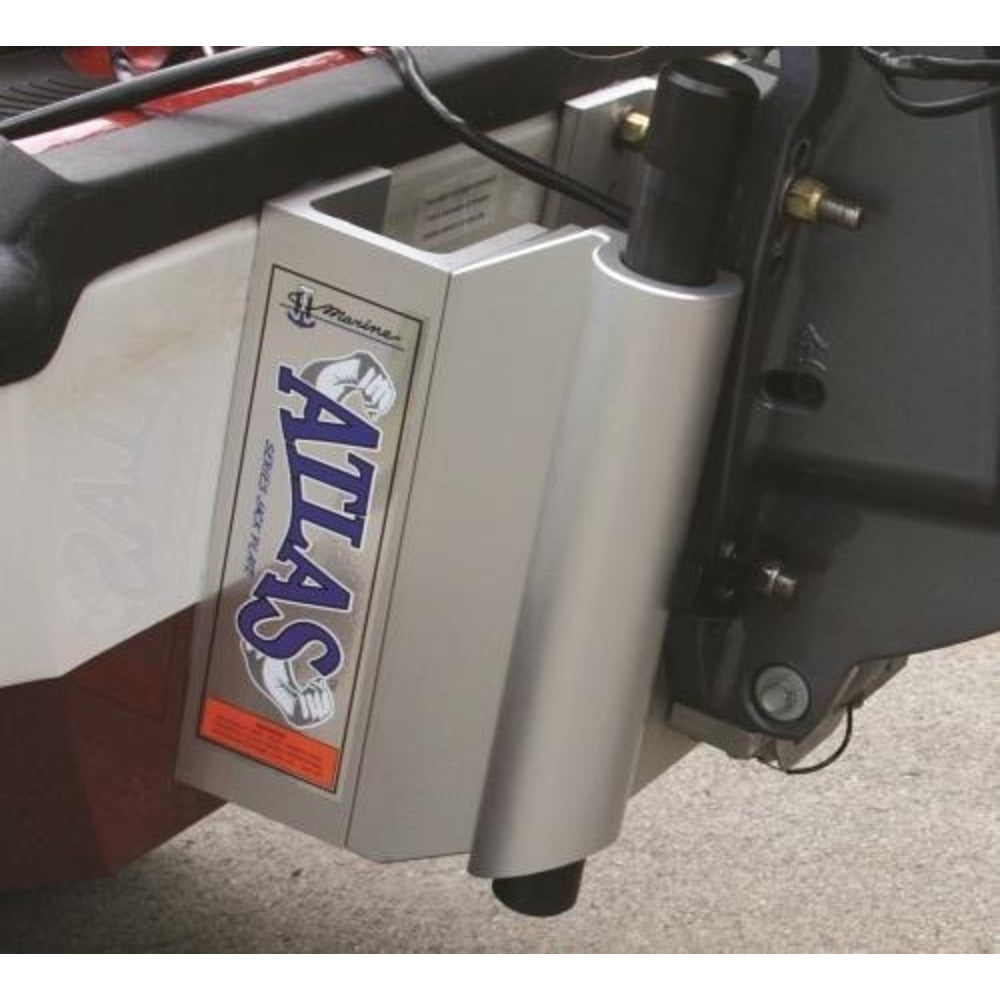

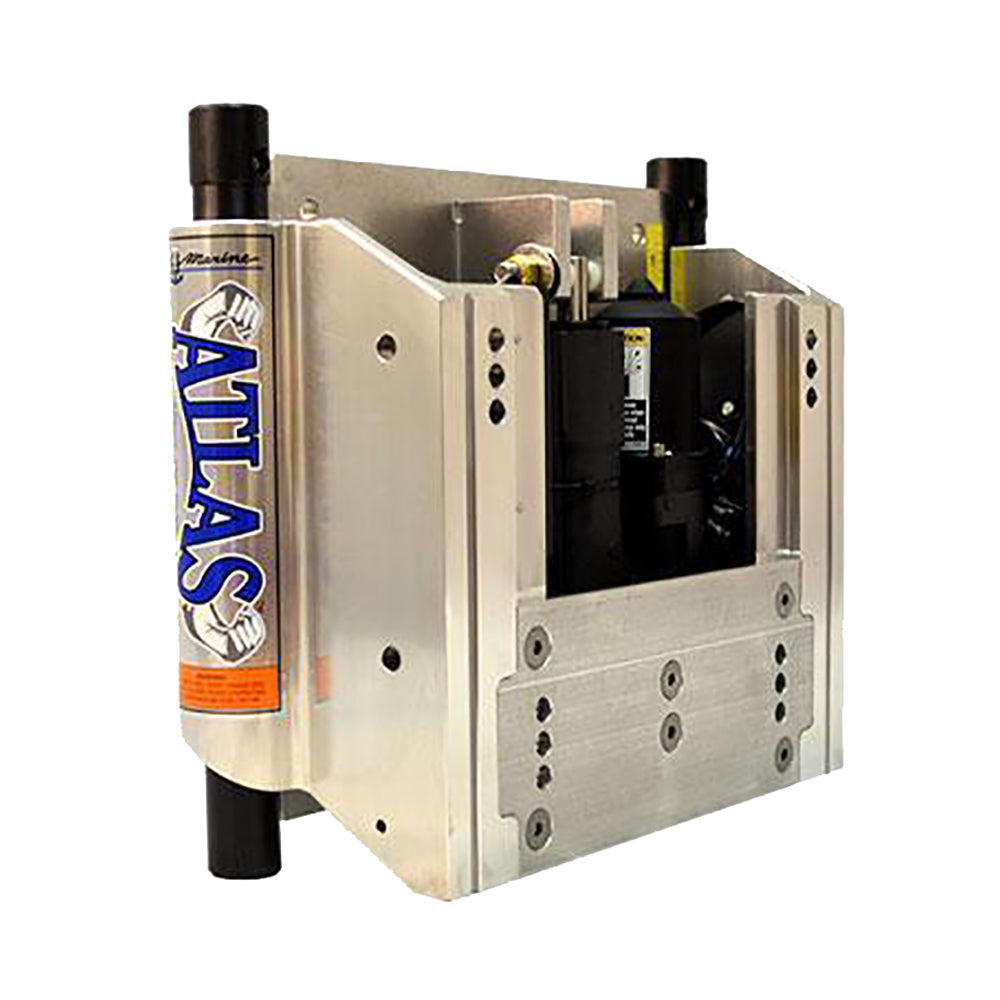

ATLAS™ HYDRAULIC JACK PLATE (TH MARINE)

The ATLAS™ Hydraulic Jack Plate by TH Marine is the ultimate solution for boat owners seeking top-notch performance and durability. Designed to accommodate even the heaviest and most powerful outboard engines, including large four strokes, this jack plate boasts cutting-edge features and unmatched reliability.

• ATLAS™ is truly the best hydraulic jack plate in the world
• ATLAS™ is factory installed by more boat manufacturers than any other plate
• ATLAS™ is used by more professional fishermen than any other hydraulic jack plate
• ATLAS™ is the #1 selling hydraulic plate in the world — sold & serviced by more outlets
• ATLAS™ hydraulic actuator is made in the U.S.A. vs. our competitors being from China
• TLAS™ is made by T-H Marine/CMC, who were the FIRST to offer an actuator inside the jack plate — the competition copied
• ATLAS™ was the first plate to offer predrilling for shallow water anchors — the competition copied
• ATLAS™ was the first and only plate that did not require regular grease lubrication — the competition design cannot do that
• ATLAS™ was the first plate to include a heavy-duty safety cable to protect boaters from the engine entering the cockpit upon failure
• ATLAS™ was the first plate to offer a very simple actuator replacement in the field
• ATLAS™ was the first major development in hydraulic jack plates in over a decade — spurring hydraulic jack plate improvement

The ATLAS™ hydraulic jack plate features an innovative and efficient design that ensures trouble-free operation. With a high-tech engineered polymer rod and slot lifting system, this jack plate delivers superior performance and durability, outlasting traditional steel rods by being six times more abrasion-resistant. The self-lubricating material used eliminates the need for regular grease lubrication, making maintenance hassle-free.

Installing the ATLAS™ jack plate is a breeze, thanks to its easy two-pin pump removal and quick maintenance. It can be set up in half the time compared to comparable jack plates, saving you valuable time on the water.

Key Features:

• Self-contained hydraulic pump system - no reservoir or lines to install
• Fast! - Bottom to Top in Less than 8 Seconds
• Rod and Slot Lifting Design - Trouble-Free Lifting Action
• Hi-Tech Engineered Polymer Rods - 6 Times More Abrasion Resistant than Steel Rods
• Made from Self-Lubricating Material, no grease required
• Easy Two-Pin Pump Removal - Quick Maintenance
• Installs in Half the Time of Comparable Jack Plates
• Available in 4, 6, 8, 10, 12 and 14 inch Setback Models
• Standard versions can be used for most outboards - 350hp Max
• "HD" - HEAVY DUTY version is rated for engines up to 400hp
• All ATLAS™ plates are predrilled for Power-Pole® and Minn-Kota Talon® bracket mounting
• Stroke Length - 5 Inches
• Height Adjustment Up to 7 Inches

Specifications:

• Setback: 12"
• Hydraulic Rise: 5.75"
• Total Rise: 8.25" - 9.75"
• Weight Limit: 625 lbs
• Maximum Horsepower: 300 HP

Learn More

For more information about hydraulic jack plates, check out the following Wikipedia articles:

• Jack Plate
• Hydraulic Machinery

Product: T-H Marine Atlas 12 Hydraulic Jack Plate - Polished Finish

Brand: T.H. Marine

Model: AHJ-12V-DP

Shipping Weight: 72.35 lb

Shipping Height: 14.00 in

Shipping Width: 18.00 in

Shipping Length: 21.00 in
