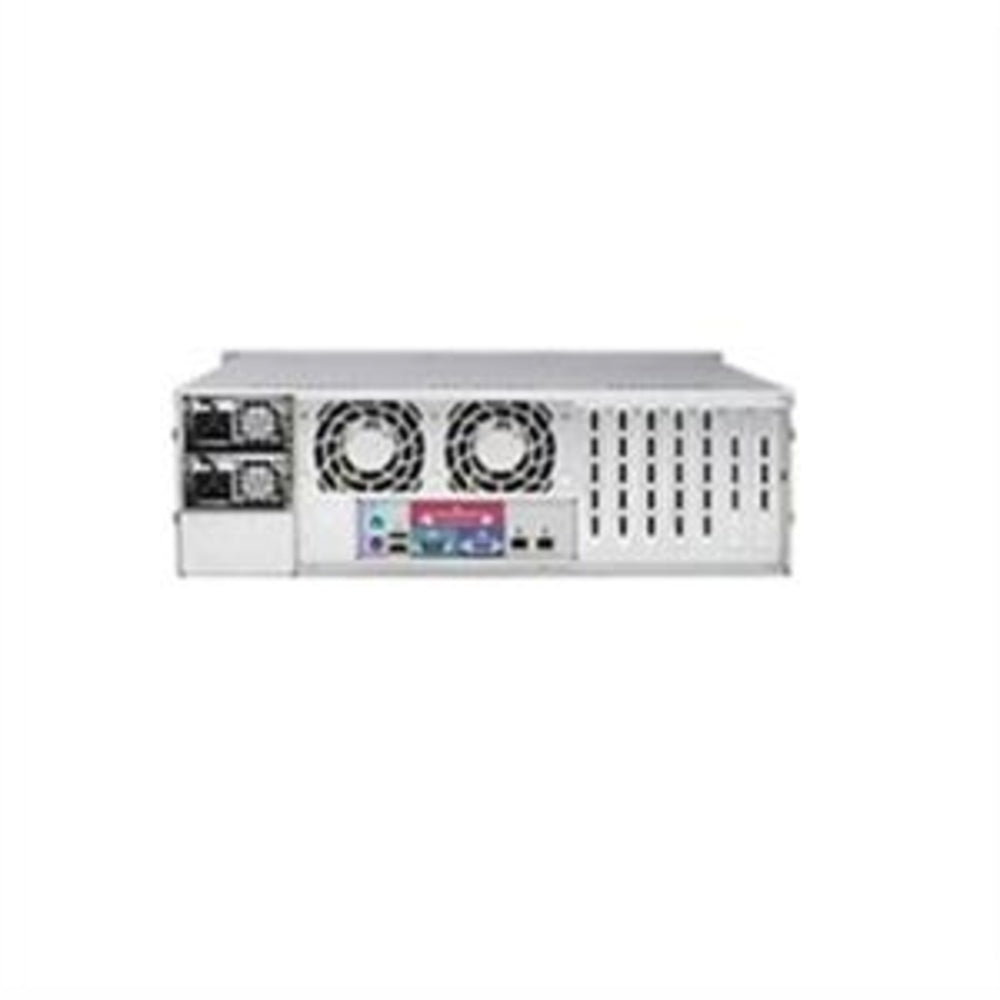

Supermicro CSE-835TQC-R1K03B 3U Case 1000W 8x3.5 Hot-swap SAS3/SATA3 Bays Fan

The Supermicro CSE-835TQC-R1K03B is a 3U case with a 1000W redundant high-efficiency titanium level power supply. It features 8x 3.5" hot-swap SAS3/SATA3 drive bays, with space to support 2x 5.25" drive bays & 1x slim DVD. The case supports E-ATX and ATX motherboard sizes and both single and dual Intel and AMD processors. It comes in a sleek black color and has 7 full-height, full-length expansion slots. The system cooling is provided by five fans (3 middle, 2 rear) & adjustable air shroud for 100% cooling redundancy. The front panel includes power on/off button, system reset button, and various LED indicators. The case is designed for an operating temperature range of 5&degC - 35&degC and has a power efficiency of 96%. It comes with a 1-year warranty.

Key Features

• 1000W Redundant High-efficiency Titanium Level Power Supplies
• 8x 3.5" Hot-swap SAS3/SATA3 drive bays; space to support 2x 5.25" Drive Bays & 1x Slim DVD
• Optional hot-swap Slim HDD/SSD drive Kit and Mobile Racks for additional storage
• 7x Full-height, Full-length Expansion Slots
• Five Fans (3 middle, 2 rear) & Adjustable Air Shroud for 100% Cooling Redundancy

Form Factor

3U chassis support for motherboard size - E-ATX and ATX.

Processor Support

Dual and Single Intel and AMD processors

Available Color

Black

Expansion Slots

7 full-height and full-length expansion slot(s)

Drive Bays

8 x 3.5" hot-swap SAS/SATA

Backplane

3U 8-Port Backplane Supports 8 x 3.5" SAS3/SATA3 HDD/SSD for X11 Platform

Peripheral Drives

1 x slim DVD-ROM drive bay

Front Panel

Buttons: Power On/Off button, System Reset Button. LEDs: 2 Network Activity LEDs, HDD activity LED, Power LED, Power Fail LED, System Overheat LED

Systems Cooling

Fans: 3 x 80mm Hot-swap PWM Fans, 2 x 80mm rear hot-swap exhaust PWM fan(s)

System Monitoring

Chassis intrusion switch

Operating Environment (System)

• Operating Temperature Range: 5&degC - 35&degC (41&degF - 95&degF)
• Non-Operating Temperature Range: -40&degC - 70&degC (-40&degF - 158&degF)
• Operating Relative Humidity Range: 8% - 90% (non-condensing)
• Non-Operating Relative Humidity Range: 5% - 95% (non-condensing)

Power Supply

1U 800/1000W Redundant Titanium Single Output Power Supply W/PMbus

Power Efficiency

96%

Total Output Power and Input

800W with Input 100 - 127Vac, 1000W with Input 200 - 240Vac, 1000W with Input 200 - 240Vdc

AC Input Frequency

50-60Hz

Dimensions (L x W x H)

336 x 76 x 40 mm

Output Type

Backplanes (gold finger)

+12V

Max: 66.7A (100Vac - 127Vac), Max: 83A (200Vac - 240Vac), Max: 83A (200 - 240)

+5Vsb

Max: 4A / Min: 0A

Power Distributor

PDB-PT825-8824, O/P: 12V/75, +5V Max: 30, +3.3V Max: 24 -12V Max: 0.6

Certification

Titanium Certified

Regulatory (Power Supply)

Power Supply Safety / EMC: BSMI, CCC, CE/EMC, FCC class A, UL/CB, UL/CUL

Item Dimension (L"xW"xH")

34 x 27 x 13

Weight

86.00 LB

Warranty Information

1 Year
