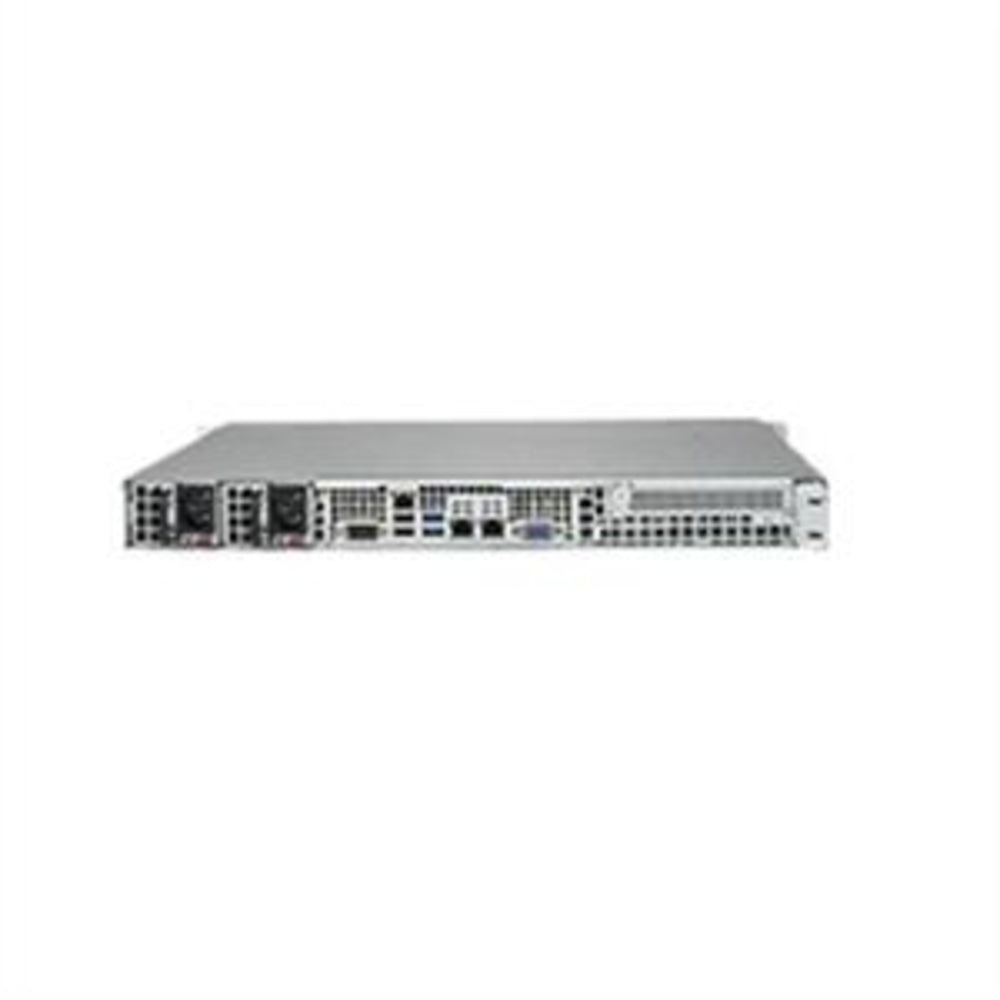

Supermicro CSE-813MFTQC-R407CB 1U SAS SATA Chassis 4x3.5 Hotswap 400W

The Supermicro CSE-813MFTQC-R407CB is a 1U chassis designed to support motherboard sizes ATX 12" x 10" and Micro ATX 9.6" x 9.6". It features 4 x 3.5" hot-swap SAS/SATA drive bays and a 1U 4-Port 12Gbps backplane to support these drives. The chassis comes with a 400W redundant power supply and 4 x 40x28mm PWM fans for efficient cooling. It also includes 1 full height expansion slot, making it suitable for various expansion needs. The front panel features power on/off and system reset buttons, as well as LEDs for network activity, HDD activity, power status, and system information. The system supports dual and single Intel and AMD processors and is available in black color.

Key Features

• 1U chassis, support motherboard size ATX 12" x 10" and Micro ATX 9.6" x 9.6"
• 4 x 3.5" hot-swap SAS/SATA drive bays
• 1U 4-Port 12Gbps backplane support 4x3.5
• 1U 400W redundant power supply Platinum with PMBUS, W54.5xL220xH40mm
• 1 full height expansion slot
• 4 x 40x28mm PWM fans

Form Factor

1U chassis, support motherboard size ATX 12" x 10" and Micro ATX 9.6" x 9.6".

Processor Support

Dual and Single Intel and AMD processors

Available Color

Black

Expansion Slots

1 full height expansion slot

Drive Bays

4 x 3.5" hot-swap SAS/SATA

Backplane

1U 4-Port 12Gbps backplane support 4x3.5

Peripheral Drives

Optional 1 x Slim DVD-ROM Drive
Optional 1 x USB + COM port tray

Front Panel

Buttons: Power On/Off button, System Reset Button
LEDs: 2 Network Activity LEDs, HDD activity LED, Power Status LED, System Information LED

Systems Cooling

Fans: 4 x 40x28mm PWM fan(s)

Operating Environment (System)

• Operating Temperature Range: 5&degC - 35&degC (41&degF - 95&degF)
• Non-Operating Temperature Range: -40&degC - 70&degC (-40&degF - 158&degF)
• Operating Relative Humidity Range: 8% - 90% (non-condensing)
• Non-Operating Relative Humidity Range: 5% - 95% (non-condensing)

Power Supply

• 1U 400W Redundant Power Supply Platinum with PMBUS, W54.5xL220xH40mm
• Power Efficiency: 94%
• Total Output Power and Input: 400W with Input 100 - 240Vac, 400W with Input 200 - 240Vdc
• AC Input Frequency: 50-60Hz
• Dimensions (L x W x H): 220 x 54.5 x 40.25 mm
• Output Type: Backplanes (gold finger)
• +12V: Max: 33A (100Vac - 240Vac)
• +5Vsb: Max: 3A / Min: 0A
• Certification: Platinum Certified

Regulatory (Power Supply)

• Power Supply Safety / EMC: BSMI, CCC, CE/EMC, FCC class A, UL/CB, UL/CUL

Weight

33.50 LB

Warranty Information

1 Year
