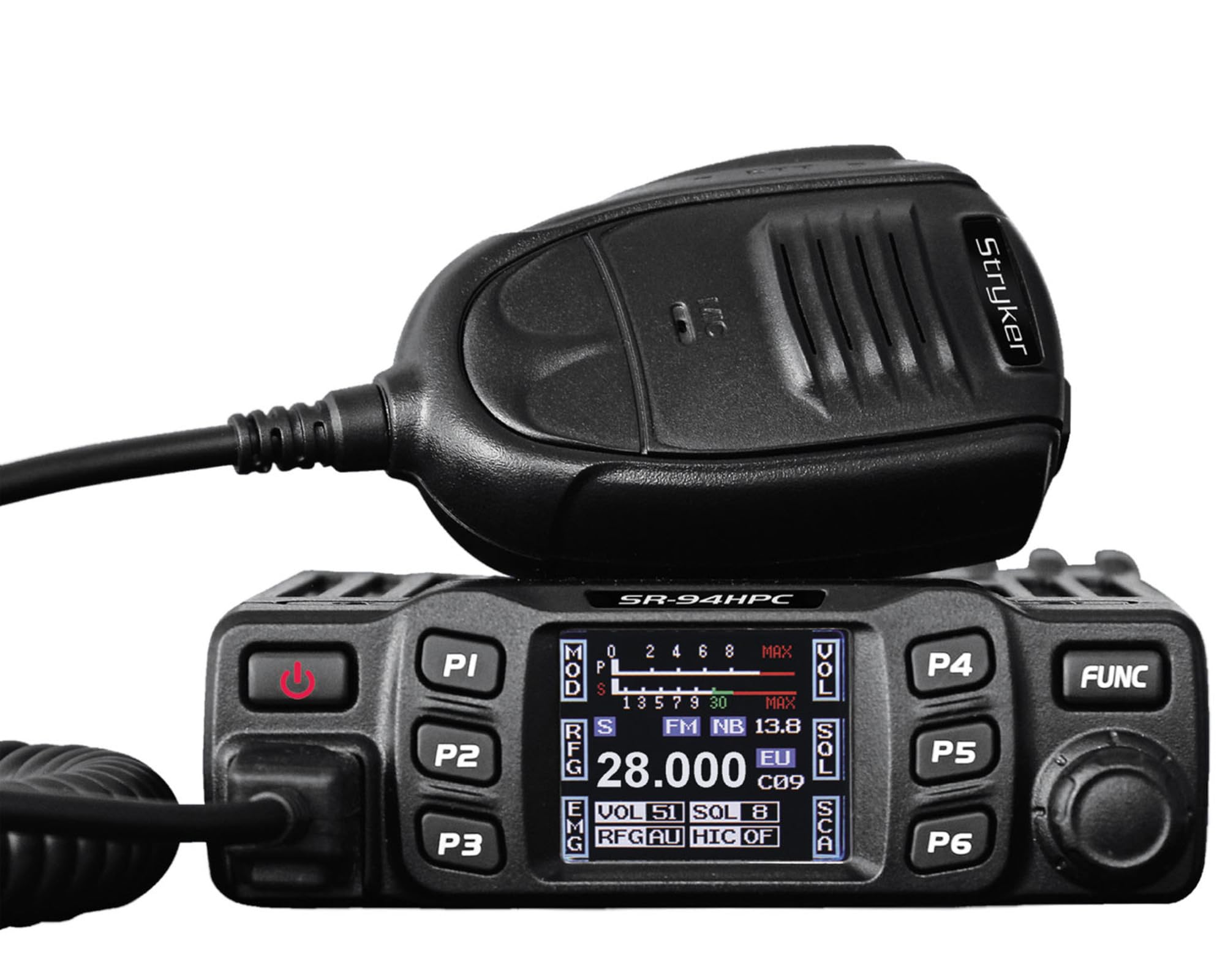

Stryker SR-94HPC 10 Meter Radio, AM/FM Modulation Mode, UHF,SO-239 Antenna Connector, 300-3000Hz Frequency Response, 12/24V Input Voltage

Stryker SR-94HPC 10 Meter Radio, AM/FM Modulation Mode, UHF,SO-239 Antenna Connector, 300-3000Hz Frequency Response, 12/24V Input Voltage

Key features
- Little Powerful Radio, SR-94HPC size 5.8" L x 4.8" utilizes 3 FQP13N10 final transistors. This much power is usually only available in a full-size DX chassis. 94hpc with this size generates 45+ watts of PEP and has a lot of punch
- Slimmest Radio, with measuring only 5.8" L x 4.8" W x 1.4" H. A Radio with this size fits anywhere in your rig. This will help you install it in the center console
- Display, 94HPC uses a full-color TFT display screen's clarity, you can choose what you want to show on the screen (features, functions, frequency, voltage, S units, and more). SR-94HPC display is sharp and easier to read while driving
- Heat Sink, SR-94HPC has an excellent heat dissipation design with a wrap-around cast aluminum heat sink does an excellent jobdissipating any heat generated during transmission, keeping the radio cool when folks transmit 40+ watts output

Specifications
- Modulation mode: AM/FM
- Frequency range: 28.000 ~ 29.700MHz (FM) 28.000 ~ 29.700MHz (AM)
- Frequency tolerance: 5.0ppm
- Input voltage: 12/24V
- Frequency control: PLL Synthesizer
- Operating temperature range: -4 F to + 131F
- Antenna connector: UHF,SO-239
- Power output: 4 Watts FM/AM / 10 Watts AM/FM
- Transmission interference: inferior to 4nW(-54dBm)
- Frequency response: 300-3000Hz
- Modulated signal distortion: Inferior to 5%
- Output impedance: 50 ohms
- Image rejection: 70dB
- Adjacent channel rejection: 60dB
- IF frequencies: 1st 10.695MHz - 2nd 455KHz
- Dimensions(WxDxH): 4.88 x 6.42 x 1.54
- Weight: Approx.1.48lbs

FEATURES

• Little Powerful Radio, SR-94HPC size 5.8″ L x 4.8″ utilizes 3 FQP13N10 final transistors. This much power is usually only available in a full-size DX chassis. 94hpc with this size generates 45+ watts of PEP and has a lot of punch
• Slimmest Radio, with measuring only 5.8″ L x 4.8″ W x 1.4″ H. A Radio with this size fits anywhere in your rig. This will help you install it in the center console
• Display, 94HPC uses a full-color TFT display screen’s clarity, you can choose what you want to show on the screen (features, functions, frequency, voltage, S units, and more). SR-94HPC display is sharp and easier to read while driving
• Heat Sink, SR-94HPC has an excellent heat dissipation design with a wrap-around cast aluminum heat sink does an excellent job—dissipating any heat generated during transmission, keeping the radio cool when folks transmit 40+ watts output

Product: Stryker SR-94HPC 10 Meter Radio, AM/FM Modulation Mode, UHF,SO-239 Antenna Connector, 300-3000Hz Frequency Response, 12/24V Input Voltage

Brand: Stryker

Model:

Shipping Weight:

Shipping Height:

Shipping Width:

Shipping Length:
