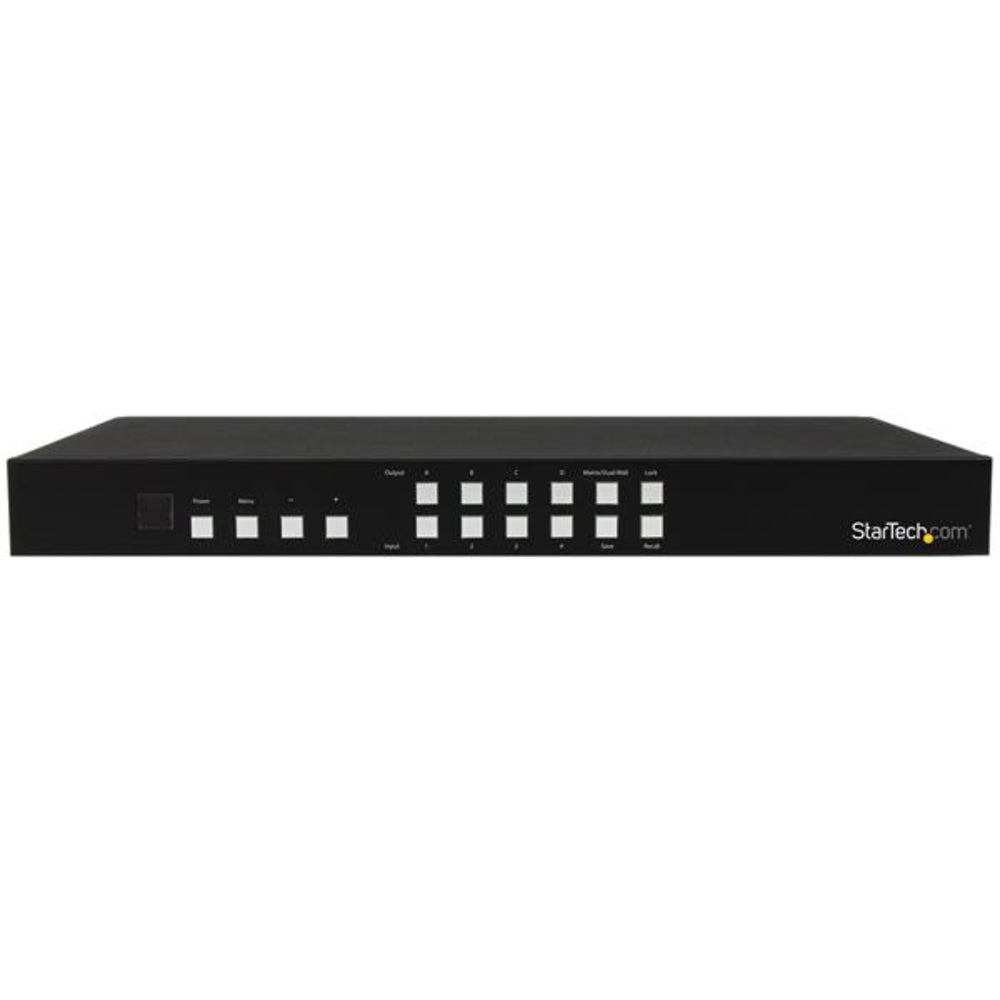

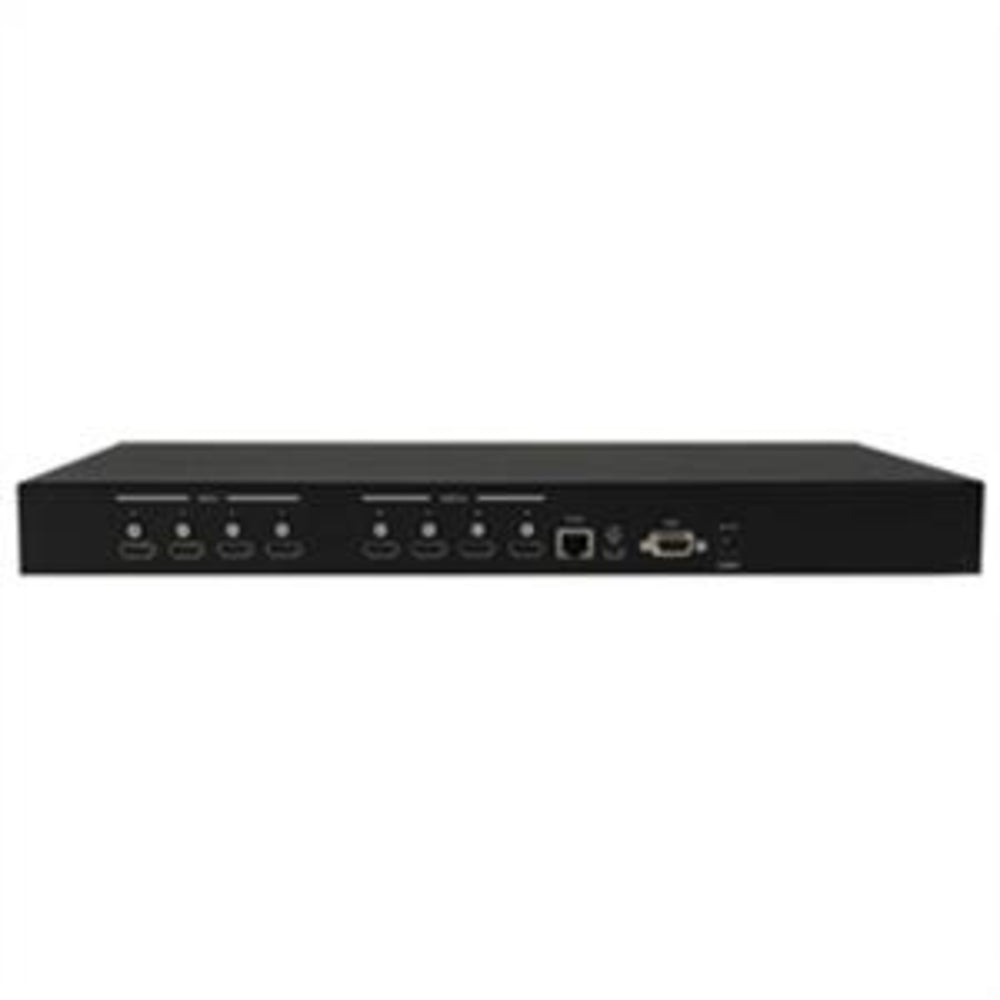

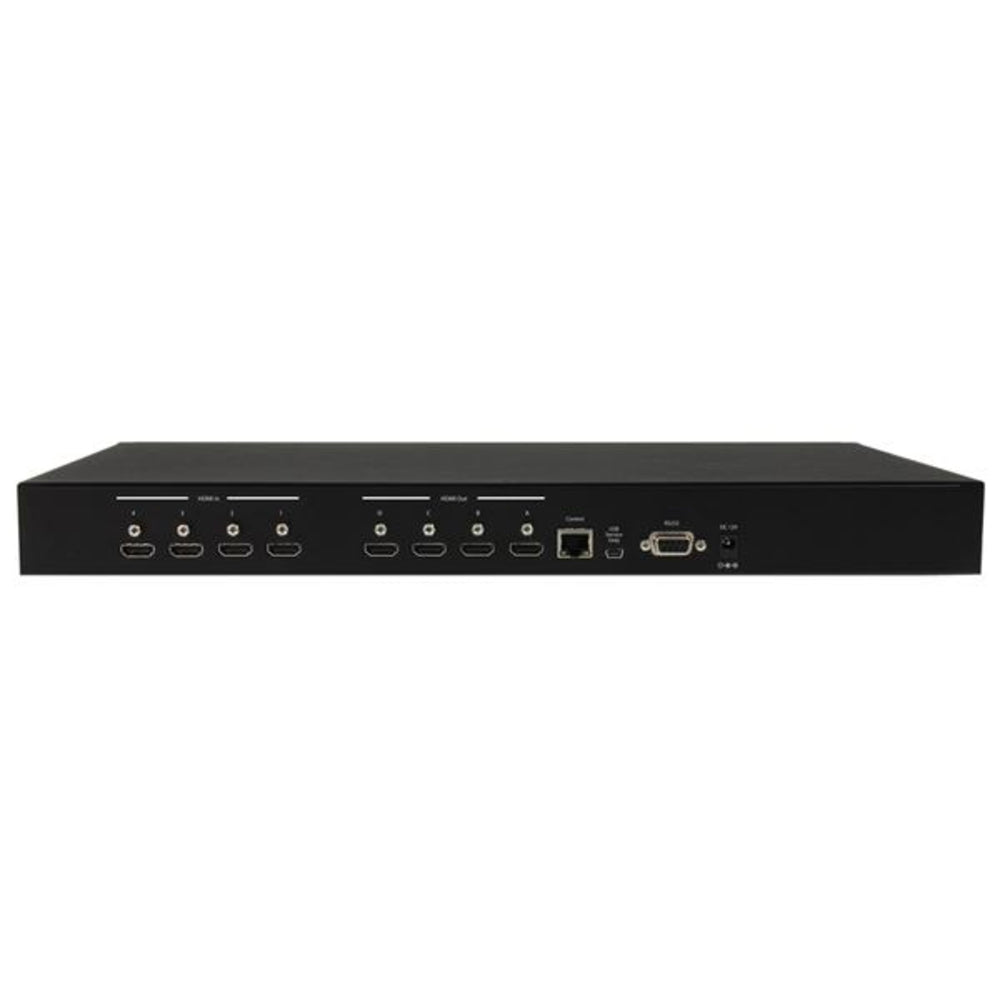

StarTech.com VS424HDPIP HDMI Video Switch with Audio

The StarTech.com VS424HDPIP HDMI Video Switch with Audio allows you to seamlessly share and switch between four distinct HDMI audio/video sources across four HDMI displays. With optional Picture-and-Picture (PAP) functionality, this video switch provides the flexibility of a matrix switch and the scalability of a video wall, allowing you to combine multiple images on the same display.

Features:

• Share and switch four distinct HDMI audio/video sources between four HDMI displays
• Optional Picture-and-Picture (PAP) functionality

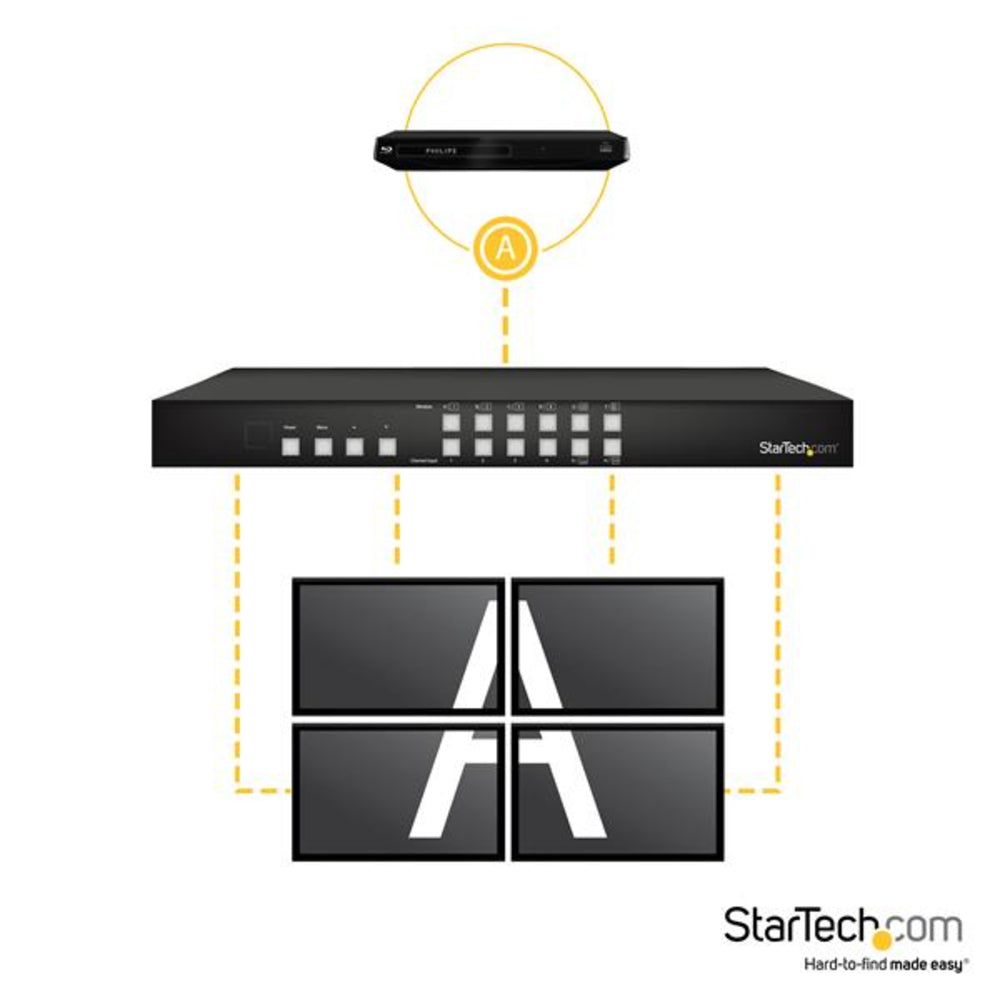

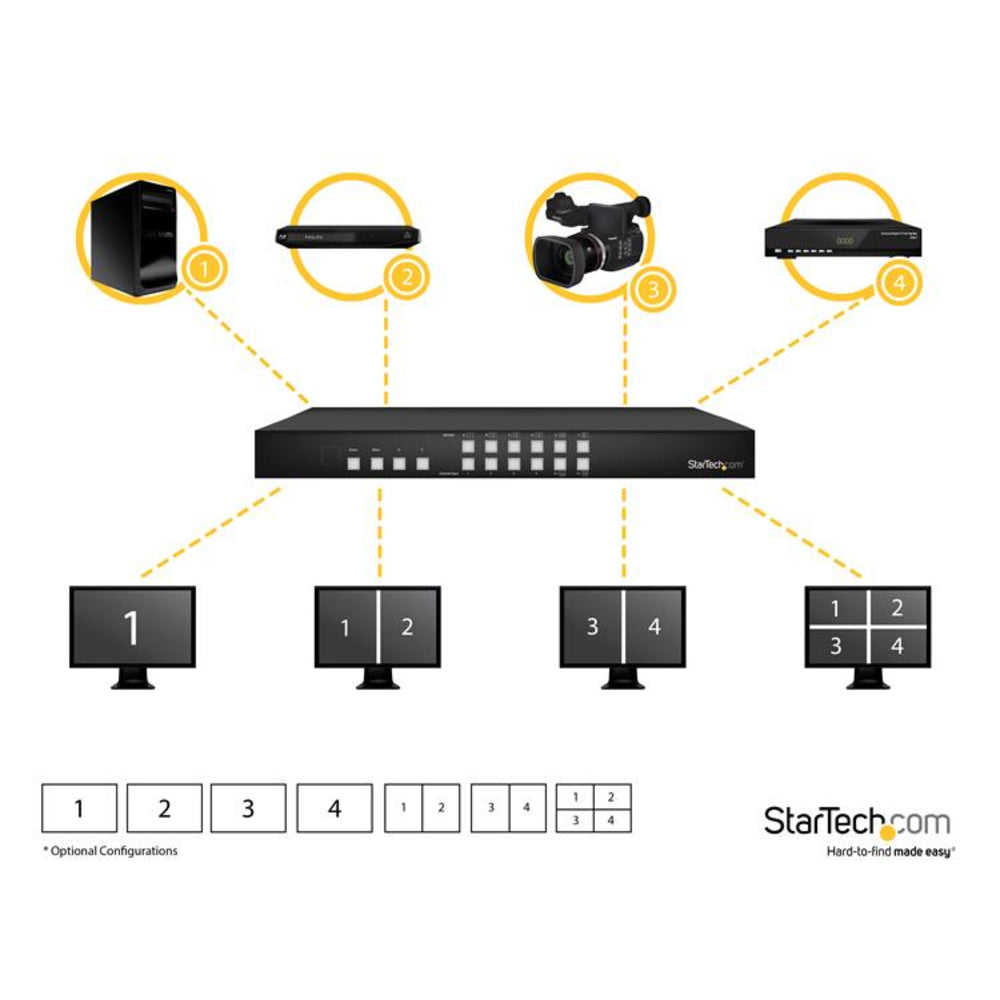

• Full matrix configuration supporting four different picture-and-picture modes per display: Matrix Mode (1x1), Dual Mode (2x1), Quad Mode (4x1), TV Wall Mode (1x4)
• Remote control operation using TCP/IP network or included IR remote control
• Picture-and-picture technology reduces the number of displays required

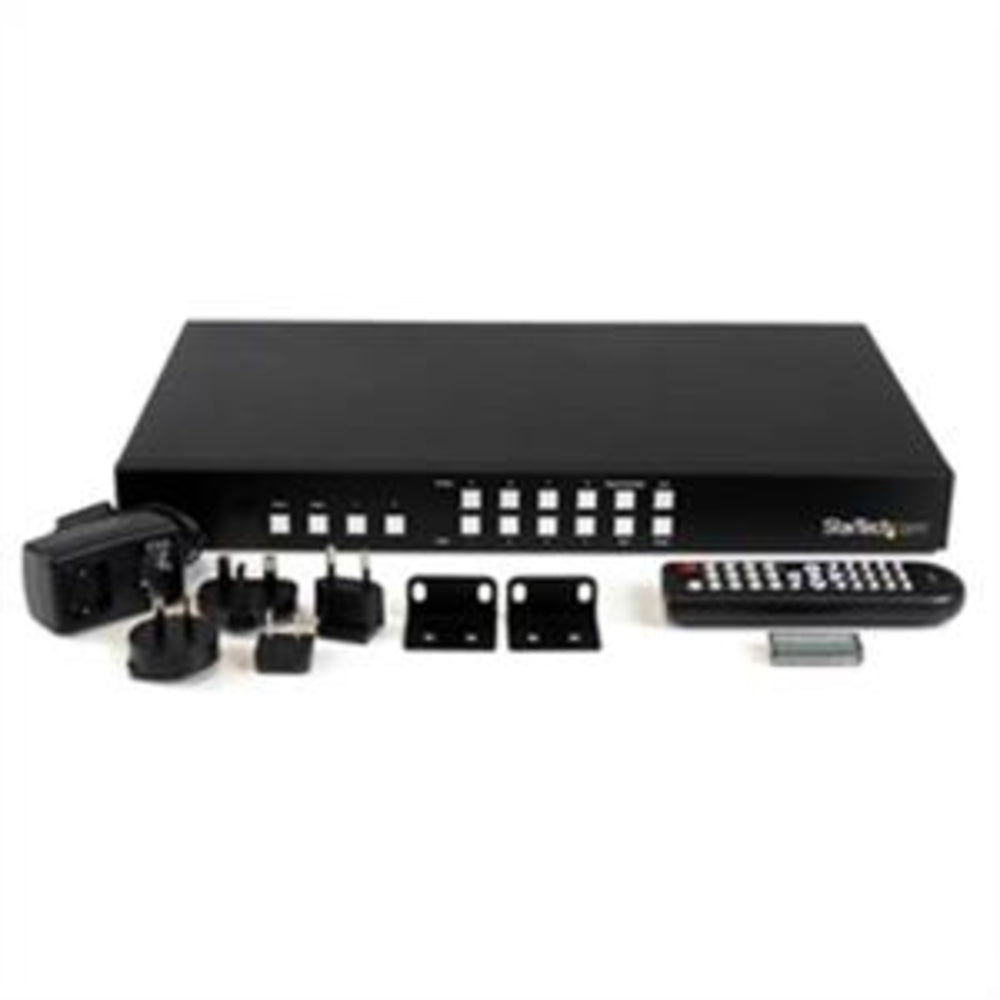

• Mounting hardware included for versatile installation options
• Backed by a StarTech.com 2-year warranty and free lifetime technical support

Specifications:

• Package depth: 575mm
• Package height: 142mm
• Package width: 412mm
• Product color: Black
• Handheld remote control: Yes
• Material: Aluminium
• Supported graphics resolutions: 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 640 x 480 (VGA)
• Supported video modes: 1080p, 720p
• Video port type: HDMI
• HDMI ports quantity: 8
• LED indicators: Yes
• Maximum resolution: 1920 x 1200
• Operating relative humidity (H-H): 20 - 90%
• Operating temperature (T-T): 0&degC - 40&degC
• Storage temperature (T-T): -20&degC - 60&degC
• Audio output channels: 7.1
• HD type: Full HD
• RS-232 ports: 1
• HDMI in: 4
• Number of HDMI outputs: 4
• RJ-45 input ports: 1
• Dimensions (WxDxH): 250mm x 436mm x 49mm
• Weight: 2807g
• AC adapter input voltage: 100 - 240V
• AC adapter input current: 1A
• AC adapter output voltage: 12V
• AC adapter output current: 3A
• Manual: Yes
• AC adapter included: Yes
• RoHS compliance: Yes
• Certification: CE, FCC, TAA
• Remote control type: RS232, Telnet, IR
• Width: 250mm
• Depth: 436mm
• Height: 49mm
• Package weight: 4328g
• Software CD: Yes
