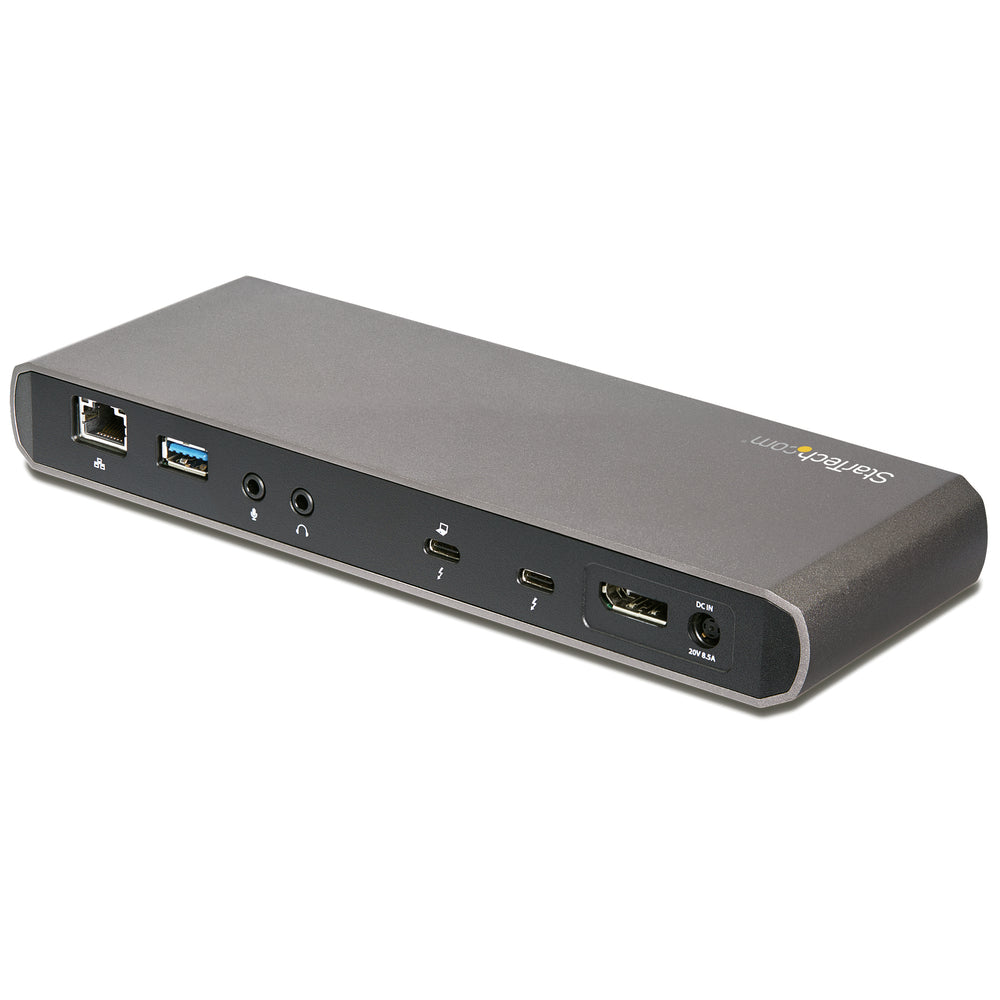

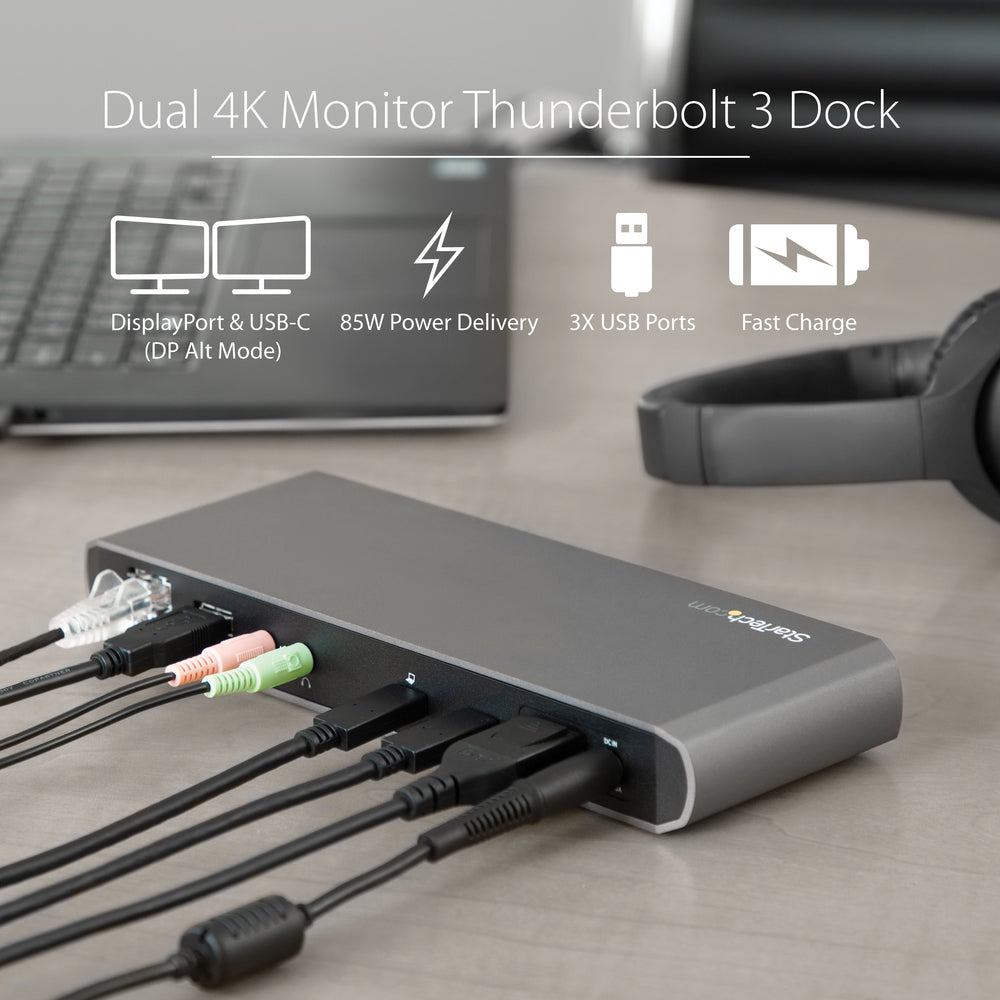

Startech.com TB3DK2DPPD Thunderbolt 3 Docking Station Dual Monitor 4K

Easily transform your Thunderbolt 3 equipped MacBook Pro or Windows laptop into a dual-4K workstation with up to 40Gbps of throughput. The high-quality TB3 dock features three USB 3.0 ports, 85W Power Delivery to charge your laptop.

Key Features:

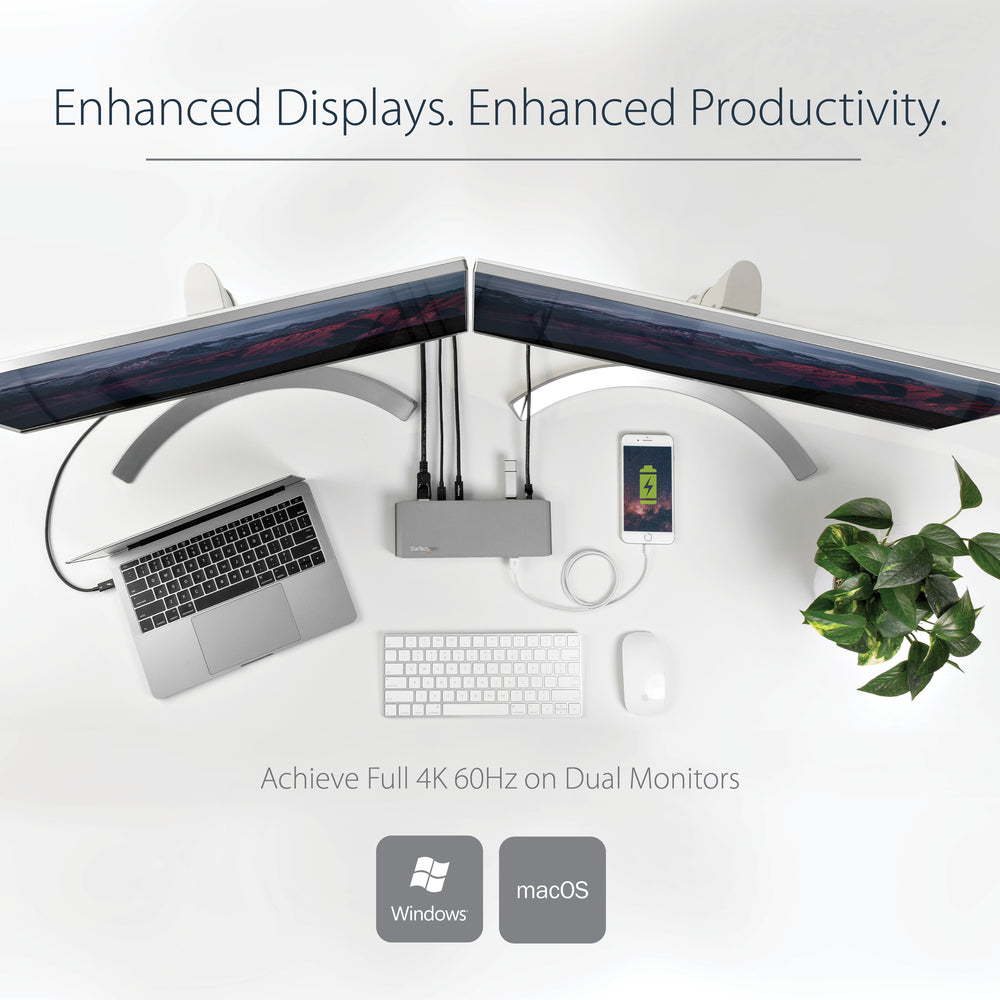

• Connect dual UHD 4K monitors to your MacBook Pro or Windows Thunderbolt 3 laptop
• Easy setup with no driver installation required

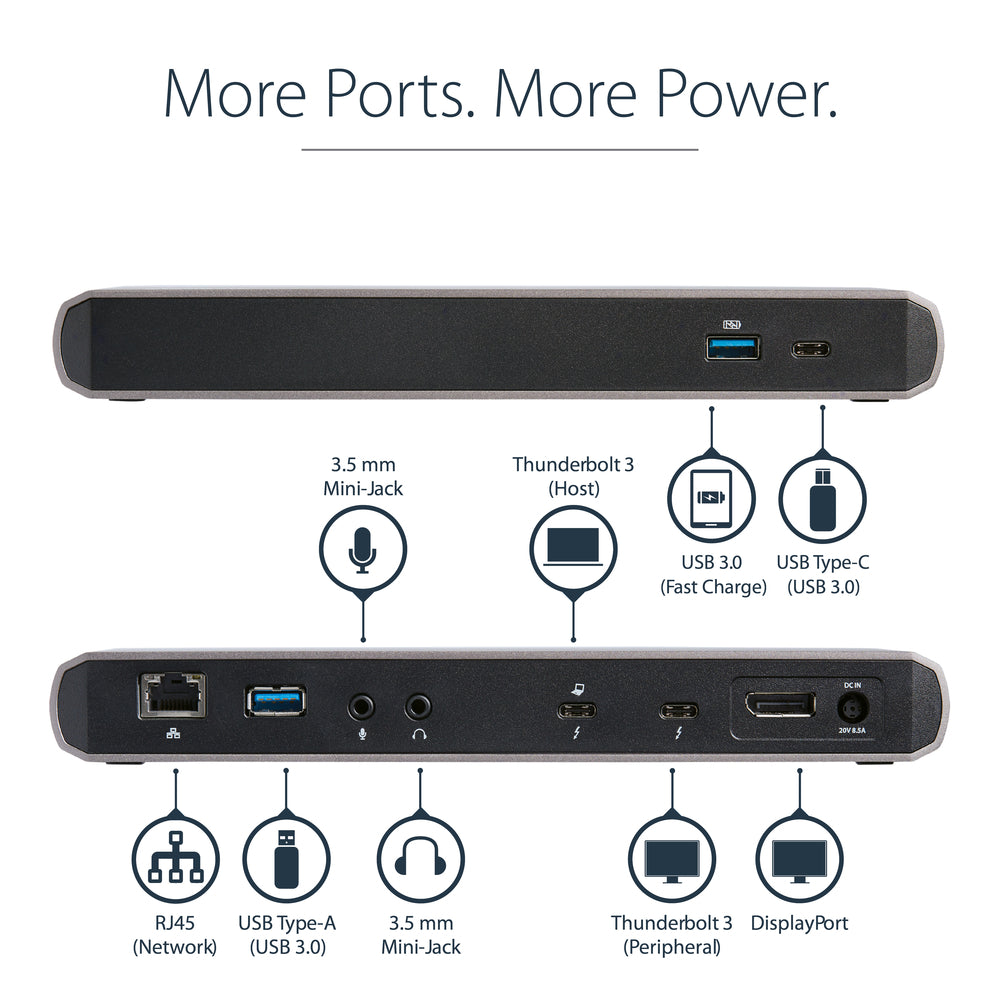

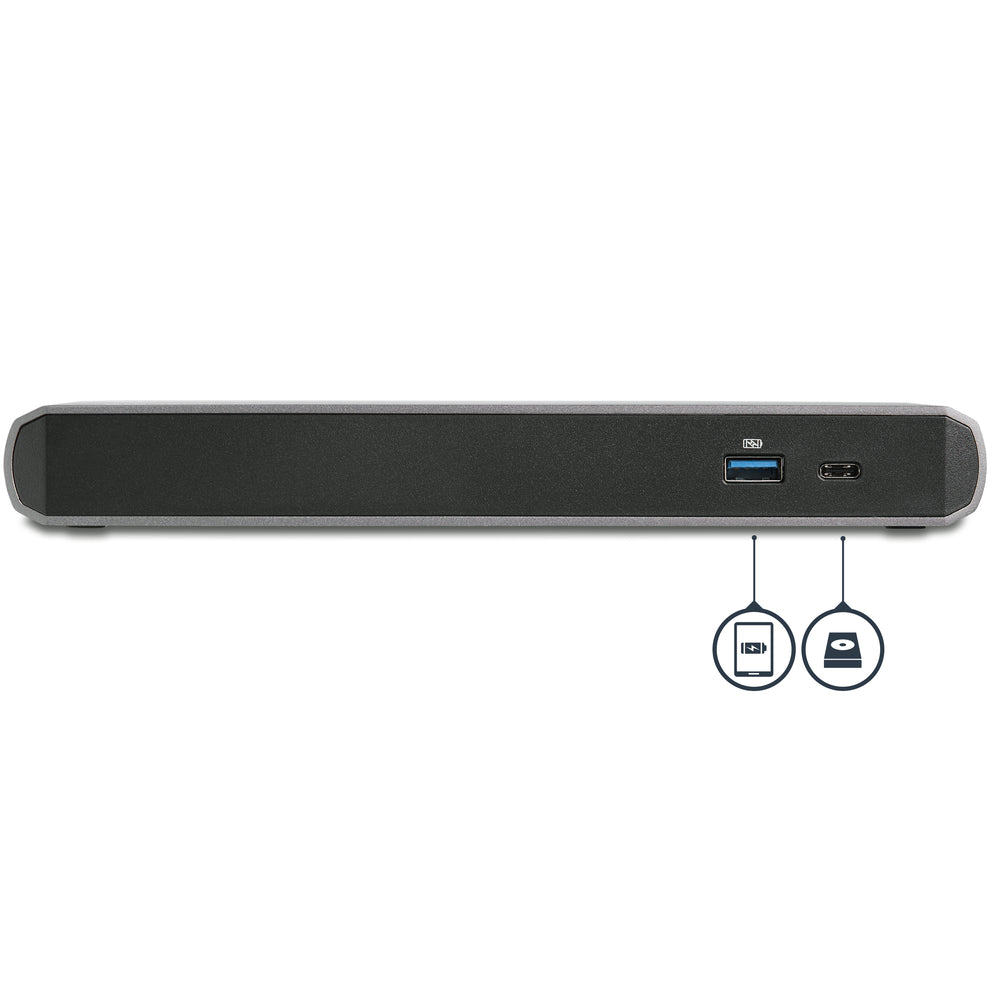

• 3 USB 3.0 ports - 1 USB-C and 2 USB-A (including 1 Fast-Charge)
• Supports 85W Power Delivery to charge your laptop
• Aluminum casing for durability

Specifications:

• Chipset: Intel - Alpine Ridge DSL6540, Fresco - FL1100EX, Texas Instruments - PCM2912A, Intel - WGI210AT, Texas Instruments - TPS65983
• Number of displays supported: 2
• Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
• Auto MDI/MDI-X: Yes
• Ethernet LAN: Yes
• Ethernet LAN data rates: 10/100/1000
• Data transfer rate: 40 Gbps
• Maximum digital resolution: 4096 x 2160
• USB data transfer rates: 480 Mbps, 5000 Mbps
• UASP support: Yes
• Host interface: USB 3.0 (3.1 Gen 1) Type-C
• Connectivity technology: Wired

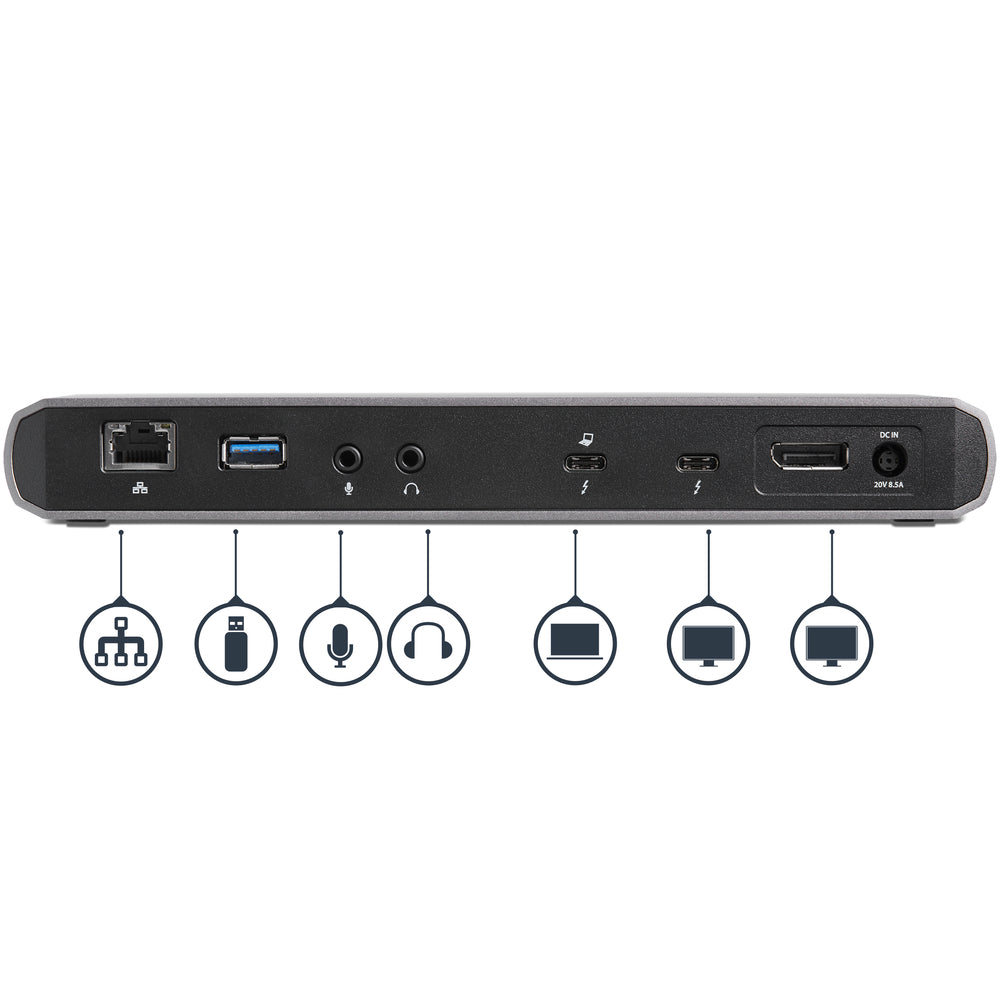

• DisplayPorts quantity: 1
• USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
• Microphone in: Yes
• Headphone outputs: 1
• Ethernet LAN (RJ-45) ports: 1
• Thunderbolt 3 ports quantity: 2
• Mac compatibility: Yes
• AC input voltage: 100 - 240
• Input current: 2.5 A
• Output current: 8.5 A
• Output voltage: 20 V
• Power consumption (typical): 170 W
• Operating temperature: 5&degC - 40&degC
• Storage temperature: -40&degC - 70&degC
• Operating relative humidity: 5% - 95%
• Product color: Black, Grey
• AC adapter included: Yes
• Housing material: Aluminum, Plastic

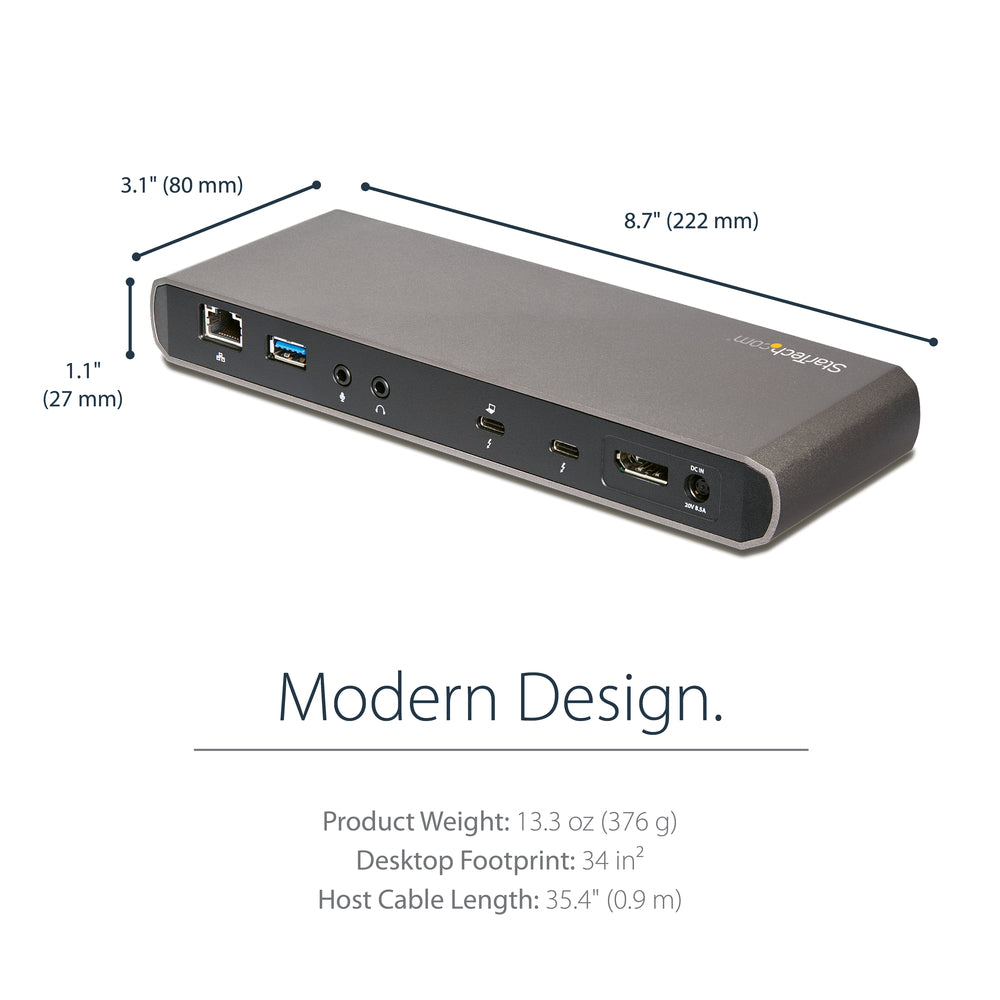

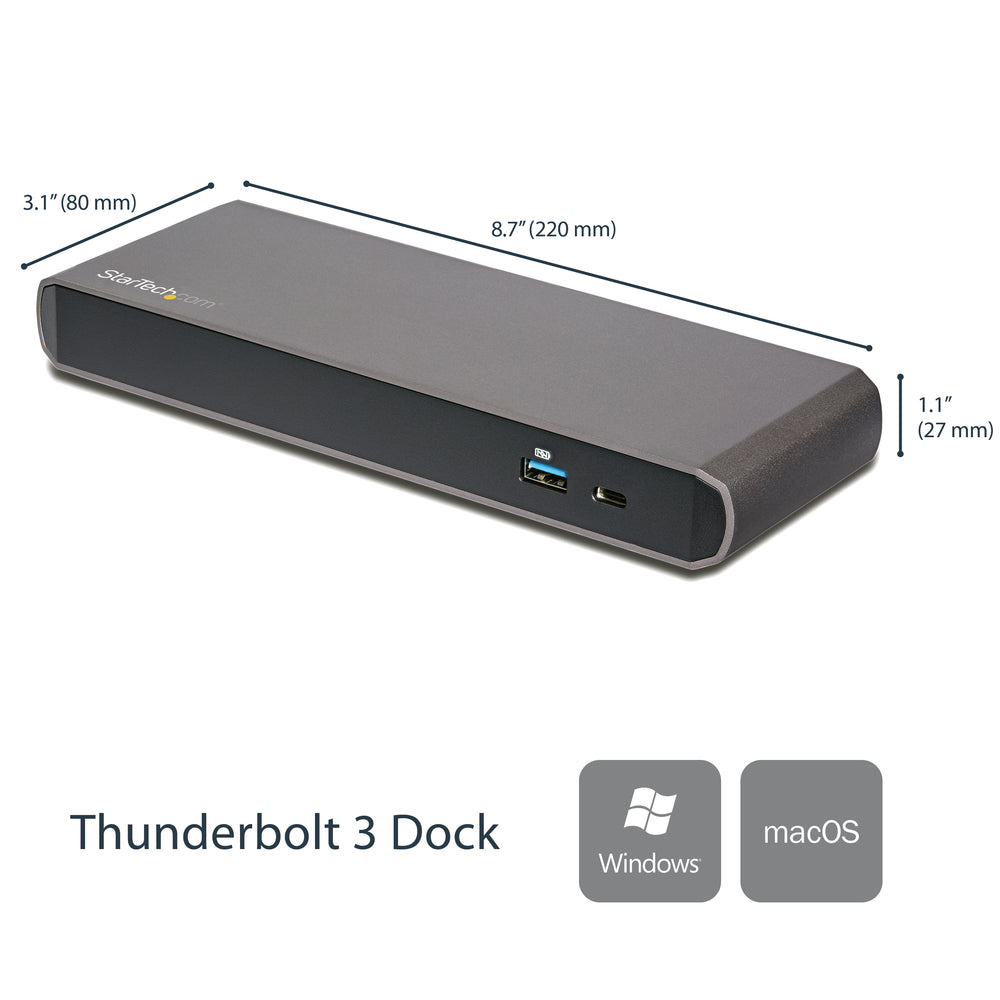

• Width: 80 mm
• Depth: 220 mm
• Height: 27 mm
• Weight: 450 g
• Package weight: 1500 g
• Package width: 148 mm
• Package depth: 248 mm
• Package height: 88 mm
• RoHS compliance: Yes
• Certification: CE, FCC, REACH

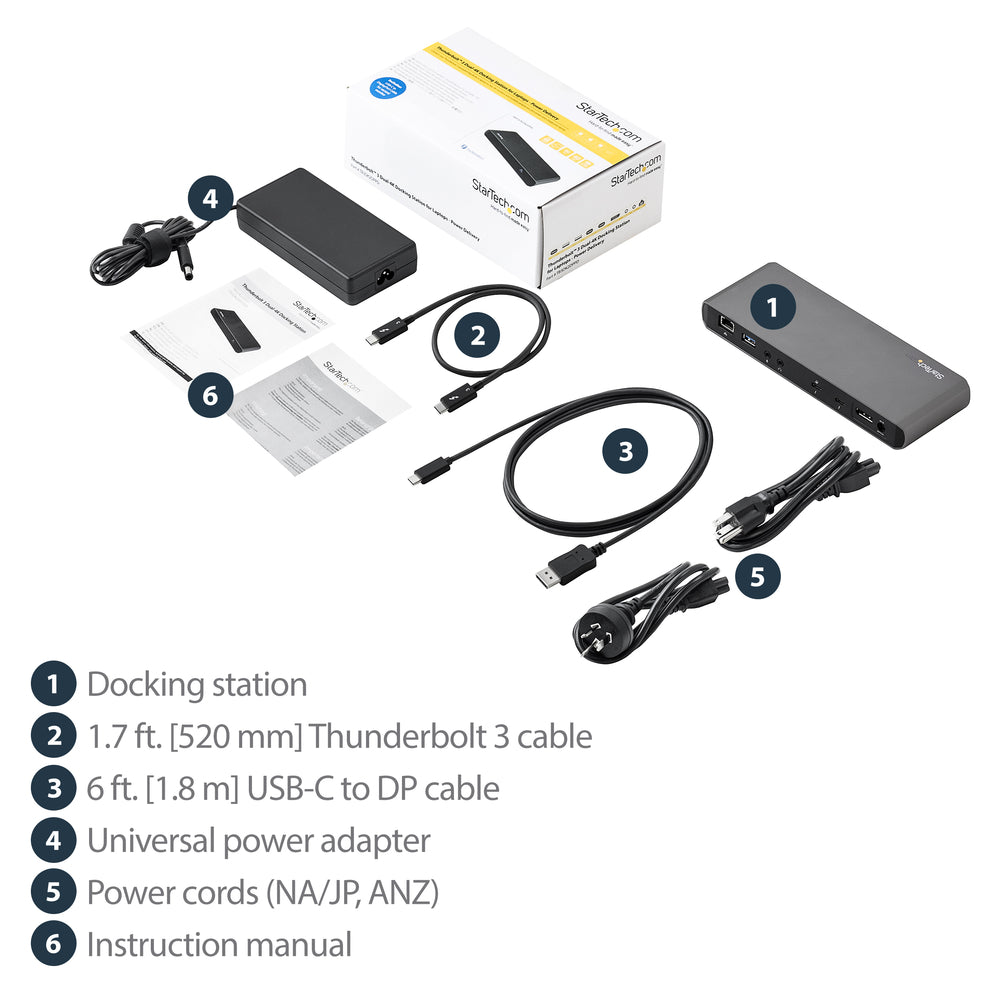

• Cables included: AC, Thunderbolt, USB Type-C
• Charging function: Yes
• Brand compatibility: Universal
• Power supply: 85 W
• Power supply type: External
• Cable length: 0.52 m
• Compatible power plug types: AU, JP, US

Learn More:

Learn more about Thunderbolt technology on Wikipedia

Product: Startech.com TB3DK2DPPD Thunderbolt 3 Docking Station Dual Monitor 4K

Brand: Startech.Com

Model: TB3DK2DPPD
