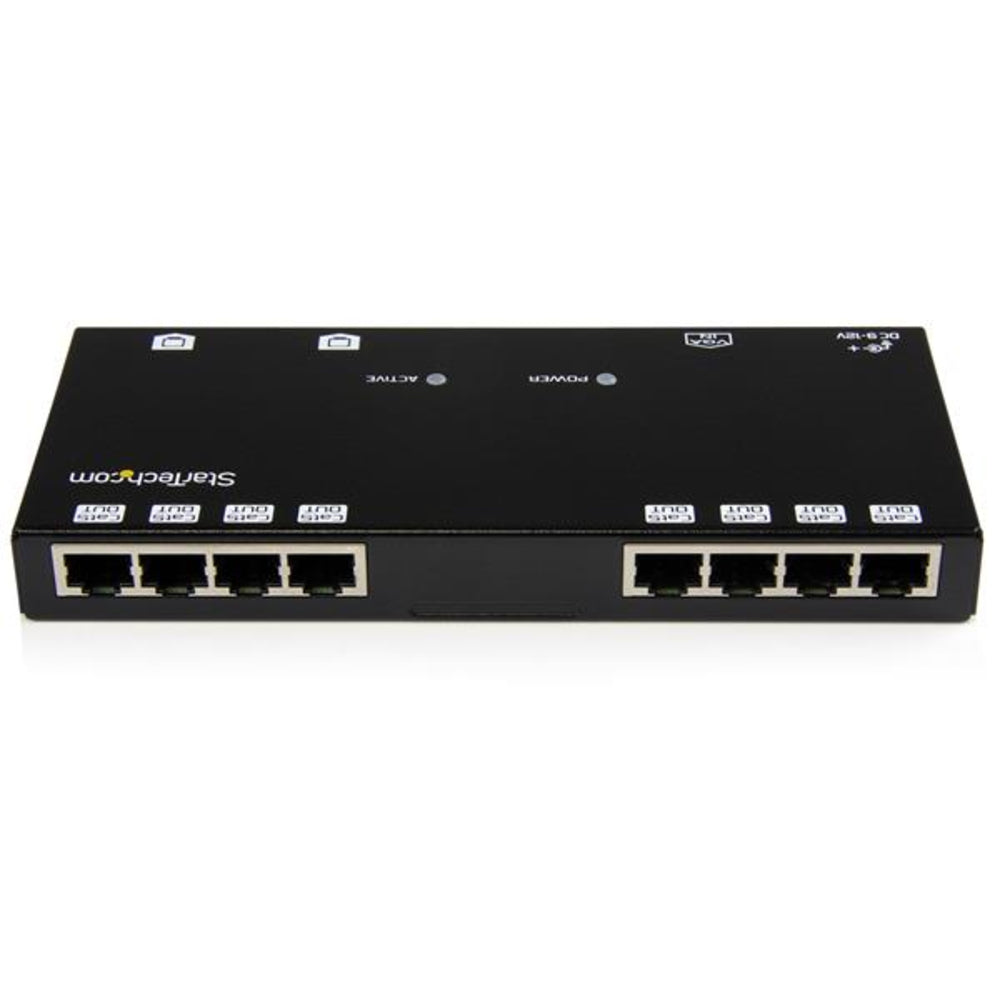

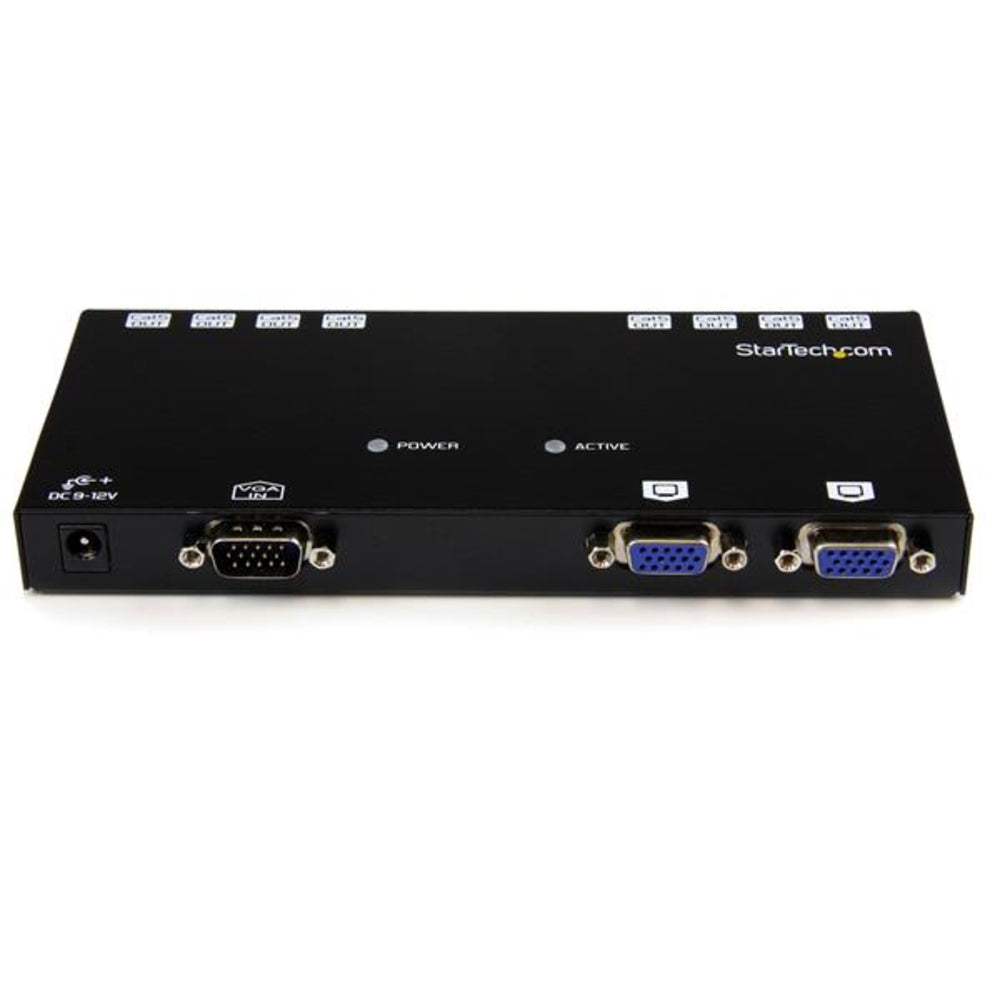

Startech.com ST1218T 8 Port VGA Video Extender over Cat5

The Startech.com ST1218T 8 Port VGA Video Extender over Cat5 is the perfect solution for extending and distributing a VGA signal to up to 8 displays over Cat5 cable. With a maximum transfer distance of 492 feet (150 meters), this extender allows you to conveniently distribute VGA video using standard Cat 5 (or better) cabling.

To use the ST1218T, you will need one ST121R Receiver Unit per display that you are connecting. For even greater versatility, you can use the ST121EXT VGA over Cat 5 Repeater to extend the distance between the transmitter and receiver by an additional 492 feet (150 meters), for a total distance of 984 feet (300 meters). You can also cascade up to 3 repeater units between the transmitter and receiver, enabling you to connect monitors at each repeater while still extending the total distance.

The Cat 5 extension feature allows you to make use of existing Ethernet infrastructure wiring to extend VGA video, providing a cost-effective and convenient solution. The pure hardware design of the ST1218T ensures easy installation and setup, with no software or drivers required. This extender is also compatible with various graphics resolutions, including 1024 x 768 (XGA), 1280 x 1024 (SXGA), and 1600 x 1200 (UXGA).

The ST1218T is backed by a StarTech.com 2-year warranty and free lifetime technical support, ensuring peace of mind and reliable performance.

Product Features:

• Package width: 94mm
• Type: AV receiver
• Maximum resolution: 1600 x 1200
• Cable types supported: Cat5
• Maximum transfer distance: 150m
• Supported graphics resolutions: 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1600 x 1200 (UXGA)
• Ethernet LAN: Yes
• Product color: Black
• RoHS compliance: Yes
• VGA (D-Sub) input ports: 1
• VGA (D-Sub) output ports: 2
• DC-in jack: Yes
• LED indicators: Activity, Power
• AC input voltage: 115V
• Manual: Yes
• AC adapter included: Yes
• Package height: 187mm
• Package depth: 239mm
• Package weight: 760g

Learn More:

• VGA Connector
• Category 5 Cable
• XGA (disambiguation)
• Super XGA

Product: Startech.com ST1218T 8 Port VGA Video Extender over Cat5

Brand: Startech.Com

Model: ST1218T

Shipping Weight: 1.70 lb

Shipping Height: 3.75 in

Shipping Width: 7.50 in

Shipping Length: 9.50 in
