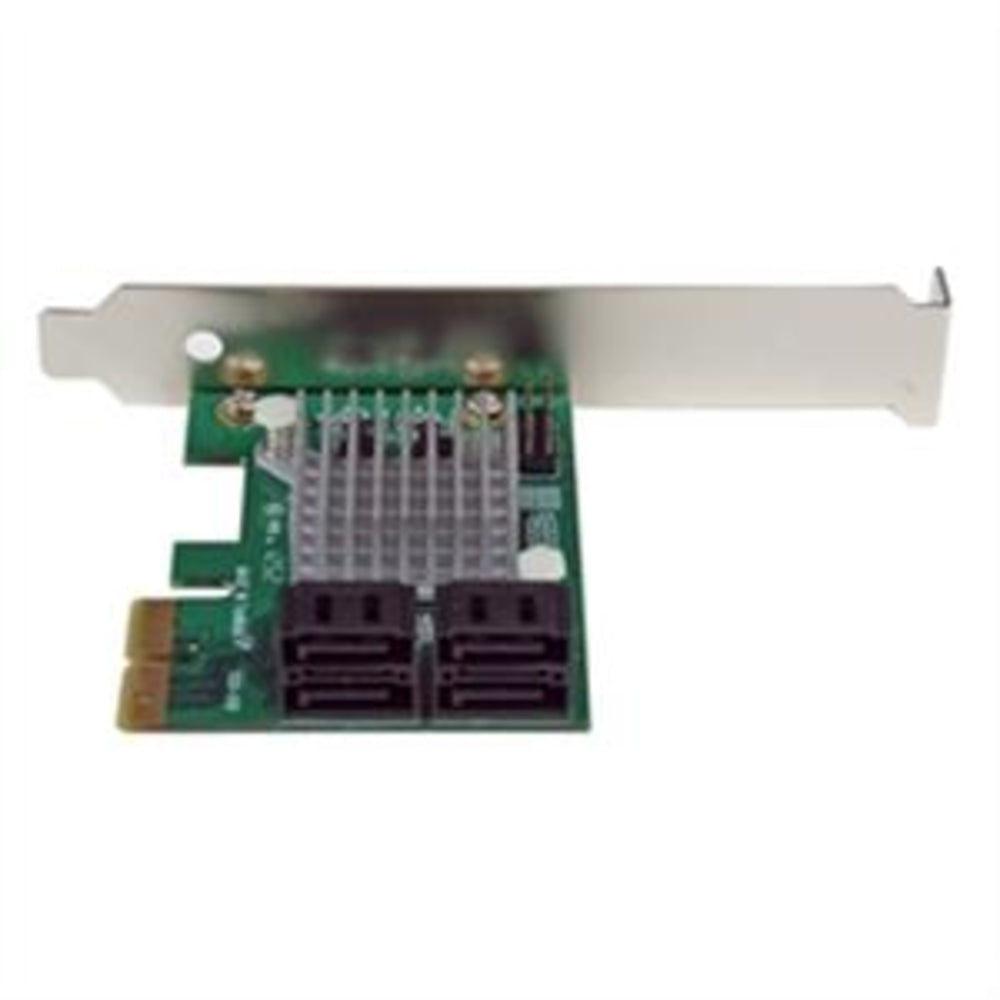

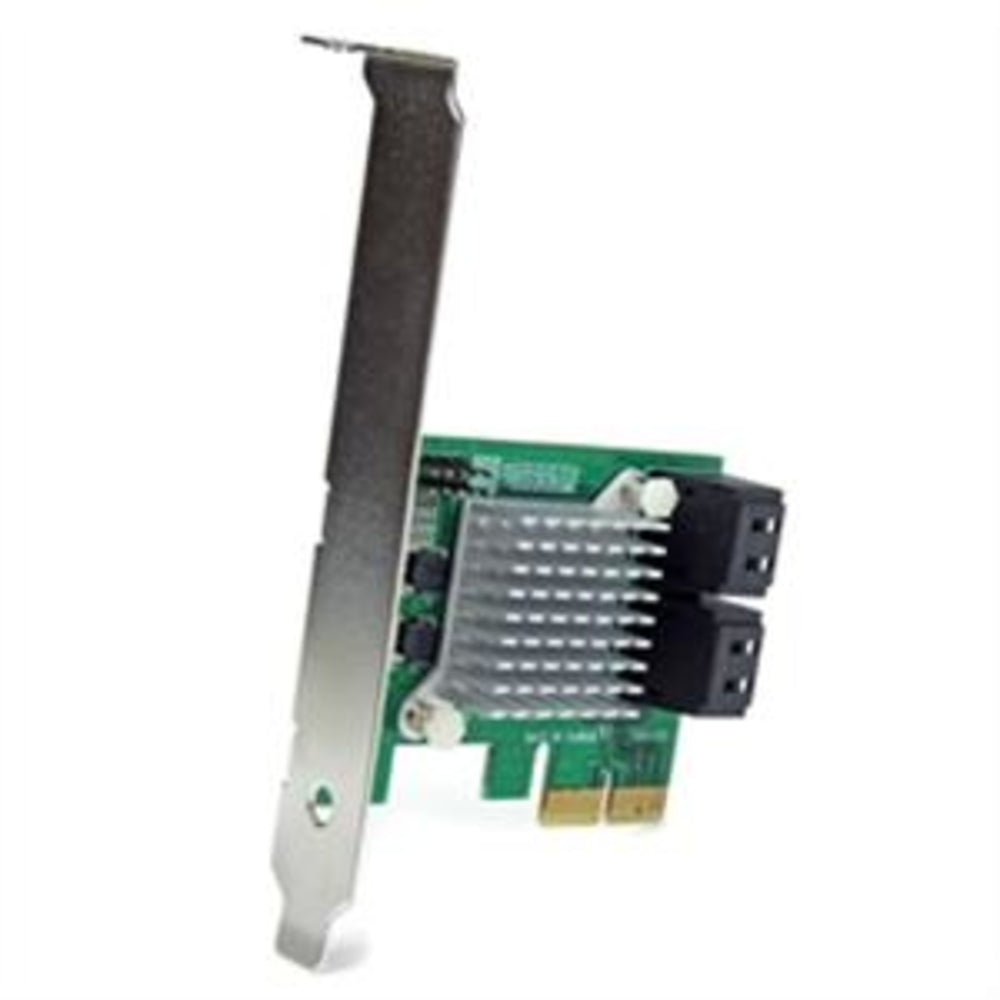

Startech PEXSAT34RH Controller Card 4Port PCI Express SATA 6Gbps

The Startech PEXSAT34RH Controller Card is a high-performance PCI Express 2.0 SATA controller card that adds 4 AHCI SATA III ports to your computer. With a PCIe slot (x2), this card delivers multiple internal 6Gbps connections for high-performance hard drives and Solid State Drives (SSDs).

Featuring HyperDuo technology, this SATA card offers SSD auto-tiering, allowing you to balance the performance advantages of SSD storage with the cost-effectiveness and large capacity of standard hard drives. By combining SSD and HDD drives into a single volume (up to 3 SSD + 1 HDD), HyperDuo discreetly works in the background to identify and move frequently accessed files to the faster SSD drive(s) for improved data throughput, providing up to 80% of SSD performance. (Note: The HyperDuo automatic storage tiering feature is compatible with computers that use a BIOS.)

The Startech PEXSAT34RH Controller Card also supports Port Multiplier (PM), enabling multiple SATA drives to be connected to one port over a single cable, allowing for a total of 7 drives (up to 4 drives through PM on one port, and a single drive to the remaining 3 ports). Additionally, this SATA controller card offers an effective hardware RAID solution, with native RAID (0, 1, 1+0) support.

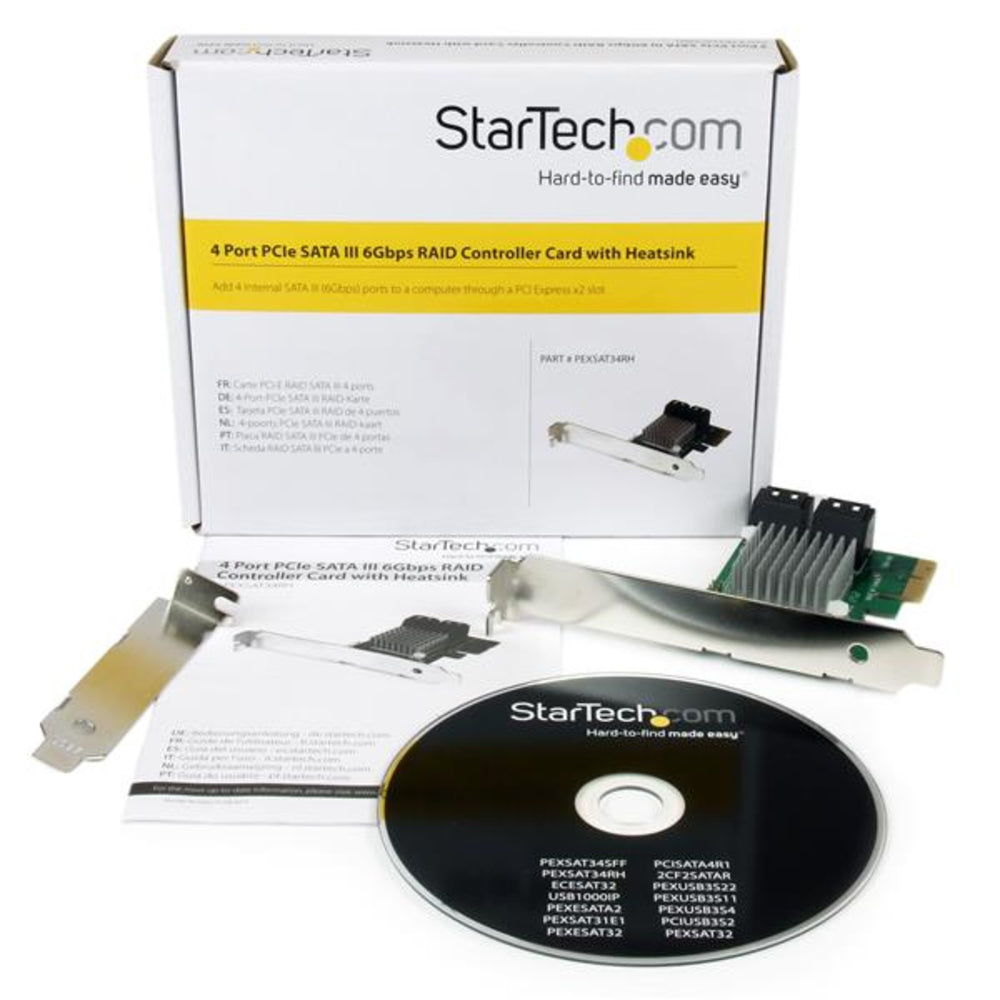

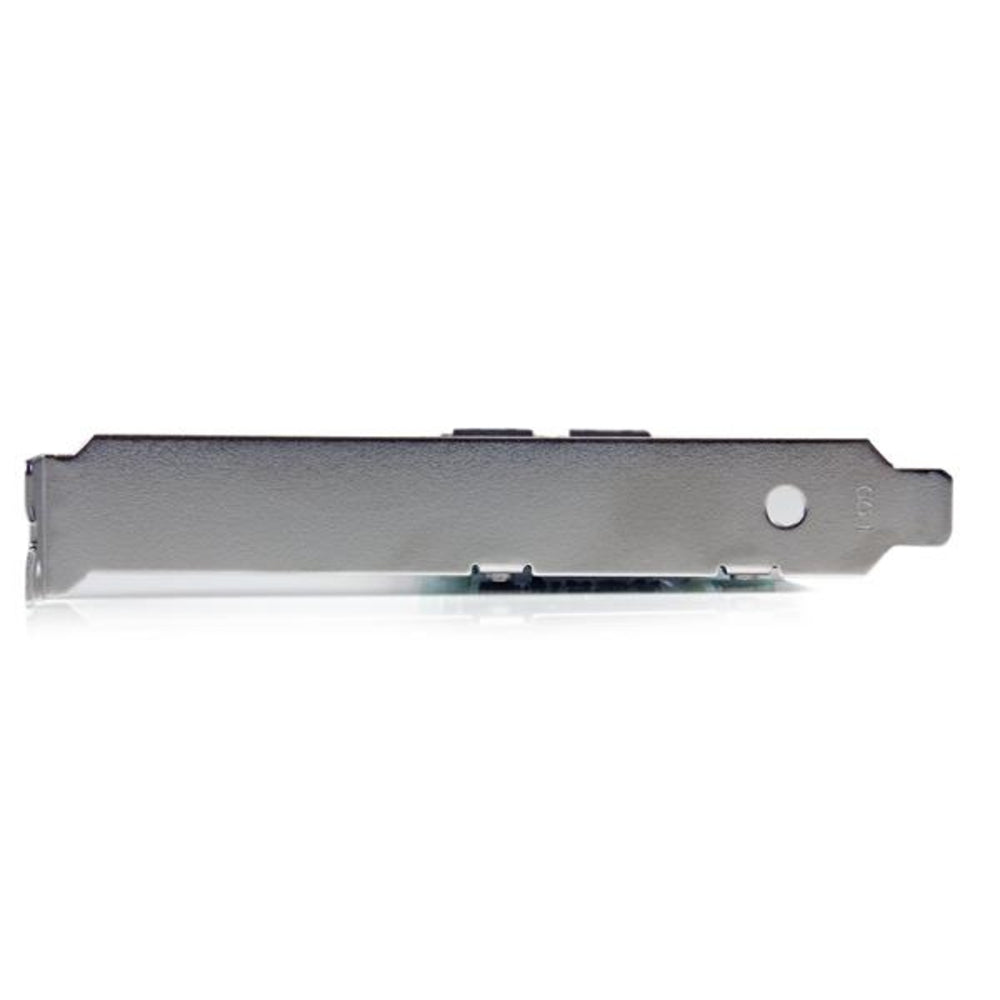

With its SATA III connection speeds, this PCIe SATA 6Gbps card maximizes system capability. It is compatible with any standard or low-profile chassis, thanks to the included brackets.

Product Features:

• Operating relative humidity (H-H): 20 - 80
• Operating temperature (T-T): 5 - 50
• Supported storage drive interfaces: Serial ATA, Serial ATA III
• Data transfer rate: 6
• Storage temperature (T-T): -25 - 70
• Weight: 50
• Package weight: 141
• SSD support: Yes
• Host interface: PCI Express
• PCI Card form factor: Full-height (low-profile)
• Chipset: Marvell - 88SE9230
• PCI Express slots version: 2.0
• Logical block addressing (LBA) support: 48
• Maximum supported storage capacity: 4
• RAID levels: 0, 1, 10, JBOD
• Windows operating systems supported: Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64
• Mac operating systems supported: Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks
• Linux operating systems supported: Yes
• Height: 20
• Depth: 70
• Width: 120
• Package dimensions (WxDxH): 145 x 175 x 30
• Internal SATA ports quantity: 4
• Certification: CE, FCC, RoHS
• Package depth: 175
• Package height: 32
• Package width: 145

Learn More

Click the links below to learn more about related topics on Wikipedia:

• PCI Express
• Serial ATA
• RAID

Product: StarTech.com PEXSAT34RH StarTech Controller Card 4Port PCI Express SATA 6Gbps

Brand: Startech.Com

Model: PEXSAT34RH
