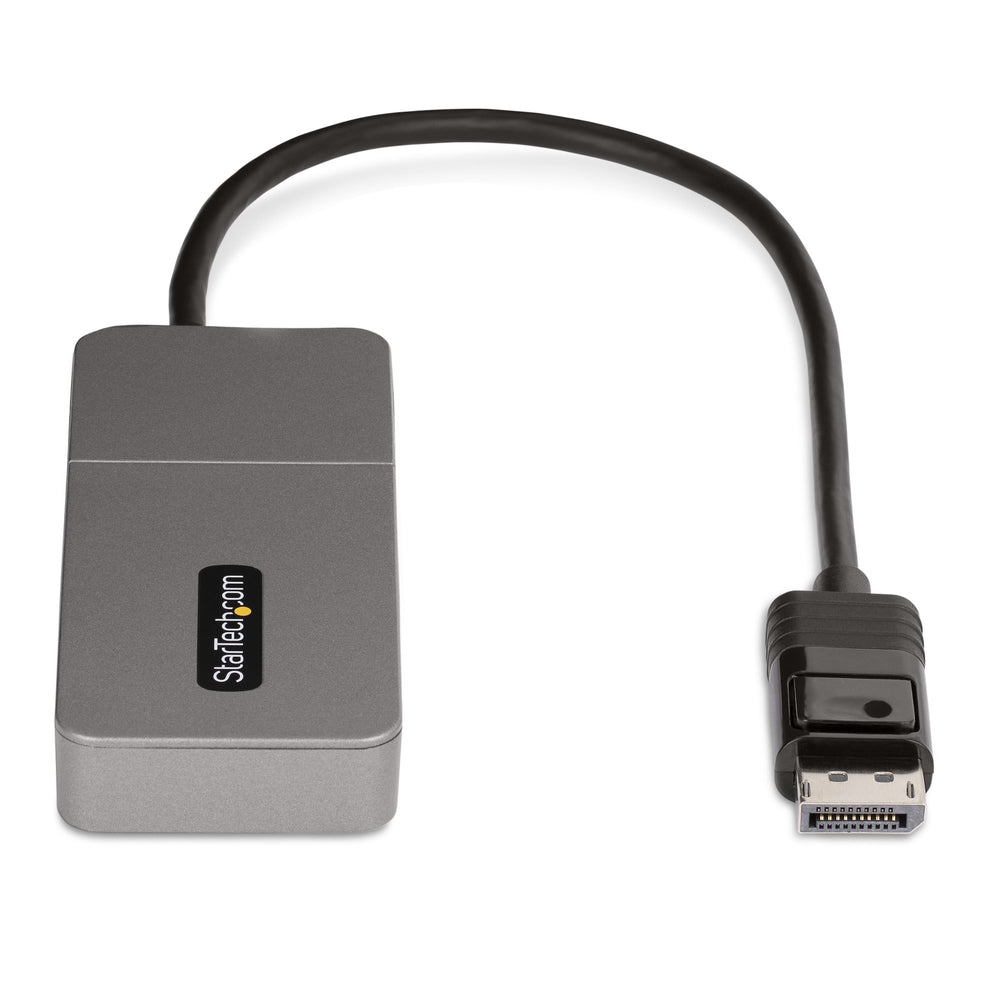

Startech.com MST14DP123HD 3-Port MST Hub DisplayPort to 3x HDMI Triple 4K 60Hz

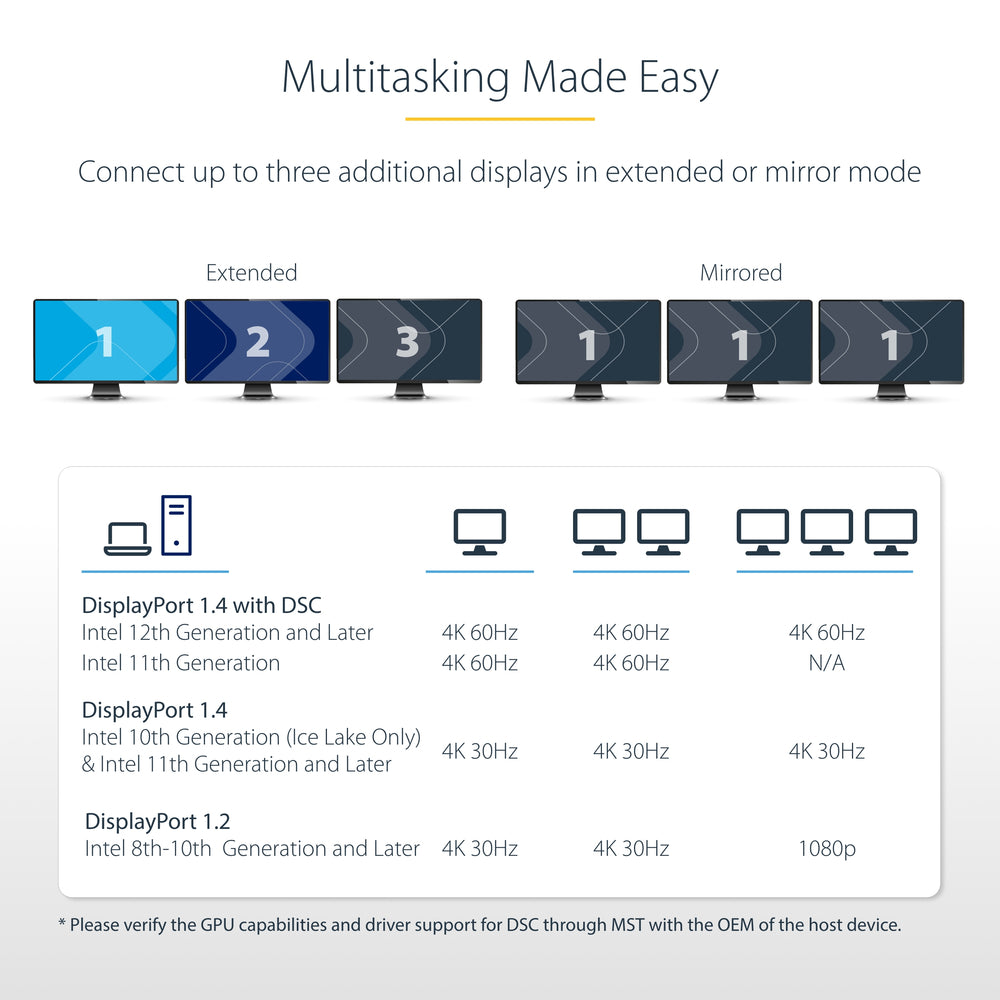

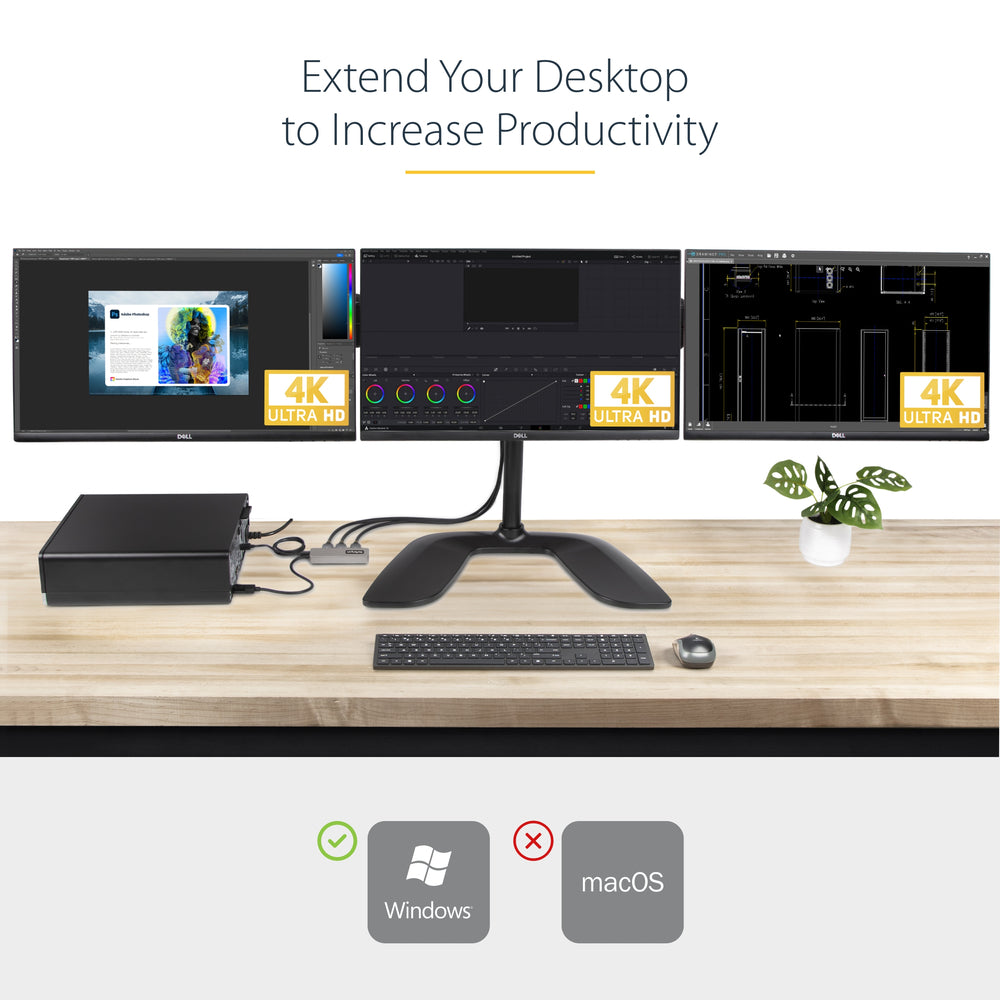

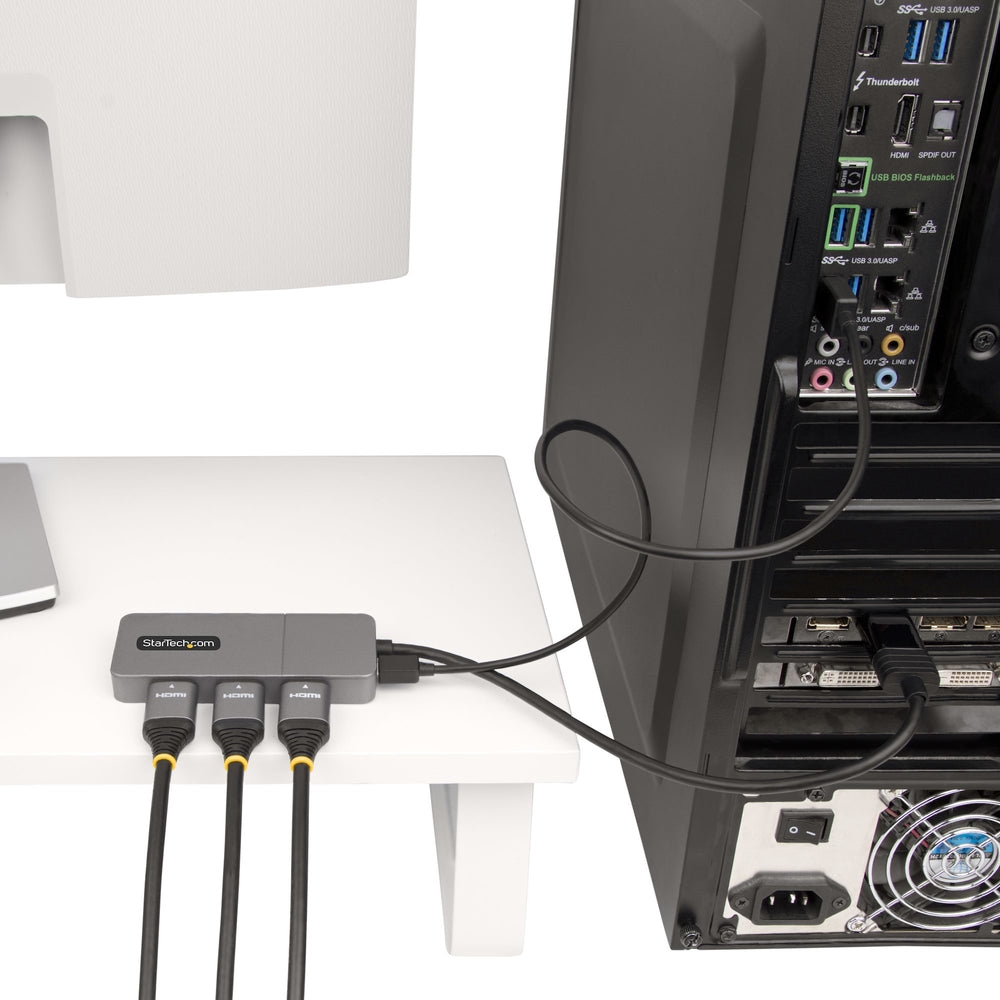

Create a high-performance triple-monitor workstation by connecting a DisplayPort Desktop to three independent HDMI monitors. The Startech.com MST14DP123HD is a video cable adapter that allows you to connect three HDMI monitors to a DisplayPort-enabled host device, using this DisplayPort to HDMI MST Hub. With Multi-Stream Transport (MST) technology, it combines multiple video signals into a single output signal/stream, allowing you to drive triple 4K 60Hz displays with HDR.

Features:

• Operating relative humidity (H-H): 5 - 90
• Storage temperature (T-T): -40 - 70
• Operating temperature (T-T): 0 - 40
• Connector 1 gender: Male connector
• Connector 2 gender: Female connector
• Refresh rate at maximum resolution: 60
• Master (outer) case length: 473
• Quantity per master (outer) case: 70
• Supported audio channels: 7.1
• Material: Plastic
• Cable length: 0.3

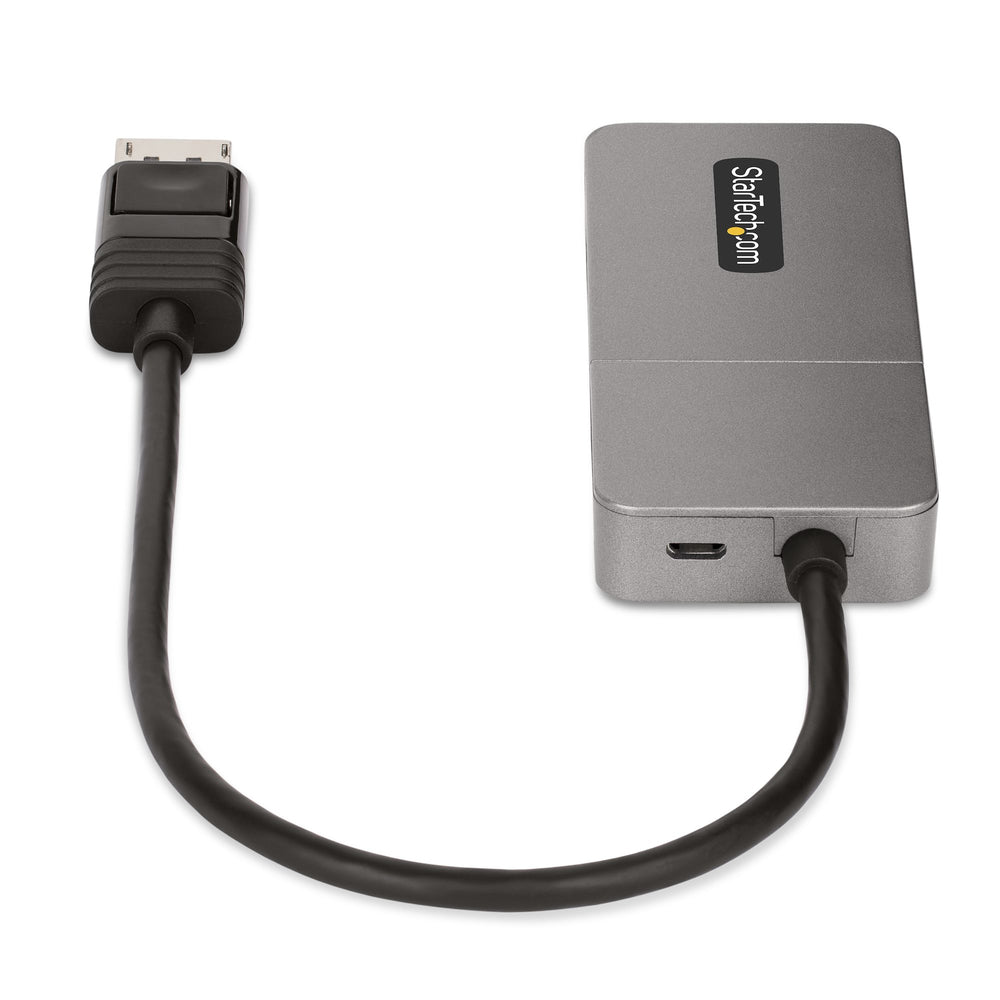

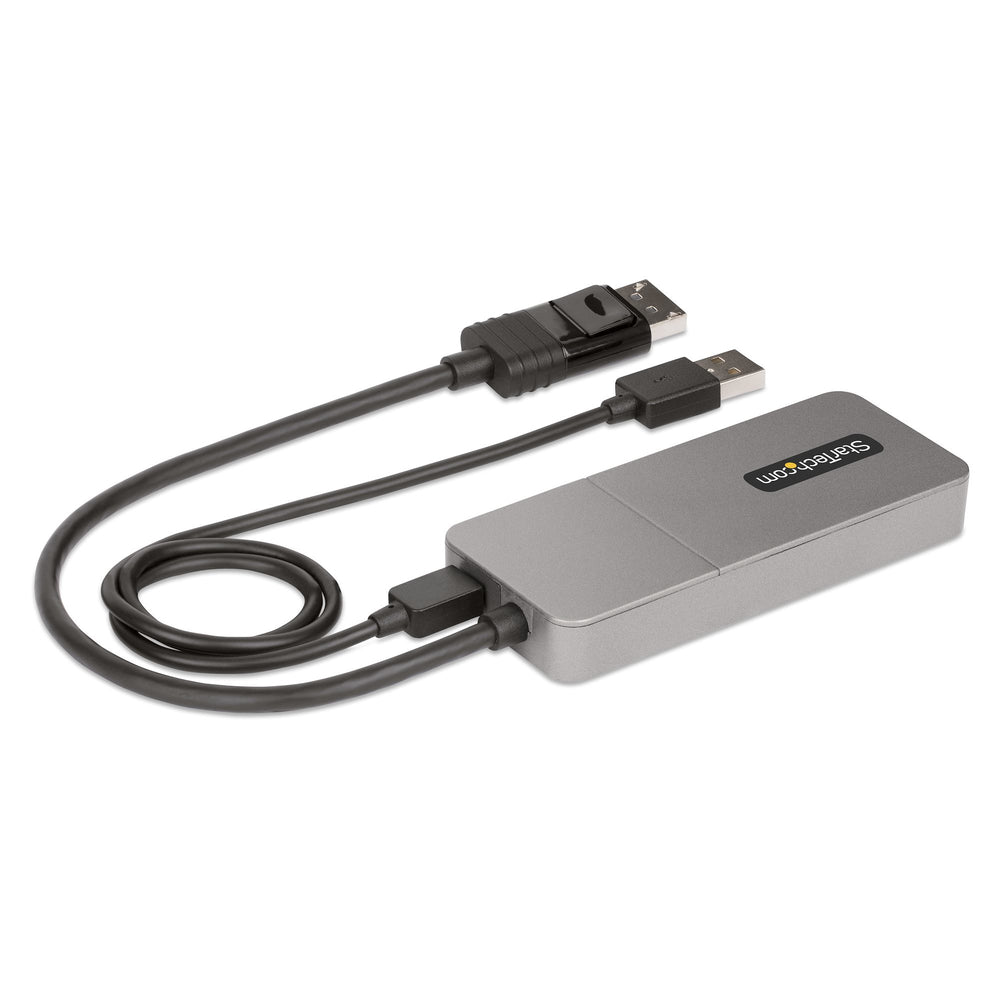

• Power source: USB
• Package depth: 170
• Package height: 30
• Package width: 142
• Master (outer) case height: 331
• Master (outer) case width: 440
• Supported graphics resolutions: 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2048 x 1152, 2560 x 1440, 3840 x 2160, 4096 x 2160
• HDMI version: 2.1

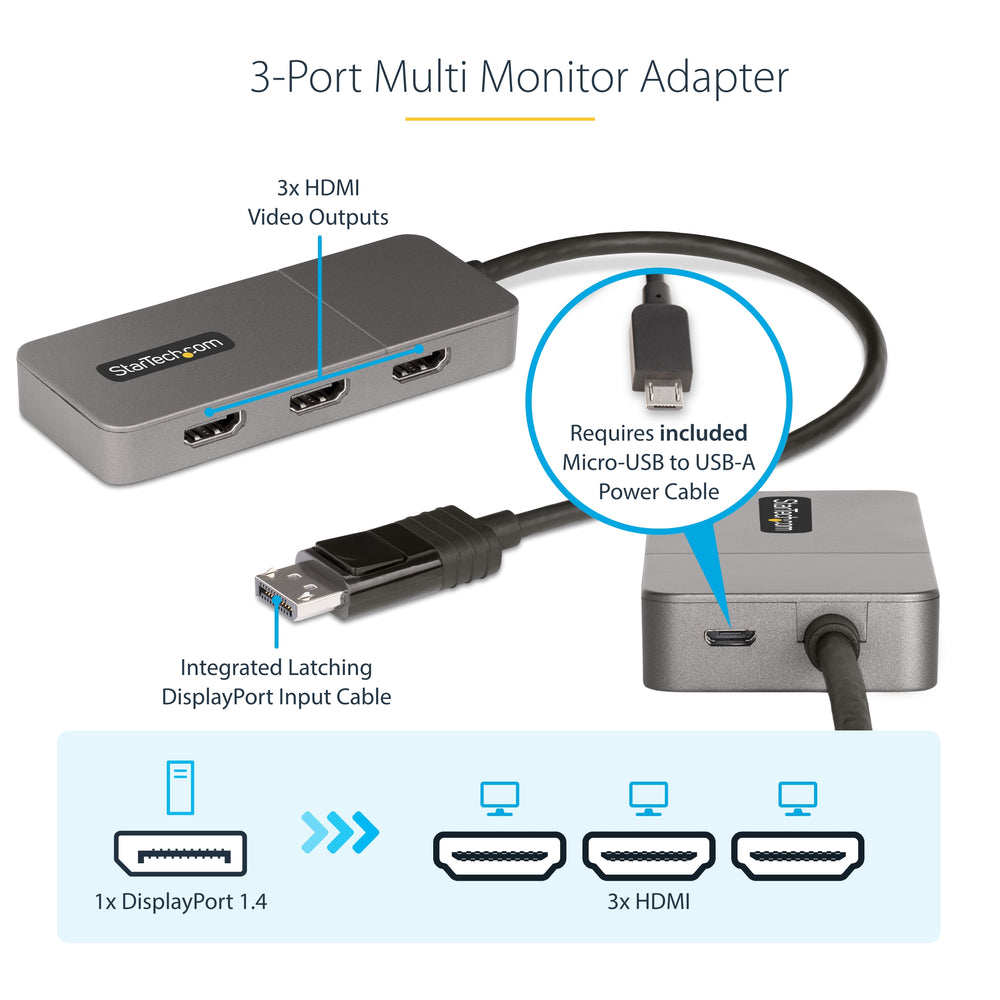

• Connector 1: DisplayPort
• Connector 2: 3 x HDMI
• Weight: 71
• Chipset: VMM5310, IT6563FN
• Package weight: 115
• Height: 14
• Width: 43
• Depth: 105
• Maximum resolution: 4096 x 2160
• Product color: Grey
• Maximum refresh rate: 60
• Windows operating systems supported: Windows 10, Windows 11
• DisplayPort version: 1.4

Specifications:

• Product Type: Video cable adapter
• Cable Type: DisplayPort to HDMI
• Cable Length: 11.8" (0.3 m)
• Color: Gray
• Connector on First End: 1 x 20-pin DisplayPort Male DisplayPort 1.4 Digital Audio/Video
• Connector on Second End: 3 x 19-pin HDMI Female HDMI 2.1 Digital Audio/Video
• Supported Resolutions: 4K 60Hz, 4K 30Hz, 1080p
• Supported Audio Channels: 7.1
• Material: Plastic
• Power Source: USB
• Cable Length: 0.3m

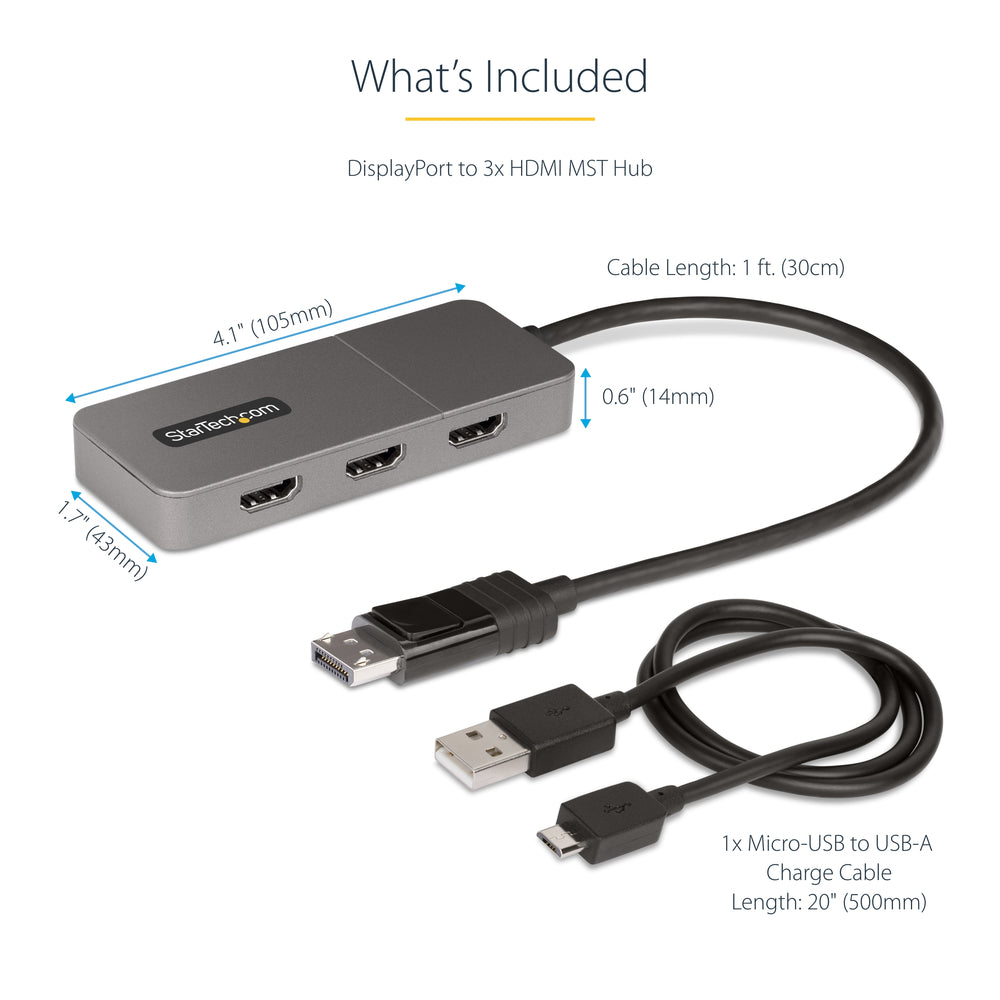

• Dimensions (HxWxD): 14mm x 43mm x 105mm
• Weight: 71g

Learn More:

• DisplayPort on Wikipedia
• HDMI on Wikipedia
• Multi-Stream Transport on Wikipedia
• High Dynamic Range (HDR) on Wikipedia

Product: STARTECH.COM MST14DP123HD 3-Port Mst Hub Displayport To 3X Hdmi Triple 4K 60Hz

Brand: Startech.Com

Model: MST14DP123HD

Shipping Weight: 0.30 lb

Shipping Height: 1.20 in

Shipping Width: 5.75 in

Shipping Length: 6.50 in
