Startech.com DP14A-10M-DP-CABLE DisplayPort Cable 10m Black

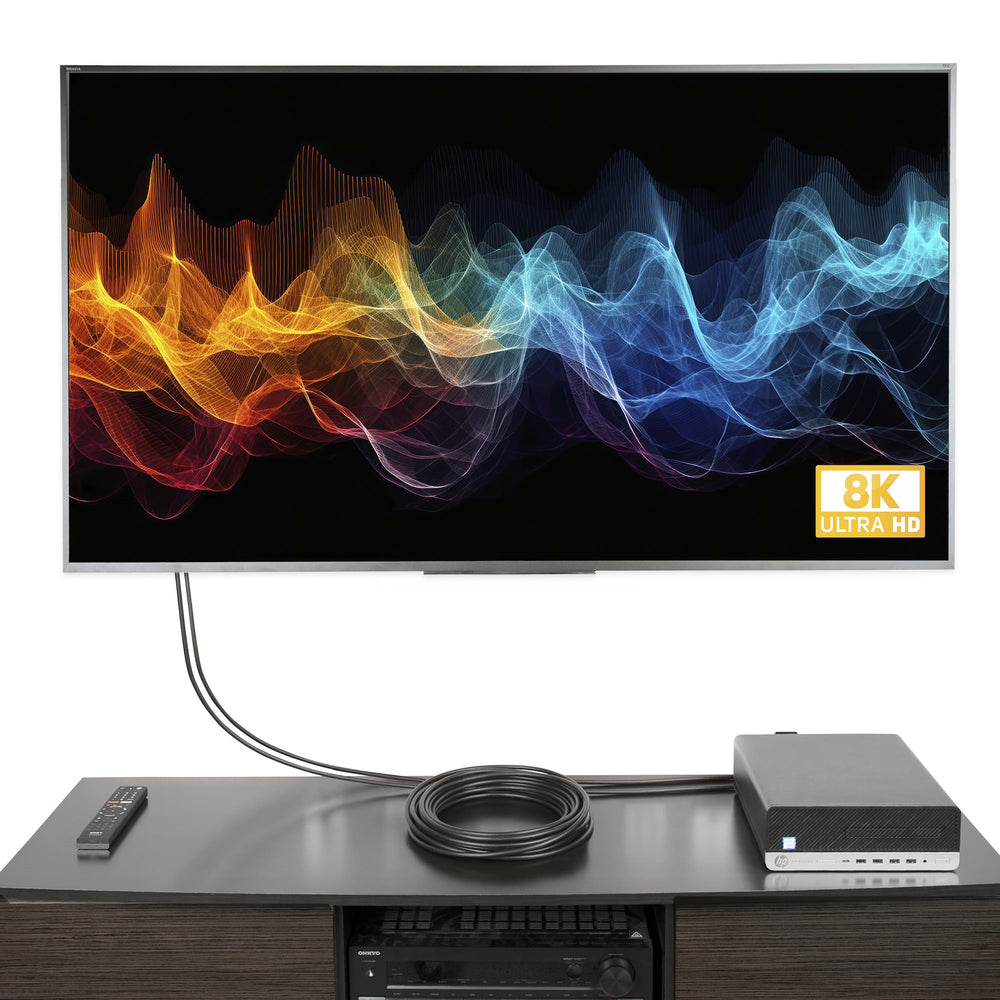

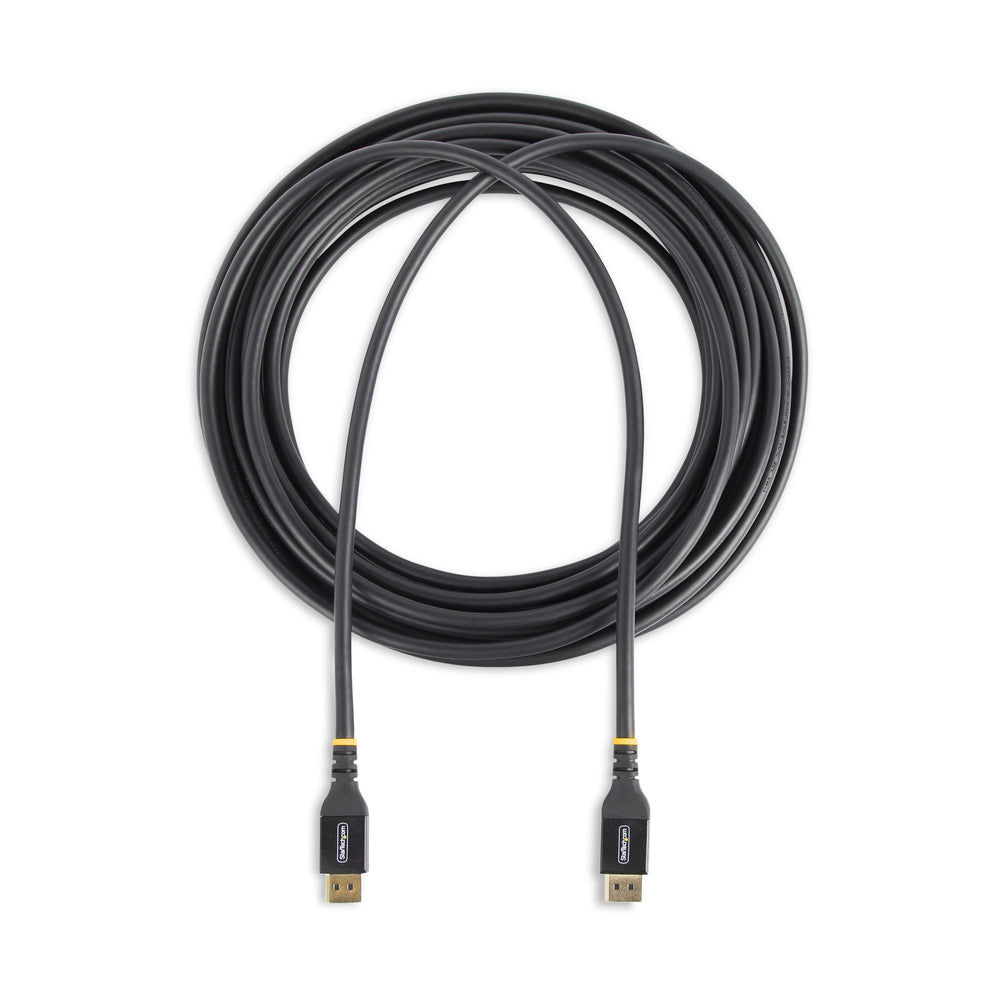

Upgrade your display setup with the Startech.com DP14A-10M-DP-CABLE DisplayPort Cable. This 10m (393.7") cable allows you to connect a 4K/8K DisplayPort 1.4-enabled monitor to a source or MST-enabled hub, providing you with a longer 8K connection without the need for an external power source. With its VESA certification, this cable ensures seamless performance and compatibility between DisplayPort-enabled devices.

Key Features:

• Facilitates a longer 8K connection without requiring an external power source
• VESA-Certified Active DisplayPort 1.4 Cable for guaranteed DP 1.4 support
• Unidirectional cable with conveniently labeled connectors for easy setup
• Durable design with flexible TPE outer jacket and robust strain reliefs

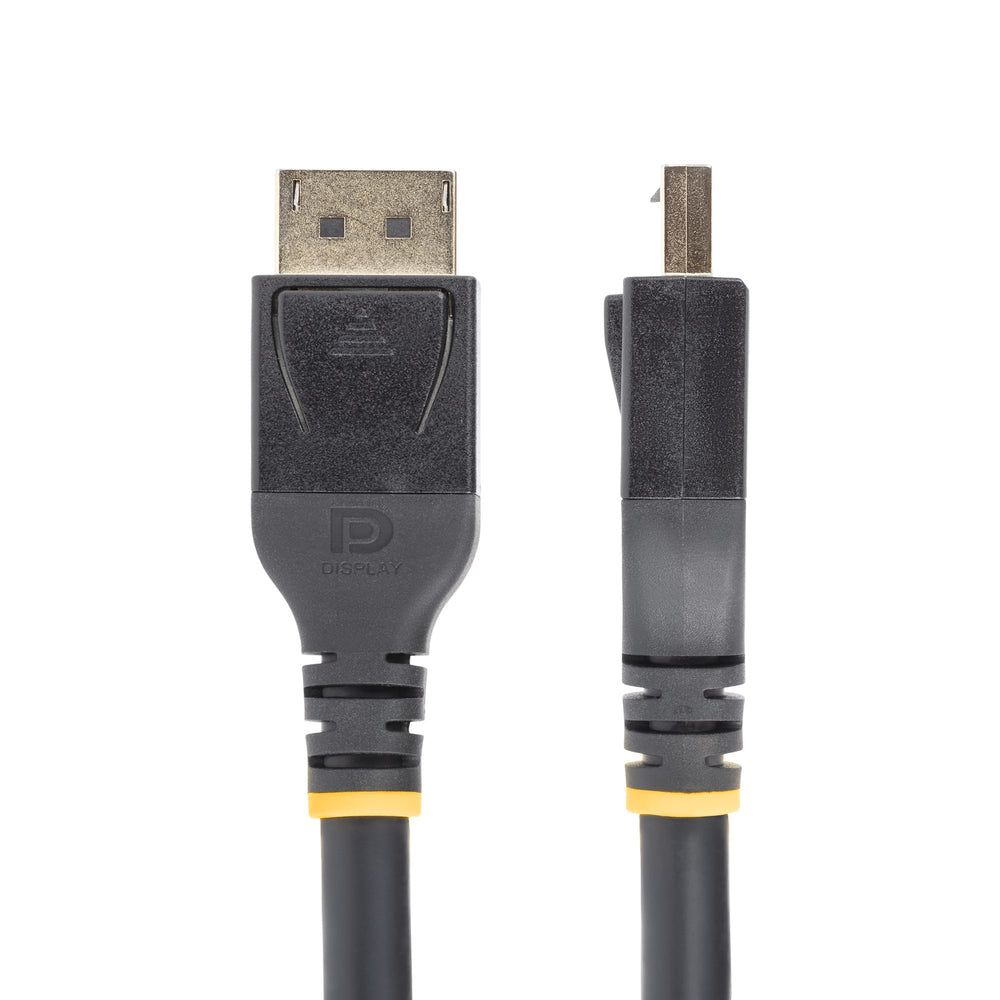

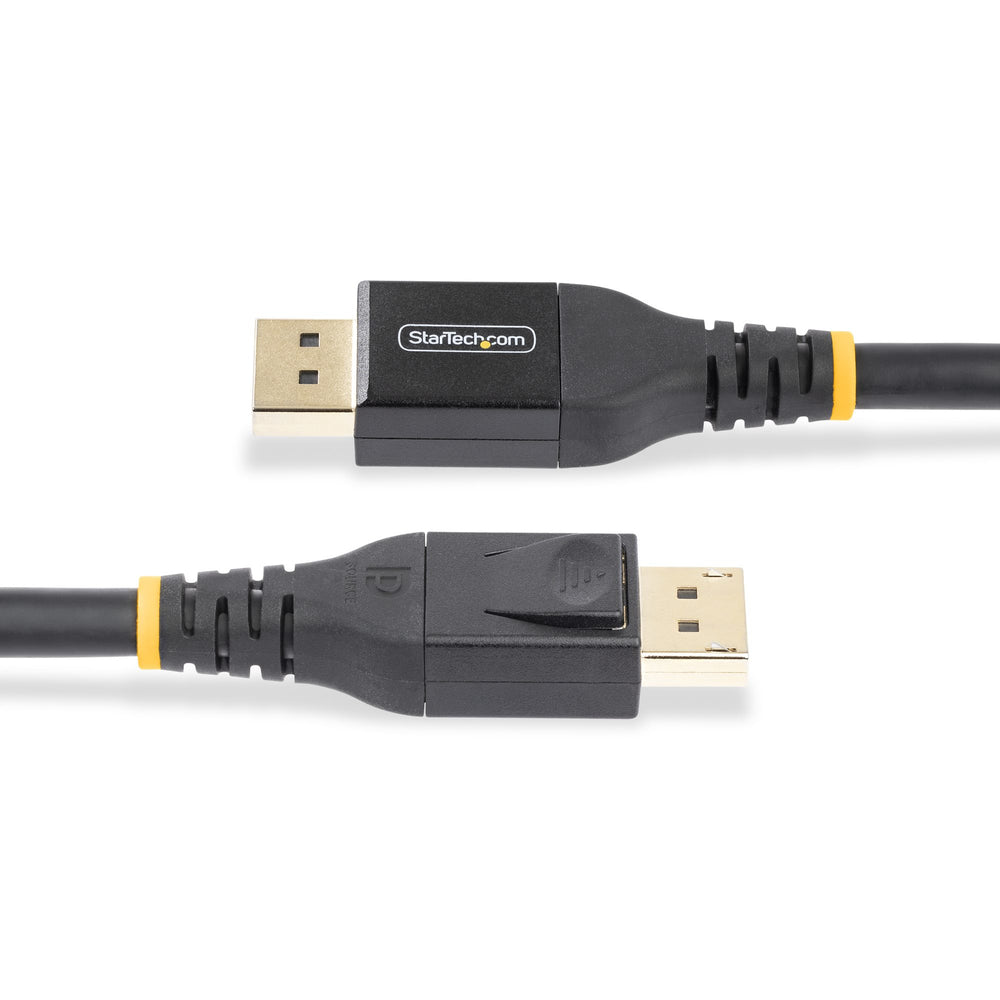

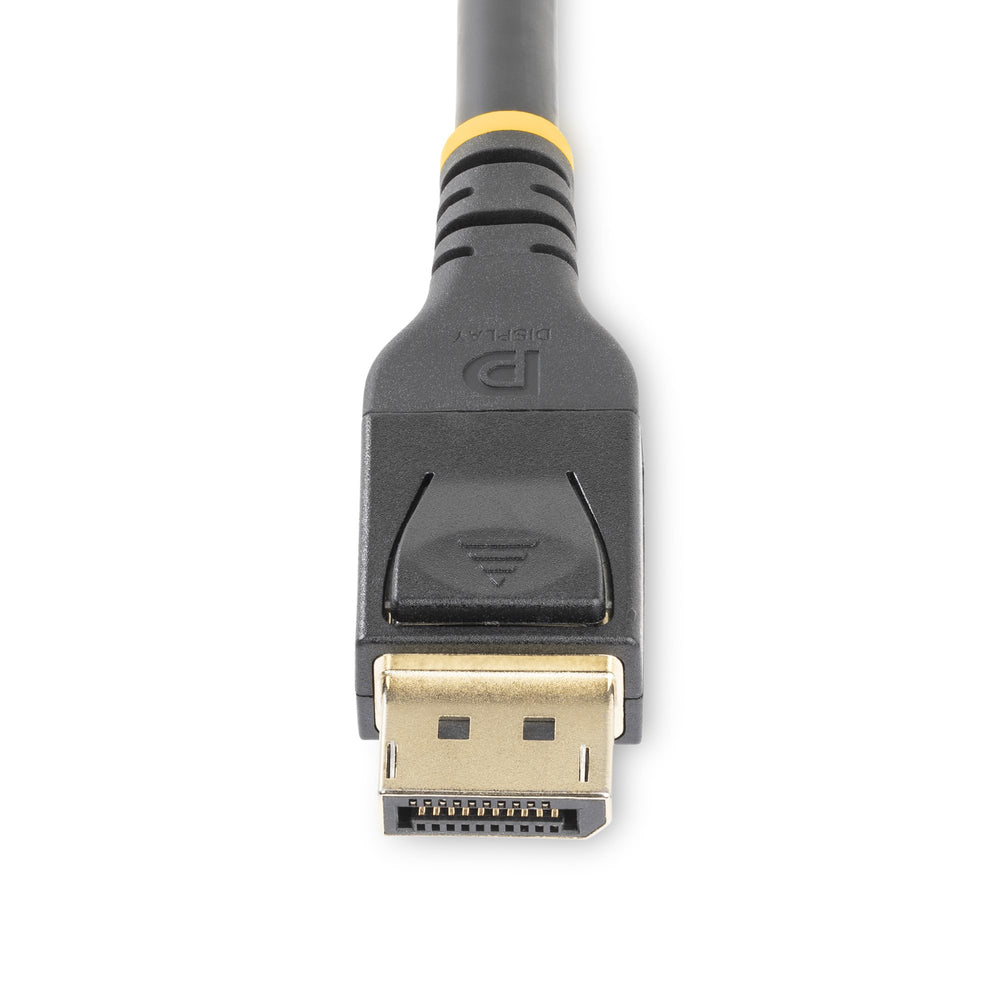

• Gold-plated latching DP connectors for improved conductivity and secure attachment
• Supports resolutions up to 8K 60Hz, 4K 120Hz, and 1440p 240Hz
• HDCP 2.2 support for protected content
• High Bit Rate 3 (HBR3) bandwidth of 32.4Gbps
• High Dynamic Range 10 (HDR10) for enhanced visual quality
• Display Stream Compression 1.2 (DSC 1.2) for efficient data transmission

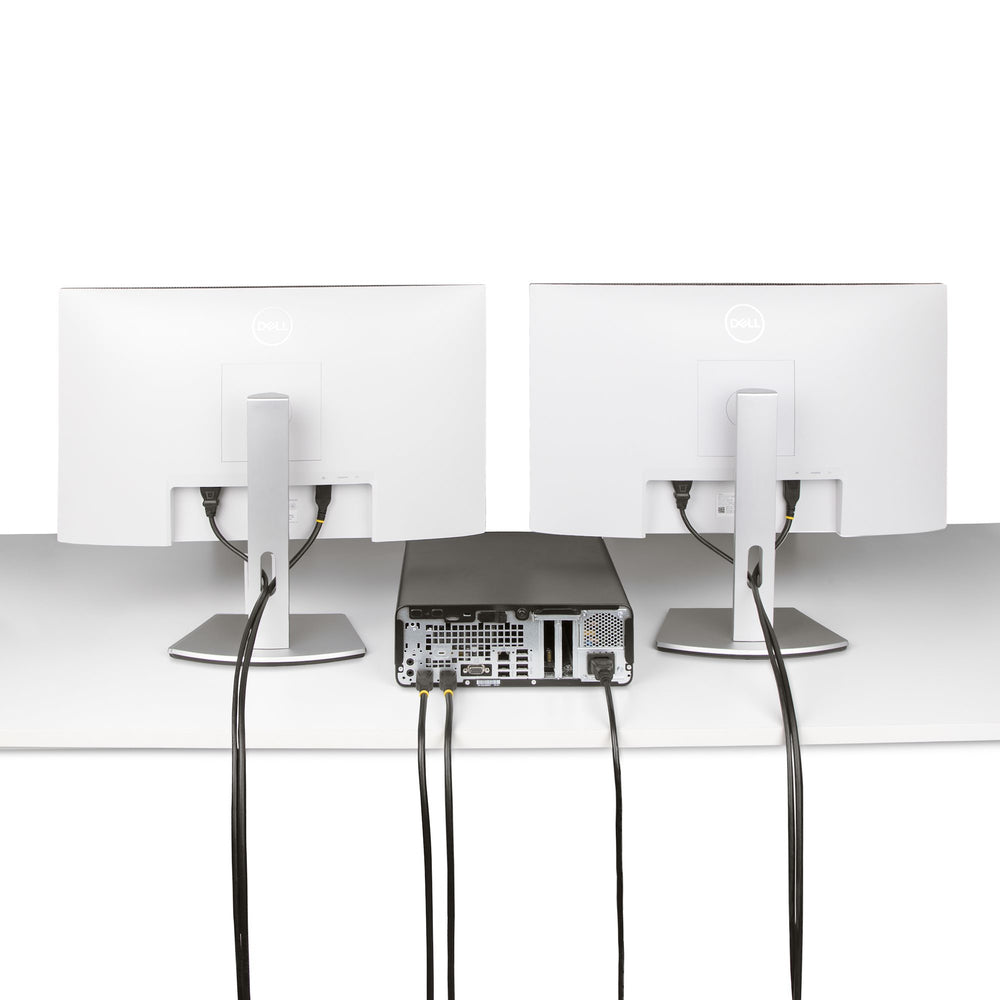

• Multi-Stream Transport (MST) for daisy-chaining multiple monitors
• 32 Uncompressed Digital Audio Channels for immersive sound
• Backward compatible with 5K 60Hz, 4K 120Hz, and previous DP versions

Specifications:

• Operating relative humidity (H-H): 0 - 85
• Storage temperature (T-T): -20 - 60
• Operating temperature (T-T): 0 - 50
• Cable shielding: Aluminum mylar foil
• Connector 1 gender: Male connector
• Connector 2 gender: Male connector
• Master (outer) case length: 380
• Quantity per master (outer) case: 16
• Cable length: 10
• Package depth: 252
• Package height: 120
• Package width: 330
• Master (outer) case height: 290
• Master (outer) case width: 430
• Supported graphics resolutions: 3840 x 2160, 7680 x 4320
• HDCP: Y
• Bandwidth: 32400
• Cable diameter: 7.5
• Connector 1: DisplayPort
• Connector 2: DisplayPort
• Package weight: 700
• Data transfer rate: 25.92
• Maximum resolution: 7680 x 4320
• Product color: Black
• Connector contacts plating: Gold
• Maximum refresh rate: 144
• Fire-resistance rating: VW-1
• Sustainability compliance: Y
• Sustainability certificates: RoHS
• HBR3 support: Y
• Multi-Stream Transport (MST): Y
• Connector 1 form factor: Straight
• Connector 2 form factor: Straight
• Jacket material: Thermoplastic Elastomer (TPE)
• Display Stream Compression (DSC): Y
• Display Stream Compression (DSC) version: 1.2
• HDCP version: 2.2
• AWG wire size: 24/28
• DisplayPort version: 1.4
• Cable material: Copper
