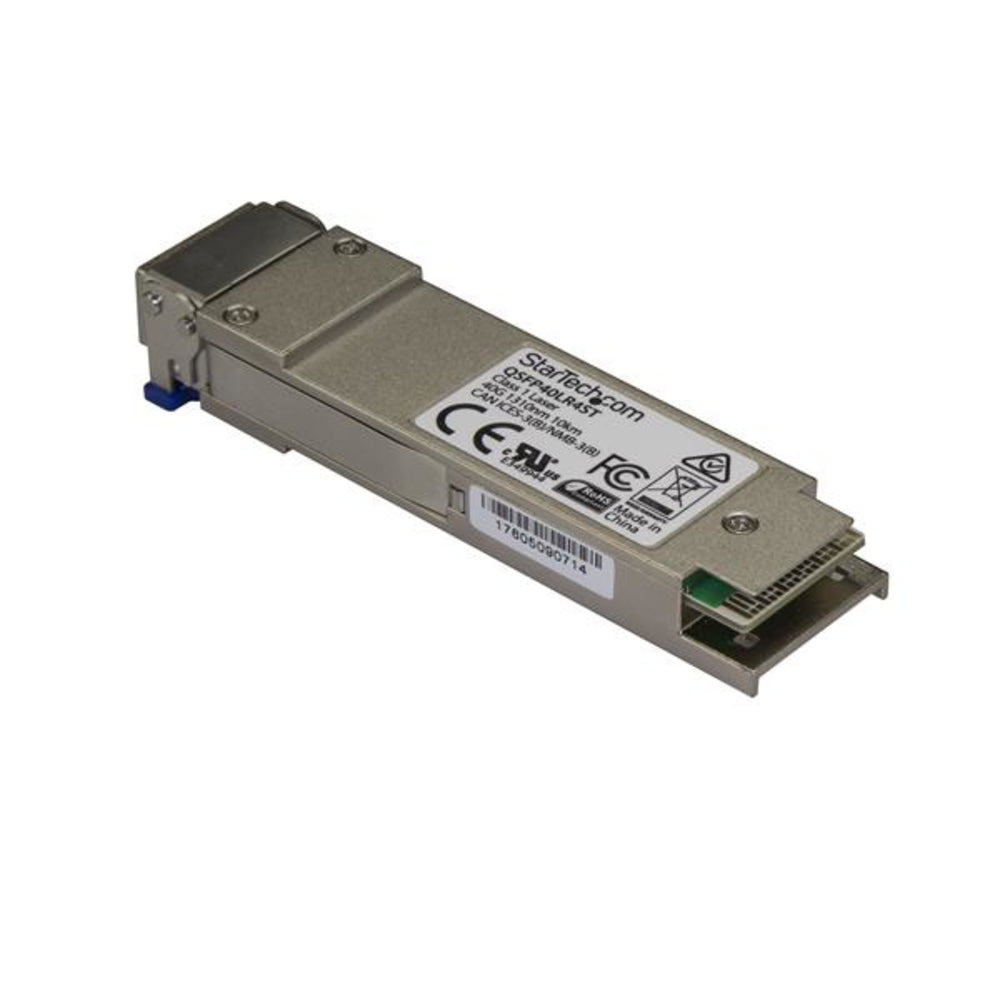

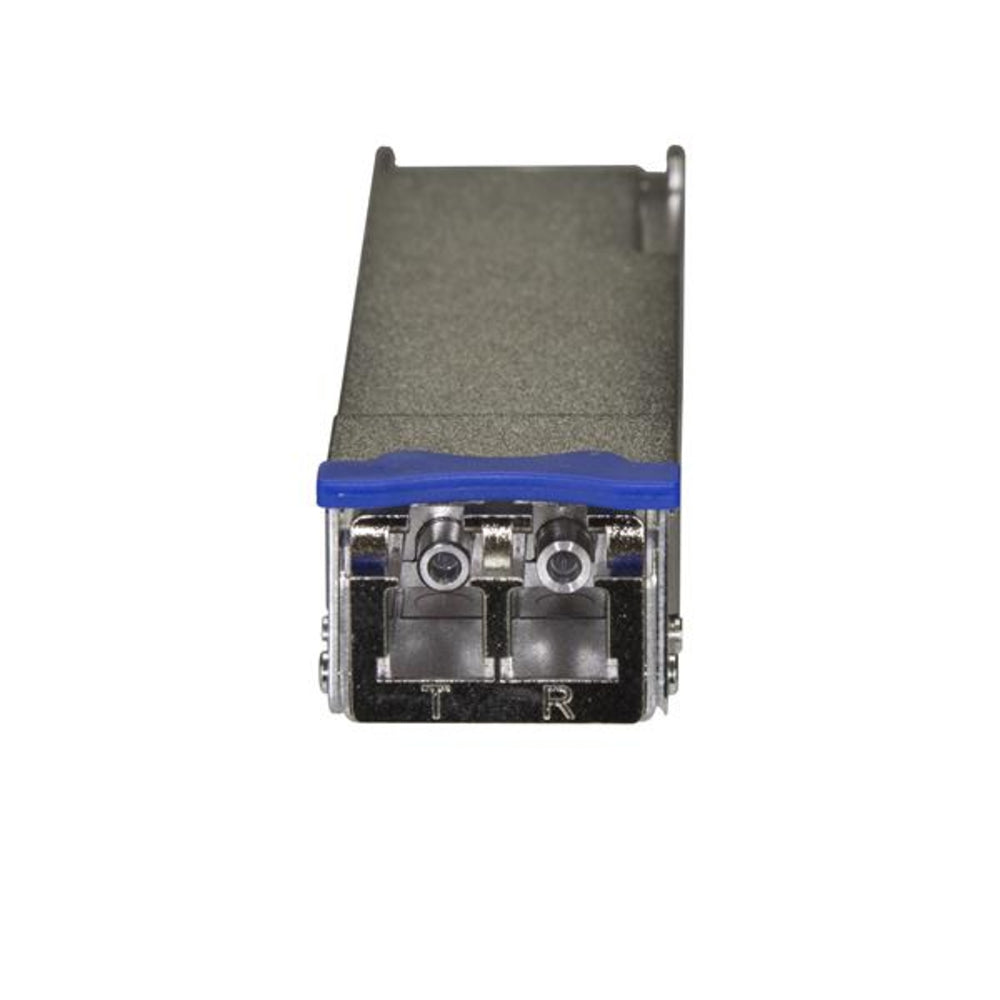

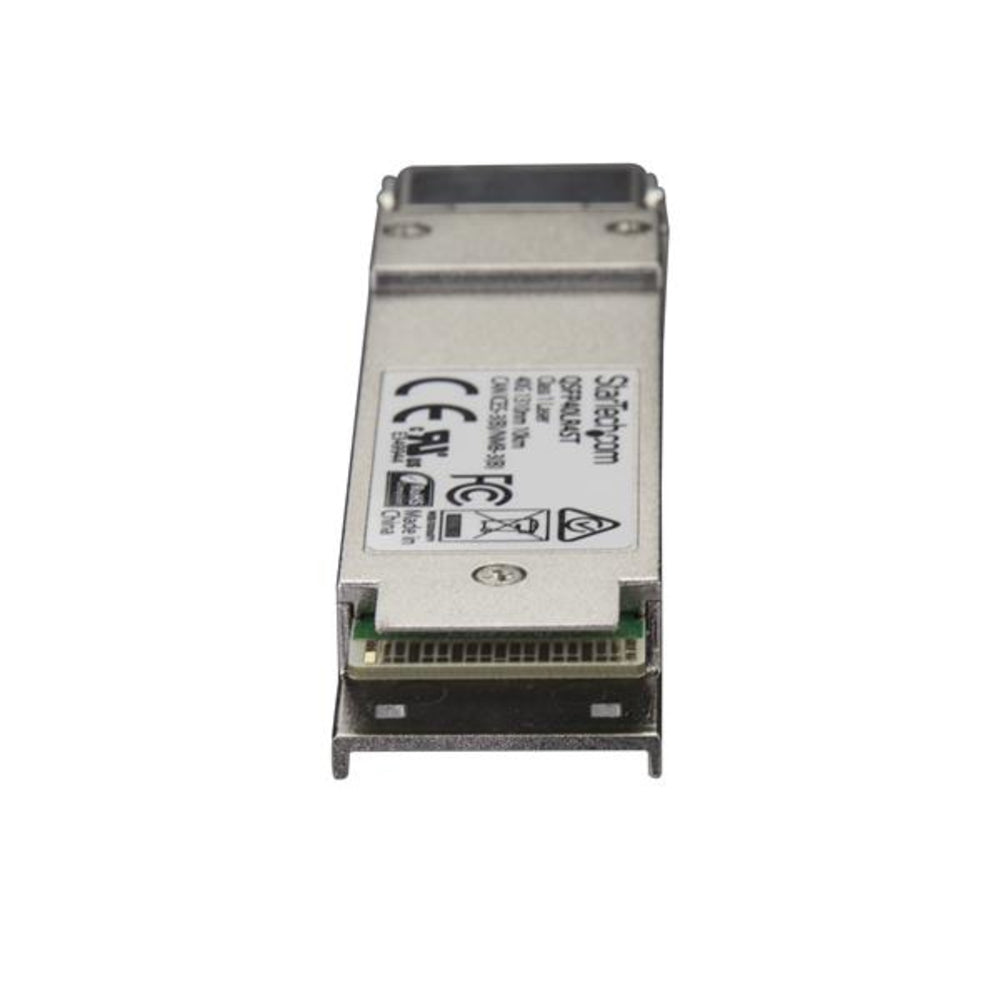

Startech QSFP40LR4ST Fiber Optic 40Gbase-Lr4 Module 40Gbps

The Startech QSFP40LR4ST is an MSA compliant fiber QSFP+ transceiver module designed for use with 40GBASE-LR4 compatible MSA switches and routers. It supports a maximum data transfer rate of 40 Gbps over single-mode fiber with a maximum distance of up to 10 km (6.2 mi). The module features a wavelength range of 1270nm to 1330nm and a connection type of LC Connector. With a MTBF of 1,489,426 hours and a power consumption of less than 2.5 Watts, this hot-swappable module ensures reliable 40 GbE connectivity.

Features:

• Networking standards: IEEE 802.3ba
• SFP transceiver standard: LR4
• Maximum data transfer rate: 40000
• Digital Diagnostics Monitoring (DDM): Yes
• Duplex system: Full
• SFP transceiver type: Fiber optic
• Maximum transfer distance: 10000
• Tx wavelength (min): 1270
• Tx wavelength (max): 1330
• Fiber optic connector: LC
• Interface type: QSFP+
• Product color: Silver
• Housing material: Aluminium
• Certification: CE, FCC, UR
• Operating temperature (T-T): 0 - 70
• Storage temperature (T-T): -40 - 85
• Operating relative humidity (H-H): 5 - 95
• Width: 18.4
• Height: 13
• Depth: 72
• Weight: 40
• Package weight: 76
• Package height: 32
• Package depth: 117
• Package width: 92
• Hot-Plug support: Yes
• RoHS compliance: Yes
• Single-mode fiber (SMF) supported: Yes
• Number of products included: 1
• Power consumption (typical): 2.5
• Mean time between failures (MTBF): 1489426

The StarTech.com Advantage

• Delivers reliable 40 GbE connections for 40GBASE-LR4 compliant networks
• StarTech.com SFP modules are backed by a lifetime warranty
• Complies with Multi-Source Agreement (MSA) industry standards

Learn More

• Learn more about 40 Gigabit Ethernet on Wikipedia

Product: Startech QSFP40LR4ST Fiber Optic 40Gbase-Lr4 Module 40Gbps

Brand: Startech.Com

Model: QSFP40LR4ST

Shipping Weight: 0.15 lb

Shipping Height: 1.30 in

Shipping Width: 3.70 in

Shipping Length: 4.60 in
