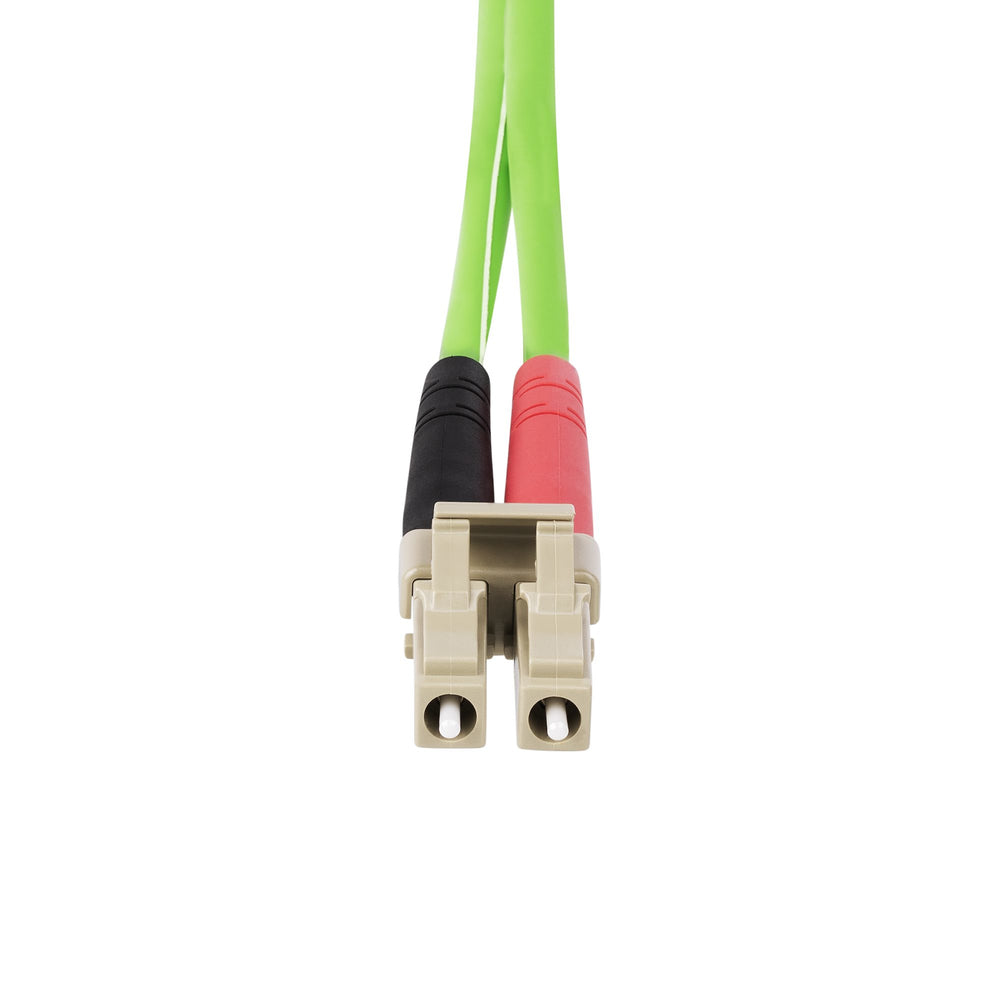

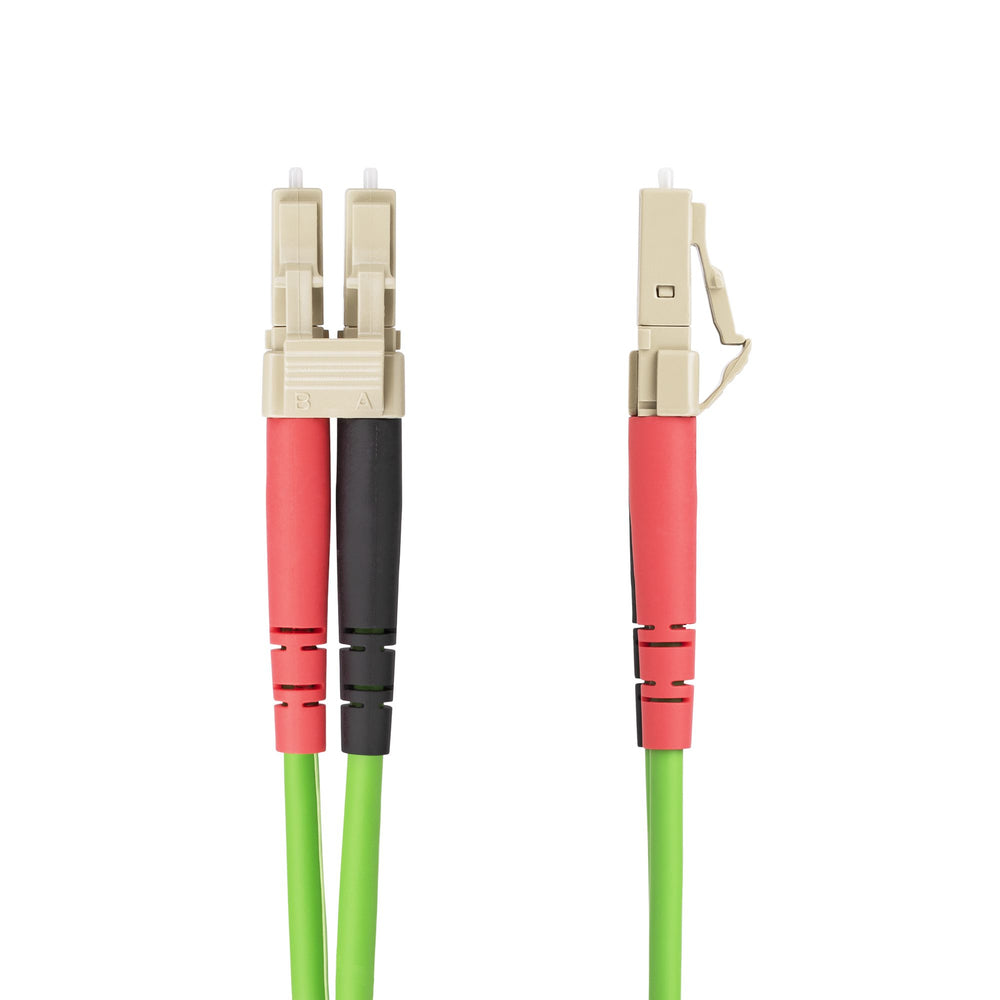

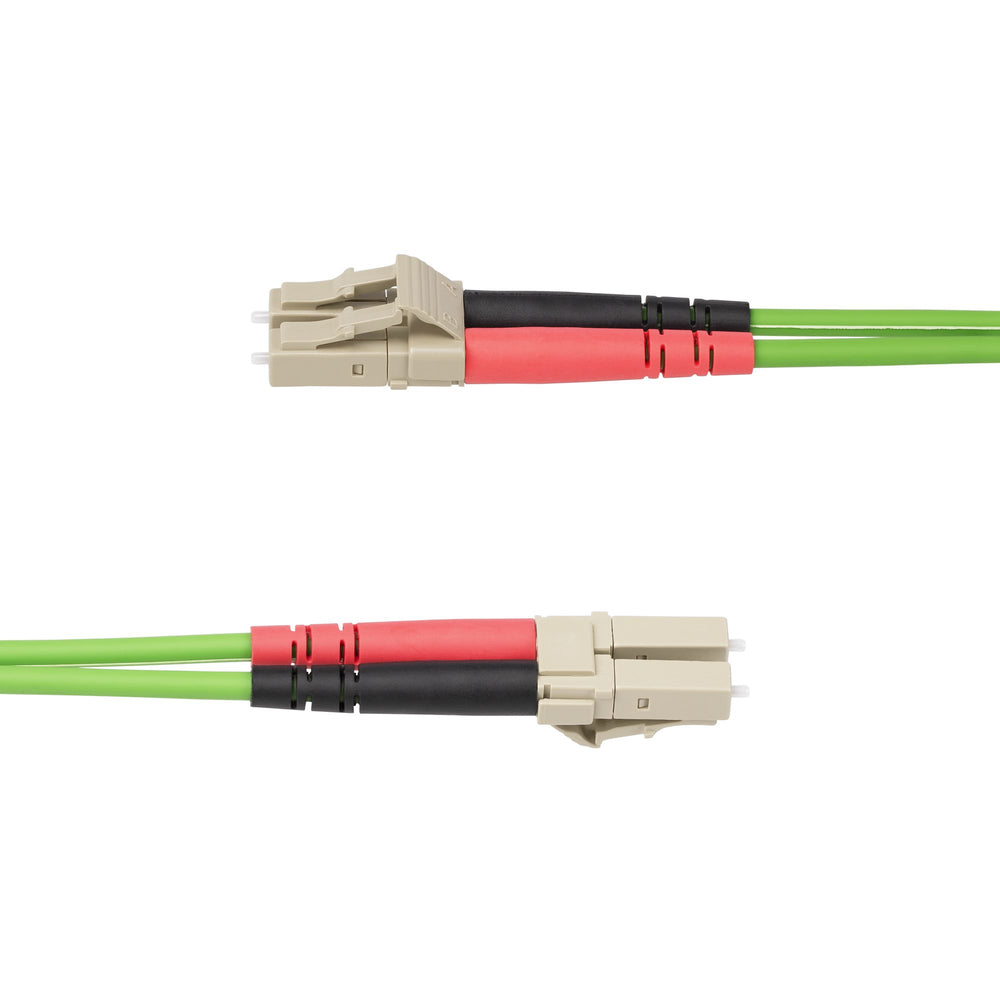

Startech LCLCL-10M-OM5-Fiber LC/LC Multimode Fiber Cable

The Startech LCLCL-10M-OM5-Fiber LC/LC Multimode Fiber Cable is a high-performance fiber optic patch cable designed to enhance the connectivity and performance capabilities of SWDM applications over an OM5 fiber network. With its LC to LC connectors, this duplex cable facilitates seamless connectivity across 40G and 100G networks.

Key Features:

• Supports SWDM (Shortwave Wavelength Division Multiplexing) across an extended wavelength range of 850-953nm VCSEL
• Precision-manufactured ceramic ferrules ensure correct fiber alignment and minimize insertion loss
• LC to LC UPC polished fiber ends improve return loss characteristics
• Compatible with OM4 and OM3 10G networks for seamless integration in legacy fiber environments
• LSZH (Low-Smoke, Zero-Halogen) flame-retardant jacket for enhanced safety during installations
• Individually tested for insertion loss performance that meets or exceeds industry standards

Specifications:

• Storage temperature (T-T): -20 - 60
• Operating temperature (T-T): -20 - 60
• Connector 1 gender: Male connector
• Connector 2 gender: Male connector
• Bending radius: 60
• Quantity per pack: 1
• Wavelengths supported: 953, 1300, 850
• Master (outer) case length: 410
• Quantity per master (outer) case: 80
• Cable length: 10
• Cable type: LOMM
• Package depth: 200
• Package height: 20
• Package width: 220
• Master (outer) case height: 450
• Master (outer) case width: 410
• Cable diameter: 2.9
• Connector 1: LC
• Connector 2: LC
• Package weight: 85
• Data transfer rate: 100
• Product color: Green
• Full duplex: Y
• Fiber mode structure: Multi-mode
• Return loss: 30
• Fiber optic type: OM5
• Sustainability compliance: Y
• Sustainability certificates: RoHS, CE
• Core diameter: 50
• Cladding diameter: 125
• Jacket material: Low smoke zero halogen (LSZH)

Learn More:

For more information about fiber optic cables, visit the Fiber Optic Cable Wikipedia page.

To learn about SWDM technology, refer to the Shortwave Wavelength Division Multiplexing Wikipedia page.

For details on VCSEL, check out the Vertical-Cavity Surface-Emitting Laser Wikipedia page.

Product: Startech LCLCL-10M-OM5-Fiber LC/LC Multimode Fiber Cable

Brand: Startech.Com

Model: LCLCL-10M-OM5-FIBER

Shipping Weight: 0.30 lb

Shipping Height: 0.90 in

Shipping Width: 6.80 in

Shipping Length: 7.00 in
